How do I remove whats left of a snapped head bolt????



Page 1 of 1 [ 15 posts ]


 Post subject: How do I remove whats left of a snapped head bolt????
Posted: Thu Dec 21, 2006 2:41 am
Getting Side Ways
Offline

Age: 29

Posts: 486

Joined: 23rd Sep 2005

Ride: EB S1 3.9L Bush basher

Location: Perth
WA, Australia

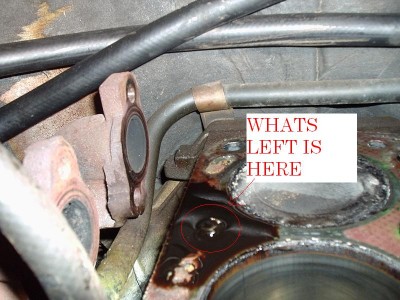

I just removed my head and 1 bolt was quite a lot shorter than the rest, and had no thread, as the rest of it had snapped off. How do i remove the snapped bit????? Here is a pic.





Attachments:
File comment: This is all that is left of the thread :(
Snapped Head Bolt.JPG
Snapped Head Bolt.JPG [ 93.34 KiB | Viewed 56 times ]



_________________

I dont care how fast your car is, mine goes faster through the bush.

Top
 Profile


Posted: Thu Dec 21, 2006 8:46 pm
Parts Gopher
Offline

Age: 34

Posts: 62

Joined: 6th Oct 2005

Ride: ED Hwy rider

Location: Way out SE Melb
VIC, Australia

delete me....



_________________

5spd conversion, extac 2 1/2 mandrell bend, 2.92lsd, kings lowered.

Last edited by Xplodefalcon on Thu Dec 21, 2006 8:47 pm, edited 1 time in total.

Top
 Profile


Posted: Thu Dec 21, 2006 8:46 pm
Parts Gopher
Offline

Age: 34

Posts: 62

Joined: 6th Oct 2005

Ride: ED Hwy rider

Location: Way out SE Melb
VIC, Australia

go to repco and get a broken stud remover, looks like a screw with a reverse therad and then drill a small hole in it, and use the tool. if that doesn't work, drill a bigger hole and hit the crap out of a screw driver and try jam it in and turn it out. depend how dodgy you are.
good luck i know the pain.



_________________

5spd conversion, extac 2 1/2 mandrell bend, 2.92lsd, kings lowered.

Top
 Profile


Posted: Thu Dec 21, 2006 9:32 pm
Getting Side Ways
Offline
User avatar

Age: 33

Posts: 5924

Joined: 5th Nov 2004

Gallery: 7 images

Ride: Ford FPV FG F6 310

Power: 149 rwkw

Location: Brisbane
QLD, Australia

that is a bastard. i also would try drilling a hole in it to get a stud remover bit onto it, but because it's hardened bolt it may be a real prick.
soak it in wd40 overnight, give it a few light taps on the head to loosen the thread up, and also heat it with an oxy around the block (but not too hot).
that's all i can think of, otherwise there is some places that specialise in that sort of thing.



_________________

NEW RIDE - FPV FG F6 6spd Auto. 12.26@114MPH, 1.88 60FT on Cheapy Tyres with 38PSI - Stock except K&N filter!

R.I.P. BF XR6 Turbo - You will not be forgotten :( 12.06@120MPH

Top
 Profile


Posted: Thu Dec 21, 2006 9:50 pm
Getting Side Ways
Offline
User avatar

Age: 31

Posts: 4849

Joined: 19th Feb 2005

Gallery: 1 images

Ride: BA Falcon Suzy Across

Power: 178 rwkw

Location: melbourne
VIC, Australia

If your careful with a welder, you could weld a socket or something on top of the head bolt, just make sure you dont use a piece of s**t socket, use an impact socket and don't weld the actual head to it or you will be f**k.



_________________

178.3 rwkw
15.1@96 mph
Now with 3.9 shrooms

Top
 Profile


Posted: Fri Dec 22, 2006 12:26 am
Getting Side Ways
Offline
User avatar

Age: 33

Posts: 2058

Joined: 25th May 2006

Ride: ef xr8

Power: 229 rwkw

Location: Perth
WA, Australia

A nut works well too but its probably not a good idea to use a welder as you pretty much have to get the earth right on the bolt. Too far away (any where from 2 inches away) and you risk arcing through internal parts.



_________________

Because of Beer, Thirst is a Beautiful Thing!

'95 EF XR8 auto, Advance headers, 3" exhaust, Cobra manifold, BBK 75mm throttle body , 80MM Marauder MAF, Vortech V2 T Trim , 307 rwhp, 405 ft/lb 13.2 @ 105 MPH

Now N/A (permanent Lag) - AFR 165's, Comp XE270 cam, 1.6 RR - 269 rwhp 14.1 @ 102mph.

Top
 Profile


Posted: Fri Dec 22, 2006 12:35 am
Getting Side Ways
Offline
User avatar

Age: 33

Posts: 832

Joined: 5th Nov 2004

Gallery: 7 images

Ride: EL Fairmont

Location: Brisbane
QLD, Australia

erm. no head left to weld it too.



_________________

too many rabbits in china

Top
 Profile


Posted: Fri Dec 22, 2006 12:35 am
Getting Side Ways
Offline

Age: 33

Posts: 1494

Joined: 1st Dec 2004

Gallery: 2 images

Ride: BA MkII XT Wagon

Location: Maitland
NSW, Australia

f**k off....u are kiddin me...u could weld a nut on it...u could try a screw extractor...or next time u could try remvoing the head bolts in the fashion that they are meant to be descibed in a manual....usually the reverse way u are meant to torque them....

anyway.....if u have a welder...put a nut a bit nigger then the bolt over the hole....turn the amps up to about 115 or so...and weld the nut onto the stud.....let it cool then slowly and gently work it out with a shifter or spanner... u dont want it gettin caught and breaking again!



_________________


Top
 Profile


Posted: Fri Dec 22, 2006 12:37 am
Getting Side Ways
Offline

Age: 33

Posts: 1494

Joined: 1st Dec 2004

Gallery: 2 images

Ride: BA MkII XT Wagon

Location: Maitland
NSW, Australia

old_mate wrote:
erm. no head left to weld it too.


ever heard of building it up a little so u have somethin to weld onto?



_________________


Top
 Profile


Posted: Fri Dec 22, 2006 1:02 am
Tyre Shredder
Offline
User avatar

Posts: 319

Joined: 23rd Jan 2005

Ride: AU I forte

Location: Perth
WA, Australia

i'm sure welding is the way to go. from what i've been told the bolt was already snapped. :P



_________________

PH 4480 racing extractors
lukey 2.5" sports exhaust
Chopper 19"x245 mags
pioneer deck, 6"x1.5" Splits (F) and 6" 3-way speakers (R)
Precision response 4x 100w amp and 1000w mono 10" sub
Got so much more to go!
tint, breaks and spoiler next!

Top
 Profile


 Post subject: Re: How do I remove whats left of a snapped head bolt????
Posted: Fri Dec 22, 2006 1:19 am
Technical Contributor
Offline
User avatar

Age: 53

Posts: 5587

Joined: 14th Jan 2005

Gallery: 10 images

Ride: 96 XH/97 EL

Location: South Coast
NSW, Australia

willygrice wrote:
I just removed my head and 1 bolt was quite a lot shorter than the rest, and had no thread, as the rest of it had snapped off. How do i remove the snapped bit?????
You've already mentioned at http://www.fordmods.com/forums/viewtopic.php?t=41457 that you found the bolt snapped and there is oil everywhere.
So more than likely that bolt is already loose (already mentioned in the linked thread) - try it with your fingertip and see if it rocks slightly.
If so, use a parallel punch and a hammer and try to undo it anticlockwise - this worked for me, so it should for you also.
Since you've said that coolant wasn't a problem, I doubt the threads have corroded and seized.



_________________

96 XH Longreach 'S': LPG, Alarm, 3.23:1 LSD, Cruise, Trip Comp, ABS, Power Windows, Mid Series Dome Lt, Climate Ctrl
97 EL Futura S/W: LPG, Alarm, LED int Lts, Trip Comp, F/Lane Dome Lt, Climate Ctrl, T5 Conversion

Top
 Profile


Posted: Fri Dec 22, 2006 2:07 pm
Getting Side Ways
Offline

Age: 29

Posts: 486

Joined: 23rd Sep 2005

Ride: EB S1 3.9L Bush basher

Location: Perth
WA, Australia

i think i will have to go the welding way, scary, but nothing else seems to work



_________________

I dont care how fast your car is, mine goes faster through the bush.

Top
 Profile


Posted: Fri Dec 22, 2006 2:38 pm
Getting Side Ways
Offline
User avatar

Posts: 2644

Joined: 6th Nov 2004

Gallery: 8 images

Ride: 2007

Location: Mount Annan
NSW, Australia

willygrice wrote:
i think i will have to go the welding way, scary, but nothing else seems to work
Welding would be the last resort. Try a center punch first to see if it can turn out easily next the easy out method and tap the bolt a few times first..... Do a search this has come up a few times over the years you might find a thread with the result in it.



_________________

BF Fairmont Ghia Series II update.
GQ XR6T ghia patrol.

,======o00o
//__|__|_,\_____\,___
|_/--\'_|'__|_/--\_[]IIII[]
_( o ) )_____( o ) )=o=) )__

Top
 Profile


Posted: Fri Dec 22, 2006 2:51 pm
Getting Side Ways
Offline
User avatar

Posts: 3115

Joined: 20th Dec 2004

Ride: Falcon

Location: Adelaide
SA, Australia

Jebus some of you guys like to do things the hard way.

Surely its easier to hold the bolt stationary while you rotate the car around it.



_________________

Stoke me a clipper, I'll be back for Christmas

Top
 Profile


Posted: Fri Dec 22, 2006 3:11 pm
Getting Side Ways
Offline
User avatar

Age: 31

Posts: 2396

Joined: 25th Sep 2005

Gallery: 9 images

Ride: Da Maverick & xe ute

Location: Upper FTG. melbourne
VIC, Australia

heli coil (screw remover)



_________________

Mods: sprint kit, steeda short shift, svo lip, El handles, El Air intake, au xr wheels, lukey cat back, jbl focal and pioneer sterio <--- Sold

Xe ute - Bright green with 302

Da maverick - Straight gas turbo

Top
 Profile
