How much power will i make??



Page 1 of 2 [ 24 posts ] Go to page 1, 2  Next


 Post subject: How much power will i make??
Posted: Sun Nov 06, 2011 10:32 pm
Smokin em up
Offline
User avatar

Age: 26

Posts: 278

Joined: 21st Nov 2010

Gallery: 20 images

Ride: EF SERIES 2 XR6

Location: Wyong
NSW, Australia

Hey all, im just after some opinions on how much power you think i will make out of the new motor for my ef, it is not yet asembled and i will find out when its done anyway but i was thinking some of you guys with experience regarding the sohc sixes could give me a rough estimate.

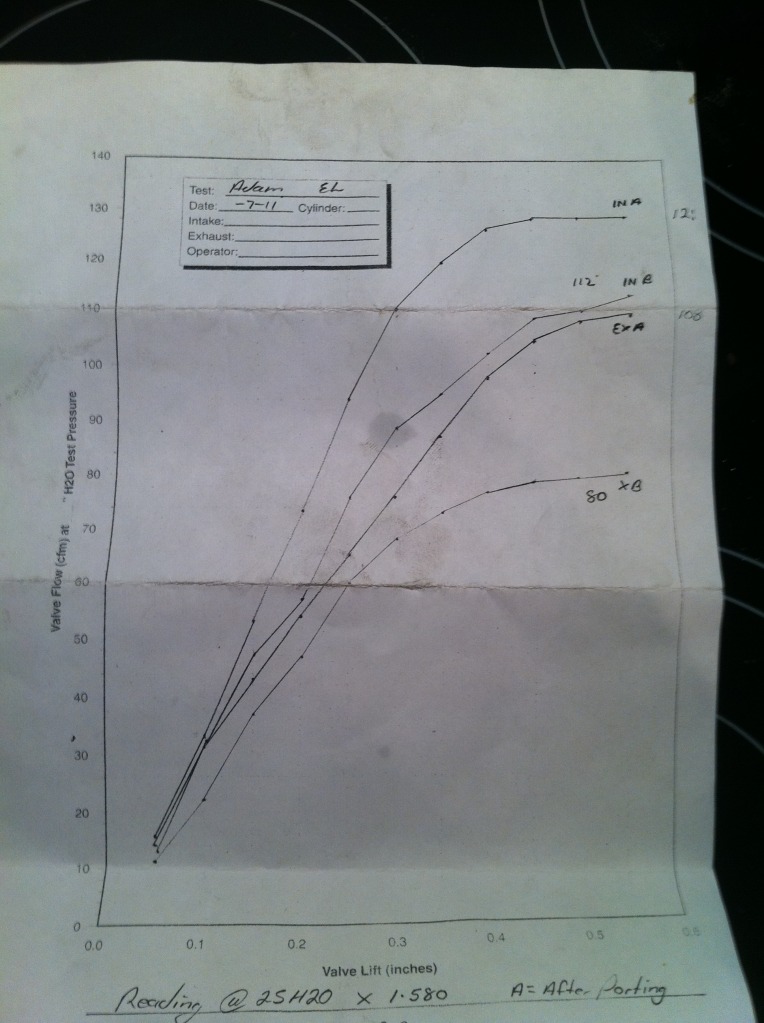

The bottom end is standard other then being shot peened, the comp ratio is 11 to 1 and the cylinder head has been ported ( i have provided the flow chard show before and after porting ).
A camshaft is yet to be picked wich im sure will make it hard to estimate a power output but i have been told a cam will be chosen to match the cylinder head flow chart. i also have ceramic coated pacemaker 4499's that have been port matched to the head. Even a rough estimate of what it would be capable of with the right cam would be great, oh and it will be running a fully tuneabe vipec ecu not a chip. Cheers
Attachment:
Flow%20chart.jpg [ 140.23 KiB | Viewed 71 times ]

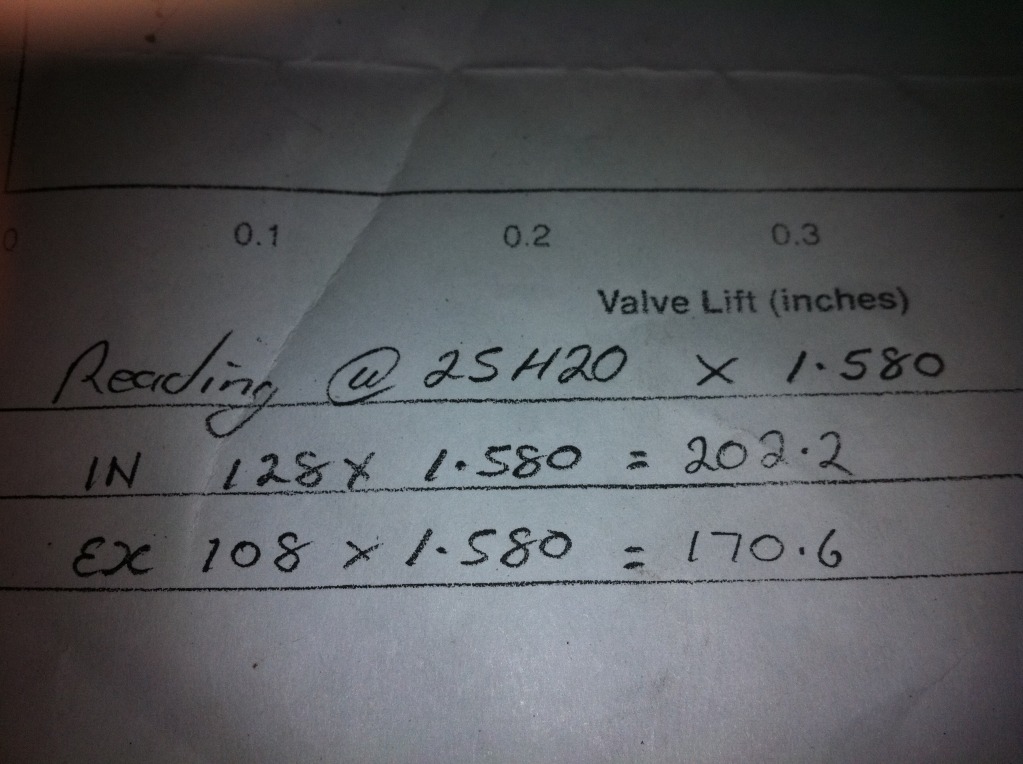

Attachment:
flow%202.jpg [ 158.33 KiB | Viewed 26 times ]



_________________

96 EF XR6 Factory 5 sp, currently in the middle of building a new motor
75 XB hardtop, factory 351-4speed 9 inch 81000 genuine km's

Top
 Profile


 Post subject: Re: How much power will i make??
Posted: Sun Nov 06, 2011 10:33 pm
Smokin em up
Offline
User avatar

Age: 26

Posts: 278

Joined: 21st Nov 2010

Gallery: 20 images

Ride: EF SERIES 2 XR6

Location: Wyong
NSW, Australia

The car is also a 5 speed manual xr6, so 3.45 diff gears if quoting rwkw figures, and the cylinder bores are 20thou over cheers



_________________

96 EF XR6 Factory 5 sp, currently in the middle of building a new motor
75 XB hardtop, factory 351-4speed 9 inch 81000 genuine km's

Top
 Profile


 Post subject: Re: How much power will i make??
Posted: Sun Nov 06, 2011 11:31 pm
Getting Side Ways
Offline
User avatar

Age: 30

Posts: 1507

Joined: 14th Aug 2009

Gallery: 12 images

Ride: BA XT V8

Location: Gosnells, Perth
WA, Australia

89.76rwkw



:lol:



_________________

BA XT V8. Ice Mint. 18" Speedys. XR6T LSD. Full Pacemaker twin 2 1/2inch Stainless Steel system. Custom CAI. Black XR interior with white trimming. Powerbond underdrive kit 25%.
13.65@102mph. 2800 hi-Stall.
230RWKW@5250 rpm. 625NM.

Top
 Profile


 Post subject: Re: How much power will i make??
Posted: Sun Nov 06, 2011 11:51 pm
Smokin em up
Offline
User avatar

Age: 26

Posts: 278

Joined: 21st Nov 2010

Gallery: 20 images

Ride: EF SERIES 2 XR6

Location: Wyong
NSW, Australia

Benny D wrote:
89.76rwkw



:lol:


At 15000 rpm?? :roll: ill be chirping gears for sure uleh :lol:



_________________

96 EF XR6 Factory 5 sp, currently in the middle of building a new motor
75 XB hardtop, factory 351-4speed 9 inch 81000 genuine km's

Top
 Profile


 Post subject: Re: How much power will i make??
Posted: Mon Nov 07, 2011 6:56 am
Moderator
Offline

Posts: 14513

Joined: 7th Nov 2004

Ride: ford falcon au3 xr8

Location: a shit suburb in sydney
NSW, Australia

ill take a shot and say around 150rwkw
Top
 Profile


 Post subject: Re: How much power will i make??
Posted: Mon Nov 07, 2011 7:16 am
Stock as a Rock
Offline

Age: 51

Posts: 158

Joined: 25th Dec 2010

Ride: 1995 EF Falcon

Location: Adelaide
SA, Australia

I'd say Troyman is pretty close yeah.

you know EF_96_XR, these long stroke torquey motors love forced induction its the cheapest way to turn them into a giant killer. ;)



_________________

South Australia.. Heaps good.

Top
 Profile


 Post subject: Re: How much power will i make??
Posted: Mon Nov 07, 2011 10:00 am
Fordmods Junkie
Offline
User avatar

Posts: 11739

Joined: 17th May 2005

Gallery: 11 images

Ride: EL Fairmont, VFR400 racer

Power: 144 rwkw

Location: Melbourne
VIC, Australia

+1 with Troyman...if you don't get that figure, that would really suck. I'd be majorly disappointed if I did all that work to get less than 150rwkw.



_________________

phongus = Post whore 2006
EL XR6 motor, EL ECU + J3 chip, WADE 1673 Camshaft, 3" S/S intake, Pacy 4480, 2.5" Hi flow cat, 2.5" Lukey exhaust.
Max Power = 144.6 rwkw (03/05/2008)

Top
 Profile


 Post subject: Re: How much power will i make??
Posted: Mon Nov 07, 2011 11:33 am
Getting Side Ways
Offline

Posts: 836

Joined: 1st Apr 2005

Gallery: 4 images

Ride: EF XR6 Wagon, AU2 XR6 VCT

Power: 148 rwkw

Location: Auckland
New Zealand

Take a look at some of the E-series cars Bullet Performance Racing has done:
http://www.bpracing.com.au/Ford-ESeries.html

Your head work looks like it's made a big improvement in flow, so you can assume that it's not too far off BPR's WPN (weapon) head. With 11.0:1 compression, you will need a reasonably hot cam to match (and avoid detonation at low rpm). Based on some of the similar manual cars on BPR's website, I would guesstimate a minimum of 160-170rwkw after dyno-tuning. You could get as high as 180-185rwkw.

Also take a look at TI Performance's owners gallery:
http://www.tiperformance.com.au/owners_gallery.php
Check out Gerard's EL - his car sounds not unlike what you're doing - and he made 186rwkw! There are a few mildly cammed E-series with automatics and no head porting still getting around 150rwkw. Obviously, kw will vary from dyno to dyno, too.

Hope this helps.



_________________

95 EF XR6 wagon, 17" FTRs, DBA, QFM, KYB/Koni, AU block, ported EF head, SS Inductions, Territory intake, MLS gasket, milled, Franklin RH24B cam, Coby headers, no cat, Tickford 2.5", 2800rpm stall, J3 chip

Top
 Profile


 Post subject: Re: How much power will i make??
Posted: Mon Nov 07, 2011 1:15 pm
Getting Side Ways
Offline
User avatar

Age: 54

Posts: 844

Joined: 12th Aug 2007

Gallery: 22 images

Ride: AU2 XR8 ute & 91 EA bitsa

Location: Melbourne
VIC, Australia

efxr6wagon wrote:
Take a look at some of the E-series cars Bullet Performance Racing has done:
http://www.bpracing.com.au/Ford-ESeries.html

My car's number 3 on that BPR list and it was difficult to get to 164rwkw with a Wade 1673. IMO you'll need a 1521a to get over 170+rwkw, a CMS Stage 3 (or similar).

EF_XR_96, what's your exhaust setup after the extractors? With the improved flow in the head, you might consider going to a 3" from the cat back.



_________________

AU2 XR8 with Raptor VL, ported Yella Terra GT40P heads, Scorpion 1.6 RRs, XE264HR-14 Comp Cam, ceramic coated Hurricane Headers, 60lb injectors, Walbro 255, 200cfi cats, 3" exhaust & Snow Performance water methanol injection

Top
 Profile


 Post subject: Re: How much power will i make??
Posted: Mon Nov 07, 2011 8:37 pm
Getting Side Ways
Offline

Age: 29

Posts: 2563

Joined: 19th Feb 2007

Gallery: 21 images

Ride: 98 EL Futura

Power: 199 rwkw

Location: Lilydale
VIC, Australia

i would say 160's depending how big of cam you go



_________________

EL Futura: CVE head, Wolf V500, ICE Ignition and Coil, 36lb injectors, Walbro 255lb, Paci comps, 3" exhaust, T5, Harrop Truetrac with 3.9s. Now with 198.9rwkw, (~185rwkw and 13.80 @99.1mph) with more power to come

Top
 Profile


 Post subject: Re: How much power will i make??
Posted: Mon Nov 07, 2011 8:48 pm
Getting Side Ways
Offline
User avatar

Age: 25

Posts: 4599

Joined: 30th Aug 2010

Ride: BF XR6,

Location: NEWCASTLE
NSW, Australia

Shortshift wrote:
efxr6wagon wrote:
Take a look at some of the E-series cars Bullet Performance Racing has done:
http://www.bpracing.com.au/Ford-ESeries.html

My car's number 3 on that BPR list and it was difficult to get to 164rwkw with a Wade 1673. IMO you'll need a 1521a to get over 170+rwkw, a CMS Stage 3 (or similar).

EF_XR_96, what's your exhaust setup after the extractors? With the improved flow in the head, you might consider going to a 3" from the cat back.

thats still impressive for a 1673,



_________________

BF XR6
xr8 snorkel,typhoon lower snorkel,territory intake pipe,20% underdrive kit,pacemaker extractors,high flow cat,xforce exhaust,t56 conversion hd turbo clutch/ flywheel,m86 3.45 lsd,custom tune187.1rwkw as an auto

Top
 Profile


 Post subject: Re: How much power will i make??
Posted: Mon Nov 07, 2011 9:07 pm
Getting Side Ways
Offline
User avatar

Age: 25

Posts: 4599

Joined: 30th Aug 2010

Ride: BF XR6,

Location: NEWCASTLE
NSW, Australia

im actually considering making an n/a setup with dual throttlebodys like ive seen on here, it was a ed log manifold turned upside down, the end was blocked off where the throttlebody went and it had 2 throttlebodys put on top similar to the e series bbm but with 2 t/b, mild cam ported head and some high comp pistons, but im not sure how it would go on a registered daily drive fual wise or driveability in traffic :?:



_________________

BF XR6
xr8 snorkel,typhoon lower snorkel,territory intake pipe,20% underdrive kit,pacemaker extractors,high flow cat,xforce exhaust,t56 conversion hd turbo clutch/ flywheel,m86 3.45 lsd,custom tune187.1rwkw as an auto

Top
 Profile


 Post subject: Re: How much power will i make??
Posted: Mon Nov 07, 2011 9:20 pm
Moderator
Offline

Posts: 14513

Joined: 7th Nov 2004

Ride: ford falcon au3 xr8

Location: a shit suburb in sydney
NSW, Australia

bry40l wrote:
im actually considering making an n/a setup with dual throttlebodys like ive seen on here, it was a ed log manifold turned upside down, the end was blocked off where the throttlebody went and it had 2 throttlebodys put on top similar to the e series bbm but with 2 t/b, mild cam ported head and some high comp pistons, but im not sure how it would go on a registered daily drive fual wise or driveability in traffic :?:


afaik xcabbi has that manifold now, i dont think he is using it on anything at the moment either :wink: ..
Top
 Profile


 Post subject: Re: How much power will i make??
Posted: Mon Nov 07, 2011 9:39 pm
Getting Side Ways
Offline
User avatar

Age: 25

Posts: 4599

Joined: 30th Aug 2010

Ride: BF XR6,

Location: NEWCASTLE
NSW, Australia

i did see that he bought it, hmm lol, might be able to get the father inlaw to make indivual thottlebodys :twisted:



_________________

BF XR6
xr8 snorkel,typhoon lower snorkel,territory intake pipe,20% underdrive kit,pacemaker extractors,high flow cat,xforce exhaust,t56 conversion hd turbo clutch/ flywheel,m86 3.45 lsd,custom tune187.1rwkw as an auto

Top
 Profile


 Post subject: Re: How much power will i make??
Posted: Mon Nov 07, 2011 9:48 pm
Getting Side Ways
Offline

Posts: 6449

Joined: 11th Nov 2004

I would be heading back to porting bench. you've got 213cfm @ 28"h2o.
A stock AU head shows 195cfm @28"
It's got some reasonable gain at mid lift but the port stalls at .400" valve lift.

I'll bet my left nut there isn't enough area around the short turn where the valve guide protrudes.

.400" lift is roughly where the port becomes the limiting factor, Below that it's the seat/valve that limits flow. Basically what you've paid for is a reworked seat and a back cut on the valves.



_________________

PERMANENTLY BANNED

Top
 Profile
