How do you bleed the ABS on an ED Falcon?

I have changed my fluid twice over the past year and both times the fluid has come dirty after 2 weeks of driving and I'm sure this is from the ABS as all the normal lines were flushed with clean fluid coming out.

So that nice pedal feel when you've just changed your fluid goes right away when the crap stuff in the ABS contaminates it :(

Thanks, Ryan



_________________

Racing an import is like competing in the special olympics.....even if you do win, you're still retarded.

Top
 Profile


 Post subject: Re: How to Bleed ABS
Posted: Mon May 04, 2009 2:25 pm
Stock as a Rock
Offline
User avatar

Age: 34

Posts: 118

Joined: 5th Nov 2004

Gallery: 13 images

Ride: DF LTD

Location: sydney
NSW, Australia

Ok this can be a fun task.

Obviously best way is to bleed the lines that go into the ABS module first then to bleed the actual module itself the easiest way is to have someone sit in the car with the ignition on and have their foot just on the brake pedal and then spin one wheel. this will usually activate the abs and then bleed the fluid through.



_________________

boobies are good

SOuNd By: Rockford Fosgat Alpine and Kicker
POwEr By: crescent motorsport all cylinder head services and of course RMA Jase
Project DF is now in the making all it requires now is that Money stuff hah

Top
 Profile


 Post subject: Re: How to Bleed ABS
Posted: Mon May 04, 2009 8:19 pm
Parts Gopher
Offline

Posts: 72

Joined: 13th Mar 2007

Location: Melbourne
VIC, Australia

Special equipment is required to bleed the Bendix ABS modulator properly.
Top
 Profile


 Post subject: Re: How to Bleed ABS
Posted: Thu May 07, 2009 2:46 pm
Parts Gopher
Offline

Age: 27

Posts: 92

Joined: 15th Apr 2008

Ride: ED Fairmont

Location: Sydney
NSW, Australia

thans for the replies.

What type of equipment are you talking about luthor?



_________________

Racing an import is like competing in the special olympics.....even if you do win, you're still retarded.

Top
 Profile


 Post subject: Re: How to Bleed ABS
Posted: Thu May 07, 2009 8:28 pm
Getting Side Ways
Offline
User avatar

Age: 49

Posts: 6467

Joined: 18th Dec 2006

Ride: 93 ED sedan

Power: 161 rwkw

Location: Rockhampton
QLD, Australia

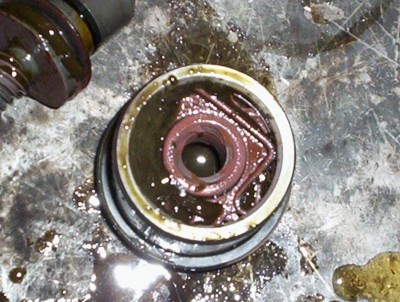

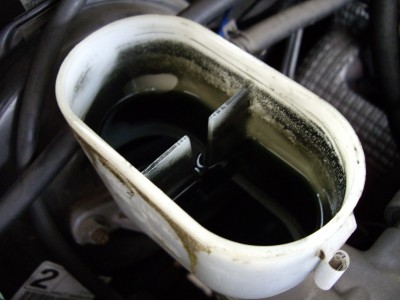

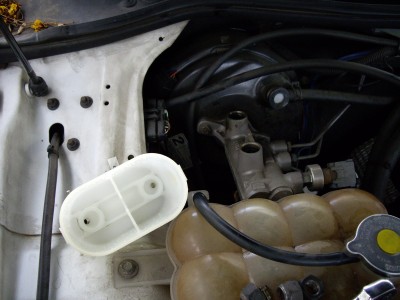

If the brake was very dirty in the first place, the new brake fluid will lift off the scum & debris from inside the master cyl and it will come out the reaction ports.





Attachments:
IMGP1302_resize.JPG [ 209.77 KiB | Viewed 65 times ]
IMGP1303_resize.JPG [ 235.15 KiB | Viewed 45 times ]
IMGP1304_resize.JPG [ 216.39 KiB | Viewed 74 times ]



_________________

http://youtu.be/jJTh9F3Vgg0

Top
 Profile


 Post subject: Re: How to Bleed ABS
Posted: Mon May 11, 2009 3:33 pm
Parts Gopher
Offline

Age: 27

Posts: 92

Joined: 15th Apr 2008

Ride: ED Fairmont

Location: Sydney
NSW, Australia

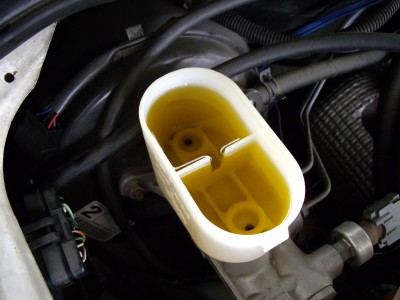

It was never as dirty as the photo in the picture but both times when I bled the system all the lines and filler were crystal clear like in the third photo and after 2 weeks it became very dark murky green again.

The clean fluid just becomes contaminated and the brakes become soft again straight away.



_________________

Racing an import is like competing in the special olympics.....even if you do win, you're still retarded.

Top
 Profile


 Post subject: Re: How to Bleed ABS
Posted: Mon May 11, 2009 3:52 pm
Getting Side Ways
Offline
User avatar

Age: 28

Posts: 5889

Joined: 2nd Mar 2006

Gallery: 5 images

Ride: '14 Grand Cherokee

Location: Port Lincoln
SA, Australia

my brake fluid looks like cjh's first picture :shock:

how did you get it so clean? just washed it out or is there a special way?



_________________

11/93 ED OPT20 GLi | Full Boat Spec

Top
 Profile


 Post subject: Re: How to Bleed ABS
Posted: Mon May 11, 2009 5:49 pm
Parts Gopher
Offline

Age: 27

Posts: 92

Joined: 15th Apr 2008

Ride: ED Fairmont

Location: Sydney
NSW, Australia

Never wash out anything where water can get into the brake fluid or brake lines. Water can be compressed and with water in your brake lines you won't be able to stop :shock:

I just soaked up all the fluid in paper towels and wiped it out then filled up with Nulon brake fluid.

Then bleed the brake lines so all the bad fluid is flushed out with clean stuff



_________________

Racing an import is like competing in the special olympics.....even if you do win, you're still retarded.

Top
 Profile


 Post subject: Re: How to Bleed ABS
Posted: Tue May 12, 2009 2:23 pm
Getting Side Ways
Offline
User avatar

Age: 49

Posts: 6467

Joined: 18th Dec 2006

Ride: 93 ED sedan

Power: 161 rwkw

Location: Rockhampton
QLD, Australia

alfy wrote:
my brake fluid looks like cjh's first picture :shock:

how did you get it so clean? just washed it out or is there a special way?


I have a vacuum brake bleeder kit, I use it to suck out the old fluid, remove the res, clean i with truck wash, dr it, refit it, then put in new fluid, and continue to flush the system.
The clean fluid will only last a couple of weeks, slowly gets dirty as the new fluid will lift any crud in the master cyl, and come back in through the reaction ports, into the res.

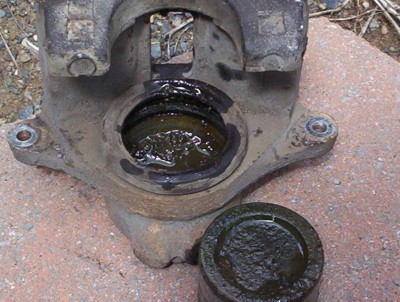

If the system has been abused ( lack of flushes ), you get this at the calipers.





Attachments:
Lance's P76 rotors for AUII ABS tone wheels 07 002.jpg
Lance's P76 rotors for AUII ABS tone wheels 07 002.jpg [ 418.27 KiB | Viewed 73 times ]
ED Falcon brakes, dirty fluid etc. 005.jpg
ED Falcon brakes, dirty fluid etc. 005.jpg [ 344.13 KiB | Viewed 59 times ]
ED Falcon brakes, dirty fluid etc. 006.jpg
ED Falcon brakes, dirty fluid etc. 006.jpg [ 411.94 KiB | Viewed 61 times ]



_________________

http://youtu.be/jJTh9F3Vgg0

Top
 Profile


 Post subject: Re: How to Bleed ABS
Posted: Tue May 12, 2009 11:08 pm
Getting Side Ways
Offline
User avatar

Age: 32

Posts: 1934

Joined: 8th Nov 2004

Ride: BA Falcon XR8

Location: Bunbury
WA, Australia

Wow! That's probably what my system look like on the inside! I've had new pads, rotors and a new brake booster fitted and the pedal feel is starting to fade away again and starting to feel very wooden.

Would this sludge build-up case the calipers to sieze?
Top
 Profile


 Post subject: Re: How to Bleed ABS
Posted: Tue May 12, 2009 11:59 pm
Parts Gopher
Offline

Posts: 72

Joined: 13th Mar 2007

Location: Melbourne
VIC, Australia

thediko wrote:
thans for the replies.

What type of equipment are you talking about luthor?


Bendix Kit # T2100SAMALB is required for modulator bleeding and is used in conjunction with Test Unit #T2100SAM.
