 Post subject: Hybrid DOHC motor (DOHC head on SOHC block)
Posted: Sun May 05, 2013 5:33 pm
Getting Side Ways
Offline
User avatar

Age: 32

Posts: 2833

Joined: 7th Nov 2004

Gallery: 4 images

Ride: Lincoln LS, MKII Escort, ED

Location: geelong
VIC, Australia

As per the raised voices and throwing of arms into the air:

http://www.fordmods.com/ford-4l-and-6-cylinder-f1/ba-bf-head-on-a-ef-el-block-t121398.html?hilit=ba%20head%20ef%20block&start=75

I have collected 1X donated BA falcon engine (thanks Steve aka fezlane) and begun measuring and comparing differences/similarities (will hopefully be collecting the donated SOHC motor soon).

So far:
Timing arrangement - MAJOR differences on the side where the aux shaft lives, current plan is to retain aux shaft driven dizzy and oil pump
Attachment:
DSC_0197.jpg [ 462.26 KiB | Viewed 114 times ]

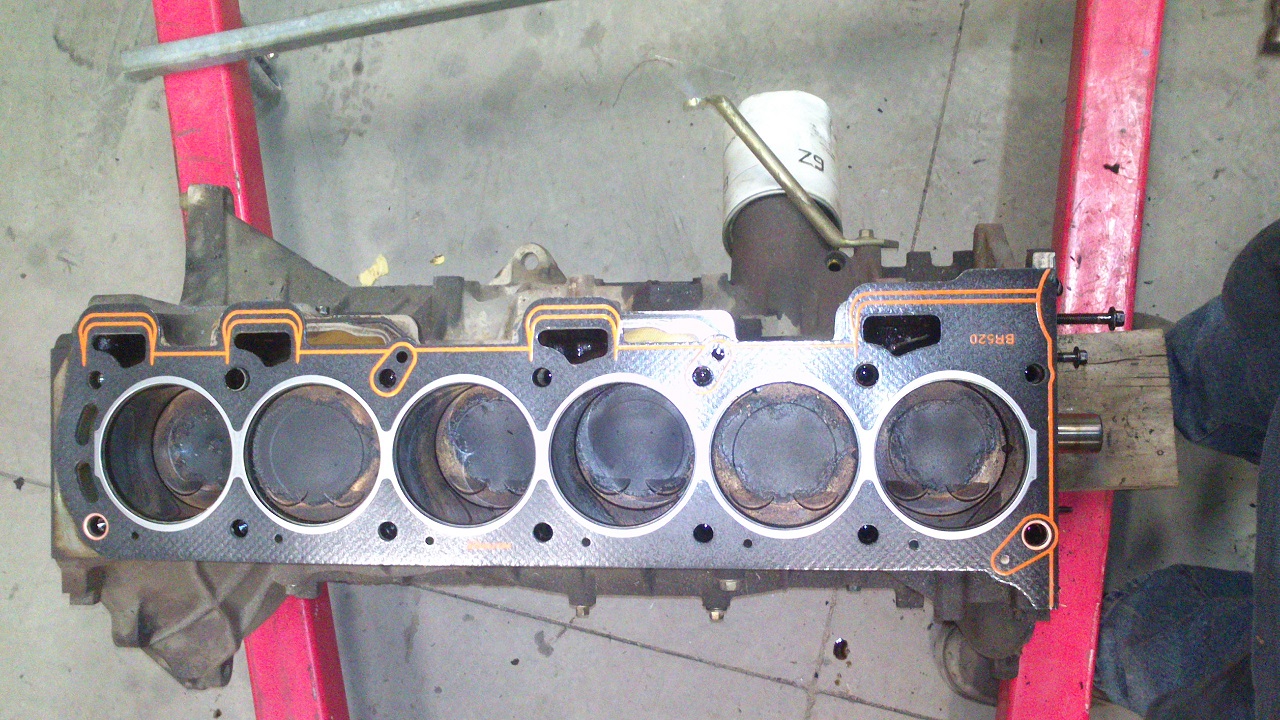

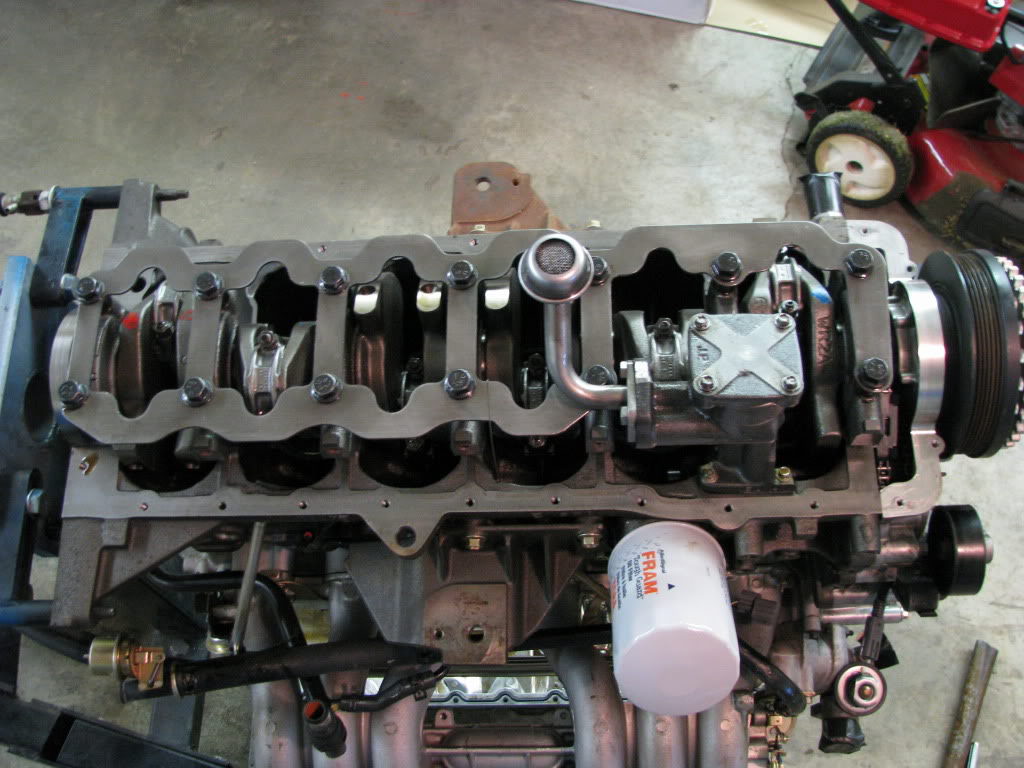

Oil/coolant galleries and stud locations (E series headgasket on BA block) mostly good:
Attachment:
DSC_0201.jpg [ 449.81 KiB | Viewed 110 times ]

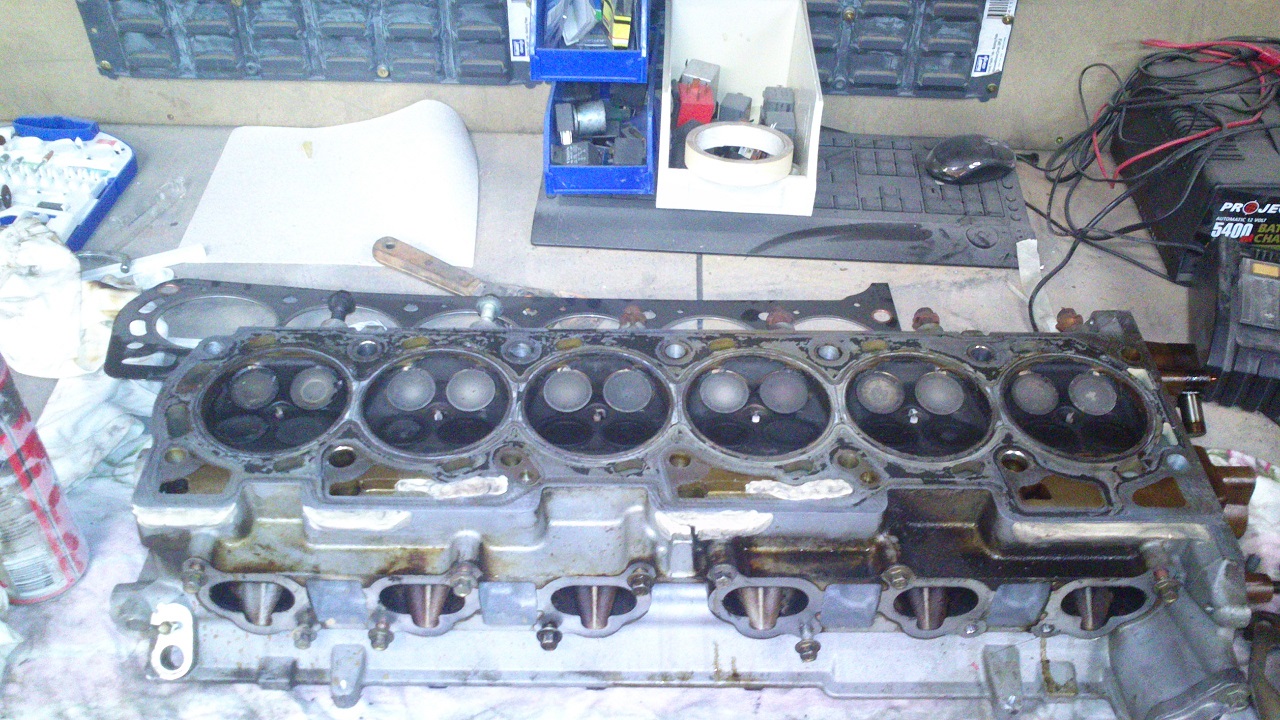

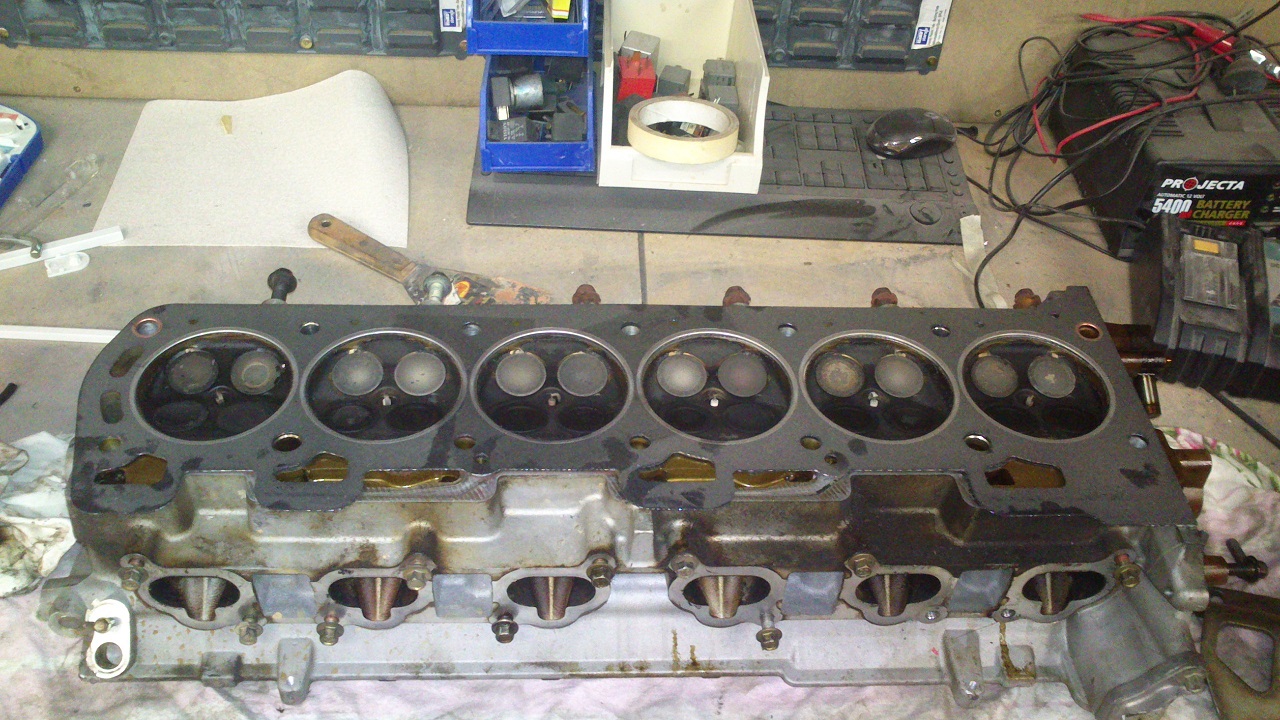

(same gasket on BA head) BIG differences - head will need to be welded up and decked:
Attachment:
DSC_0202.jpg [ 411.04 KiB | Viewed 104 times ]

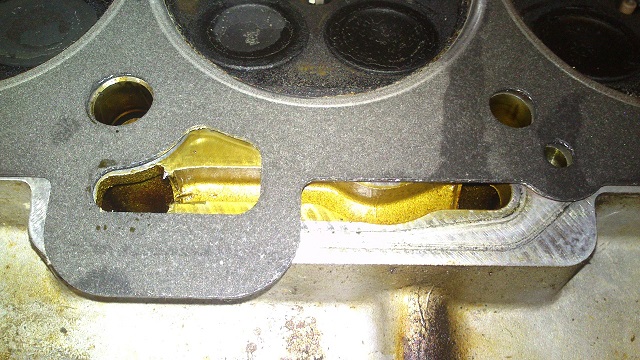

close up of differences:
Attachment:
DSC_0203.jpg [ 131.33 KiB | Viewed 88 times ]

And finally Plasticine standing in for the metal to be added:
Attachment:
DSC_0206.jpg [ 440.13 KiB | Viewed 129 times ]


problems to overcome are:
adding of extra material to the head to seal on the SOHC block properly
the loss of two oil drainback holes (will enlarge remaining 4 to compensate)
TIMING - will require new guide on intake side of engine and most likely a modified timing cover. i suspect i can use the BA crank sprocket on the SOHC motor.
From what i remember of the internal differences BA rods/pistons will fit the SOHC block/crank



will do some more work once i get hold of the SOHC engine.



_________________

Because i can.

Top
 Profile


 Post subject: Re: Hybrid DOHC motor (DOHC head on SOHC block)
Posted: Sun May 05, 2013 5:55 pm
Fordmods Junkie
Offline
User avatar

Posts: 2750

Joined: 22nd Jan 2009

Ride: '91 EB Wagoon

Location: Geeelong
VIC, Australia

if ya dont get the sohc .. give me a pm coz i have a EB block [no head] that ya can have [need ta pull it outa the body tho]
Top
 Profile


 Post subject: Re: Hybrid DOHC motor (DOHC head on SOHC block)
Posted: Sun May 05, 2013 6:59 pm
Getting Side Ways
Offline
User avatar

Age: 51

Posts: 433

Joined: 18th Jul 2009

Ride: NL FAIRLANE BA TURBO POWERED

Location: ballarat
VIC, Australia

No mucking about there you must have really got stuck into it.

Steve
Top
 Profile


 Post subject: Re: Hybrid DOHC motor (DOHC head on SOHC block)
Posted: Sun May 05, 2013 8:34 pm
Getting Side Ways
Offline
User avatar

Age: 49

Posts: 6467

Joined: 18th Dec 2006

Ride: 93 ED sedan

Power: 161 rwkw

Location: Rockhampton
QLD, Australia

OK......so, what would be the benifit of fitting a DOHC head to a SOHC block ????.....just so I can be on the same page here.....thats all.....looks like a lot of stuffin around to get it working.



_________________

http://youtu.be/jJTh9F3Vgg0

Top
 Profile


 Post subject: Re: Hybrid DOHC motor (DOHC head on SOHC block)
Posted: Sun May 05, 2013 8:57 pm
Getting Side Ways
Offline
User avatar

Posts: 1427

Joined: 21st May 2005

Location: Melbourne
VIC, Australia

Like fitting an alloy head cross flow head to an american 250, or an alloy 2v head to an old pre-cross flow. Benefits of newer technology.



_________________

EL Fairmont Ghia - Manual - Supercharged
- The Car
- The Headlights

Top
 Profile


 Post subject: Re: Hybrid DOHC motor (DOHC head on SOHC block)
Posted: Sun May 05, 2013 8:59 pm
Getting Side Ways
Offline
User avatar

Age: 32

Posts: 2833

Joined: 7th Nov 2004

Gallery: 4 images

Ride: Lincoln LS, MKII Escort, ED

Location: geelong
VIC, Australia

assuming the pistons and rods are fitted as well as the ECU, the benifits are all those of the DOHC (minus some bottom end strength and refinement) without having to resort to cutting crossmembers which is almost completely impossible to do legally in VIC.

I am however more or less doing it because i can and it seemed interesting.



_________________

Because i can.

Top
 Profile


 Post subject: Re: Hybrid DOHC motor (DOHC head on SOHC block)
Posted: Sun May 05, 2013 9:31 pm
Getting Side Ways
Offline
User avatar

Age: 30

Posts: 1507

Joined: 14th Aug 2009

Gallery: 12 images

Ride: BA XT V8

Location: Gosnells, Perth
WA, Australia

JOSE wrote:
assuming the pistons and rods are fitted as well as the ECU, the benifits are all those of the DOHC (minus some bottom end strength and refinement) without having to resort to cutting crossmembers which is almost completely impossible to do legally in VIC.

I am however more or less doing it because i can and it seemed interesting.


keep it up mate. this is the sort of thing that makes fordMODS.

actually doing something rather than talkin about crap.



_________________

BA XT V8. Ice Mint. 18" Speedys. XR6T LSD. Full Pacemaker twin 2 1/2inch Stainless Steel system. Custom CAI. Black XR interior with white trimming. Powerbond underdrive kit 25%.
13.65@102mph. 2800 hi-Stall.
230RWKW@5250 rpm. 625NM.

Top
 Profile


 Post subject: Re: Hybrid DOHC motor (DOHC head on SOHC block)
Posted: Sun May 05, 2013 9:47 pm
Getting Side Ways
Offline
User avatar

Age: 22

Posts: 696

Joined: 10th Oct 2012

Ride: 5 speed XG ute

Location: Adelaide Hills
SA, Australia

Definitely will be watching this thread!



_________________

Yep, I don't know what to write here...

Top
 Profile


 Post subject: Re: Hybrid DOHC motor (DOHC head on SOHC block)
Posted: Tue May 07, 2013 2:01 pm
Getting Side Ways
Offline
User avatar

Age: 49

Posts: 6467

Joined: 18th Dec 2006

Ride: 93 ED sedan

Power: 161 rwkw

Location: Rockhampton
QLD, Australia

JOSE wrote:
assuming the pistons and rods are fitted as well as the ECU, the benifits are all those of the DOHC (minus some bottom end strength and refinement) without having to resort to cutting crossmembers which is almost completely impossible to do legally in VIC.

I am however more or less doing it because i can and it seemed interesting.


OK...so, the gist of it is to fit a DOHC head to a SOHC bottom end, so you don't have to modify an existing K frame in an E series.....yes?.......OK....carry on :D



_________________

http://youtu.be/jJTh9F3Vgg0

Top
 Profile


 Post subject: Re: Hybrid DOHC motor (DOHC head on SOHC block)
Posted: Tue May 07, 2013 3:48 pm
Technical Contributor
Offline
User avatar

Age: 53

Posts: 5587

Joined: 14th Jan 2005

Gallery: 10 images

Ride: 96 XH/97 EL

Location: South Coast
NSW, Australia

^^^^^Didn't we sort out all the 'Whys' in the previous thread ?? That's why this thread was set up.

Looks like the head matching is doable - do all the coolant drains match up too ??

The oil galleries shouldn't be too big an issue, since they're gravity drain. Maybe you could drill angled cross holes to join the other drains and seal those exposed holes at the gasket deck - if they're proud of the block sides, there's no big issue getting them gasket flat - if you understand what I'm meaning. I guess too it depends how much metal you have below the inlet ports to play with.

Was there any pics of the DOHC prototype showing the front with the timing cover off ?? - can't remember seeing any. They'd certainly come in handy.



_________________

96 XH Longreach 'S': LPG, Alarm, 3.23:1 LSD, Cruise, Trip Comp, ABS, Power Windows, Mid Series Dome Lt, Climate Ctrl
97 EL Futura S/W: LPG, Alarm, LED int Lts, Trip Comp, F/Lane Dome Lt, Climate Ctrl, T5 Conversion

Top
 Profile


 Post subject: Re: Hybrid DOHC motor (DOHC head on SOHC block)
Posted: Tue May 07, 2013 3:58 pm
Moderator
Offline

Posts: 14513

Joined: 7th Nov 2004

Ride: ford falcon au3 xr8

Location: a shit suburb in sydney
NSW, Australia

do I think its practical no...

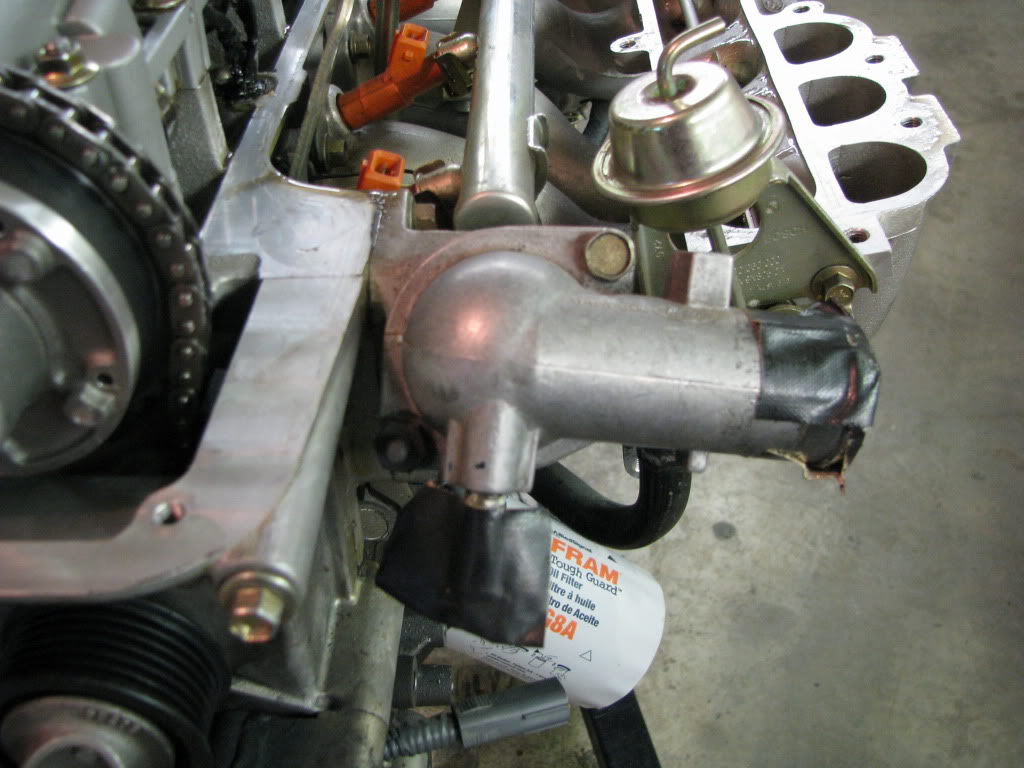

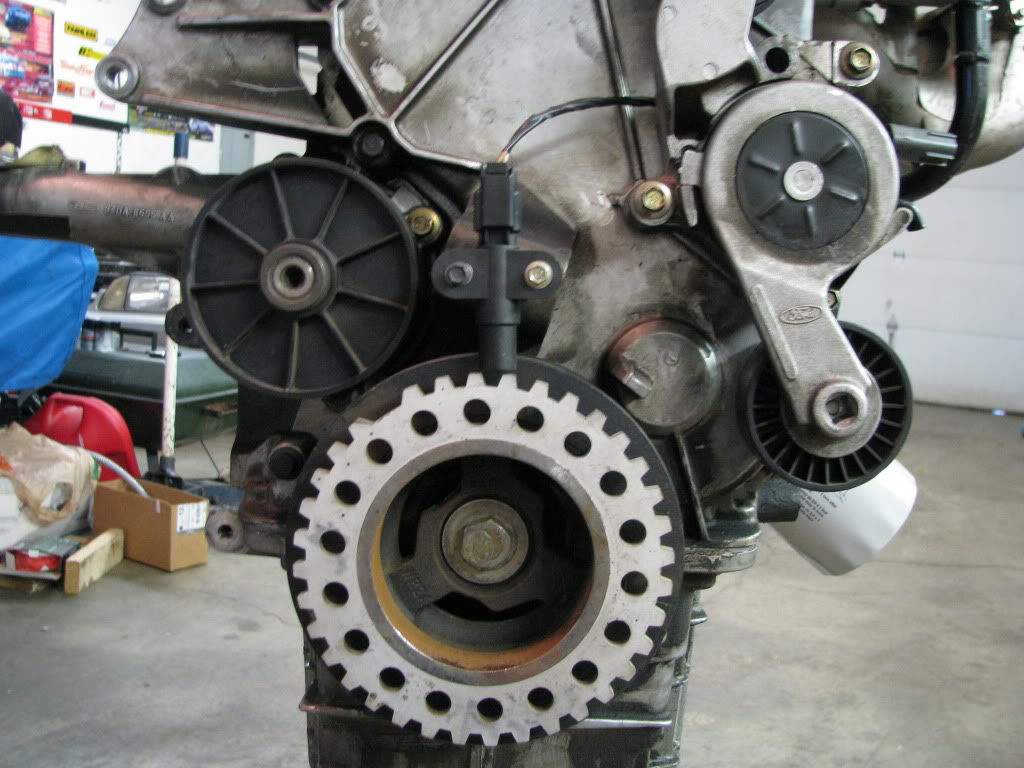

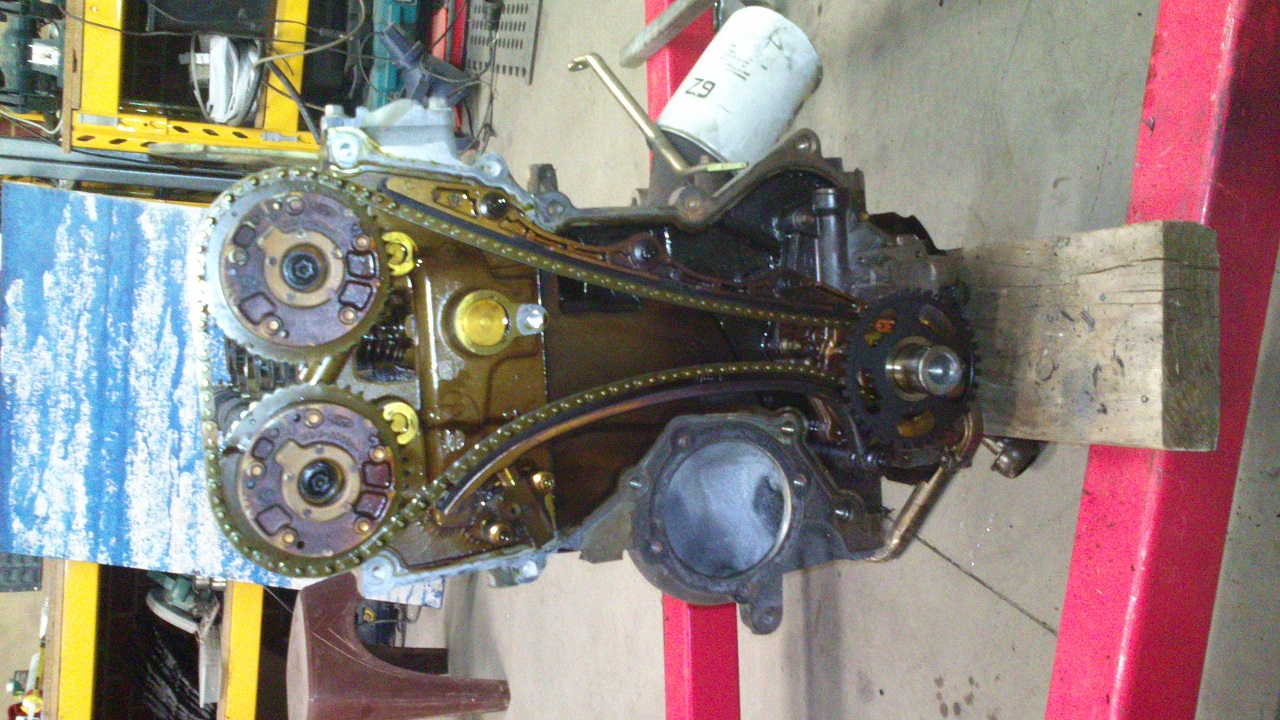

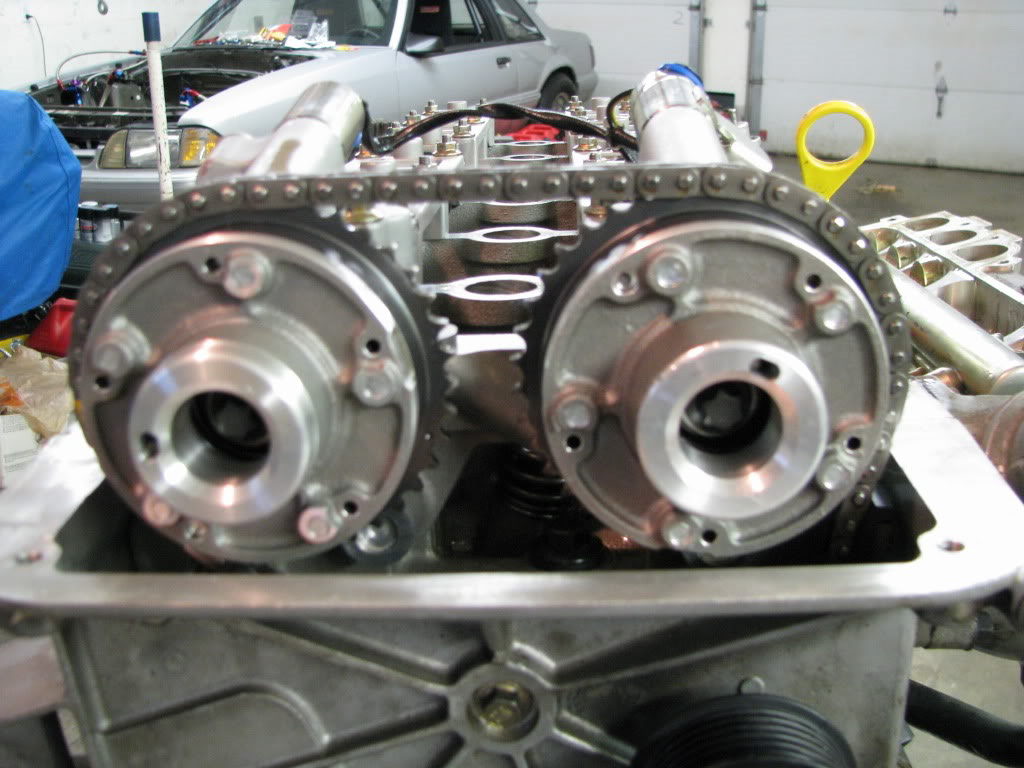

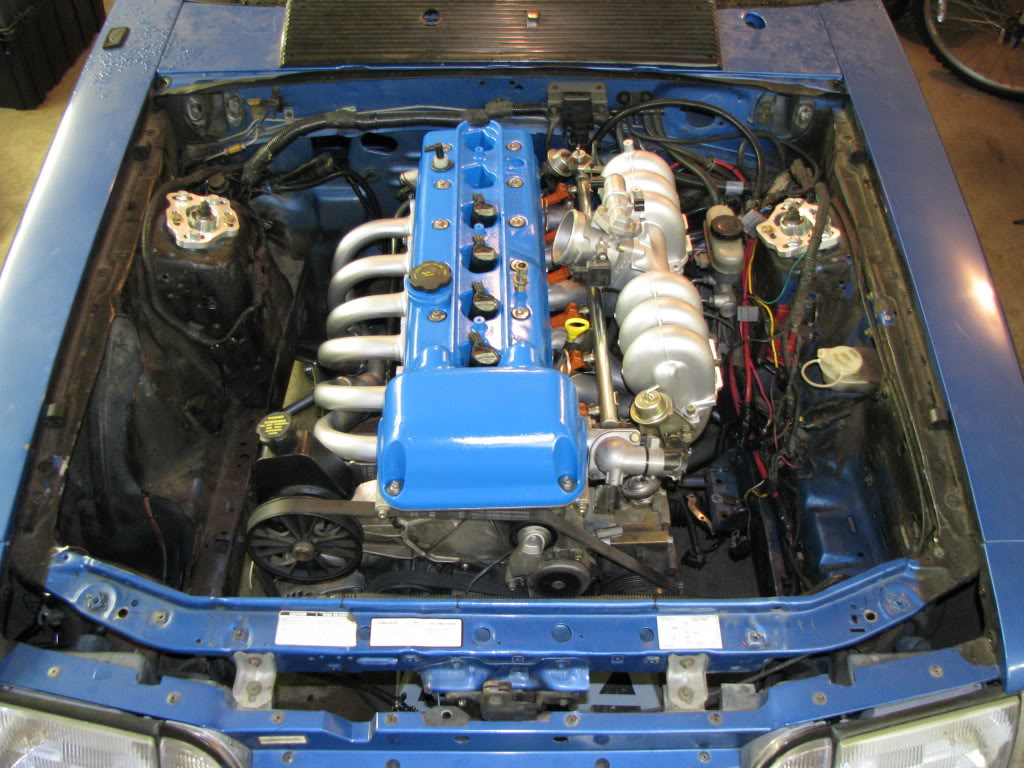

but I thinks its interesting so here are some of those dohc hybrid pics, unfortunately none with timing case off...
