 Post subject: Ideas for Cold Air Intake
Posted: Wed Jul 13, 2005 1:04 pm
Getting Side Ways
Offline

Age: 40

Posts: 446

Joined: 7th Nov 2004

Gallery: 6 images

Ride: Mondeo XR5T

Power: 173 rwkw

Location: Engadine
NSW, Australia

Hi Guy's,

I think it's time to modify my cold air intake (after being hasstled by Fuzion :lol: ). I am looking at all idea's such as:

a. Podd's and Pannel's,
b. Mandrel bent pipe's,
c. Flexi hose,
d. Cutting into wheel arch's,
e. Removing drive light's for flexi hose application's,
f. Making it a primary intake, or a suplimentary intake etc...

Although she's an XR, she doesn't have the XR front end anymore. It would be more like trying to modify the intake for a TS50 (I have the C2R font end). So there ain't much room to fiddle without cutting through wheel arch's. You can see from the picture below.

I have searched the technical documents in this forum and other's, but none seem to fit this type of application. Perhaps a new docco can be written :)

At the moment she has the Tickford snorkle and BA intake pipe with K&N filter, so she has been opened up somewhat, but I want more. I have a rough idea of what I need/want to do, but I will throw it up for you guy's to have a look at and sus it out from all angle's and opinion's.

If anyone has tackled this before, for this kind of setup, your comment's, experience, and any photograph's will help greatly.

Thank's

Shugg
Top
 Profile


Posted: Wed Jul 13, 2005 1:16 pm
Getting Side Ways
Offline
User avatar

Age: 36

Posts: 8655

Joined: 5th Nov 2004

Gallery: 37 images

Ride: V8 EF Futura

Location: Adelaide CBD
SA, Australia

Shugg

I guess i have a CAI of sorts... the blower obviously gets in the way of any airbox etc. The intake is on the rear of the unit as well - so only way to go was down.

Basically a big hole cut in the inner guard with some 4inch flexi tube running down there. The pod filter is mounted on an l shaped bracket to the rad/bumper support part of the car. I dont imagine an AU would be too different to setup.

Pics in my gallery, you can see where the hole is (doesnt interfere with ABS module as its the hole is quite far forward) and also how the filter is mounted.



_________________

I promise..... I will never die.

Fordmods Administration Group MINOR PUNKED

Top
 Profile


Posted: Wed Jul 13, 2005 1:18 pm
Getting Side Ways
Offline
User avatar

Age: 43

Posts: 476

Joined: 15th Apr 2005

Gallery: 4 images

Ride: ef fairmont ghia

Location: Adelaide
SA, Australia

come to adelaide! at the moment you can go for a drive in the hills and get all the cold air you want :shock:



_________________

Sometimes when you do something right, people wont be sure you've done anything at all. (Futurama, Episode - Godfellows)

Top
 Profile


Posted: Wed Jul 13, 2005 1:18 pm
Tyre Shredder
Offline
User avatar

Age: 35

Posts: 362

Joined: 9th Nov 2004

Gallery: 6 images

Ride: au2

Location: Redbank Plains
QLD, Australia

Well firstly , nice car dude.

and second i wouldn't recomend getting a second intake pipe at all. I cut one into my air box and ran some tubing down beside the radiator and it sat just behind the mesh in my front skirt. I didn't notice any improvement at all, in fact i think it lost power to be honest. But on the other hand i think it might suit your setup as my car hasn't had much work done to it. I think my car was getting too much air.

Any way it didn't cost me much to try out, so if you try it out and don't get any improvements well you could always take it off and bung up the hole like i did.



_________________

"Press 'any key', where the hell is the any key!!!!!!!!!!!"

Top
 Profile


Posted: Wed Jul 13, 2005 1:21 pm
Getting Side Ways
Offline

Age: 40

Posts: 446

Joined: 7th Nov 2004

Gallery: 6 images

Ride: Mondeo XR5T

Power: 173 rwkw

Location: Engadine
NSW, Australia

bentfairmont wrote:
come to adelaide! at the moment you can go for a drive in the hills and get all the cold air you want :shock:


:lol: yeah, there is a bit of a chill around in Sydney also.
Top
 Profile


Posted: Wed Jul 13, 2005 1:41 pm
Getting Side Ways
Offline
User avatar

Posts: 6432

Joined: 5th Nov 2004

Gallery: 6 images

You only need an intake as big as the throttle body.



_________________

5.6L of carbon footprint.

Top
 Profile


Posted: Wed Jul 13, 2005 6:19 pm
Getting Side Ways
Offline
User avatar

Age: 32

Posts: 2098

Joined: 5th Nov 2004

Ride: egas bf xt

Location: Gosford
NSW, Australia

I would still want to keep it a little bigger though, I mean if your going to spend the money increasing the size of the intake you would want to make sure it wasn't the bottleneck at any stage. Let the T/B be the bottleneck.



_________________

I can see through wooden doors.

Top
 Profile


Posted: Thu Jul 14, 2005 12:00 am
Stock as a Rock
Offline
User avatar

Age: 39

Posts: 193

Joined: 7th Nov 2004

Ride: AU Tickford Fairmont 5.0

Location: sydney
NSW, Australia

well i was running the same set-up as shugg and now ive got a SS intake-and pigpipe with a redline filter and yes my car now goes awesome



_________________

T402 ISX 500hp daily driver
98 AU Tickford Fairmont 5.0 175kw stocker....

"member of the wgaf club about 400m times"

Top
 Profile


Posted: Thu Jul 14, 2005 1:28 am
Parts Gopher
Offline

Age: 30

Posts: 95

Joined: 8th Apr 2005

Location: perth
WA, Australia

I just got a T-series snorkel and a k&n Panel, Runs mint. Planning on intake pipe soon. and nice car mate
Top
 Profile


Posted: Thu Jul 14, 2005 4:46 am
Parts Gopher
Offline
User avatar

Age: 35

Posts: 88

Joined: 15th Jan 2005

Gallery: 11 images

Ride: Wasabi Gangsta Mobile

Location: Perth
WA, Australia

anyone ELSE run a pipe from behind the front spoiler? good or bad? since fitting a ghia bonnet and custom bar ive lost power (less airflow near the filter intake) so i was bout to run a pipe to the bottom mesh but now I'm not so sure. either that or run the pipe to a bonnet vent/snorkel ?



_________________

Supercar front & wing,Ghia bonnet & lights,XR skirts,17s,ABS,slotted rotors,race pads,low 2.5in,lovells springs,KYB shocks,fr camber kit,K&N,mandrel-bent straight-thru zorst,3.23LSD,neons,blue LED dash conversion,XR vents,v8 radiator,oil cooler,big stereo. Needs boost!

Top
 Profile


Posted: Thu Jul 14, 2005 4:51 pm
Getting Side Ways
Offline
User avatar

Age: 46

Posts: 3763

Joined: 25th Nov 2004

Gallery: 6 images

Ride: EFII 5.8 NOS TerroristGhia

Power: 274 rwkw

Location: Sydney Australia
NSW, Australia

I have cut the bottom of my airbox and inserted flexible pipe down to the left corner light. Didnty notice much difference, but the induction roar from 3 to 5 grand is awesome. On the dyno there was little difference, but was worth.1 on the strip
Brett



_________________

The Terrorist ED Retired due to RUST.
The TerrosistGhia, EF Ghia 351 EFI 5 Speed.
Millennium Falcon, Sleeper EL DOHC 6 Speed Manual EFI LPG
Member#1131
I didn't Vote for Multiculturalism, DID YOU!!!

Top
 Profile


Posted: Thu Jul 14, 2005 4:54 pm
Getting Side Ways
Offline
User avatar

Age: 43

Posts: 476

Joined: 15th Apr 2005

Gallery: 4 images

Ride: ef fairmont ghia

Location: Adelaide
SA, Australia

got any pics of the mod terrorist?



_________________

Sometimes when you do something right, people wont be sure you've done anything at all. (Futurama, Episode - Godfellows)

Top
 Profile


Posted: Thu Jul 14, 2005 4:57 pm
Getting Side Ways
Offline
User avatar

Posts: 6432

Joined: 5th Nov 2004

Gallery: 6 images

One thing you should be aware of is not to go through flooded roadways as the water will get sucked straight into the engine. Then you're screwed.



_________________

5.6L of carbon footprint.

Top
 Profile


Posted: Thu Jul 14, 2005 6:08 pm
Getting Side Ways
Offline
User avatar

Age: 36

Posts: 8655

Joined: 5th Nov 2004

Gallery: 37 images

Ride: V8 EF Futura

Location: Adelaide CBD
SA, Australia

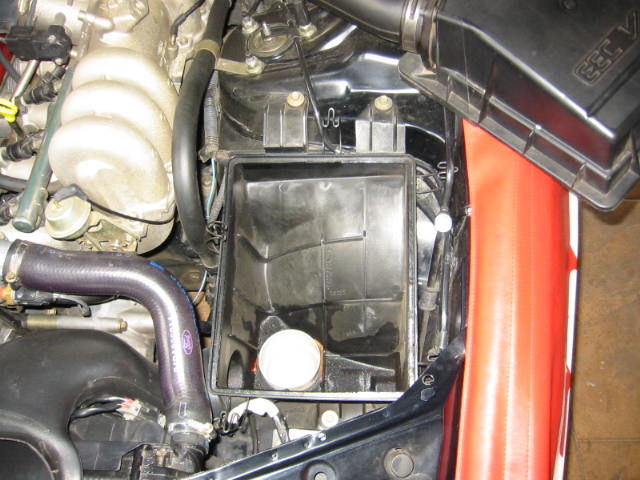

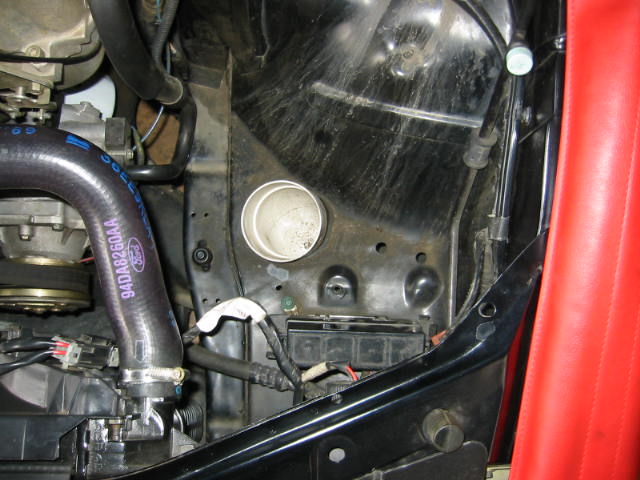

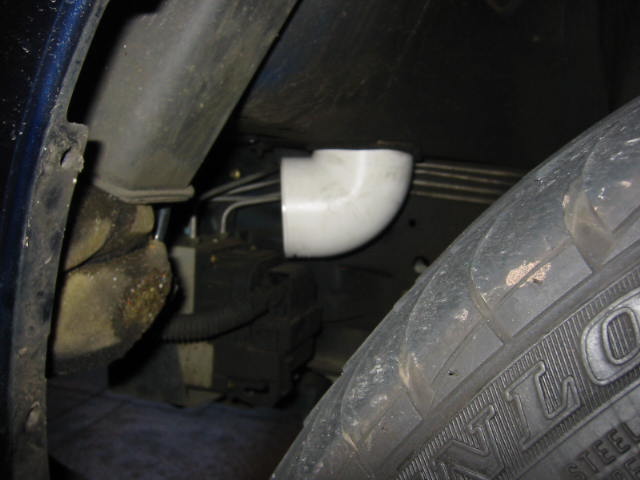

OK well heres some pics from FM mk1, some time ago. I forget the user's name - so feel free to take credit for this!
