 Post subject: Input Shaft Length for T-5
Posted: Fri May 26, 2017 6:56 am
Fordmods Newbie
Offline

Age: 60

Posts: 14

Joined: 27th May 2010

Ride: Ford/Mustang 1965

Location: Hurricane, WV
Oustide Australia

I have an EL bellhousing for my 4.0L and a T-5 from an '86-'91 V8 Mustang. I'm trying to determine if this transmission will work with the bellhousing.

What is the input shaft length for a T-5 in an EL 4.0L? The shaft length for the T-5 I have is 7.18-inches (182.37mm). The shaft length for T-5s in '94 and later Mustangs is 7.85-inches (199.39mm). I've attached a diagram of a T-5; I'm looking for the "B" dimension on the diagram (from the tip of the input shaft to the case.

Thanks in advance.





Attachments:
T5-Transmission-Measurements.jpg [ 8.74 KiB | Viewed 316 times ]



_________________

Dan

Currently Own
1965 Mustang, 200CID, 3Spd
1964 Corvair Coupe, 164CID, 140HP, 4Spd
2017 BMW X3, 3.0L Turbo, 300HP, 8-Spd Auto

Top
 Profile


 Post subject: Re: Input Shaft Length for T-5
Posted: Fri May 26, 2017 9:11 pm
Getting Side Ways
Offline
User avatar

Age: 54

Posts: 839

Joined: 12th Aug 2007

Gallery: 22 images

Ride: AU2 XR8 ute & 91 EA bitsa

Location: Melbourne
VIC, Australia

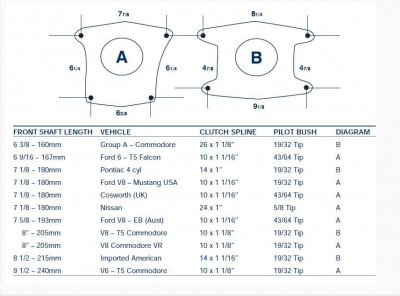

I just measured the T5 4.0 6 cyl box (EA-EL series) that I have in the shed and the distance is 167mm. Attached is a chart that I found on another forum that may be of help to you.
