 Post subject: Is It A Tickford ???
Posted: Sun Aug 01, 2010 11:12 pm
Stock as a Rock
Offline

Age: 38

Posts: 139

Joined: 15th Jun 2008

Ride: Falcon

Location: Most Likely Pearcedale...
VIC, Australia

Hi all ok i have a fair knowledge of E series models and specs and im looking at a ef fairmont ghia it has 180,000kms on clock now to the motor it has a red rocket cover and owner says its definetly a Tickford engine but how can i tell from face value as there is no "T "on the head or anything but have been told the ef/el models didnt have the "T" can i tell by looking at numbers or any particular identification Engine / vin??? any help would be great thanks
Top
 Profile


 Post subject: Re: Is It A Tickford ???
Posted: Sun Aug 01, 2010 11:33 pm
Getting Side Ways
Offline

Age: 29

Posts: 546

Joined: 5th Jun 2010

Ride: BA XT, NCII V8

Location: Adelaide
SA, Australia

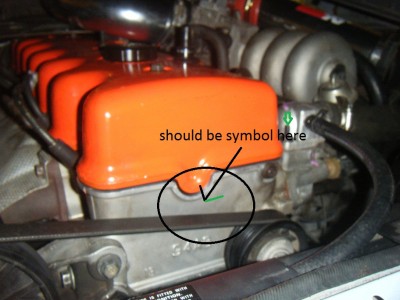

with the E series tickford motors the easiest way to tell is to remove the front cover on the motor and if you look at the facia of the head there should be a tickford symbol. ( see picture below )

the front cover comes off just buy removing the power steering cap and one bolt on the right and then you should be able to see it.

as you can see mine is NOT a tickford.

i have put a green arrow to show you were to bolt is for the facia

let me know how you go.

Thanks





Attachments:
DSCF0034s.jpg [ 259.53 KiB | Viewed 355 times ]
Top
 Profile


 Post subject: Re: Is It A Tickford ???
Posted: Sun Aug 01, 2010 11:41 pm
Fordmods Junkie
Offline
User avatar

Posts: 11739

Joined: 17th May 2005

Gallery: 11 images

Ride: EL Fairmont, VFR400 racer

Power: 144 rwkw

Location: Melbourne
VIC, Australia

have a look at this link

ford-4l-and-6-cylinder-f1/how-to-identify-tickford-head-t10821.html

Taken from the above link

Quote:
should look something like this :P
EB/ED are plain T later models have :

EF - 94 DT
EL - 95 DT
AU - WR2T
as well as the big T


Also, is it a Series I EF Fairmont Ghia? If so then it isn't a Tickford motor. I'm sure only EF series 2 Fairmont Ghia came out with Tickford gear and obviously EL models.



_________________

phongus = Post whore 2006
EL XR6 motor, EL ECU + J3 chip, WADE 1673 Camshaft, 3" S/S intake, Pacy 4480, 2.5" Hi flow cat, 2.5" Lukey exhaust.
Max Power = 144.6 rwkw (03/05/2008)

Top
 Profile


 Post subject: Re: Is It A Tickford ???
Posted: Sun Aug 01, 2010 11:44 pm
Getting Side Ways
Offline
User avatar

Age: 27

Posts: 1998

Joined: 31st Dec 2007

Gallery: 9 images

Ride: xc wag's, tnklane wag's

Location: Munruben
QLD, Australia

tickford never made rocket engine for the e series, but anyway. :lol: :lol: :lol:

as above to determine, although a lot of ef ghia's didn't have the ticky motor.

the vin does tell, if you have a bit of a dig, it tells you how to work it out think it's an x some where along the vin, but can't be bothered searching tonight.



_________________

Signature removed by moderator.signature must not exceed 120x500 pixles

Top
 Profile


 Post subject: Re: Is It A Tickford ???
Posted: Mon Aug 02, 2010 12:43 am
Technical Contributor
Offline
User avatar

Age: 53

Posts: 5589

Joined: 14th Jan 2005

Gallery: 10 images

Ride: 96 XH/97 EL

Location: South Coast
NSW, Australia

Yeah, under "Engine" on the VIN plates, 'X' = 4.0L HP



_________________

96 XH Longreach 'S': LPG, Alarm, 3.23:1 LSD, Cruise, Trip Comp, ABS, Power Windows, Mid Series Dome Lt, Climate Ctrl
97 EL Futura S/W: LPG, Alarm, LED int Lts, Trip Comp, F/Lane Dome Lt, Climate Ctrl, T5 Conversion

Top
 Profile


 Post subject: Re: Is It A Tickford ???
Posted: Mon Aug 02, 2010 9:59 am
Getting Side Ways
Offline
User avatar

Age: 49

Posts: 6467

Joined: 18th Dec 2006

Ride: 93 ED sedan

Power: 161 rwkw

Location: Rockhampton
QLD, Australia

EF/EL Fairmont Ghia's with the Tickford upgrade has a gold coloured " 4.0 " sticker instead of silver on the front guards where the OHC sticker is......as well as having the " X " stamped on the Ford plate under the bonnet for Engine......instead of " H " for a standard engine.



_________________

http://youtu.be/jJTh9F3Vgg0

Top
 Profile


 Post subject: Re: Is It A Tickford ???
Posted: Mon Aug 02, 2010 7:26 pm
Getting Side Ways
Offline
User avatar

Age: 28

Posts: 3374

Joined: 11th Mar 2008

Ride: EA SVO, AU2 Forte

Location: Bendigo
VIC, Australia

Ronza wrote:
Hi all ok i have a fair knowledge of E series models and specs and im looking at a ef fairmont ghia it has 180,000kms on clock now to the motor it has a red rocket cover and owner says its definetly a Tickford engine but how can i tell from face value as there is no "T "on the head or anything but have been told the ef/el models didnt have the "T" can i tell by looking at numbers or any particular identification Engine / vin??? any help would be great thanks


but if you had knowledge about engines you'd know it's a rocker cover



_________________

Daily driver: AU2. 5 speed. 19" FG luxos. Full exhaust. Lowered. AU3 XR leather interior, converted to full power windows. 3.45 LSD. IN THE FUTURE: Tickford 6
Weekend driver: EA SVO AU motor. Built BTR. TCE 2800 stall. T76 turbo. Locked diff. On E85. approx 320rwkw. 11.5 @121mph
