Fordmods Logo

Is this correct for timming on timming chain???



Page 1 of 1 [ 5 posts ]


 Post subject: Is this correct for timming on timming chain???
Posted: Sat Jun 21, 2008 3:20 pm
Getting Side Ways
Offline
User avatar

Age: 29

Posts: 721

Joined: 31st Dec 2005

Ride: EF V8 Futura, 180sx

Location: Brisbane, Burpengary
QLD, Australia

Hey guys i had a s**t idle after cylinder head and i just take the timming cover off to check the timming and i just want to double check that the timming is corretly refitted
see pic's

i think thats all correct just want to double check

Thx
Jason





Attachments:
DSC02449 (Small).JPG
DSC02449 (Small).JPG [ 34.83 KiB | Viewed 531 times ]
DSC02447 (Small).JPG
DSC02447 (Small).JPG [ 27.08 KiB | Viewed 528 times ]
DSC02444 (Small).JPG
DSC02444 (Small).JPG [ 42.58 KiB | Viewed 530 times ]



_________________

Ford EF Futura Black
18" koya Strykers, AU engine with port and polish EB head, crow valve springs, standard cam, Large aftermarket RX7 turbo, T5 manual 3" intercooler piping, 600x300x100 intercooler core, MSII with innovate wideband O2 sensor and guage. BA F6 bodykit

Top
 Profile


Posted: Sat Jun 21, 2008 3:39 pm
Technical Contributor
Offline
User avatar

Age: 38

Posts: 4093

Joined: 20th Mar 2005

Gallery: 2 images

Ride: 2.0 Turbo VW

Power: 142 rwkw

Location: Seaford State:
VIC, Australia

Yep, looks ok, But I wouldn't trust chain markings.


Always go by the timing marks, not by the chain.

Theres location marks on ALL gears.

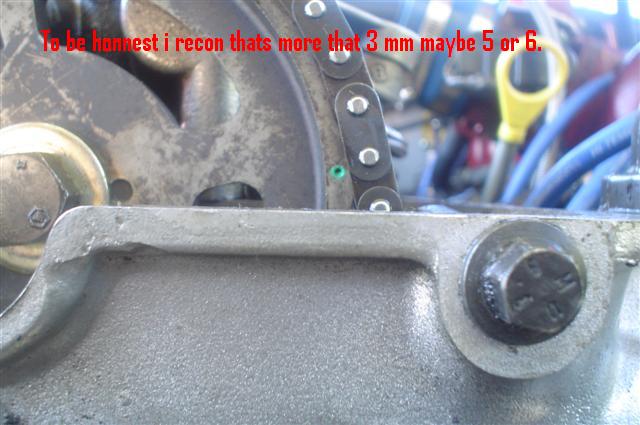

The Cam marking should be upto 3mm above the head casting on the INLET SIDE. (ie: 3o'clock facing it)

And the Crank should mate upto the Aux Shaft. (not a big drama is it doesnt tho)





Attachments:
timing.JPG [ 103.96 KiB | Viewed 4417 times ]



_________________

Carefree, we may not be number one, but we're up there.

Top
 Profile


Posted: Sat Jun 21, 2008 5:21 pm
Getting Side Ways
Offline
User avatar

Age: 29

Posts: 721

Joined: 31st Dec 2005

Ride: EF V8 Futura, 180sx

Location: Brisbane, Burpengary
QLD, Australia

i got the timming cover back on and everything tight but then i put my 17mm spanner on cam gear and move it to side to side the chain has a lot of play the cam rocks about 2 or so mm each way is this normal of did i do something wrong with the tensioner???

Thx Jason



_________________

Ford EF Futura Black
18" koya Strykers, AU engine with port and polish EB head, crow valve springs, standard cam, Large aftermarket RX7 turbo, T5 manual 3" intercooler piping, 600x300x100 intercooler core, MSII with innovate wideband O2 sensor and guage. BA F6 bodykit

Top
 Profile


Posted: Sat Jun 21, 2008 9:22 pm
Getting Side Ways
Offline

Age: 31

Posts: 996

Joined: 9th Aug 2005

Ride: BA XR6T ute

Location: frankston
VIC, Australia

there shouldnt be any play did you put all the chain guides in?? make sure tensioner is in corect
Top
 Profile


Posted: Sun Jun 22, 2008 12:26 pm
Getting Side Ways
Offline
User avatar

Age: 29

Posts: 721

Joined: 31st Dec 2005

Ride: EF V8 Futura, 180sx

Location: Brisbane, Burpengary
QLD, Australia

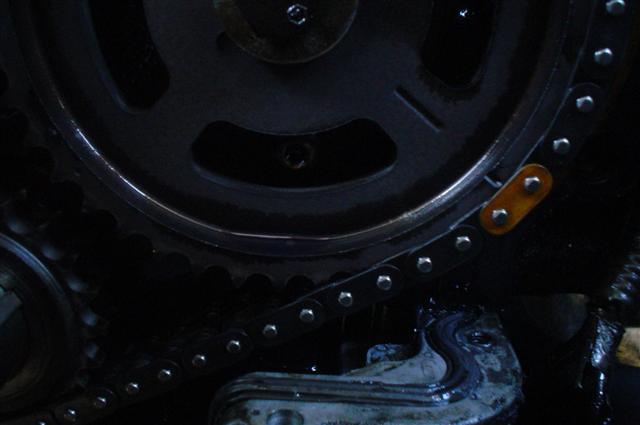

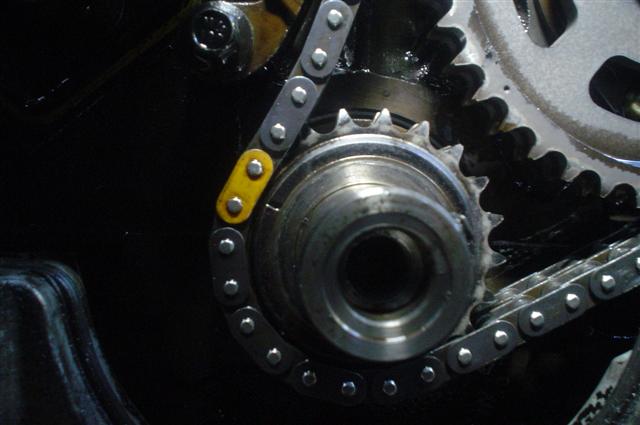

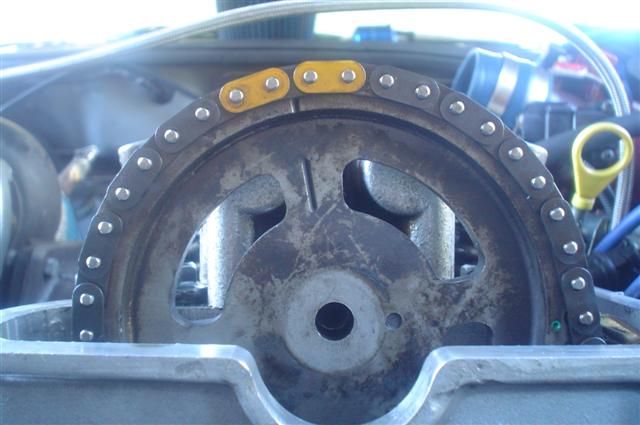

I put the timming cover back on and fitted new tensioner and lifter and started up can it had a hell of a rough idle and when i try to open the throttle to rev it just back fires. what do you guys recon wrong??? here few pic's of timming after i ran engine.

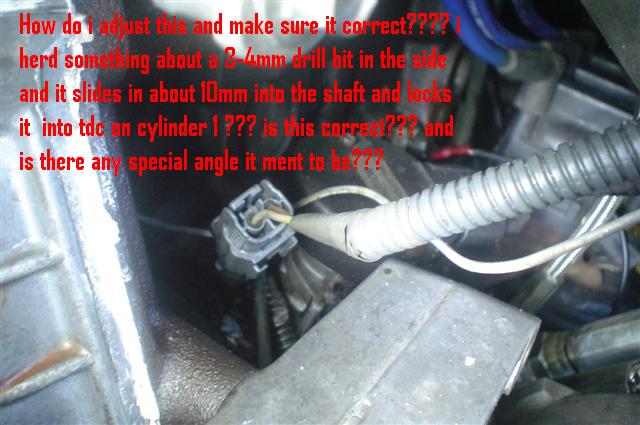

i thinking it might be cam angle sensor out by a tooth or something





Attachments:
DSC02451 (Small).JPG
DSC02451 (Small).JPG [ 53.11 KiB | Viewed 471 times ]
DSC02453 (Small).JPG
DSC02453 (Small).JPG [ 50.17 KiB | Viewed 470 times ]
DSC02456 (Small).JPG
DSC02456 (Small).JPG [ 45.42 KiB | Viewed 472 times ]
DSC02457 (Small).JPG
DSC02457 (Small).JPG [ 54.54 KiB | Viewed 469 times ]



_________________

Ford EF Futura Black
18" koya Strykers, AU engine with port and polish EB head, crow valve springs, standard cam, Large aftermarket RX7 turbo, T5 manual 3" intercooler piping, 600x300x100 intercooler core, MSII with innovate wideband O2 sensor and guage. BA F6 bodykit

Top
 Profile

Display posts from previous:
Sort by
 Page 1 of 1  [ 5 posts ]

Who is online

Users browsing this forum: No registered users and 32 guests


You cannot post new topics in this forum
You cannot reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum
You cannot post attachments in this forum





It is currently Tue Dec 12, 2017 7:48 pm All times are UTC + 11 hours





(c)2014 Total Web Solutions Australia - Australian Web Hosting and Domain Names
