is this correct jack point?



Page 1 of 2 [ 19 posts ] Go to page 1, 2  Next


 Post subject: is this correct jack point?
Posted: Sat Jan 15, 2011 3:02 pm
Getting Side Ways
Offline
User avatar

Age: 32

Posts: 415

Joined: 13th Nov 2010

Ride: 95 EF GLI

Location: Melbourne
VIC, Australia

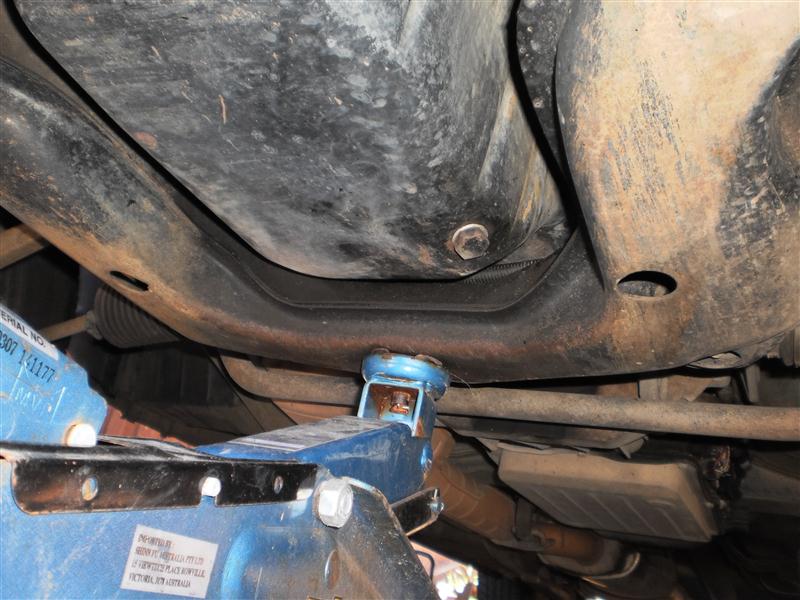

im changing the oil and stuff on my ef, and rather be safe then sorry, so is the right spot the bar right behind the sump?the bar that has a hole in it? or the solid bar behind it?





Attachments:
File comment: jackpoint?
small_P1150014.JPG [ 78.53 KiB | Viewed 204 times ]



_________________

95 Ef Gli, mods : Tickford Head, Tickford ecu, Pacemaker 4499, Venom 100 cpi cat, Redback 2.5" catback, Wade 977b cam, ba xr6 intake and SS inductions, k & n filter & leather seats. 147.5kw @ wheels

Top
 Profile


 Post subject: Re: is this correct jack point?
Posted: Sat Jan 15, 2011 3:11 pm
Getting Side Ways
Offline

Age: 31

Posts: 996

Joined: 9th Aug 2005

Ride: BA XR6T ute

Location: frankston
VIC, Australia

yes
Top
 Profile


 Post subject: Re: is this correct jack point?
Posted: Sat Jan 15, 2011 3:15 pm
Getting Side Ways
Offline
User avatar

Age: 32

Posts: 415

Joined: 13th Nov 2010

Ride: 95 EF GLI

Location: Melbourne
VIC, Australia

ringastinga wrote:
yes


so the picture is correct?



_________________

95 Ef Gli, mods : Tickford Head, Tickford ecu, Pacemaker 4499, Venom 100 cpi cat, Redback 2.5" catback, Wade 977b cam, ba xr6 intake and SS inductions, k & n filter & leather seats. 147.5kw @ wheels

Top
 Profile


 Post subject: Re: is this correct jack point?
Posted: Sat Jan 15, 2011 3:18 pm
Getting Side Ways
Offline

Age: 31

Posts: 996

Joined: 9th Aug 2005

Ride: BA XR6T ute

Location: frankston
VIC, Australia

correct but when the car is up chuck some axle stands on either side of the car coz u shouldnt ever work under a car that is only held by a jack safety first but yeh liftng the k frame is good
Top
 Profile


 Post subject: Re: is this correct jack point?
Posted: Sat Jan 15, 2011 3:20 pm
Getting Side Ways
Offline
User avatar

Age: 32

Posts: 415

Joined: 13th Nov 2010

Ride: 95 EF GLI

Location: Melbourne
VIC, Australia

yeh, i got stands, and ill be using them. thanks for the reply



_________________

95 Ef Gli, mods : Tickford Head, Tickford ecu, Pacemaker 4499, Venom 100 cpi cat, Redback 2.5" catback, Wade 977b cam, ba xr6 intake and SS inductions, k & n filter & leather seats. 147.5kw @ wheels

Top
 Profile


 Post subject: Re: is this correct jack point?
Posted: Sat Jan 15, 2011 3:43 pm
Getting Side Ways
Offline
User avatar

Age: 32

Posts: 415

Joined: 13th Nov 2010

Ride: 95 EF GLI

Location: Melbourne
VIC, Australia

double posted



_________________

95 Ef Gli, mods : Tickford Head, Tickford ecu, Pacemaker 4499, Venom 100 cpi cat, Redback 2.5" catback, Wade 977b cam, ba xr6 intake and SS inductions, k & n filter & leather seats. 147.5kw @ wheels

Last edited by Chargd on Sat Jan 15, 2011 3:55 pm, edited 1 time in total.

Top
 Profile


 Post subject: Re: is this correct jack point?
Posted: Sat Jan 15, 2011 3:54 pm
Getting Side Ways
Offline
User avatar

Age: 32

Posts: 415

Joined: 13th Nov 2010

Ride: 95 EF GLI

Location: Melbourne
VIC, Australia

there a bit of an imprint in the k frame from the jack, nothing major is it ok? dunno if it from me jacking it up of someone else



_________________

95 Ef Gli, mods : Tickford Head, Tickford ecu, Pacemaker 4499, Venom 100 cpi cat, Redback 2.5" catback, Wade 977b cam, ba xr6 intake and SS inductions, k & n filter & leather seats. 147.5kw @ wheels

Top
 Profile


 Post subject: Re: is this correct jack point?
Posted: Sat Jan 15, 2011 4:12 pm
Getting Side Ways
Offline

Age: 31

Posts: 996

Joined: 9th Aug 2005

Ride: BA XR6T ute

Location: frankston
VIC, Australia

nah its all good
Top
 Profile


 Post subject: Re: is this correct jack point?
Posted: Sat Jan 15, 2011 4:33 pm
Getting Side Ways
Offline
User avatar

Age: 32

Posts: 415

Joined: 13th Nov 2010

Ride: 95 EF GLI

Location: Melbourne
VIC, Australia

oil filter was a b**ch, had to do by hand, couldnt get the wrench to grab it, might get one of the socket attachments next time the ring ones seem s**t, just hope i got the filter tight enough by hand



_________________

95 Ef Gli, mods : Tickford Head, Tickford ecu, Pacemaker 4499, Venom 100 cpi cat, Redback 2.5" catback, Wade 977b cam, ba xr6 intake and SS inductions, k & n filter & leather seats. 147.5kw @ wheels

Top
 Profile


 Post subject: Re: is this correct jack point?
Posted: Sat Jan 15, 2011 4:35 pm
Getting Side Ways
Offline

Posts: 2091

Joined: 3rd Apr 2008

Ride: EF Fairmont, XG Ute

Filter is fine done by hand. It also means you should be able to get it out easy.
'
I've never used a tool on one, and never had one leak.
Top
 Profile


 Post subject: Re: is this correct jack point?
Posted: Sat Jan 15, 2011 4:44 pm
Getting Side Ways
Offline
User avatar

Age: 28

Posts: 3374

Joined: 11th Mar 2008

Ride: EA SVO, AU2 Forte

Location: Bendigo
VIC, Australia

should need to jack it to do an oil change. if you do some of the oil will stay trapped in the sump. my EB is fairly low and i can service it without jacking it. and with the oil filter before you dump the oil turn the wheel full lock left. you can get to the filter through the wheel arch



_________________

Daily driver: AU2. 5 speed. 19" FG luxos. Full exhaust. Lowered. AU3 XR leather interior, converted to full power windows. 3.45 LSD. IN THE FUTURE: Tickford 6
Weekend driver: EA SVO AU motor. Built BTR. TCE 2800 stall. T76 turbo. Locked diff. On E85. approx 320rwkw. 11.5 @121mph

Top
 Profile


 Post subject: Re: is this correct jack point?
Posted: Sat Jan 15, 2011 4:52 pm
Getting Side Ways
Offline
User avatar

Age: 32

Posts: 415

Joined: 13th Nov 2010

Ride: 95 EF GLI

Location: Melbourne
VIC, Australia

yeh mine is stock height and i reckon i coulda got it without jacking it up, anyways all done now, thanks for the advice :D :D



_________________

95 Ef Gli, mods : Tickford Head, Tickford ecu, Pacemaker 4499, Venom 100 cpi cat, Redback 2.5" catback, Wade 977b cam, ba xr6 intake and SS inductions, k & n filter & leather seats. 147.5kw @ wheels

Top
 Profile


 Post subject: Re: is this correct jack point?
Posted: Sat Jan 15, 2011 6:21 pm
Getting Side Ways
Offline
User avatar

Age: 54

Posts: 4102

Joined: 18th Nov 2004

Gallery: 10 images

Ride: PX2 Ranger 4x4 XLT Dual CAB

Location: Carrum Downs
VIC, Australia

I always do the up filter by hand, but they seem to tighten up over time. I use a tool to remove them.

This is the tool I use for a falcon



_________________

She's meanness put to music and the b**ch is born to run!
Like the sign says, "speed's just a question of money. How fast can you go?"

Top
 Profile


 Post subject: Re: is this correct jack point?
Posted: Sun Jan 16, 2011 2:25 am
Fordmods Junkie
Offline
User avatar

Posts: 11739

Joined: 17th May 2005

Gallery: 11 images

Ride: EL Fairmont, VFR400 racer

Power: 144 rwkw

Location: Melbourne
VIC, Australia

Oil filters are meant to be fitted by hand. The pressure and constant change in temperature causes the filter to eventually tighten. I always remove and tighten by hand...only used a tool once on the EA.

Also the jacking point is correct, from the K-frame. If you don't want any imprints on it, you can use some rags/cloth/clothes and put it between the jacking head and k-frame. It will reduce the scratching/indentations to the k-frame...but you have to be careful not to put too many rags due to less grip for the jack and thus could slip as you jack it up. I usually put a towel folded in half and laid over the top.

As mentioned before, oil should be drained on level ground. So you can jack it up to get to the filter and more room to remove sump bolt, but lower the car when you dump the oil. Or just simple drain the oil while the car is on the ground. Car too low? park the front wheels over some timber and this should give you enough height.



_________________

phongus = Post whore 2006
EL XR6 motor, EL ECU + J3 chip, WADE 1673 Camshaft, 3" S/S intake, Pacy 4480, 2.5" Hi flow cat, 2.5" Lukey exhaust.
Max Power = 144.6 rwkw (03/05/2008)

Top
 Profile


 Post subject: Re: is this correct jack point?
Posted: Sun Jan 16, 2011 10:58 am
Technical Contributor
Offline
User avatar

Age: 38

Posts: 4093

Joined: 20th Mar 2005

Gallery: 2 images

Ride: 2.0 Turbo VW

Power: 142 rwkw

Location: Seaford State:
VIC, Australia

You should also Have Rubber between the Jack and the lifting point.

spreads the load on the head of the jack, stops imprinting on the K-frame and also reduces any chances of slipping.



_________________

Carefree, we may not be number one, but we're up there.

Top
