 Post subject: Re: Just starting au in ef conversion
Posted: Tue Sep 22, 2009 5:14 pm
QLD Cruise Moderator
Offline

Age: 52

Posts: 407

Joined: 20th Jul 2009

Gallery: 1 images

Ride: EF Ford Falcon Wagon

Location: Atkinsons Dam an hour out of Brisbane
QLD, Australia

My Ef wiring loom fitted onto the Au coil pack with no problems
Top
 Profile


 Post subject: Re: Just starting au in ef conversion
Posted: Tue Sep 22, 2009 5:24 pm
Moderator
Offline

Posts: 14513

Joined: 7th Nov 2004

Ride: ford falcon au3 xr8

Location: a shit suburb in sydney
NSW, Australia

SV-Valiant wrote:
My Ef wiring loom fitted onto the Au coil pack with no problems


then yours was series 1 ??
Top
 Profile


 Post subject: Re: Just starting au in ef conversion
Posted: Tue Sep 22, 2009 5:26 pm
Fordmods Junkie
Offline
User avatar

Age: 35

Posts: 3045

Joined: 26th Nov 2008

Ride: 1975 XB Falcon 500

Location: In the drivers seat
SA, Australia

I would agree with Troydude there



_________________

http://www.facebook.com/Ford1975

Top
 Profile


 Post subject: Re: Just starting au in ef conversion
Posted: Tue Sep 22, 2009 10:38 pm
Smokin em up
Offline
User avatar

Age: 50

Posts: 259

Joined: 21st Aug 2008

Ride: Fairlane Concorde 4.0

Location: wagga
NSW, Australia

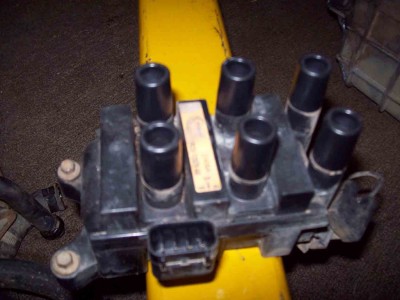

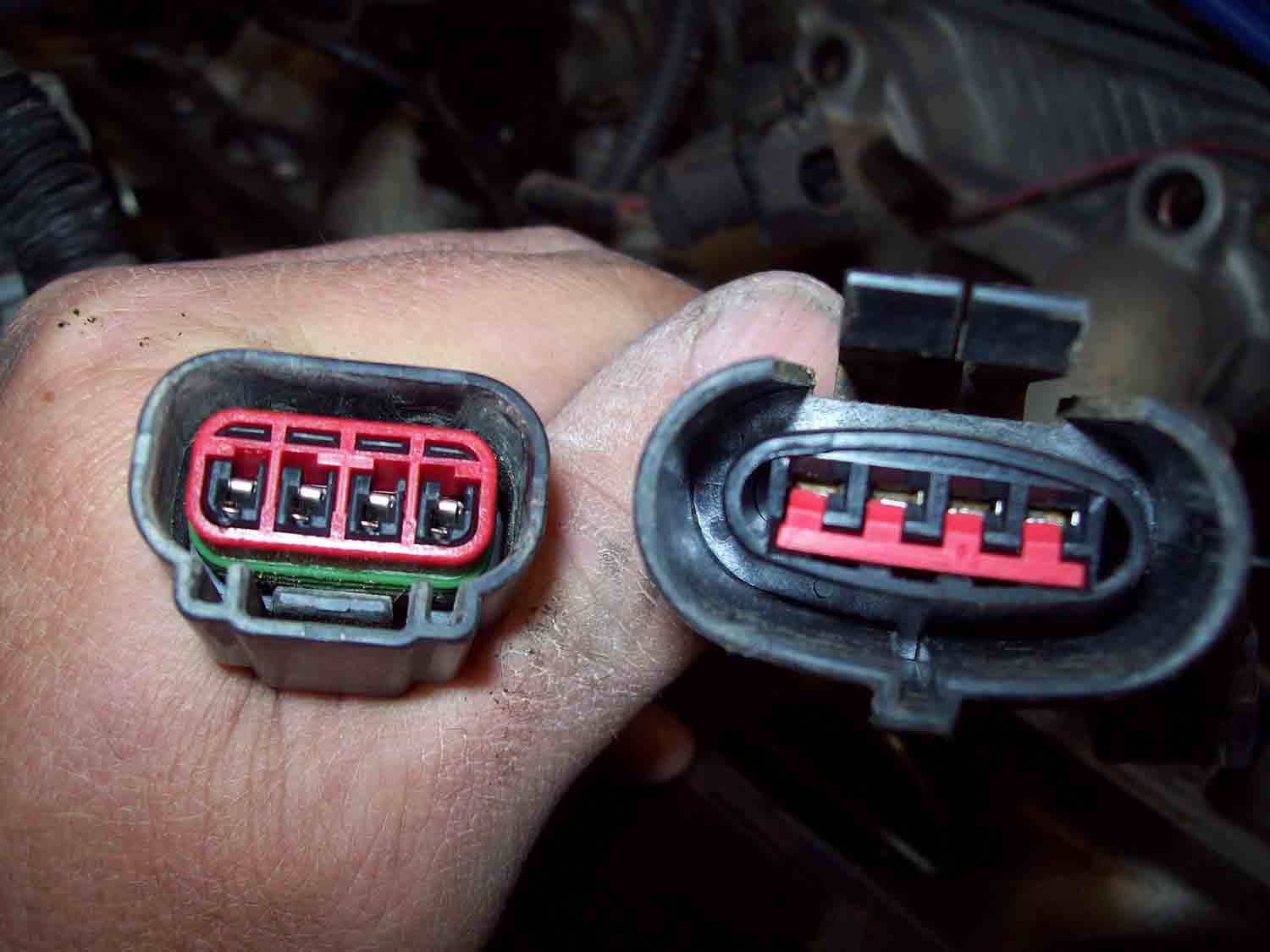

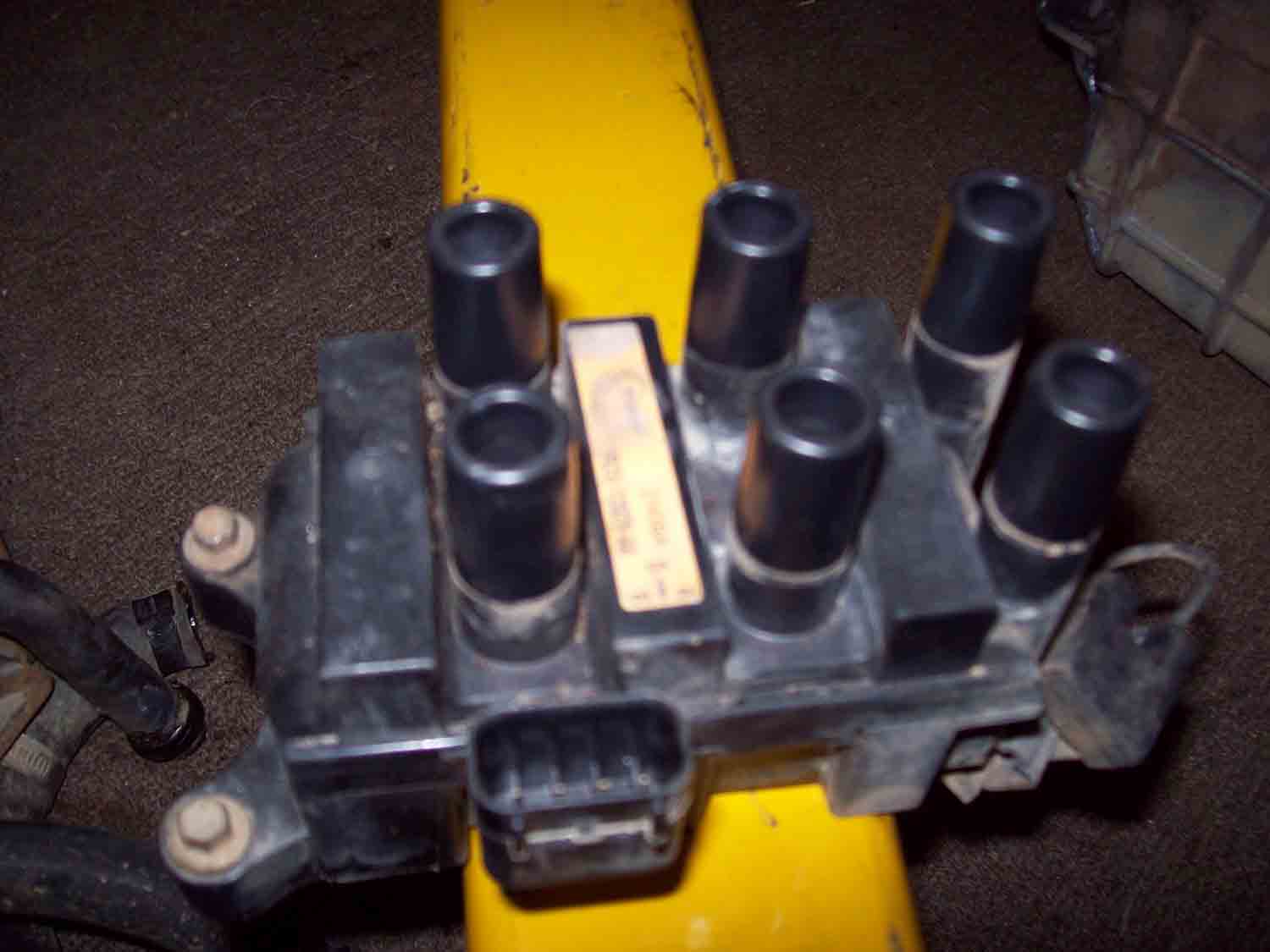

Krytox and Troyman are spot on. If you have a look at the AU-EF coil pack plug photo below, you will see the AU series 2/3 on the left and the EF/AU1 on the right. The AU series 2/3 Coilpack is smaller and made by Visteon (Ford part number 1R2U-12029-AA). The EF/AU1 is Bosch as already mentioned (Ford part number 94 DA12029AC) and is larger. Hope the photos help.

PS. the wiring colour codes are the same so you could easily put either pack in if you have the plug, solder/crimps and some heatshrink/tape.





Attachments:
EF Coil pack.jpg
EF Coil pack.jpg [ 82.46 KiB | Viewed 50 times ]
AU 2-3 coil pack.jpg
AU 2-3 coil pack.jpg [ 63.02 KiB | Viewed 50 times ]
au-ef coil pack plugs.jpg
au-ef coil pack plugs.jpg [ 68.42 KiB | Viewed 39 times ]



_________________

NF Fairlane: Non Factory Dual Fuel - New coolant tank, New fuel injectors, New fuel pump, New earth cable, ECU capacitors replaced, New O2 sensor, leads and plugs, New Radiator/Condensor cleaned. 483,000kms. AU I6 Powered. Struts, Shockies, Tie rods and ball joints replaced.

Top
 Profile


 Post subject: Re: Just starting au in ef conversion
Posted: Thu Sep 24, 2009 2:47 pm
Smokin em up
Offline
User avatar

Age: 50

Posts: 259

Joined: 21st Aug 2008

Ride: Fairlane Concorde 4.0

Location: wagga
NSW, Australia

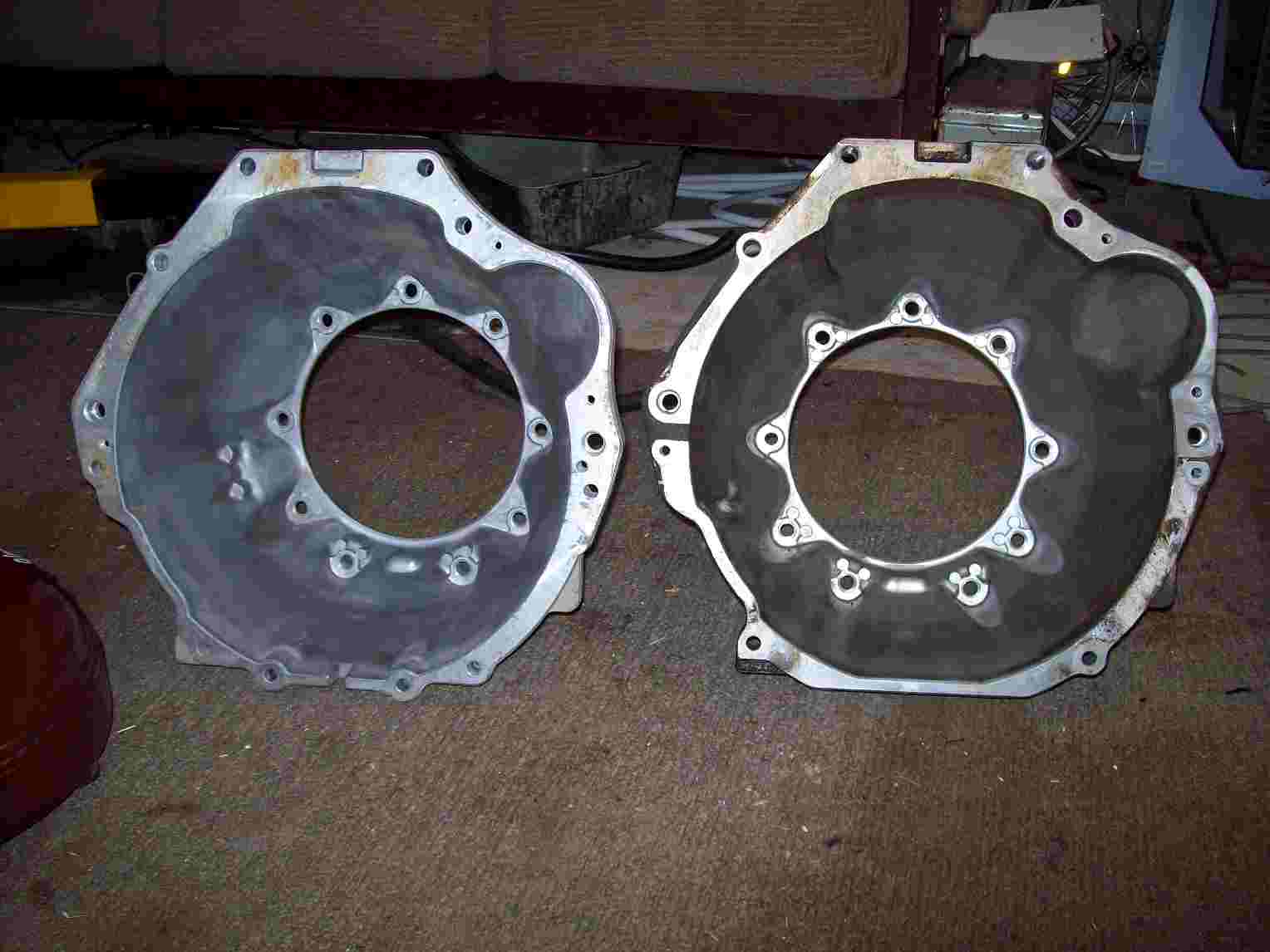

Just swapped bell housings and changed the torque converter seal. Bit of difference between the bottom of the bellhousings. The top half is identical. You could get away with using the EF unit but for $30, I thought I might as well fit the one designed for the engine. AU is on the left and EF/EL on the right.





Attachments:
AU-EF Bellhousing.JPG
AU-EF Bellhousing.JPG [ 56.53 KiB | Viewed 43 times ]



_________________

NF Fairlane: Non Factory Dual Fuel - New coolant tank, New fuel injectors, New fuel pump, New earth cable, ECU capacitors replaced, New O2 sensor, leads and plugs, New Radiator/Condensor cleaned. 483,000kms. AU I6 Powered. Struts, Shockies, Tie rods and ball joints replaced.

Top
 Profile


 Post subject: Re: Just starting au in ef conversion
Posted: Sun Sep 27, 2009 6:55 pm
Getting Side Ways
Offline

Posts: 1221

Joined: 11th Nov 2007

Ride: f6 rspec

Location: Sydney
NSW, Australia

thanks for all the info guys, my motor was put in two weeks ago and all went smoothly..

basically these are the differences in short that i can remember..

au motor into ef

needed -
au alternator (or modifed brackets if keeping ef alt..)
-modified sump or cut cross member (i got the sump modified)
-bellhousings dont line up (i kept the original with the bottom two bolts not lining up which ive been told should still be fine)
- au temp sensor not connected to anything as using ef's thermstat housing and thats where the sensor it located..
-basically using the whole ef inlet manifold to save on wiring issues
-ef aircon bolted straight on
-CAS needed modifying along with the knock sensor
- used the ef drive belt (could use either really as they're only 10mm different)
Top
 Profile


 Post subject: Re: Just starting au in ef conversion
Posted: Sun Oct 04, 2009 8:49 pm
Smokin em up
Offline
User avatar

Age: 50

Posts: 259

Joined: 21st Aug 2008

Ride: Fairlane Concorde 4.0

Location: wagga
NSW, Australia

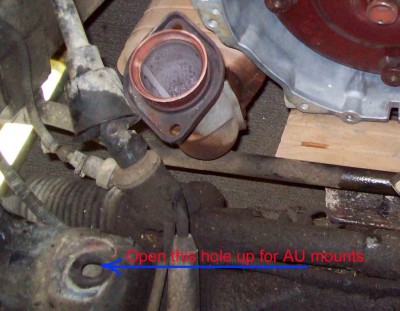

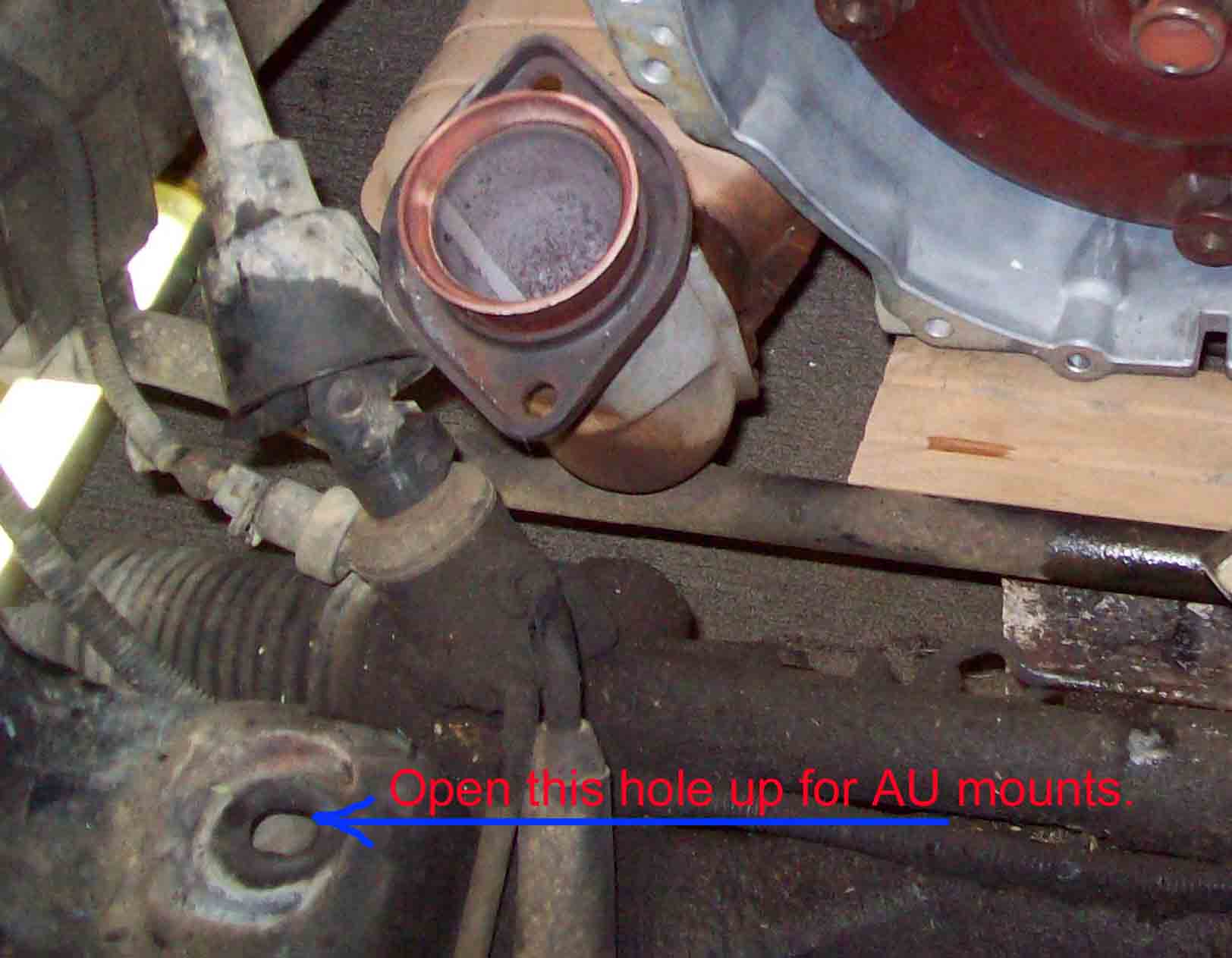

Well back on the job again today after being on holidays. If your using the AU engine mounts, you will have to open up the top hole with a step drill (not the horizontal bolt holes) in the chassis prior to fitting the engine . My suggestion would be to use your original mounts. I was unable to use one of mine as it was damaged during removal. Found out the hard way that they wouldn't fit after lifting the engine in place.

My aircon compressor fitted perfectly with no mods to the spacers. Also if just fitting the engine (no gearbox), make sure your donk is as level as possible. Any lean backwards will cause problems.





Attachments:
AU mount holes.jpg
AU mount holes.jpg [ 83.71 KiB | Viewed 48 times ]



_________________

NF Fairlane: Non Factory Dual Fuel - New coolant tank, New fuel injectors, New fuel pump, New earth cable, ECU capacitors replaced, New O2 sensor, leads and plugs, New Radiator/Condensor cleaned. 483,000kms. AU I6 Powered. Struts, Shockies, Tie rods and ball joints replaced.

Top
 Profile


 Post subject: Re: Just starting au in ef conversion
Posted: Tue Oct 06, 2009 8:06 am
QLD Cruise Moderator
Offline

Age: 52

Posts: 407

Joined: 20th Jul 2009

Gallery: 1 images

Ride: EF Ford Falcon Wagon

Location: Atkinsons Dam an hour out of Brisbane
QLD, Australia

I think you dont need to alter the Air Con spacers unless you use the ef alternator otherwise leave as they are and use a Au drive belt.

My AU mounts went right on with no problems.

Its now weeks later since my swap and i got to say the AU motor is a much better motor than the Ef but theirs a big differance when i switch from LPG to Petrol i have a much more noticable power gain when i run in on petrol, never had this much differance with the old motor.

But love the smoothness of this motor and the Au gearbox.

Alan
Top
 Profile


 Post subject: Re: Just starting au in ef conversion
Posted: Tue Oct 06, 2009 8:22 am
Smokin em up
Offline
User avatar

Age: 50

Posts: 259

Joined: 21st Aug 2008

Ride: Fairlane Concorde 4.0

Location: wagga
NSW, Australia

Might be the difference between series 1 and series 2/3 engine mounts. Series 1 are probably the same as the EF/EL. Just waiting for the fluids to go in and LPG converter to be connected.



_________________

NF Fairlane: Non Factory Dual Fuel - New coolant tank, New fuel injectors, New fuel pump, New earth cable, ECU capacitors replaced, New O2 sensor, leads and plugs, New Radiator/Condensor cleaned. 483,000kms. AU I6 Powered. Struts, Shockies, Tie rods and ball joints replaced.

Top
 Profile


 Post subject: Re: Just starting au in ef conversion
Posted: Tue Oct 06, 2009 8:41 am
QLD Cruise Moderator
Offline

Age: 52

Posts: 407

Joined: 20th Jul 2009

Gallery: 1 images

Ride: EF Ford Falcon Wagon

Location: Atkinsons Dam an hour out of Brisbane
QLD, Australia

Alfy did you use the Au box as well or your Ef box
Top
 Profile


 Post subject: Re: Just starting au in ef conversion
Posted: Tue Oct 06, 2009 10:32 am
Smokin em up
Offline
User avatar

Age: 50

Posts: 259

Joined: 21st Aug 2008

Ride: Fairlane Concorde 4.0

Location: wagga
NSW, Australia

EF auto with AU bellhousing. Hopefully I will have her running by the end of the week. Working double shifts at the moment so wont get to the car again until thursday.

Also noticed the AU flywheel access hole is suppose to have a cover over it but I didn't get one. Looks like it could be a large grommet type thing. Anyone know what covers this hole?



_________________

NF Fairlane: Non Factory Dual Fuel - New coolant tank, New fuel injectors, New fuel pump, New earth cable, ECU capacitors replaced, New O2 sensor, leads and plugs, New Radiator/Condensor cleaned. 483,000kms. AU I6 Powered. Struts, Shockies, Tie rods and ball joints replaced.

Top
 Profile


 Post subject: Re: Just starting au in ef conversion
Posted: Tue Oct 06, 2009 12:05 pm
Moderator
Offline

Posts: 14513

Joined: 7th Nov 2004

Ride: ford falcon au3 xr8

Location: a shit suburb in sydney
NSW, Australia

its a plastic cover , it clips in the square hole..
i havnt got one on mine..
Top
 Profile


 Post subject: Re: Just starting au in ef conversion
Posted: Tue Oct 06, 2009 12:35 pm
Fordmods Junkie
Offline
User avatar

Age: 35

Posts: 3045

Joined: 26th Nov 2008

Ride: 1975 XB Falcon 500

Location: In the drivers seat
SA, Australia

Yeah I have the plastic cover but never put it on :lol:



_________________

http://www.facebook.com/Ford1975

Top
 Profile


 Post subject: Re: Just starting au in ef conversion
Posted: Tue Oct 06, 2009 2:32 pm
Smokin em up
Offline
User avatar

Age: 50

Posts: 259

Joined: 21st Aug 2008

Ride: Fairlane Concorde 4.0

Location: wagga
NSW, Australia

Cheers TROYMAN and XR-Lane. I'll go to Ford and order one. Shouldn't cost much for a bit of plastic (but I've been surprised in the past).



_________________

NF Fairlane: Non Factory Dual Fuel - New coolant tank, New fuel injectors, New fuel pump, New earth cable, ECU capacitors replaced, New O2 sensor, leads and plugs, New Radiator/Condensor cleaned. 483,000kms. AU I6 Powered. Struts, Shockies, Tie rods and ball joints replaced.

Top
 Profile


 Post subject: Re: Just starting au in ef conversion
Posted: Sat Oct 10, 2009 12:09 pm
Smokin em up
Offline
User avatar

Age: 50

Posts: 259

Joined: 21st Aug 2008

Ride: Fairlane Concorde 4.0

Location: wagga
NSW, Australia

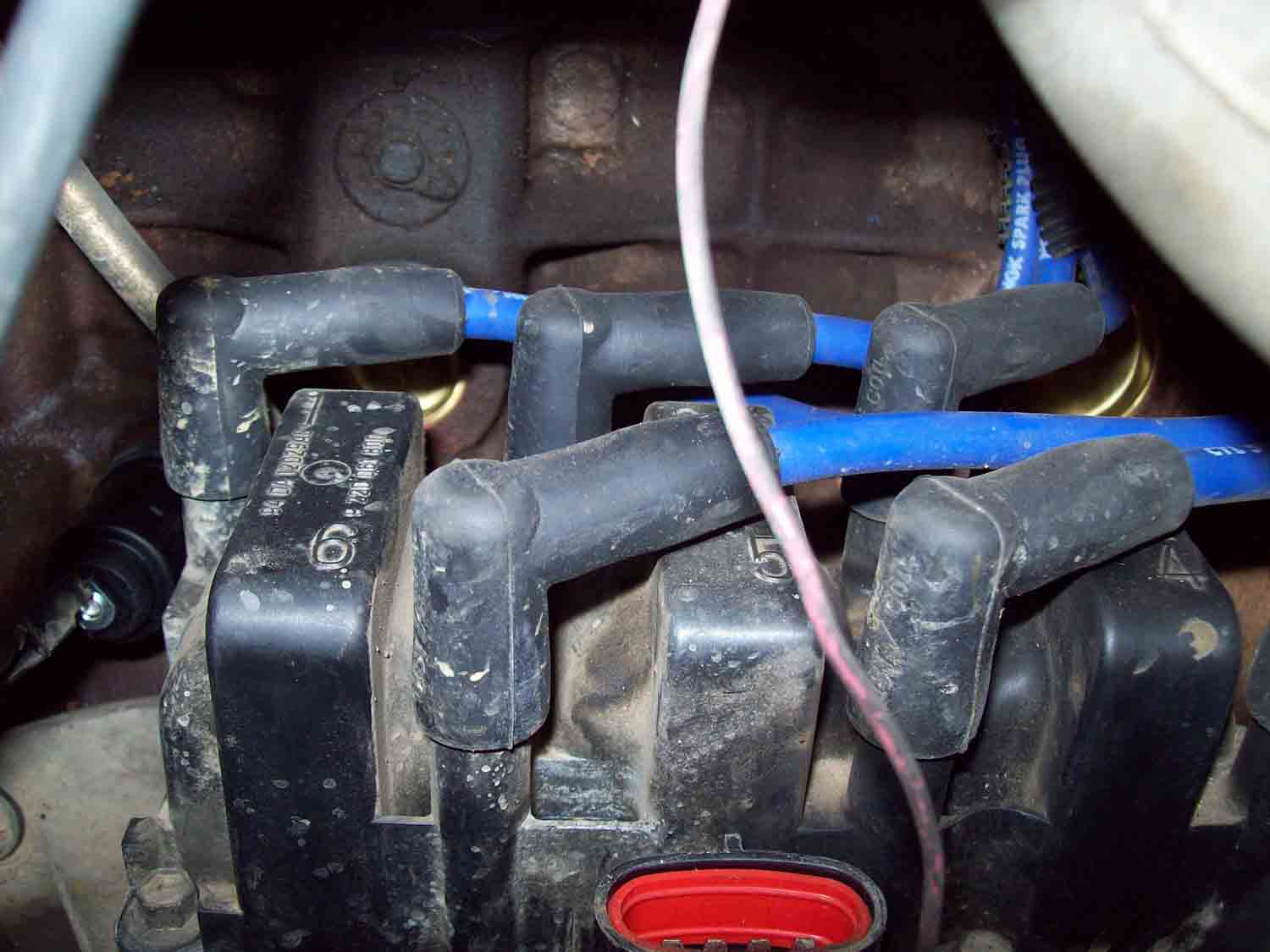

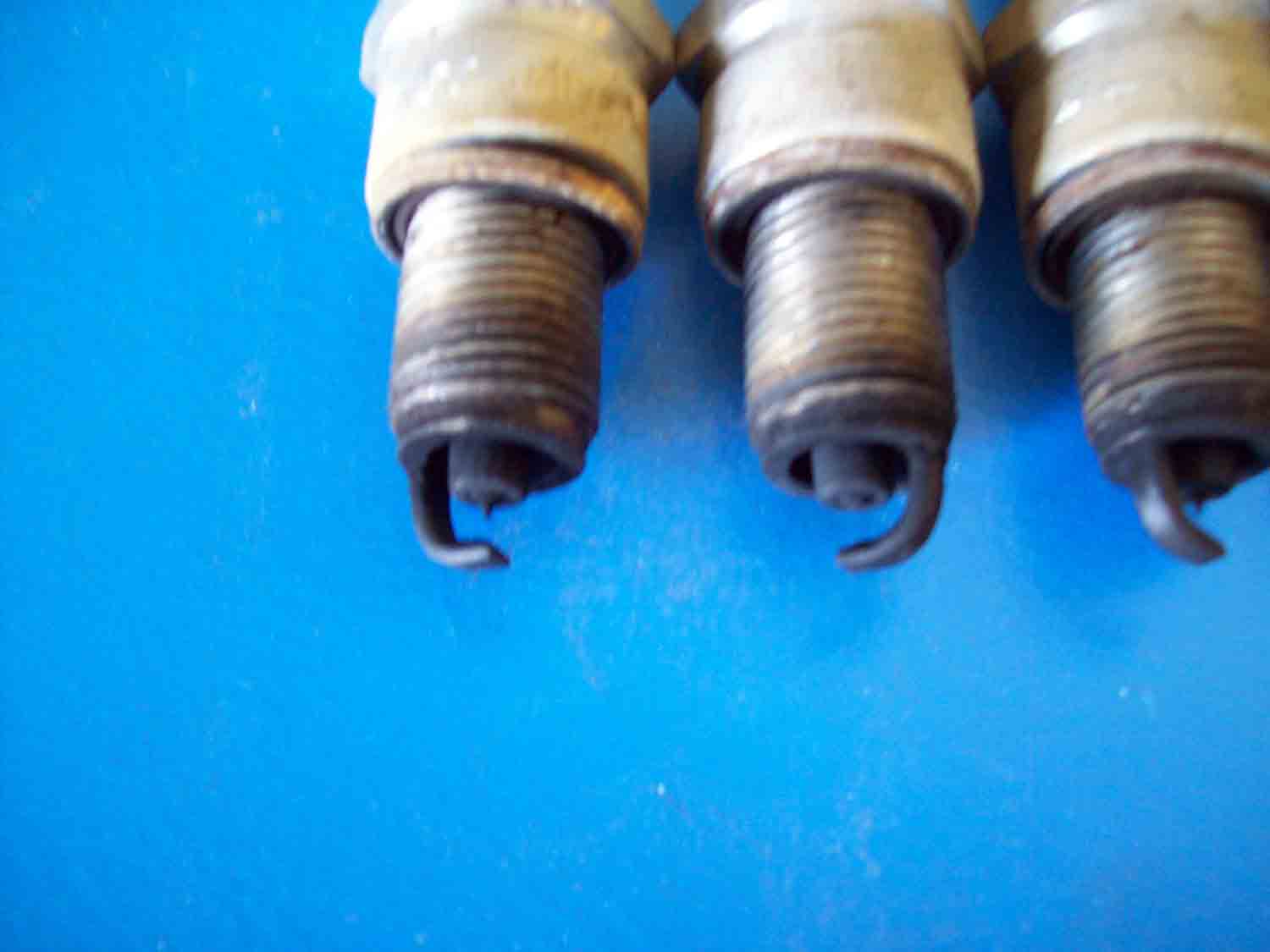

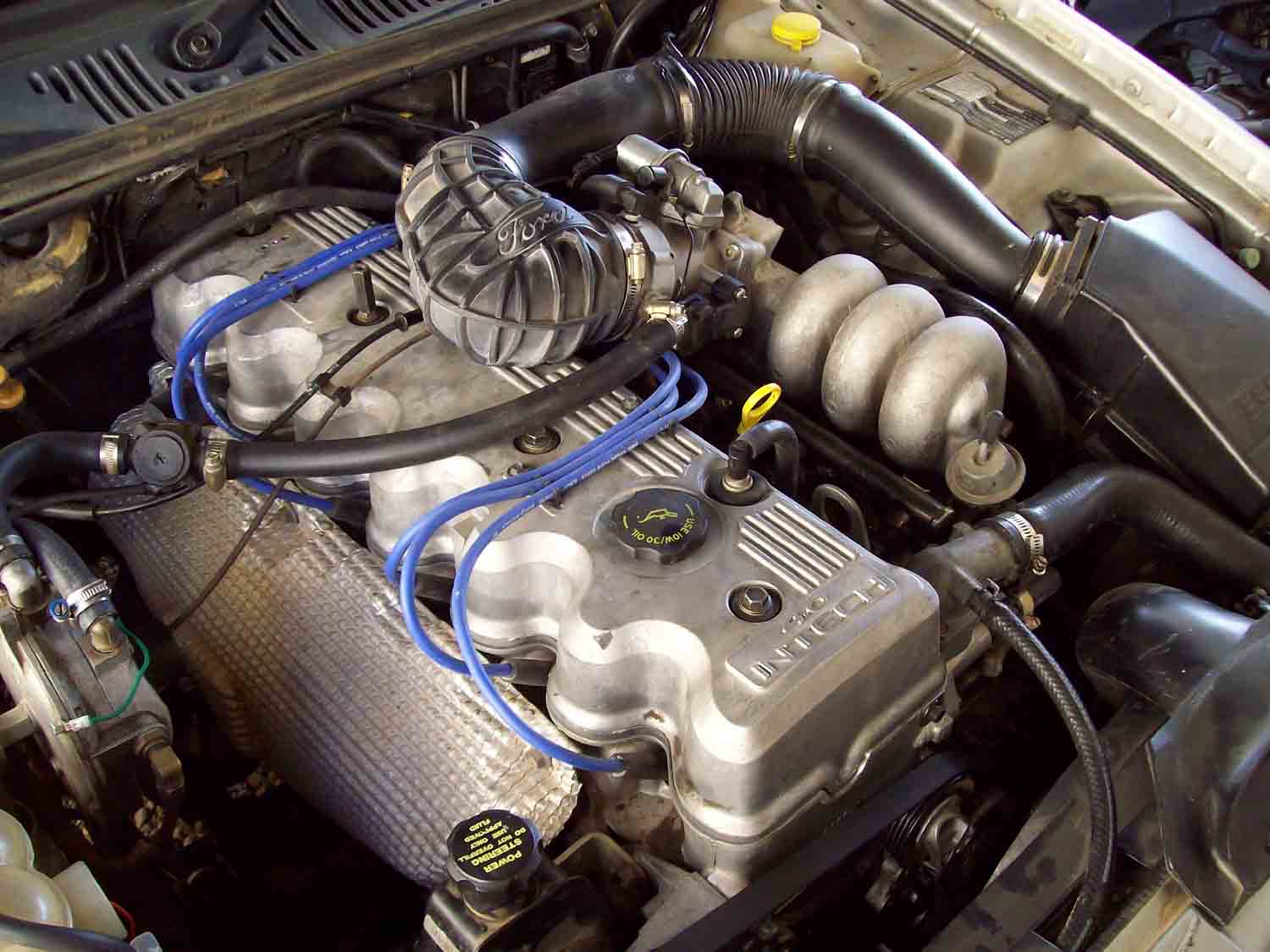

Well the engine is finally in and running. My heart sank yesterday when I turned the key and it wouldn't run on petrol or gas. I'd forgotten to look at the spark plugs in the AU donk as I didn't want any crap getting into the cylinders. After several attempts to start, I finally pulled the plugs and was surprised by the poor state of each plug. Some had the centre electrode completely missing. Swapped in my good plugs from the EF donk and thought now I'm in business. Still no run but it was trying to fire. Put my diagnostic box on the diag connector and retrieved 2 codes. Codes 123 and 113. Both were related to sensors on the inlet manifold being shorted to 12V. A close inspection of the wiring diagram revealed that the coolant temp sensor, iat sensor and throttle position sensor shared the same ground wire (bl/w). I had cut this wire and connected it to the AU's coolant temp sensor instead of splicing into it (I accidently removed the ground from the IAT and TPS). A bit of soldering and heatshrinking and now I'm in business. Cranked the engine but still no start. Switched to petrol and gave it a little throttle. It fired up and kept running. Idle was very poor and engine would die if I removed my foot from the throttle. After doing a base idle adjustment, all was well. Drove the car this morning approx 60kms with no dramas. Very smooth and quiet engine. A bit more power on lpg.

Big thanks to XR-Lane, SV-Valiant, Troyman and Krytox for your assistance.

Alfy
