OK, i have finished and completed the Serp and BBM conversion on my ED, i had it idling so i could purge the coolont system, and slammed the bonnet shut.

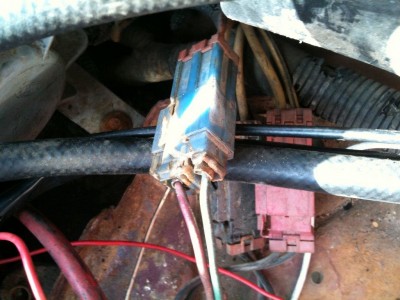

Then all of a sudden she died and magic blue smoke appeared. It cam from the batter and had shorted a wire near this. I appeasr to be a fuseable link, and is seized shut. ANy ideas what it is or does???





Attachments:
001.jpg [ 111.91 KiB | Viewed 29 times ]



_________________

The Terrorist ED Retired due to RUST.
The TerrosistGhia, EF Ghia 351 EFI 5 Speed.
Millennium Falcon, Sleeper EL DOHC 6 Speed Manual EFI LPG
Member#1131
I didn't Vote for Multiculturalism, DID YOU!!!

Top
 Profile


 Post subject: Re: Magic Blue smoke
Posted: Fri Apr 16, 2010 5:02 pm
Getting Side Ways
Offline
User avatar

Age: 46

Posts: 3763

Joined: 25th Nov 2004

Gallery: 6 images

Ride: EFII 5.8 NOS TerroristGhia

Power: 274 rwkw

Location: Sydney Australia
NSW, Australia

Further infomation, the bottom side of this link is yellow/black trace and orange /green trace
ANy help guys, she refuses to start
Brett



_________________

The Terrorist ED Retired due to RUST.
The TerrosistGhia, EF Ghia 351 EFI 5 Speed.
Millennium Falcon, Sleeper EL DOHC 6 Speed Manual EFI LPG
Member#1131
I didn't Vote for Multiculturalism, DID YOU!!!

Top
 Profile


 Post subject: Re: Magic Blue smoke
Posted: Fri Apr 16, 2010 5:14 pm
Moderator
Offline

Posts: 14513

Joined: 7th Nov 2004

Ride: ford falcon au3 xr8

Location: a shit suburb in sydney
NSW, Australia

if the car cranks over.. its either fuel pump or ecu fusable link..

can you hear the fuel pump prime??
Top
 Profile


 Post subject: Re: Magic Blue smoke
Posted: Fri Apr 16, 2010 5:23 pm
Getting Side Ways
Offline
User avatar

Age: 46

Posts: 3763

Joined: 25th Nov 2004

Gallery: 6 images

Ride: EFII 5.8 NOS TerroristGhia

Power: 274 rwkw

Location: Sydney Australia
NSW, Australia

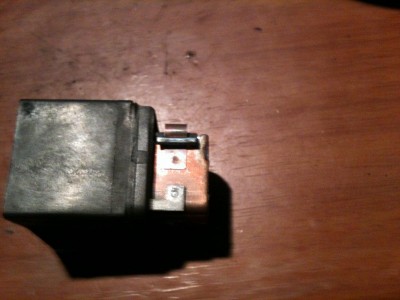

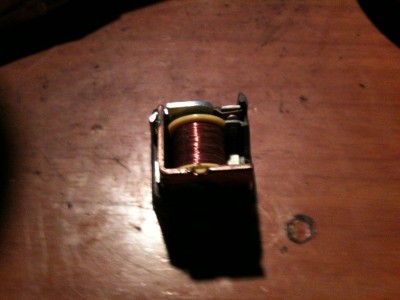

Pump does not prime, removed the header tank to check the fuel pump relay, and discovered the relay next to it separated from its holder. I also has a burn mark on it on the top edge.
