This is my mount, mind you it is for a coil pack on an EF, not a coil on an EL.

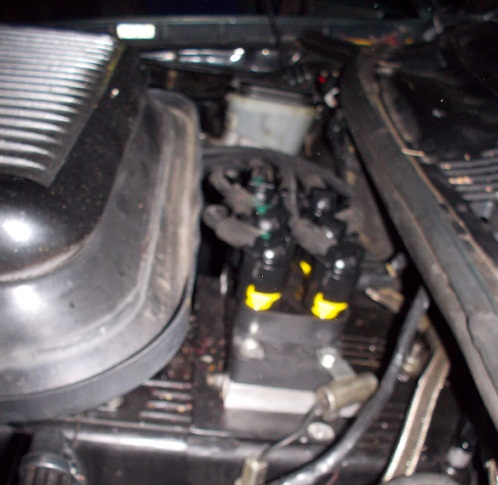

This is from the right side. Accel Coil mounted on the rocker cover

Attachment:
Accel Coil Drivers Side.JPG
Accel Coil Drivers Side.JPG [ 78.04 KiB | Viewed 19 times ]

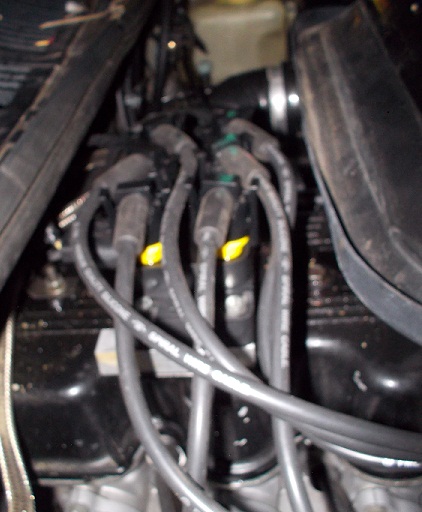

left side

Attachment:
Accel Coil Left Side.JPG
Accel Coil Left Side.JPG [ 80.6 KiB | Viewed 23 times ]

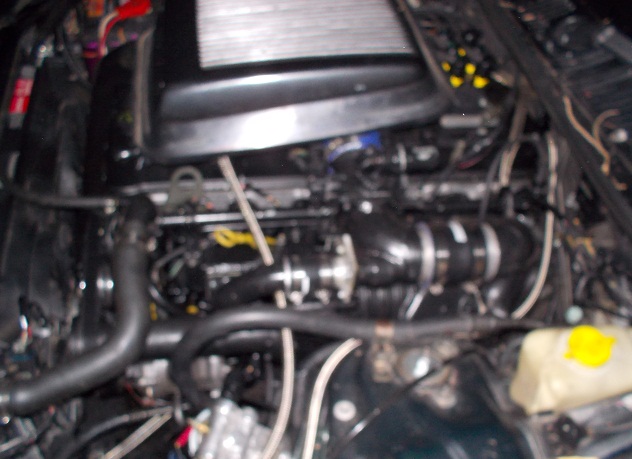

Long shot from the left

Attachment:
Engine Bay Left.JPG
Engine Bay Left.JPG [ 150.69 KiB | Viewed 21 times ]


Front Shot Old Engine out

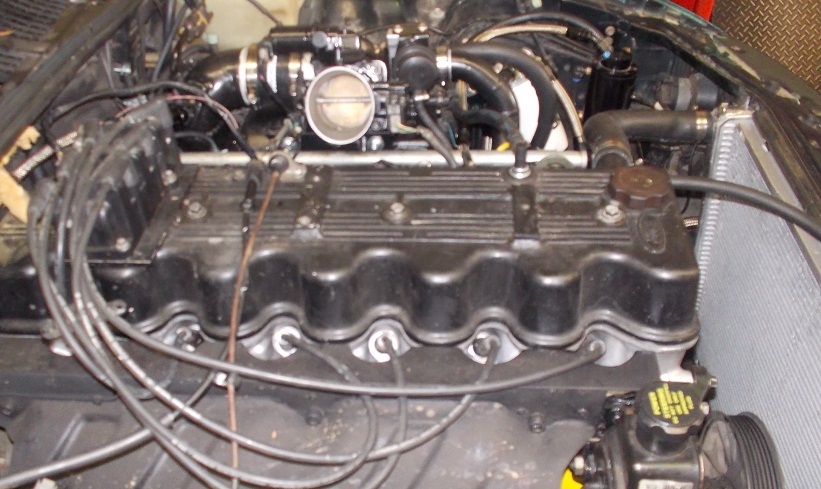

Attachment:
Intake plugs in front.jpg
Intake plugs in front.jpg [ 316.29 KiB | Viewed 25 times ]

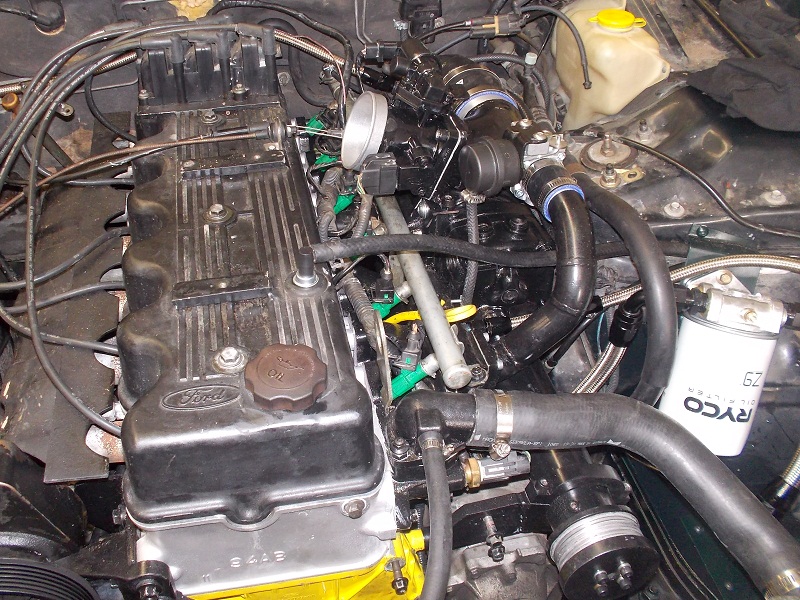

Factory Coil Mounted with old engine out.

Attachment:
Intake plugs in right.jpg
Intake plugs in right.jpg [ 218 KiB | Viewed 20 times ]
Top
 Profile


 Post subject: Re: Mounting EL coil on Au block
Posted: Tue Oct 08, 2013 9:17 pm
Getting Side Ways
Offline
User avatar

Age: 49

Posts: 6467

Joined: 18th Dec 2006

Ride: 93 ED sedan

Power: 161 rwkw

Location: Rockhampton
QLD, Australia

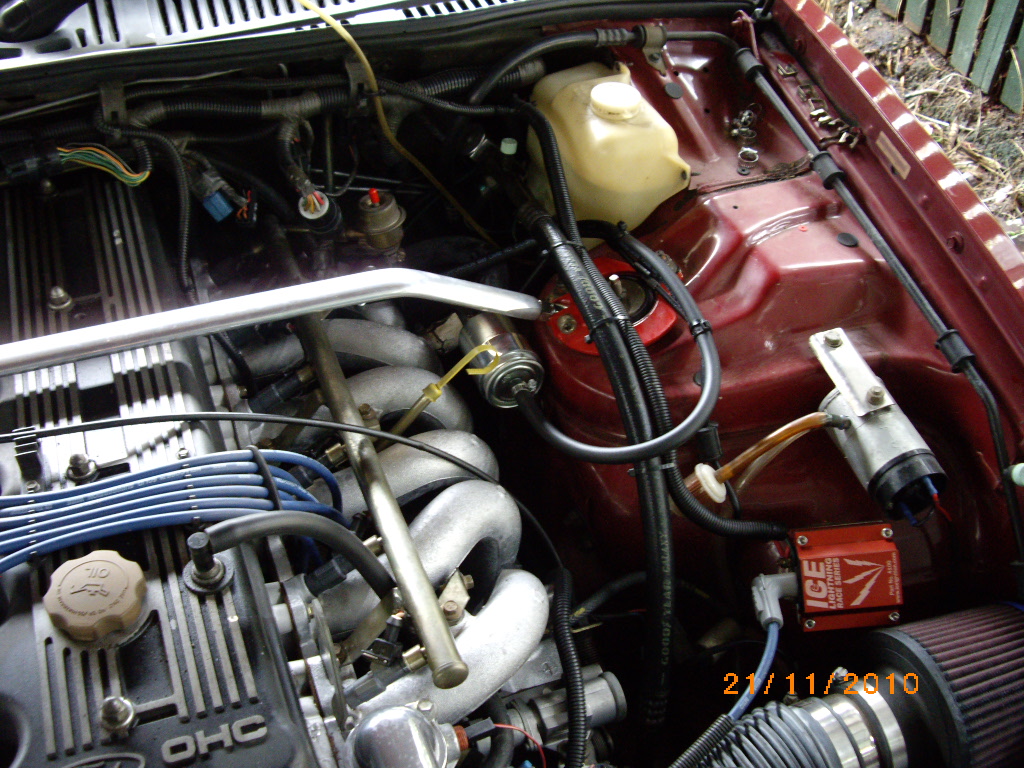

This is where my coil is mounted.
There is a plate of alloy under it 8mm thick, and with Sikoflex under that, because it's on a curved surface, and to absorb vibes so it doesn't crack the inner panel.
