 Post subject: Mounting EL coil on Au block
Posted: Sun Oct 06, 2013 1:46 pm
Getting Side Ways
Offline
User avatar

Age: 32

Posts: 552

Joined: 3rd Oct 2006

Ride: EL XR-6

Location: Brisbane
QLD, Australia

hey guys ive notice on the AU block theres no mounting points for the EL coil to go on just wondering what people did to mount the coil on the AU block. if any pics it would be a good help. thanks
Top
 Profile


 Post subject: Re: Mounting EL coil on Au block
Posted: Sun Oct 06, 2013 2:25 pm
Getting Side Ways
Offline
User avatar

Age: 33

Posts: 1322

Joined: 21st Dec 2004

Gallery: 40 images

Ride: EF GLi/Ghia bitsa

Location: Melbourne
VIC, Australia

Zip Ties, haha, nah just find a bolt you can hang it off, maybe mount it up to the injection manifold somewhere.

Gab
Top
 Profile


 Post subject: Re: Mounting EL coil on Au block
Posted: Sun Oct 06, 2013 3:48 pm
Technical Contributor
Offline

Age: 60

Posts: 6817

Joined: 22nd Jun 2005

Gallery: 8 images

Ride: EF Fairmont

Location: Campbelltown
NSW, Australia

jamie22_cole wrote:
hey guys ive notice on the AU block theres no mounting points for the EL coil to go on just wondering what people did to mount the coil on the AU block. if any pics it would be a good help. thanks


There are no mounting points on the EF block either.

Mounting points are on the Lefthand Engine Mount. EF & AUI are the same coil, AUII/III is different and they mount different to the EF/AUI as well. Leads are different as well.
Top
 Profile


 Post subject: Re: Mounting EL coil on Au block
Posted: Sun Oct 06, 2013 6:38 pm
Getting Side Ways
Offline
User avatar

Age: 32

Posts: 552

Joined: 3rd Oct 2006

Ride: EL XR-6

Location: Brisbane
QLD, Australia

I think I might try and drill/tap a thread somewhere on the intake side of block, enough so it holds the coil in place.
Top
 Profile


 Post subject: Re: Mounting EL coil on Au block
Posted: Sun Oct 06, 2013 7:05 pm
Technical Contributor
Offline

Age: 60

Posts: 6817

Joined: 22nd Jun 2005

Gallery: 8 images

Ride: EF Fairmont

Location: Campbelltown
NSW, Australia

The mount is the intake side. Don't drill into the block as you will drill an oil gallery or a water jacket. If you want to, look at mounting the coil on the rocker cover or the Strut Tower.
Top
 Profile


 Post subject: Re: Mounting EL coil on Au block
Posted: Sun Oct 06, 2013 7:12 pm
Getting Side Ways
Offline
User avatar

Age: 32

Posts: 552

Joined: 3rd Oct 2006

Ride: EL XR-6

Location: Brisbane
QLD, Australia

there was a sensor or something held on by one bolt towards the back of the motor. don't know what the sensor is for but it looks like a temp sensor or something. im not sure about the au motors but I might use that bolt hole already there to mount the coil on just gotta drill out the hole in the bracket a little bit so the 10mm bolt fits through it.
Top
 Profile


 Post subject: Re: Mounting EL coil on Au block
Posted: Sun Oct 06, 2013 7:15 pm
Technical Contributor
Offline

Age: 60

Posts: 6817

Joined: 22nd Jun 2005

Gallery: 8 images

Ride: EF Fairmont

Location: Campbelltown
NSW, Australia

That is where you knock sensor mounts. Think long and hard where you mount the coil as you will need to get to it if it fails, hence why mine in mounted on the rocker cover. :D
Top
 Profile


 Post subject: Re: Mounting EL coil on Au block
Posted: Sun Oct 06, 2013 7:20 pm
Getting Side Ways
Offline
User avatar

Age: 32

Posts: 552

Joined: 3rd Oct 2006

Ride: EL XR-6

Location: Brisbane
QLD, Australia

do have a pic so I get an idea? I don't need that knock sensor there do I cause Im put it into my EL?
Top
 Profile


 Post subject: Re: Mounting EL coil on Au block
Posted: Sun Oct 06, 2013 7:36 pm
Technical Contributor
Offline

Age: 60

Posts: 6817

Joined: 22nd Jun 2005

Gallery: 8 images

Ride: EF Fairmont

Location: Campbelltown
NSW, Australia

Sorry mate was reading in my head to mount an EF/AU Coil. You want to mount an EB/ED/EL Coil. Buy a new Bosch coil. It come with the connection both on the same side and an extension cable for your cable. Drill out the mounting plate and use the top bolt on your AC Compressor. This is what is done on our EL wagon, again also easy to get too if it fails. I will see if I can get a pic tomorrow.
Top
 Profile


 Post subject: Re: Mounting EL coil on Au block
Posted: Sun Oct 06, 2013 7:38 pm
Technical Contributor
Offline

Age: 60

Posts: 6817

Joined: 22nd Jun 2005

Gallery: 8 images

Ride: EF Fairmont

Location: Campbelltown
NSW, Australia

jamie22_cole wrote:
do have a pic so I get an idea? I don't need that knock sensor there do I cause Im put it into my EL?


Your EL is fitted with a Knock sensor. Just a different tyype to the AU style. If your block is an AUI it will have the M12 x 1.5 thread already there. Just unscreww the long stud. If it is an AUII/III Block you will need to remove the stud and drill and tap the hole.
Top
 Profile


 Post subject: Re: Mounting EL coil on Au block
Posted: Sun Oct 06, 2013 8:36 pm
Getting Side Ways
Offline
User avatar

Age: 32

Posts: 552

Joined: 3rd Oct 2006

Ride: EL XR-6

Location: Brisbane
QLD, Australia

when u say already there what do mean by that? and whats the thread for? the knock sensor?
Top
 Profile


 Post subject: Re: Mounting EL coil on Au block
Posted: Sun Oct 06, 2013 8:45 pm
Technical Contributor
Offline

Age: 60

Posts: 6817

Joined: 22nd Jun 2005

Gallery: 8 images

Ride: EF Fairmont

Location: Campbelltown
NSW, Australia

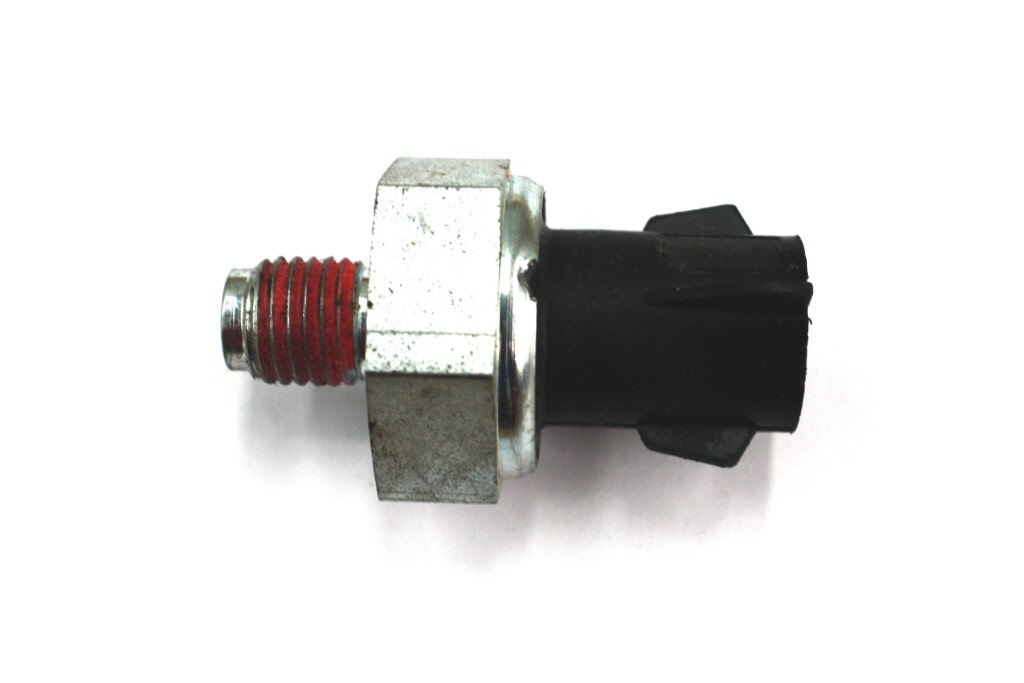

The Ef/EL knock sensor uses a M12 x 1.5 thread. AUI knock sensor stud uses a M12 x 1.5 thread. the AUII/III uses a M10 thread. The EF/EL Knock sensor Is below,

Attachment:
EF Knock Sensor.jpg
EF Knock Sensor.jpg [ 41.93 KiB | Viewed 29 times ]


AU Knock sensor below.

Attachment:
AU Knock Sensor.jpg
AU Knock Sensor.jpg [ 7.16 KiB | Viewed 996 times ]
Top
 Profile


 Post subject: Re: Mounting EL coil on Au block
Posted: Sun Oct 06, 2013 8:55 pm
Getting Side Ways
Offline
User avatar

Age: 32

Posts: 552

Joined: 3rd Oct 2006

Ride: EL XR-6

Location: Brisbane
QLD, Australia

aww nice now I know what ur talkin about. sorry didn't know what u meant but now I do thanks very helpful. so the original M10 thread hole that use to hold the AUII knock sensor i just drill that out to make it a M12 thread but only 1.5mm deep? also sorry to be a pain these motor aint no more than 450kgs are they just looking for an engine stand due to I sold my a few years back cause didn't think I would be needing it again but now I do.

Last edited by jamie22_cole on Sun Oct 06, 2013 9:00 pm, edited 1 time in total.

Top
 Profile


 Post subject: Re: Mounting EL coil on Au block
Posted: Sun Oct 06, 2013 8:58 pm
Technical Contributor
Offline

Age: 60

Posts: 6817

Joined: 22nd Jun 2005

Gallery: 8 images

Ride: EF Fairmont

Location: Campbelltown
NSW, Australia

jamie22_cole wrote:
aww nice now I know what ur talkin about. sorry didn't know what u meant but now I do thanks very helpful. so the original M10 thread hole that use to hold the AUII knock sensor i just drill that out to make it a M12 thread but only 1.5mm deep?


M12 with 1.5 pitch. M12 come in different pitches 1.25, 1.5. 1.75.

Just gently drill the block out with a 10.5 mm drill. You will feel when it bottoms out. When that happens, stop drilling.
Top
 Profile


 Post subject: Re: Mounting EL coil on Au block
Posted: Sun Oct 06, 2013 9:01 pm
Getting Side Ways
Offline
User avatar

Age: 32

Posts: 552

Joined: 3rd Oct 2006

Ride: EL XR-6

Location: Brisbane
QLD, Australia

okay cool thanks
Top
 Profile
