Hi, any suggestions please? EBII 4.0 EFI wouldn't start after short trip. Appears to have no spark at all even from coil lead when checked with timing light. Distributor and coil has done about 40,000km since replaced with new. Motor has about 410,000km. Motor been making groaning sound at front for about a year which I thought was power steering pump. Fuel pump has been checked. Cranks over fine but seems to be faster than usual, just wont fire, no coughs or splutters, nothing. Was otherwise running fine prior to this.
Top
 Profile


 Post subject: Re: No Spark EBII
Posted: Sat Jan 09, 2016 2:48 pm
Technical Contributor
Offline

Age: 59

Posts: 6810

Joined: 22nd Jun 2005

Gallery: 8 images

Ride: EF Fairmont

Location: Campbelltown
NSW, Australia

Check for play in the dizzy. Remove the dizzy cap and have someone crank the engine. See if the rotation is smooth.

Check your coil, it could have failed if you are getting nothing from the coil lead.



_________________

SWC

South West Customs


Members of the SWC Stable, fordebgt93, TROYMAN, Benj, svo_matt, Mrs C, eb_fairmont, Total_tool, Terroristghia

Top
 Profile


 Post subject: Re: No Spark EBII
Posted: Sat Jan 09, 2016 3:16 pm
Fordmods Newbie
Offline

Age: 57

Posts: 11

Joined: 20th Feb 2007

Ride: Fairmont EBII

Location: Melbourne
VIC, Australia

Hey thanks for the quick response. Will check dizzy and coil. Have the old ones still.

So checked coil by switching back to old one, no luck. Checked volts at 2-pin connector on coil. 1 side is 12v. Checked between pins volts when cranking just drops by 3v and doesnt appear to pulse at all. So guess thats why no spark from coil. Check dizzy tomorrow.
Top
 Profile


 Post subject: Re: No Spark EBII
Posted: Sun Jan 10, 2016 4:25 pm
Fordmods Newbie
Offline

Age: 57

Posts: 11

Joined: 20th Feb 2007

Ride: Fairmont EBII

Location: Melbourne
VIC, Australia

So the dizzy cap is off, no play in rotor button, tried twisting both directions but seems solid. Cranking motor (coil unplugged) the dizzy did a few rotations that appeared to be smooth in motion. I lined up the rotor button on the mark for no 1 firing (see pic, its lined up from above) and checked the crankshaft timing marks (other pic). A bit concerned that it appears to be out, like reading about 30 deg adv when should be 10 deg adv on the "IGN" mark. I know its not super accurate this way but can someone tell me whats the min deg it would be out if timing chain has jumped a tooth?





Attachments:
File comment: firing location
Photo0096.jpg [ 16.91 KiB | Viewed 414 times ]

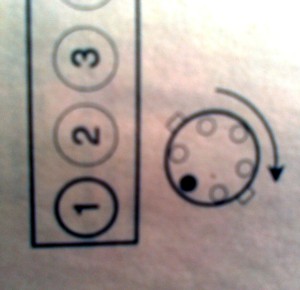

File comment: Rotor button alignment no 1 firing
Photo0095.jpg [ 46.74 KiB | Viewed 13 times ]
File comment: Crank timing marks

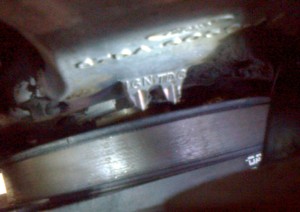

Photo0098.jpg [ 16 KiB | Viewed 417 times ]
Top
 Profile


 Post subject: Re: No Spark EBII
Posted: Sun Jan 10, 2016 4:58 pm
Fordmods Newbie
Offline

Age: 57

Posts: 11

Joined: 20th Feb 2007

Ride: Fairmont EBII

Location: Melbourne
VIC, Australia

Took a few more pics with crank set to "IGN" and "TDC". Set at "IGN" the edge of the brass tip on the rotor lines up with the No.1 mark on dizzy. Set at "TDC" the edge is about 5mm past the mark. So timing chain?





Attachments:
File comment: rotor at timing "TDC"
Photo0101.jpg [ 9.04 KiB | Viewed 408 times ]
File comment: timing "TDC"
Photo0102.jpg [ 8.21 KiB | Viewed 409 times ]

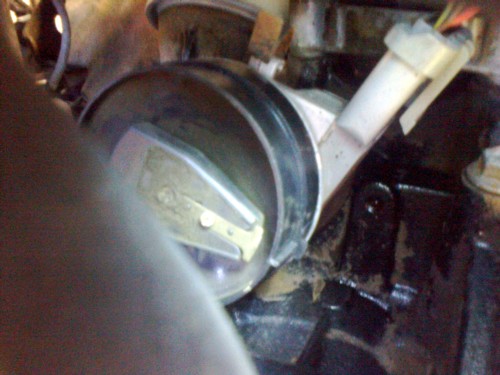

File comment: rotor at timing "IGN"
Photo0100.jpg [ 8.88 KiB | Viewed 404 times ]
File comment: timing "IGN" 10 deg adv
Photo0099.jpg [ 8.31 KiB | Viewed 405 times ]
Top
 Profile


 Post subject: Re: No Spark EBII
Posted: Tue Jan 12, 2016 11:12 pm
Fordmods Newbie
Offline

Age: 57

Posts: 11

Joined: 20th Feb 2007

Ride: Fairmont EBII

Location: Melbourne
VIC, Australia

Back on the road again. Was the module on side of distributor. Thanks :D

Last edited by acko on Wed Jan 13, 2016 11:02 pm, edited 1 time in total.

Top
 Profile


 Post subject: Re: No Spark EBII
Posted: Wed Jan 13, 2016 7:52 am
Fordmods Junkie
Offline
User avatar

Posts: 11620

Joined: 17th May 2005

Gallery: 11 images

Ride: EL Fairmont, VFR400 racer

Power: 144 rwkw

Location: Melbourne
VIC, Australia

Was going to suggest TFI module and then got to the end of the post. Good to hear you got it sorted!
