 Post subject: Pics of a Falcon Pedal box installed?
Posted: Sun Jun 23, 2013 6:00 pm
Getting Side Ways
Offline
User avatar

Age: 30

Posts: 580

Joined: 9th Sep 2009

Ride: EF Falcon GLi

Location: ADELAIDE
SA, Australia

Hello, I have hunted for a clear and accurate picture of an EF Falcon Pedal box, I don't no anyone who has one and I am almost done with a conversion but I don't have all the pedal parts, I think the guy who sold it to me missed a few bits! :roll: Can someone please give me a list of the components of the clutch pedal, :oops: and point me in the direction of some pictures of one installed so I can see exactly how its done.
If anyone can help that would be greatly appreciated, also im in SA so if u have the bits im missing, im keen as to buy em ASAP :D
Thanks



_________________

Now, I've got a message for all the other drivers out there. If you smell a delicious, crispy smell after the race, it's not your tailpipe. It's just a little of Shake...and Bake!
SHAKE AND BAKE

Top
 Profile


 Post subject: Re: Pics of a Falcon Pedal box installed?
Posted: Sun Jun 23, 2013 6:06 pm
Getting Side Ways
Offline

Age: 34

Posts: 1110

Joined: 27th Dec 2011

Gallery: 6 images

Ride: ef falcon futura

Power: 154 rwkw

Location: Koo Wee Rup
VIC, Australia

i've got one sitting in the shed, i'll go out soon and get a pic, but from memory there are 2 plastic bushes (one either side of the pedal) then an "R" clip to hold it on.



_________________

ef futura, pacemakers, 2.5inch catback, k&n panel filter and 3.45 lsd. extractors/cat, ticky head, custom cam grind, t5. now onto cosmetics.

Top
 Profile


 Post subject: Re: Pics of a Falcon Pedal box installed?
Posted: Sun Jun 23, 2013 6:09 pm
Getting Side Ways
Offline
User avatar

Age: 30

Posts: 580

Joined: 9th Sep 2009

Ride: EF Falcon GLi

Location: ADELAIDE
SA, Australia

Thankyou :) ya not in SA buy any chance are you?



_________________

Now, I've got a message for all the other drivers out there. If you smell a delicious, crispy smell after the race, it's not your tailpipe. It's just a little of Shake...and Bake!
SHAKE AND BAKE

Top
 Profile


 Post subject: Re: Pics of a Falcon Pedal box installed?
Posted: Sun Jun 23, 2013 6:10 pm
Getting Side Ways
Offline
User avatar

Age: 30

Posts: 580

Joined: 9th Sep 2009

Ride: EF Falcon GLi

Location: ADELAIDE
SA, Australia

oh I can see now VIC



_________________

Now, I've got a message for all the other drivers out there. If you smell a delicious, crispy smell after the race, it's not your tailpipe. It's just a little of Shake...and Bake!
SHAKE AND BAKE

Top
 Profile


 Post subject: Re: Pics of a Falcon Pedal box installed?
Posted: Sun Jun 23, 2013 6:33 pm
Getting Side Ways
Offline

Age: 34

Posts: 1110

Joined: 27th Dec 2011

Gallery: 6 images

Ride: ef falcon futura

Power: 154 rwkw

Location: Koo Wee Rup
VIC, Australia

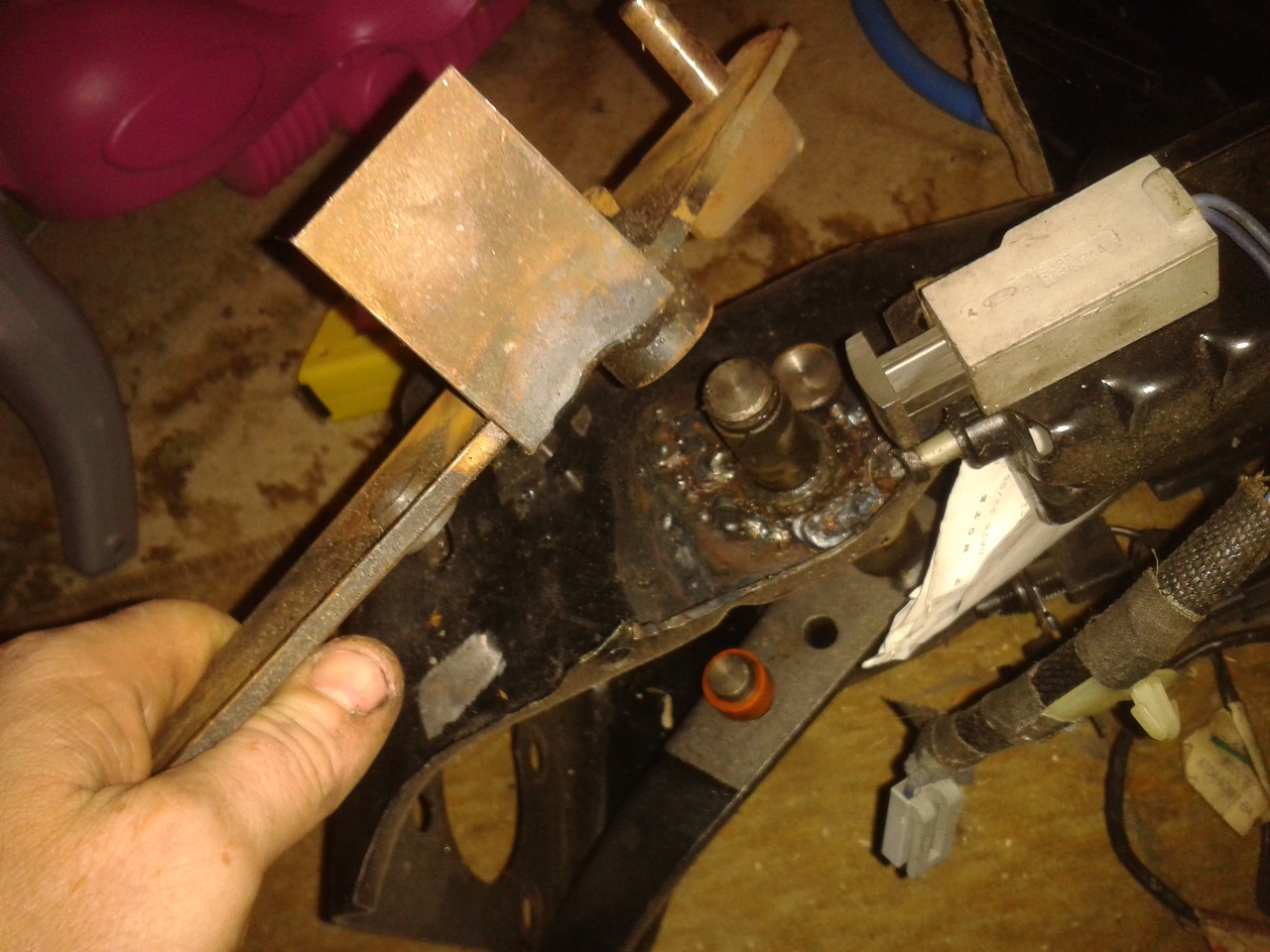

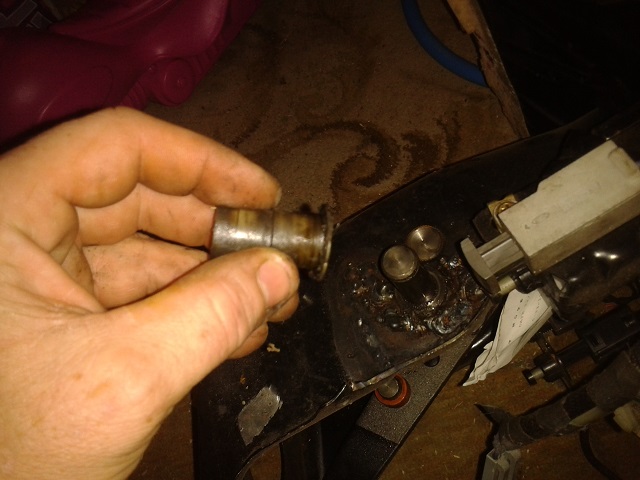

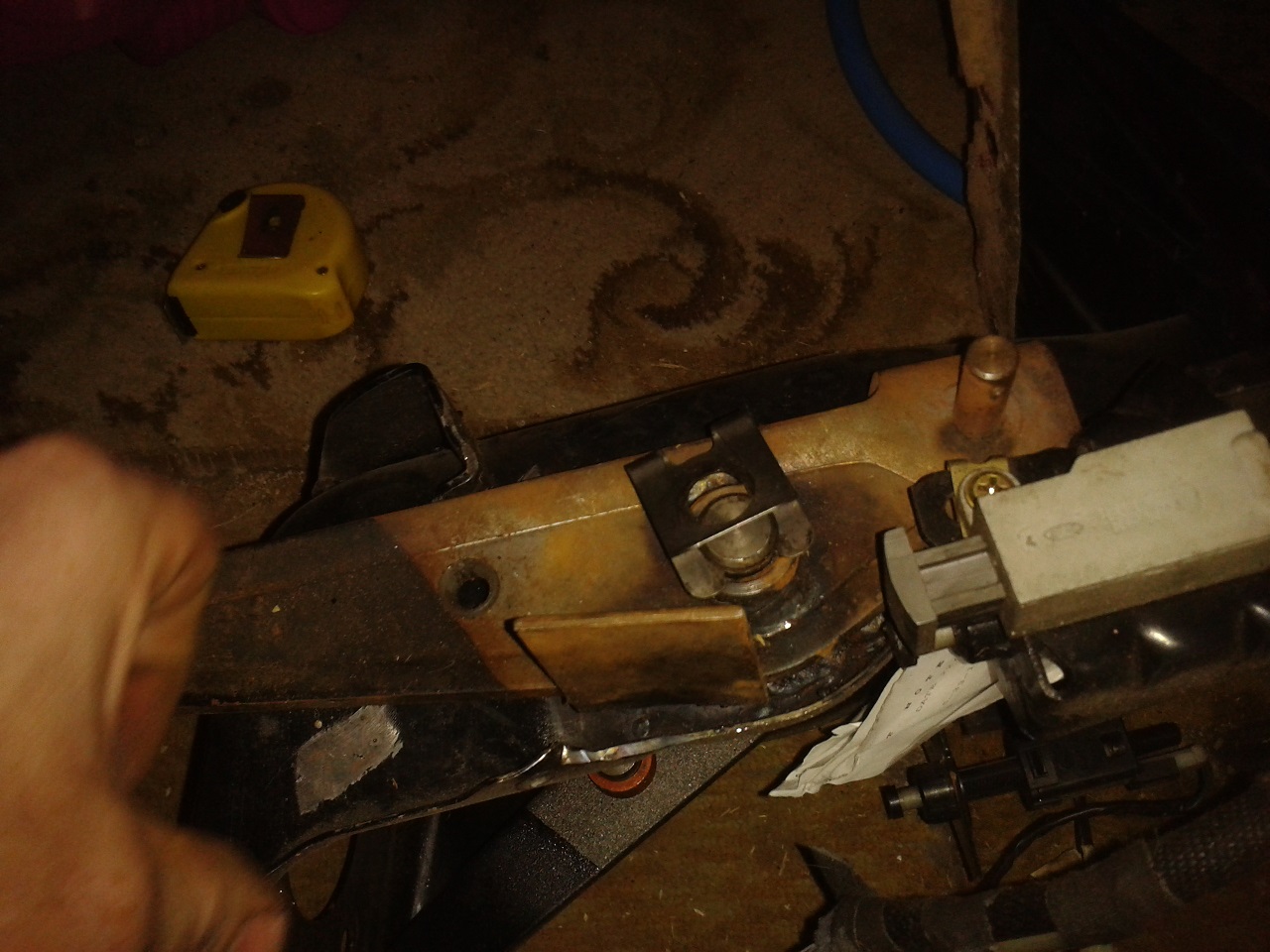

ok, so my ef pedal box hasnt got the clutch pedal at the moment, the eb one i have there has the pedal, one bush and a clips
Attachment:
clutch bush.jpg
clutch bush.jpg [ 88.77 KiB | Viewed 29 times ]

Attachment:
clutch.jpg [ 341.88 KiB | Viewed 28 times ]

Attachment:
clutch 2.jpg
clutch 2.jpg [ 282.53 KiB | Viewed 30 times ]

the two bushes and "R" clip are for the cable to attach to the pedal



_________________

ef futura, pacemakers, 2.5inch catback, k&n panel filter and 3.45 lsd. extractors/cat, ticky head, custom cam grind, t5. now onto cosmetics.

Top
 Profile


 Post subject: Re: Pics of a Falcon Pedal box installed?
Posted: Sun Jun 23, 2013 8:06 pm
Getting Side Ways
Offline
User avatar

Age: 30

Posts: 580

Joined: 9th Sep 2009

Ride: EF Falcon GLi

Location: ADELAIDE
SA, Australia

Is there suppose to be a spring? There is a hole at the bottom of the pedal below the mounting point?



_________________

Now, I've got a message for all the other drivers out there. If you smell a delicious, crispy smell after the race, it's not your tailpipe. It's just a little of Shake...and Bake!
SHAKE AND BAKE

Top
 Profile


 Post subject: Re: Pics of a Falcon Pedal box installed?
Posted: Sun Jun 23, 2013 8:22 pm
Getting Side Ways
Offline

Age: 34

Posts: 1110

Joined: 27th Dec 2011

Gallery: 6 images

Ride: ef falcon futura

Power: 154 rwkw

Location: Koo Wee Rup
VIC, Australia

yeah i think there is a light one.



_________________

ef futura, pacemakers, 2.5inch catback, k&n panel filter and 3.45 lsd. extractors/cat, ticky head, custom cam grind, t5. now onto cosmetics.

Top
 Profile


 Post subject: Re: Pics of a Falcon Pedal box installed?
Posted: Sun Jun 23, 2013 8:26 pm
Getting Side Ways
Offline
User avatar

Age: 30

Posts: 580

Joined: 9th Sep 2009

Ride: EF Falcon GLi

Location: ADELAIDE
SA, Australia

Thanks for the pics mate im hoping iti works out, werr do I get em from like same day? All the parts shop are utterly usless in SA



_________________

Now, I've got a message for all the other drivers out there. If you smell a delicious, crispy smell after the race, it's not your tailpipe. It's just a little of Shake...and Bake!
SHAKE AND BAKE

Top
 Profile


 Post subject: Re: Pics of a Falcon Pedal box installed?
Posted: Sun Jun 23, 2013 8:28 pm
Getting Side Ways
Offline

Age: 34

Posts: 1110

Joined: 27th Dec 2011

Gallery: 6 images

Ride: ef falcon futura

Power: 154 rwkw

Location: Koo Wee Rup
VIC, Australia

the spring? ask a local mechanic for one. they would normally have kits with all different sizes.



_________________

ef futura, pacemakers, 2.5inch catback, k&n panel filter and 3.45 lsd. extractors/cat, ticky head, custom cam grind, t5. now onto cosmetics.

Top
 Profile


 Post subject: Re: Pics of a Falcon Pedal box installed?
Posted: Sun Jun 23, 2013 8:42 pm
Getting Side Ways
Offline

Age: 34

Posts: 1110

Joined: 27th Dec 2011

Gallery: 6 images

Ride: ef falcon futura

Power: 154 rwkw

Location: Koo Wee Rup
VIC, Australia

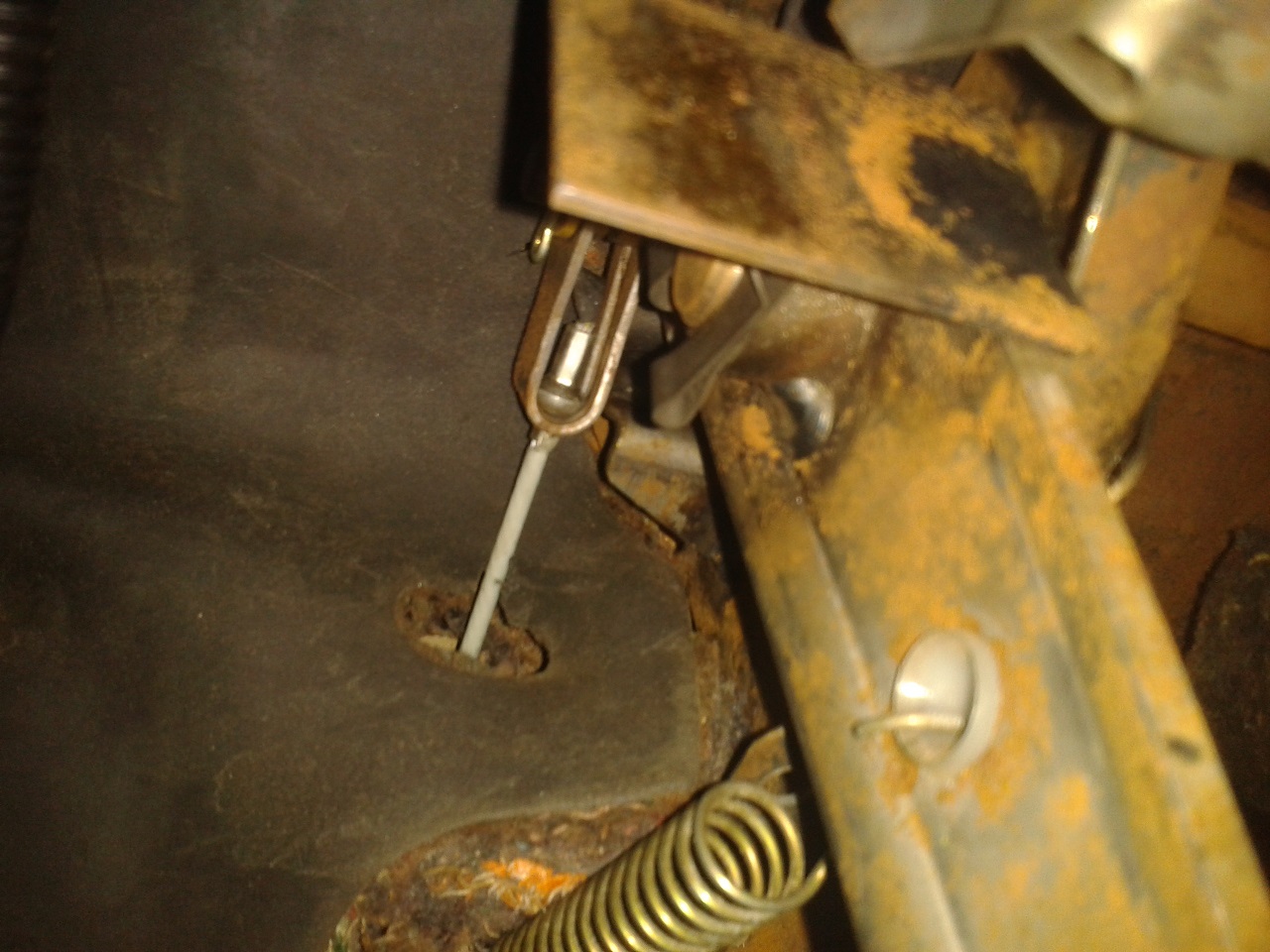

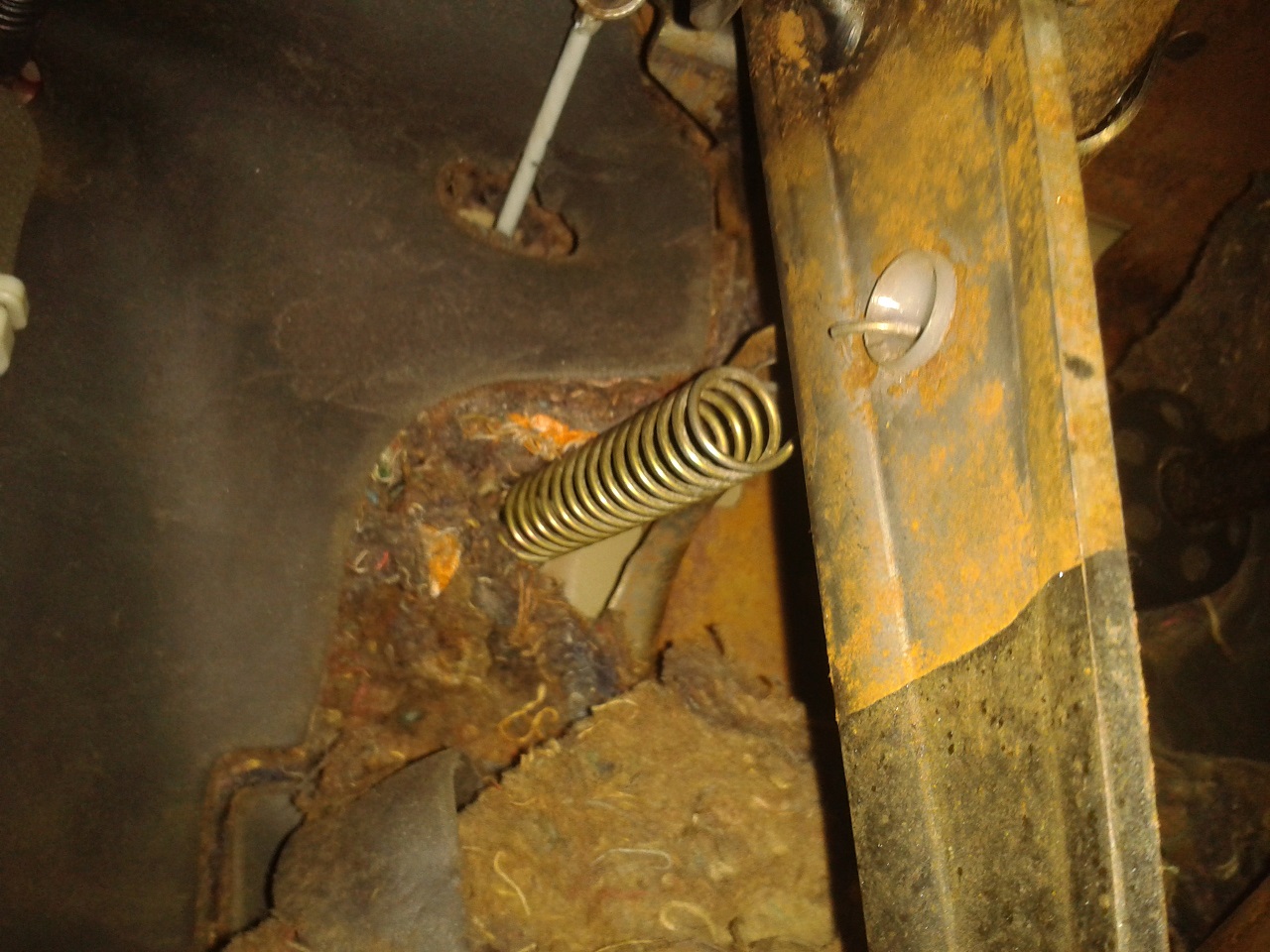

heres some pics of mine installed
Attachment:
clutch 3.jpg
clutch 3.jpg [ 302.97 KiB | Viewed 26 times ]

Attachment:
clutch spring.jpg
clutch spring.jpg [ 343.87 KiB | Viewed 32 times ]



_________________

ef futura, pacemakers, 2.5inch catback, k&n panel filter and 3.45 lsd. extractors/cat, ticky head, custom cam grind, t5. now onto cosmetics.

Top
 Profile


 Post subject: Re: Pics of a Falcon Pedal box installed?
Posted: Sun Jun 23, 2013 9:12 pm
Getting Side Ways
Offline
User avatar

Age: 30

Posts: 580

Joined: 9th Sep 2009

Ride: EF Falcon GLi

Location: ADELAIDE
SA, Australia

Thanks for this it actually explained and helpped me out a big s**t load! So I neeed 2 bushes and an R Pin and the bush that the pedal attatches to on the shaft and a spring :-)



_________________

Now, I've got a message for all the other drivers out there. If you smell a delicious, crispy smell after the race, it's not your tailpipe. It's just a little of Shake...and Bake!
SHAKE AND BAKE

Top
 Profile


 Post subject: Re: Pics of a Falcon Pedal box installed?
Posted: Sun Jun 23, 2013 9:13 pm
Getting Side Ways
Offline
User avatar

Age: 30

Posts: 580

Joined: 9th Sep 2009

Ride: EF Falcon GLi

Location: ADELAIDE
SA, Australia

Thanks for this it actually explained and helpped me out a big s**t load! So I neeed 2 bushes and an R Pin and the bush that the pedal attatches to on the shaft and a spring :-)



_________________

Now, I've got a message for all the other drivers out there. If you smell a delicious, crispy smell after the race, it's not your tailpipe. It's just a little of Shake...and Bake!
SHAKE AND BAKE

Top
 Profile


 Post subject: Re: Pics of a Falcon Pedal box installed?
Posted: Sun Jun 23, 2013 9:21 pm
Getting Side Ways
Offline

Age: 34

Posts: 1110

Joined: 27th Dec 2011

Gallery: 6 images

Ride: ef falcon futura

Power: 154 rwkw

Location: Koo Wee Rup
VIC, Australia

there is the single bush for the pedal pivot, plus the flat clip in the pics, the spring, and these for the cable http://www.ebay.com.au/itm/FORD-XD-XE-X ... 1248911830 and an R clip to fit the hole
