PISTONS FOR AU 4.0 OHC



Page 1 of 4 [ 54 posts ] Go to page 1, 2, 3, 4  Next


 Post subject: PISTONS FOR AU 4.0 OHC
Posted: Tue Mar 10, 2009 12:14 am
Smokin em up
Offline

Age: 38

Posts: 223

Joined: 9th Feb 2009

Gallery: 3 images

Ride: AU VCT,68 LANE,84 COURIER,

Location: brisbane
QLD, Australia

Are there any other options for the au falcon? its for NA set up after higher comp really as i think the stock pistons are fairly strong, acl get them made by MAHL and you can get them in a kit like the acl race kit but it comes only with pistons and rings,would make comp in the high 10s i think,so is this the only option? have checked with other suppliers but no luck,maybe custom but what kinda cost? any body got advise on this? or have a set up, and know roughly there comp ratio? thanks



_________________

YOU CAN LIVE IN A CAR BUT YOU CANT DRIVE A HOUSE

Top
 Profile


 Post subject: Re: PISTONS FOR AU 4.0 OHC
Posted: Tue Mar 10, 2009 8:42 am
Getting Side Ways
Offline
User avatar

Age: 28

Posts: 2515

Joined: 27th Mar 2006

Gallery: 1 images

Ride: FG MkII Xr6t Ute

Location: Brisbane
QLD, Australia

I think its ony ACL's forgies that get made by Mahle and the rest are made here, but to be honest I haven't considered getting ACL's non-forged pistons in so long that this may have changed.

If looking at hypertuetic I wouldn't get ACL's as have seen them used before (although not in a ford) and the ringlands have issues. Also From memory the compression for the ACL race series is around 9.8:1 using e-series stuff and 10.2 if you use the AU pistons and rods.



_________________

EVL098 wrote:
Cramping in the hand from having it on your Wang for an excessive period of time is a definate con.
Seriously do people google "f**k up modifications for Fords owned by Jews" and get linked straight to this site nowadays?

AU,factory fitted tickford kit/IRS, t5,Sports ryder/KYB: gone.

Top
 Profile


 Post subject: Re: PISTONS FOR AU 4.0 OHC
Posted: Tue Mar 10, 2009 8:55 am
Getting Side Ways
Offline

Posts: 2410

Joined: 4th Sep 2006

Location: Sydney
NSW, Australia

Definatly use ACL Race series pistons as there good value for money and are a very good piston



_________________

Wanted Either Capri/Cortina/XY/XW/XR/XT with tough V8 stroker engine, auto, 9inch, upgraded brakes etc[/SIZE][/size][/color]

Top
 Profile


 Post subject: Re: PISTONS FOR AU 4.0 OHC
Posted: Wed Mar 11, 2009 9:47 pm
Smokin em up
Offline

Age: 38

Posts: 223

Joined: 9th Feb 2009

Gallery: 3 images

Ride: AU VCT,68 LANE,84 COURIER,

Location: brisbane
QLD, Australia

Looks like its ACL for pistons then,its for the vct au so i guess the comp ratio will be up there, i have had the head shaved already so maybe it will help a little. thanks for the info



_________________

YOU CAN LIVE IN A CAR BUT YOU CANT DRIVE A HOUSE

Top
 Profile


 Post subject: Re: PISTONS FOR AU 4.0 OHC
Posted: Wed Mar 11, 2009 11:17 pm
Getting Side Ways
Offline

Posts: 6449

Joined: 11th Nov 2004

only the BA turbo piston are 'made by mahle'. ACL owns mahle. so in reality they are made by ACL.

the cast pistons are not made by mahle. but yes they are basicly your only option.



_________________

PERMANENTLY BANNED

Top
 Profile


 Post subject: Re: PISTONS FOR AU 4.0 OHC
Posted: Thu Mar 12, 2009 4:13 pm
Getting Side Ways
Offline

Age: 29

Posts: 2563

Joined: 19th Feb 2007

Gallery: 21 images

Ride: 98 EL Futura

Power: 199 rwkw

Location: Lilydale
VIC, Australia

I got a set of AU ACL Race pistons in mine and my car holds up strong, when i get the supercharger it will test the strength of them i guess.



_________________

EL Futura: CVE head, Wolf V500, ICE Ignition and Coil, 36lb injectors, Walbro 255lb, Paci comps, 3" exhaust, T5, Harrop Truetrac with 3.9s. Now with 198.9rwkw, (~185rwkw and 13.80 @99.1mph) with more power to come

Top
 Profile


 Post subject: Re: PISTONS FOR AU 4.0 OHC
Posted: Thu Mar 12, 2009 9:04 pm
Smokin em up
Offline

Age: 38

Posts: 223

Joined: 9th Feb 2009

Gallery: 3 images

Ride: AU VCT,68 LANE,84 COURIER,

Location: brisbane
QLD, Australia

Was talking to NASON engine parts and they said at the moment mahle wont be making anymore ACL race series pistons for the au engine untill they get some good orders for them,so whatever i can find in stock is what i get,problem is to save on cost i want to buy them wholesale but there is only 1 set of 10 thou over showing in there stock,so might have to hunt around for a set,what kinda price have you paid for a set of acl race pistons? thanks



_________________

YOU CAN LIVE IN A CAR BUT YOU CANT DRIVE A HOUSE

Top
 Profile


 Post subject: Re: PISTONS FOR AU 4.0 OHC
Posted: Fri Mar 13, 2009 6:34 pm
Tyre Shredder
Offline
User avatar

Posts: 350

Joined: 23rd May 2008

Ride: AU series 1 XR6

Location: hartley
SA, Australia

its crap how they have stopped making them for the moment ive had trouble getting a set
im just going to get some custom made

as for price on the ACL piston and ring set race series
repco quoted $374 but i think this is wrong as there wholesale price is above that :lol:
autobahn quoted me $609

there was another quote also back about a month ago i had a thread regarding this
Top
 Profile


 Post subject: Re: PISTONS FOR AU 4.0 OHC
Posted: Fri Mar 13, 2009 6:52 pm
Getting Side Ways
Offline
User avatar

Posts: 3363

Joined: 27th Dec 2004

Gallery: 4 images

Ride: MCMXCV Falcon

Location: G town
VIC, Australia

hypertec flatops are available for the AU....should be able to get some for u for about $400 with rings...just off the top of my head....can find exact price for u if u like

these are just as good if not better than the acls which have been known to break rings on installation easily if your not EXTREMELY careful.....



_________________


Top
 Profile


 Post subject: Re: PISTONS FOR AU 4.0 OHC
Posted: Fri Mar 13, 2009 6:58 pm
Tyre Shredder
Offline
User avatar

Posts: 350

Joined: 23rd May 2008

Ride: AU series 1 XR6

Location: hartley
SA, Australia

im ok for the moment as im hunting for another engine to do the rebuild to otherwise my car will be off the road for a few weeks

im in no rush probably mid year holidays ill do it (im still at school) ill start gathering parts a bit before that
ill keep your name in mind for then
Top
 Profile


 Post subject: Re: PISTONS FOR AU 4.0 OHC
Posted: Sat Mar 14, 2009 5:14 pm
Getting Side Ways
Offline
User avatar

Age: 49

Posts: 6467

Joined: 18th Dec 2006

Ride: 93 ED sedan

Power: 161 rwkw

Location: Rockhampton
QLD, Australia

tickford_6 wrote:
only the BA turbo piston are 'made by mahle'. ACL owns mahle. so in reality they are made by ACL.

the cast pistons are not made by mahle. but yes they are basicly your only option.



The BA LPG pistons are made by Mahle. Mahle is a german company, and are the supplier for a lot of European car companies as well as some USA companies too.

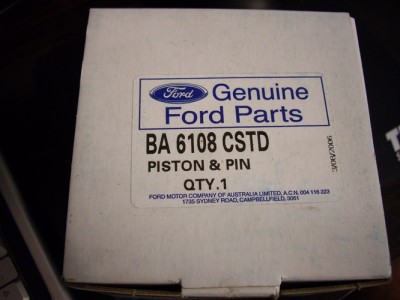

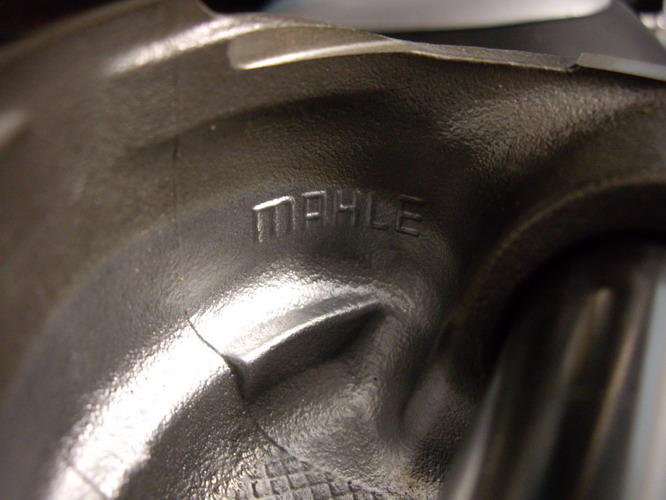

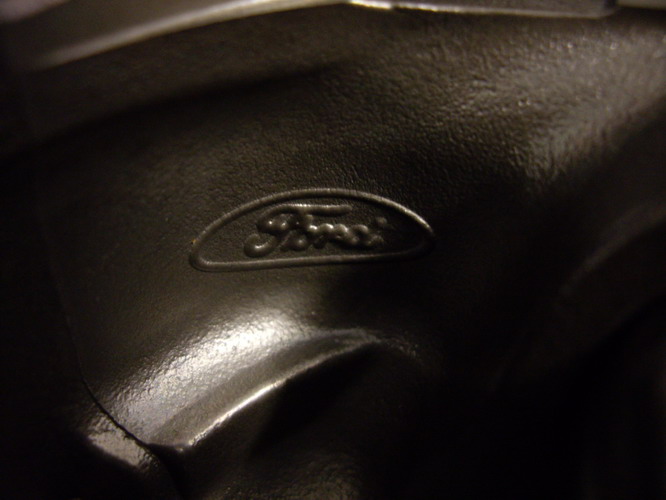

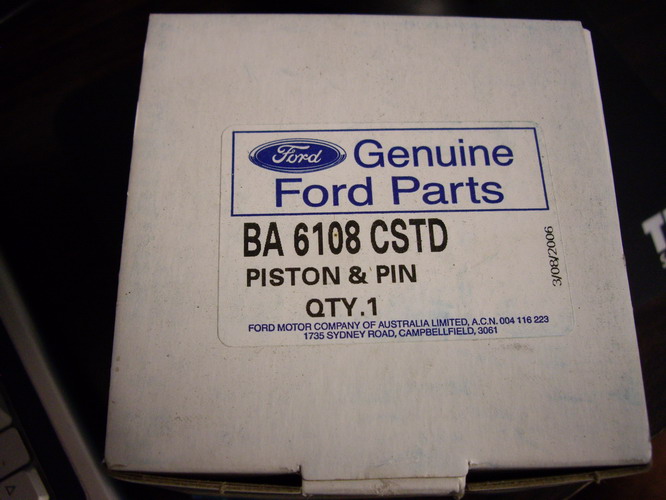

Here are some pics of a BA LPG piston. They were 10.7:1 comp ratio.

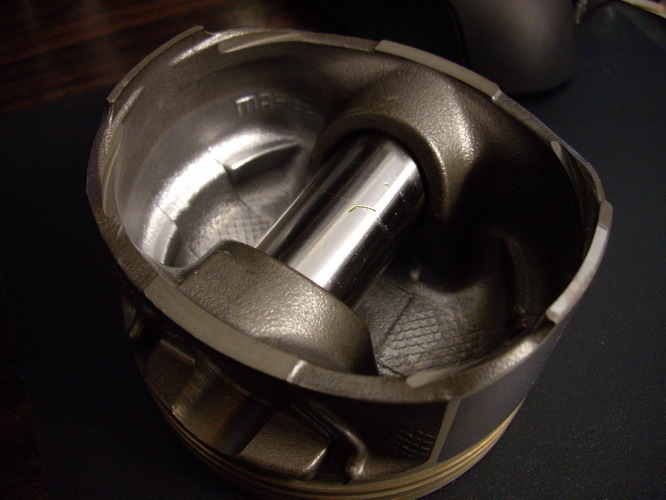

They have graphite coated skirts, and a raised crown, instead of the usual dish.

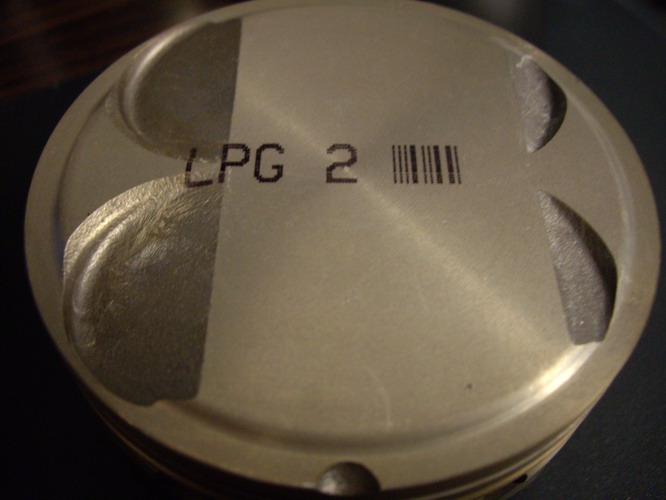

Note it has 4 valve reliefs, instaed of just 1 for the earlier ( 2 valve head ) pistons.





Attachments:
IMGP1179_resize.JPG [ 65.14 KiB | Viewed 79 times ]
IMGP1178_resize.JPG [ 61.48 KiB | Viewed 55 times ]
IMGP1176_resize.JPG [ 83.06 KiB | Viewed 66 times ]
IMGP1175_resize.JPG [ 77.04 KiB | Viewed 63 times ]
IMGP1174_resize.JPG [ 77.96 KiB | Viewed 49 times ]



_________________

http://youtu.be/jJTh9F3Vgg0

Top
 Profile


 Post subject: Re: PISTONS FOR AU 4.0 OHC
Posted: Sat Mar 14, 2009 5:30 pm
Getting Side Ways
Offline
User avatar

Posts: 3363

Joined: 27th Dec 2004

Gallery: 4 images

Ride: MCMXCV Falcon

Location: G town
VIC, Australia

whats the story behind that single BA piston....didnt know u could buy just one like that....prbably because id be too scared to go into to ford and ask them the price!!



_________________


Top
 Profile


 Post subject: Re: PISTONS FOR AU 4.0 OHC
Posted: Sat Mar 14, 2009 6:25 pm
Getting Side Ways
Offline

Posts: 2410

Joined: 4th Sep 2006

Location: Sydney
NSW, Australia

Can that BA piston be used in a AU engine with AU rods at all???

Heaps of compression which is great for LPG



_________________

Wanted Either Capri/Cortina/XY/XW/XR/XT with tough V8 stroker engine, auto, 9inch, upgraded brakes etc[/SIZE][/size][/color]

Top
 Profile


 Post subject: Re: PISTONS FOR AU 4.0 OHC
Posted: Sat Mar 14, 2009 6:54 pm
Smokin em up
Offline

Age: 38

Posts: 223

Joined: 9th Feb 2009

Gallery: 3 images

Ride: AU VCT,68 LANE,84 COURIER,

Location: brisbane
QLD, Australia

thats a good question? will they fit the au motor?also since we are on this subject will ba gas rods fit the au crank? can get cheap ba gas motor that needs rebuild



_________________

YOU CAN LIVE IN A CAR BUT YOU CANT DRIVE A HOUSE

Top
 Profile


 Post subject: Re: PISTONS FOR AU 4.0 OHC
Posted: Sat Mar 14, 2009 8:20 pm
Getting Side Ways
Offline

Posts: 2410

Joined: 4th Sep 2006

Location: Sydney
NSW, Australia

Well ive read that you can use turbo pistons and rods from BA in a EF/EL and AU engine so i carnt see why not.

Im going to look into this and see what info i find

Build a AU engine for a EF XR6 with these pistons and would be sweat as my car is on LPG so it should get abit more power from the compression increase and LPG to support the octane needed.



_________________

Wanted Either Capri/Cortina/XY/XW/XR/XT with tough V8 stroker engine, auto, 9inch, upgraded brakes etc[/SIZE][/size][/color]

Top
 Profile
