 Post subject: Places to mount new coil/removing ignition module.
Posted: Tue Dec 24, 2013 9:48 am
Parts Gopher
Offline
User avatar

Age: 25

Posts: 90

Joined: 19th Feb 2013

Ride: NL Fairlane Ghia

Location: Sydney
NSW, Australia

Car is a 1997 EL Fairmont. My coil died the other day at the worst time and I can't for the life of me remove the old one, so I figured I could just relocate the new one and forget the old one is even there. Where is a good place to mount the new one and what would be the best way of doing so?

Also, if anyone has a guide for removing/installing an ignition module, that'd be extremely helpful (some people don't know what I mean by 'ign. module'. It's the thing at the bottom of the dizzy.)



_________________

4.0L Tickford six, 1645b E-series custom grind, MLS gasket, performance valve springs, 3" stainless intake, extractors, 2.5" Lukey, 100cpi hi-flow, T5 manual, J3 tune.

Top
 Profile


 Post subject: Re: Places to mount new coil/removing ignition module.
Posted: Tue Dec 24, 2013 5:18 pm
Moderator
Offline

Posts: 14513

Joined: 7th Nov 2004

Ride: ford falcon au3 xr8

Location: a shit suburb in sydney
NSW, Australia

a good spot is on the top a/c compressor bolt, easy access and the coil lead still reaches the dizzy.
only thing you need to do is extend power wires to the coil
Top
 Profile


 Post subject: Re: Places to mount new coil/removing ignition module.
Posted: Wed Jan 01, 2014 8:08 pm
Oompa Loompa
Offline

Age: 56

Posts: 30

Joined: 30th Dec 2013

Ride: EL Falcon Street Stock

Location: Hobart
TAS, Australia

What Troy said is what we did with our EL Street Stock. Very good.
Top
 Profile


 Post subject: Re: Places to mount new coil/removing ignition module.
Posted: Wed Jan 01, 2014 8:18 pm
Technical Contributor
Offline

Age: 60

Posts: 6817

Joined: 22nd Jun 2005

Gallery: 8 images

Ride: EF Fairmont

Location: Campbelltown
NSW, Australia

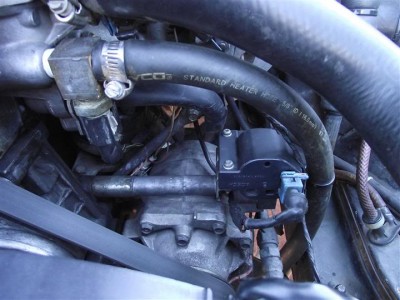

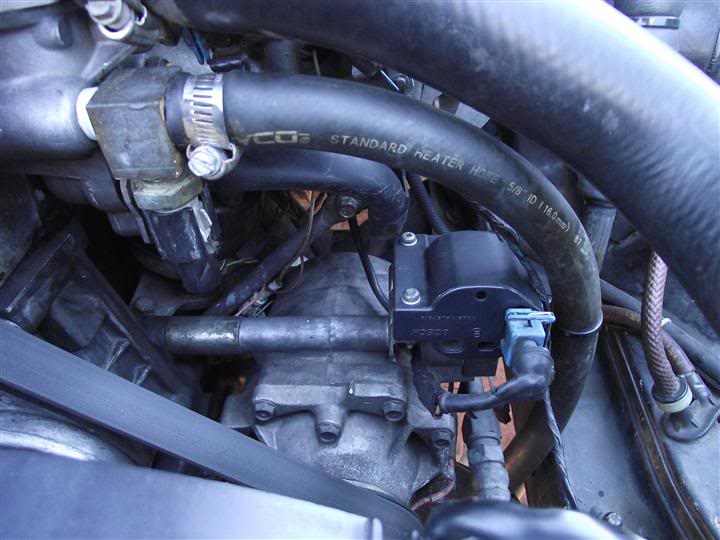

Attachment:
Coil Relocation.jpg
Coil Relocation.jpg [ 56.42 KiB | Viewed 44 times ]
Top
 Profile


 Post subject: Re: Places to mount new coil/removing ignition module.
Posted: Thu Jan 02, 2014 7:22 am
Getting Side Ways
Offline

Posts: 496

Joined: 14th Sep 2011

Ride: BF II Gas Ute

Location: Canberra
ACT, Australia

Hi,

The location looks good, I would also mount a 2nd on as a spare. Swap the power and HT leads over in less than a minute. No tools required. The angle it sits is something I would consider. I think it would be better with the bolt holes at the bottom, as all weight will come down an the mounting points. They show cracks when they fail, and from the Pic I cant see if it sits on a rubber block. Air flow over it would be better with more surface area exposed. IMO

I have heard that some US owners move the Ignition module from the Dizzy to a cooler place. Same thing here, I would mount 2 on the inner guard on a heatsink and have a single plug to change.



_________________

Regards 96ELGli

Top
 Profile


 Post subject: Re: Places to mount new coil/removing ignition module.
Posted: Thu Jan 02, 2014 7:39 am
Fordmods Junkie
Offline
User avatar

Posts: 2750

Joined: 22nd Jan 2009

Ride: '91 EB Wagoon

Location: Geeelong
VIC, Australia

96ELGli wrote:
Hi,

I have heard that some US owners move the Ignition module from the Dizzy to a cooler place. Same thing here, I would mount 2 on the inner guard on a heatsink and have a single plug to change.



which is what TimmmyA did with his
