 Post subject: Polishing Intake Manifolds
Posted: Wed Apr 23, 2008 12:34 am
Oompa Loompa
Offline

Posts: 35

Joined: 25th Mar 2007

Location: Penola
SA, Australia

G'day,

What tips would you give to someone looking to get a mirror finish from a EB I6 intake manifold?

I've already started sanding down the casting dimples/ paint to get it smooth (and I am planing to move up in sanding disks) but I havent had much experience with polishing stuff.

What spec of wet and dry paper would I need near the end? Is there any other methods for shine?
Top
 Profile


Posted: Wed Apr 23, 2008 12:51 am
Getting Side Ways
Offline
User avatar

Age: 64

Posts: 3552

Joined: 7th Nov 2004

Gallery: 4 images

Power: 482 rwkw

Location: Penrith
NSW, Australia

Do you have a big grinder ?? Fit a pollishing wheel to it and some polishing wax for alloy [I think its the white one].Put on some OLD clothes and way you go...



_________________

As in ZOOM 126 edition
331 Dart block,3.25/ 4340 steel crank, Oliver rods,TFS ported track heat heads, TFS track heat inlet Twin SC61 turbo's
Project 1UZ-EF has started.. S475 Turbo 4.0 V8 Mustang Celica.....

Top
 Profile


Posted: Wed Apr 23, 2008 12:51 am
Getting Side Ways
Offline
User avatar

Age: 64

Posts: 3552

Joined: 7th Nov 2004

Gallery: 4 images

Power: 482 rwkw

Location: Penrith
NSW, Australia

Double post..



_________________

As in ZOOM 126 edition
331 Dart block,3.25/ 4340 steel crank, Oliver rods,TFS ported track heat heads, TFS track heat inlet Twin SC61 turbo's
Project 1UZ-EF has started.. S475 Turbo 4.0 V8 Mustang Celica.....

Last edited by EBXR8380 on Wed Apr 23, 2008 12:53 am, edited 1 time in total.

Top
 Profile


Posted: Wed Apr 23, 2008 2:15 am
Parts Gopher
Offline
User avatar

Age: 31

Posts: 56

Joined: 31st Jan 2008

Gallery: 7 images

Ride: XH XR6

Location: Camden
NSW, Australia

if you have a bench grinder at home you can get a calico wheel from you local harward, i think the wheel and attachment is around $30 or so. they work great use white wax or soap as some people like to call it. you can get this from the hardware store also for around $10-15. use 1200 grit wet to get it reasonable. the wheel with a bit of patients should take care of the rest. you can finish it off with a metal polish AUTOSOL is a good one to go with... other than that i think there is a tech document that is much more in depth that can help you out with the rest.
Top
 Profile


Posted: Wed Apr 23, 2008 10:45 am
Getting Side Ways
Offline
User avatar

Age: 34

Posts: 10826

Joined: 17th Apr 2005

Gallery: 34 images

Ride: BF MK11 XR 6 TURBO ZF 6spd

Power: 225 rwkw

Location: glenwood/sydney
NSW, Australia

flapper wheels work great at removing cast dimples fast... get them at bunnings n mitre 10... cheap too!... saves alot of time... autosol is a great product.. and the fast buff wheels realy brings ot the shine well...



_________________

Todd: Nurse, suction.
Nurse: The patient's not even here yet.
Todd: I know.

http://www.youtube.com/watch?v=_GQpRYRcAiA

Top
 Profile


Posted: Wed Apr 23, 2008 2:01 pm
Tyre Shredder
Offline
User avatar

Age: 29

Posts: 308

Joined: 9th Apr 2006

Gallery: 5 images

Ride: R33

Power: 142 rwkw

Location: Pennant Hills, Sydney
NSW, Australia

lol think i did it the hard way...various grades of wet and dry, did it by hand, took 10hrs over 2 days. Wasnt quite a mirror finish but was pretty close to it. i used from normal sand paper at the start to rough it up, really course stuff, was more like gravel paper, then went through most grades of wet and dry. Best grade from memory to finish with was 1600, 2000 gave a blured look.



_________________

R33 GTS-T - 222.6rwkw
EF - 142rwkw

Top
 Profile


Posted: Wed Apr 23, 2008 4:34 pm
Getting Side Ways
Offline
User avatar

Age: 31

Posts: 411

Joined: 21st Aug 2006

Ride: EL XR6, Blueprint, Turbo

Location: Melbourne
VIC, Australia

all i did for mine was used a dremel or similar electric grinding tool smoothed it all out and removed bits i didnt want, then started at 120 grit wet and dry to 320 then 400, then 600, then 1000 and then autosol a few times, mine came up pretty good, i did but the rocker cover polished and the bbm polished aswell so i saved myself some time but still polished them up a bit more to how i wanted them.

heres mine:



_________________

http://www.myspace.com/luke_xr
230rwkw - 10psi

Top
 Profile


 Post subject: Mannaz
Posted: Wed Apr 23, 2008 5:04 pm
Getting Side Ways
Offline
User avatar

Age: 33

Posts: 423

Joined: 17th May 2007

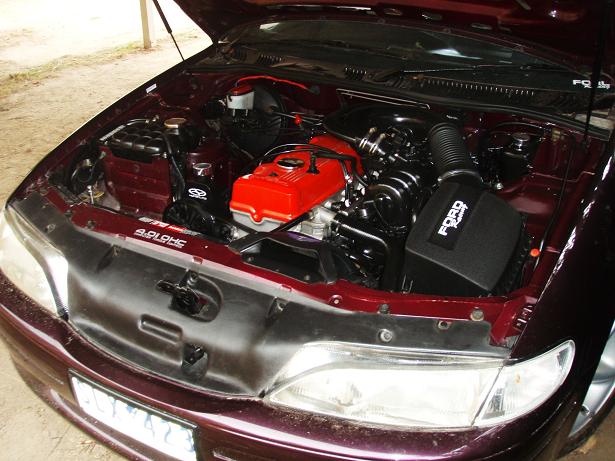

I polished mine to a good shine using an angle grinder, file and sandpaper in that order, it's the perfect way to sacrifice a weekend and there are frequent 'f&%k this' moments, lol. I ended up sparying it gloss black, looks sweet imho.





Attachments:
montbay.JPG [ 70.9 KiB | Viewed 140 times ]
Top
 Profile


 Post subject: Re: Mannaz
Posted: Wed Apr 23, 2008 6:17 pm
Getting Side Ways
Offline

Posts: 553

Joined: 28th Oct 2005

Ride: Peacock EB Falcon

Location: Brisbane
QLD, Australia

cboz wrote:
I polished mine to a good shine using an angle grinder, file and sandpaper in that order, it's the perfect way to sacrifice a weekend and there are frequent 'f&%k this' moments, lol. I ended up sparying it gloss black, looks sweet imho.


It does look nice, not sure about the painted radiator overflow bottle tho :p
How hard was it to put in the BA airbox? bolt in?



_________________

Wanted, CFI manifold

Top
 Profile


 Post subject: Re: Mannaz
Posted: Wed Apr 23, 2008 6:22 pm
Fordmods Junkie
Offline
User avatar

Posts: 11738

Joined: 17th May 2005

Gallery: 11 images

Ride: EL Fairmont, VFR400 racer

Power: 144 rwkw

Location: Melbourne
VIC, Australia

cboz wrote:
I polished mine to a good shine using an angle grinder, file and sandpaper in that order, it's the perfect way to sacrifice a weekend and there are frequent 'f&%k this' moments, lol. I ended up sparying it gloss black, looks sweet imho.


I think everyone has a 'f&%k this' moment when there is a tedious task such as polishing a BBM lol. I just got to start on mine...damn I'm lazy hahaha.

phong =P~



_________________

phongus = Post whore 2006
EL XR6 motor, EL ECU + J3 chip, WADE 1673 Camshaft, 3" S/S intake, Pacy 4480, 2.5" Hi flow cat, 2.5" Lukey exhaust.
Max Power = 144.6 rwkw (03/05/2008)

Top
 Profile


Posted: Wed Apr 23, 2008 6:48 pm
Getting Side Ways
Offline
User avatar

Age: 37

Posts: 907

Joined: 13th Jul 2005

Gallery: 10 images

Ride: ef futura/ef fairmont

Location: sydney
NSW, Australia

as matt said flapper wheels are great to start with then sand by hand to get the shape right again,then work your way up in grit and finish with a metal polish. it will take a while and a lot of hours.

if you want to see a hand polished bbm that shines just look in my gallery..



_________________

custom airbox,custom intake
paccie comps,lukey 2.5 cat back,high flow cat
CMS stg2 head,CMS stg2.A. cam,CMS hybrid auto with mod shift,3.9 lsd
custom 3500rpm hi stall
ANZ mayhem 18's,custom interior,venom body kit,xr wing,jumbo 2' low springs
143rwkw and 407rwnm on CMS dyno

Top
 Profile


 Post subject: Re: Mannaz
Posted: Wed Apr 23, 2008 7:23 pm
Getting Side Ways
Offline
User avatar

Age: 33

Posts: 423

Joined: 17th May 2007

knowsfords wrote:
cboz wrote:
I polished mine to a good shine using an angle grinder, file and sandpaper in that order, it's the perfect way to sacrifice a weekend and there are frequent 'f&%k this' moments, lol. I ended up sparying it gloss black, looks sweet imho.


It does look nice, not sure about the painted radiator overflow bottle tho :p
How hard was it to put in the BA airbox? bolt in?


It's a bit of a pain but persitance is the key,lol. There's a small bump in the inner guard that needs to be bashed in, the original EF rubber cushion things where the bolts go through need to be used as the BA items are too bulky, and I had to melt and mould the underside of the Tickford snorkel to fit nicely over the fan shroud and clip properly into the air box. The box is huge and only just fits under the bonnet.
Top
 Profile


 Post subject: Re: Mannaz
Posted: Wed Apr 23, 2008 7:24 pm
Getting Side Ways
Offline
User avatar

Age: 34

Posts: 10826

Joined: 17th Apr 2005

Gallery: 34 images

Ride: BF MK11 XR 6 TURBO ZF 6spd

Power: 225 rwkw

Location: glenwood/sydney
NSW, Australia

knowsfords wrote:
cboz wrote:
I polished mine to a good shine using an angle grinder, file and sandpaper in that order, it's the perfect way to sacrifice a weekend and there are frequent 'f&%k this' moments, lol. I ended up sparying it gloss black, looks sweet imho.


It does look nice, not sure about the painted radiator overflow bottle tho :p
How hard was it to put in the BA airbox? bolt in?


i like hiding my overflow tank too.. its not very sexy to look at... lol.. mine's blaack aswell..

and ive a BA airbox in my e-series too... pretty easy... bolts pretty much straight in.. just had to hammer down a lil ledge that is moulded into the guard that sits right below the bottom half of the airbox.. as the ba air box is alot taller than the e-series boxes and so needed every bit of space available to be able to stil close the bonnet...



_________________

Todd: Nurse, suction.
Nurse: The patient's not even here yet.
Todd: I know.

http://www.youtube.com/watch?v=_GQpRYRcAiA

Top
 Profile


Posted: Wed Apr 23, 2008 10:34 pm
Getting Side Ways
Offline
User avatar

Age: 54

Posts: 744

Joined: 11th Nov 2004

Gallery: 15 images

Ride: ED Falcon

Location: Adelaide
SA, Australia

Polish it then ceramic coat/High pressure coat it.

Hardly any polishing




_________________

I post here cos the russian tank driver doesn't

Top
 Profile


Posted: Thu Apr 24, 2008 12:15 am
Getting Side Ways
Offline
User avatar

Age: 49

Posts: 1634

Joined: 8th Jul 2007

Gallery: 21 images

Ride: EL F100 CAPRI XR EF

Power: 234 rwkw

Location: brighton
SA, Australia

i had a bbm done at the polishers,cost $80 for top and bottom and only took half a day. mirror finish. ring around,there would be somebody down mt gambier way
