 Post subject: Removing EL Harmonic Balancer-Bolt sizes?
Posted: Tue Jul 13, 2010 7:03 pm
Getting Side Ways
Offline

Posts: 2091

Joined: 3rd Apr 2008

Ride: EF Fairmont, XG Ute

What size and thread are the 3 threaded holes in the balancer on an EL? I need to know what size bolts I need, hoping to use a universal puller, need the bolts to bolt it on.
Top
 Profile


 Post subject: Re: Removing EL Harmonic Balancer-Bolt sizes?
Posted: Tue Jul 13, 2010 7:27 pm
Getting Side Ways
Offline
User avatar

Age: 49

Posts: 6467

Joined: 18th Dec 2006

Ride: 93 ED sedan

Power: 161 rwkw

Location: Rockhampton
QLD, Australia

Metric M10....can't remember the pitch..... :(



_________________

http://youtu.be/jJTh9F3Vgg0

Top
 Profile


 Post subject: Re: Removing EL Harmonic Balancer-Bolt sizes?
Posted: Tue Jul 13, 2010 7:41 pm
Stock as a Rock
Offline

Age: 33

Posts: 141

Joined: 17th Jun 2006

Ride: Falcon

Location: canberra
ACT, Australia

about 90% sure it's M10 x 1.25



_________________

Fords Rule. OK.

Top
 Profile


 Post subject: Re: Removing EL Harmonic Balancer-Bolt sizes?
Posted: Tue Jul 13, 2010 7:50 pm
Getting Side Ways
Offline
User avatar

Age: 49

Posts: 6467

Joined: 18th Dec 2006

Ride: 93 ED sedan

Power: 161 rwkw

Location: Rockhampton
QLD, Australia

lee lee le bonk wrote:
about 90% sure it's M10 x 1.25


I was thinking 1.5.....?????



_________________

http://youtu.be/jJTh9F3Vgg0

Top
 Profile


 Post subject: Re: Removing EL Harmonic Balancer-Bolt sizes?
Posted: Tue Jul 13, 2010 10:06 pm
Getting Side Ways
Offline

Posts: 2091

Joined: 3rd Apr 2008

Ride: EF Fairmont, XG Ute

M10, 1.5mm pitch, 75mm long.

Thats what Craig (XRFAIRMONT67) texted to me, so its up here for reference now.

Thanks heaps fellas! :D

Wish me luck changing the balancer and seal. :shock:
Top
 Profile


 Post subject: Re: Removing EL Harmonic Balancer-Bolt sizes?
Posted: Tue Jul 13, 2010 10:18 pm
Getting Side Ways
Offline

Posts: 2091

Joined: 3rd Apr 2008

Ride: EF Fairmont, XG Ute

I'm going to be giving this a crack (hopefully not literally) in the morning. I'm just looking at the manual now, does the main seal come out easily enough with the timing cover still in place?
Top
 Profile


 Post subject: Re: Removing EL Harmonic Balancer-Bolt sizes?
Posted: Tue Jul 13, 2010 10:26 pm
Getting Side Ways
Offline
User avatar

Age: 49

Posts: 1634

Joined: 8th Jul 2007

Gallery: 21 images

Ride: EL F100 CAPRI XR EF

Power: 234 rwkw

Location: brighton
SA, Australia

yeah a flat head screw driver, a few light taps with the hammer
Top
 Profile


 Post subject: Re: Removing EL Harmonic Balancer-Bolt sizes?
Posted: Tue Jul 13, 2010 10:27 pm
Getting Side Ways
Offline
User avatar

Age: 49

Posts: 6467

Joined: 18th Dec 2006

Ride: 93 ED sedan

Power: 161 rwkw

Location: Rockhampton
QLD, Australia

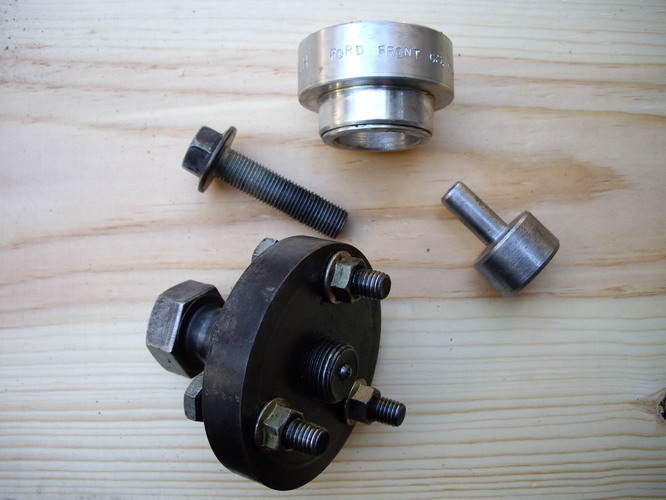

These are my tools for doing that job....the puller, balancer installer, and the seal installer. The seal installer sure makes it easy.





Attachments:
IMGP1107_resize.JPG [ 80.41 KiB | Viewed 122 times ]



_________________

http://youtu.be/jJTh9F3Vgg0

Top
 Profile


 Post subject: Re: Removing EL Harmonic Balancer-Bolt sizes?
Posted: Tue Jul 13, 2010 10:35 pm
Getting Side Ways
Offline

Posts: 2091

Joined: 3rd Apr 2008

Ride: EF Fairmont, XG Ute

So looking at that tool, I'm guessing the seal goes in from the front with the lip facing out?

I'm a bit nervous. :P
Top
 Profile


 Post subject: Re: Removing EL Harmonic Balancer-Bolt sizes?
Posted: Tue Jul 13, 2010 10:40 pm
Getting Side Ways
Offline
User avatar

Age: 49

Posts: 1634

Joined: 8th Jul 2007

Gallery: 21 images

Ride: EL F100 CAPRI XR EF

Power: 234 rwkw

Location: brighton
SA, Australia

my $16 harmonic puller, centre bolt thread cut down to 105mm long from the head. gives more clearance on the radiator. only needed to buy 1 bolt, M10 X75mm, 1.5 pitch as above

u might be able to use a big socket dan, i've even used the caps that fit on the top of galv fence posts, $2 from bunnings. find one that is a touch smaller than the new seal's od.

Top
 Profile


 Post subject: Re: Removing EL Harmonic Balancer-Bolt sizes?
Posted: Tue Jul 13, 2010 10:41 pm
Getting Side Ways
Offline
User avatar

Age: 49

Posts: 6467

Joined: 18th Dec 2006

Ride: 93 ED sedan

Power: 161 rwkw

Location: Rockhampton
QLD, Australia

SLO247 wrote:
So looking at that tool, I'm guessing the seal goes in from the front with the lip facing out?

I'm a bit nervous. :P


They have 2 lips.....remember " coil to the oil "....that means the little coil spring looking thingy goes on the inside......also before fitting, lube with a little bit of grease ( some seals come with grease in them so this may not be necessary. If your fingers are good enough, you put them in with a little spray of WD40 on the outside....then tap in till level with outside.



_________________

http://youtu.be/jJTh9F3Vgg0

Top
 Profile


 Post subject: Re: Removing EL Harmonic Balancer-Bolt sizes?
Posted: Tue Jul 13, 2010 11:07 pm
Getting Side Ways
Offline

Posts: 2091

Joined: 3rd Apr 2008

Ride: EF Fairmont, XG Ute

I have a metal dust cap from an AU front hub that is a perfect fit for the seal, so that and some inox is the plan now.

Thats the same puller as I have borrowed Craig, just with the long centre bolt still obviously. I'll pull the radiator out, no risk of damaging it then.

My Stepdad reckoned the pulley is quite hard to bash on, is that true?

Thanks very much for the help, hopefully planning in advance means it all goes smoothly.
Top
 Profile


 Post subject: Re: Removing EL Harmonic Balancer-Bolt sizes?
Posted: Tue Jul 13, 2010 11:41 pm
Getting Side Ways
Offline
User avatar

Age: 28

Posts: 4326

Joined: 30th Oct 2006

Gallery: 18 images

Ride: Envi EF

Location: Grafton
NSW, Australia

I'd imagine it would be, which is why thats not how you do it lol.
When you put the balancer back on you lock the motor up in gear and use teh bolt and washer to put it back into place.



_________________

>>>EF Futura T build<<<

Top
 Profile


 Post subject: Re: Removing EL Harmonic Balancer-Bolt sizes?
Posted: Tue Jul 13, 2010 11:49 pm
Getting Side Ways
Offline

Posts: 2091

Joined: 3rd Apr 2008

Ride: EF Fairmont, XG Ute

Now I'm glad I asked. :D

He reckoned I should tap it on with a hammer. I was like :shock:

Should all be a piece of piss. Thanks fellas.
Top
 Profile


 Post subject: Re: Removing EL Harmonic Balancer-Bolt sizes?
Posted: Wed Jul 14, 2010 12:01 am
Getting Side Ways
Offline
User avatar

Age: 28

Posts: 4326

Joined: 30th Oct 2006

Gallery: 18 images

Ride: Envi EF

Location: Grafton
NSW, Australia

Yeh hitting it with a hammer would probably f**k up the rubber in it.
Just slot it on and crank the bolt up, would also be a thousand times quicker than hitting it into place lol



_________________

>>>EF Futura T build<<<

Top
 Profile
