resetting base timing issue. please help



Page 2 of 2 [ 19 posts ] Go to page Previous  1, 2


 Post subject: Re: resetting base timing issue. please help
Posted: Sun Feb 07, 2010 7:59 pm
Tyre Shredder
Offline
User avatar

Age: 29

Posts: 321

Joined: 17th Nov 2009

Gallery: 1 images

Ride: BF XT Falcon

Location: Melbourne
VIC, Australia

is the TPS a plug that is connected to the throttle body? or the little black knob on the ISC?
Top
 Profile


 Post subject: Re: resetting base timing issue. please help
Posted: Sun Feb 07, 2010 8:21 pm
Moderator
Offline

Posts: 14513

Joined: 7th Nov 2004

Ride: ford falcon au3 xr8

Location: a shit suburb in sydney
NSW, Australia

you definatly need a timing light to set the timing..
if its an el the base ignition timing in diagnostic mode is 0eg btdc +or-2 deg.. so the 2 timing marks need to line up.

and the tps voltage for the 6 cyl is .7v throttle closed..

and the tps is on the front side of the throttle body.
with a plug with 3 wires...
Top
 Profile


 Post subject: Re: resetting base timing issue. please help
Posted: Sun Feb 07, 2010 8:25 pm
Getting Side Ways
Offline
User avatar

Age: 33

Posts: 1079

Joined: 19th May 2005

Gallery: 29 images

Ride: ELXR8 SERIES 2

Location: naracoorte
SA, Australia

thoes numbers i gave ya came from a max elery workshop manual but listen to what TROYMAN says mate, he knows what he's on about.
bout time i burnt this stupid book as ive proven it wrong a few times now :shock:

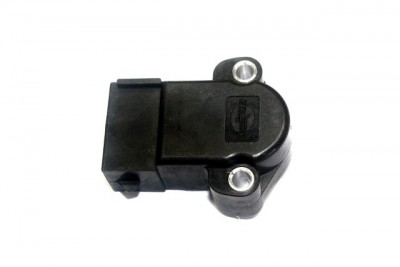

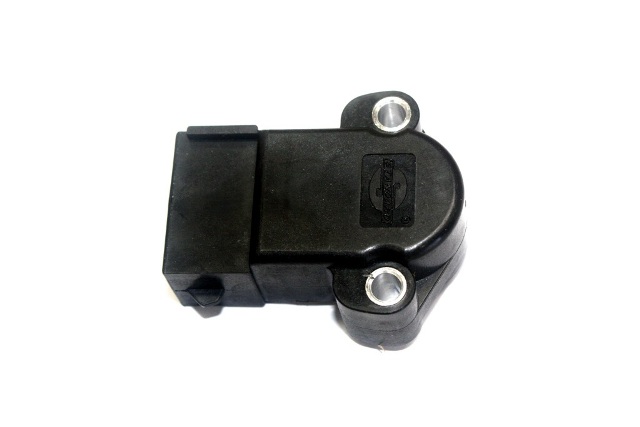

here is a pic of the tps





Attachments:
l_ford%20throttle%20position%20sensor%20tps-010b[1].jpg [ 28.73 KiB | Viewed 29 times ]



_________________

EL XR8 SERIES 2, 5SPD, HOT CHILLI RED, 200 ODD RWKW OF V8 FUN AND GAMES

EF XR6, 5SPD, HERITAGE GREEN, AU XR6 VCT ENGINE

VL COMMODORE, 5SPD, WHITE

BA XT, AUTO, OFFSHORE BLUE

Top
 Profile


 Post subject: Re: resetting base timing issue. please help
Posted: Sun Feb 07, 2010 9:02 pm
Tyre Shredder
Offline
User avatar

Age: 29

Posts: 321

Joined: 17th Nov 2009

Gallery: 1 images

Ride: BF XT Falcon

Location: Melbourne
VIC, Australia

ok, i will try and scope out a timing light tomorrow afternoon. I did the base idle reset that was in the V8 section, and it helped a little, its idling a little high around 900rpm, but at least its stable for now. if i try to drop it any lower it seems to hunt again, although not as bad as it was.

also now with the idle stable i should be able to tell when it gets into diagnostics mode, i couldnt tell last time because it was constantly almost stalling.
Top
