rotor button not turning in ED



Page 1 of 1 [ 12 posts ]


 Post subject: rotor button not turning in ED
Posted: Tue Dec 27, 2005 11:39 am
Getting Side Ways
Offline
User avatar

Age: 34

Posts: 2637

Joined: 5th Nov 2004

Ride: EL TURBO GHIA

Power: 372 rwkw

Location: penrith
NSW, Australia

well as in my other post the car died when driving it home from the shops.

so i checked to see if the rotor button was turning and it isnt ,so what does that mean ,whats broken ??

how much is a brand new engine ,or recon,or a wreckers job ,

will an EL engine fit in ,whats involved in putting one in

cheers jarrod



_________________

HMMMM BOOST !!!


ED fairmont R.I.P

STREET FORDS FEATURE CAR ISSUE 42

Top
 Profile


Posted: Tue Dec 27, 2005 11:40 am
Getting Side Ways
Offline

Age: 36

Posts: 7287

Joined: 5th Nov 2004

Gallery: 12 images

Ride: 1994 ED XR8 Sprint

Location: Somewhere in
QLD, Australia

i'll take a stab and say a stripped dizzy gear



_________________

Banned

Top
 Profile


Posted: Tue Dec 27, 2005 11:41 am
Getting Side Ways
Offline
User avatar

Age: 34

Posts: 2637

Joined: 5th Nov 2004

Ride: EL TURBO GHIA

Power: 372 rwkw

Location: penrith
NSW, Australia

nah i changed it, it was fine



_________________

HMMMM BOOST !!!


ED fairmont R.I.P

STREET FORDS FEATURE CAR ISSUE 42

Top
 Profile


Posted: Tue Dec 27, 2005 12:05 pm
Technical Contributor
Offline
User avatar

Age: 32

Posts: 2517

Joined: 7th Nov 2004

Gallery: 4 images

Ride: LS3 VF

Location: Bunbury
WA, Australia

theres a shaft in dizzy I6 motors that turns both the distributor and the oil pump. If you've changed the dizzy or looked at it it could be a broken shaft, or a broken timing chain. does the cam turn?
Top
 Profile


Posted: Tue Dec 27, 2005 12:11 pm
Getting Side Ways
Offline
User avatar

Age: 34

Posts: 2637

Joined: 5th Nov 2004

Ride: EL TURBO GHIA

Power: 372 rwkw

Location: penrith
NSW, Australia

the dizzy is new ,and both are fine ,

how would i get to see if the cam turns,just crank the engine with rocker cover off ??



_________________

HMMMM BOOST !!!


ED fairmont R.I.P

STREET FORDS FEATURE CAR ISSUE 42

Top
 Profile


Posted: Tue Dec 27, 2005 12:15 pm
Getting Side Ways
Offline
User avatar

Age: 34

Posts: 2637

Joined: 5th Nov 2004

Ride: EL TURBO GHIA

Power: 372 rwkw

Location: penrith
NSW, Australia

if the chain has slipped ,how do you put it back ,do you have to pull the engine out ?



_________________

HMMMM BOOST !!!


ED fairmont R.I.P

STREET FORDS FEATURE CAR ISSUE 42

Top
 Profile


Posted: Tue Dec 27, 2005 2:50 pm
Getting Side Ways
Offline
User avatar

Posts: 3115

Joined: 20th Dec 2004

Ride: Falcon

Location: Adelaide
SA, Australia

pull the rocker cover off and check the timing chain. If it had just slipped it would still turn the rotor. Chances are the chain has snapped or the auxiliary shaft siezed/broke.

Its not a trivial job to fix. Minimum needed to fix is to drop the front lip of the sump, remove the timing cover and replace the chain, guides, tensioner, and then clean all the crap out of the sump (there will be a fair bit).



_________________

Stoke me a clipper, I'll be back for Christmas

Top
 Profile


Posted: Tue Dec 27, 2005 11:33 pm
Getting Side Ways
Offline
User avatar

Age: 39

Posts: 1434

Joined: 5th Nov 2004

Gallery: 15 images

Ride: ALTED XR6 - ALTED EA - EF TAXI

Location: Sunshine Coast QLD
QLD, Australia

came across this problem once before, the aux gear had seized up! did not turn oil pump or dizzy... complete motor rebuild with new block.. i Hope thats not your case!
Top
 Profile


Posted: Wed Dec 28, 2005 11:41 am
Getting Side Ways
Offline
User avatar

Age: 34

Posts: 2637

Joined: 5th Nov 2004

Ride: EL TURBO GHIA

Power: 372 rwkw

Location: penrith
NSW, Australia

arh right ,doesnt sound good at all,

another question can you tighen the chain tentioner up to tight ? does the bolt just scew in to a certain point and thats tight or can tighen it to much



_________________

HMMMM BOOST !!!


ED fairmont R.I.P

STREET FORDS FEATURE CAR ISSUE 42

Top
 Profile


Posted: Wed Dec 28, 2005 12:45 pm
Getting Side Ways
Offline
User avatar

Age: 34

Posts: 2637

Joined: 5th Nov 2004

Ride: EL TURBO GHIA

Power: 372 rwkw

Location: penrith
NSW, Australia

ok i just took the rocker cover off ,the chain seems in tact i pulled on it and didnt move ,but i did notice this


not sure if its surpose to be like that ,im pretty sure it isnt



_________________

HMMMM BOOST !!!


ED fairmont R.I.P

STREET FORDS FEATURE CAR ISSUE 42

Top
 Profile


Posted: Thu Dec 29, 2005 11:41 am
Getting Side Ways
Offline
User avatar

Age: 39

Posts: 1434

Joined: 5th Nov 2004

Gallery: 15 images

Ride: ALTED XR6 - ALTED EA - EF TAXI

Location: Sunshine Coast QLD
QLD, Australia

EDMONTY wrote:
ok i just took the rocker cover off ,the chain seems in tact i pulled on it and didnt move ,but i did notice this


not sure if its surpose to be like that ,im pretty sure it isnt


hell no, thats what the NL motor looked like I took apart! :( :(

hang on, i'll see if I can find some photo's of the NL
Top
 Profile


Posted: Thu Dec 29, 2005 11:45 am
Getting Side Ways
Offline
User avatar

Age: 39

Posts: 1434

Joined: 5th Nov 2004

Gallery: 15 images

Ride: ALTED XR6 - ALTED EA - EF TAXI

Location: Sunshine Coast QLD
QLD, Australia

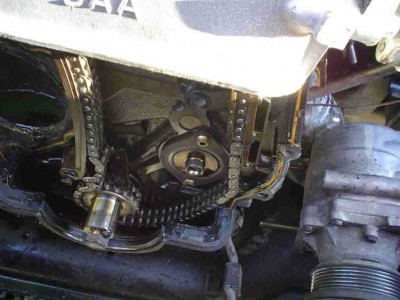

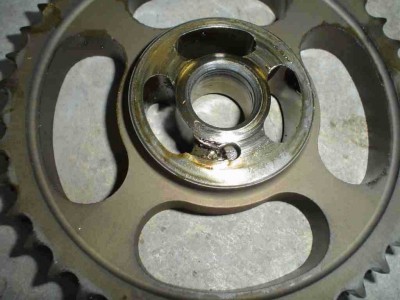

here we are





Attachments:
4.jpg [ 43.64 KiB | Viewed 37 times ]
3.jpg [ 33.92 KiB | Viewed 35 times ]
1.jpg [ 49.15 KiB | Viewed 40 times ]
