 Post subject: Serpentine belt length problem
Posted: Mon Apr 16, 2012 5:54 pm
Stock as a Rock
Offline

Age: 25

Posts: 191

Joined: 30th Dec 2010

Gallery: 2 images

Ride: Ford Falcon EA

Location: Ballarat
VIC, Australia

Okay here's my problem, I have a ef engine in my ea. I have ef. Alt,balancer,water pump,pwr steering,ac unit. And a xh tensioner as I'm using the log manifold. I have the ac unit bolted straight onto the bracket and I can't seem to get a belt to fit nice and tight? How much play should it have when tensioned ??

Cheers, Brandon
Top
 Profile


 Post subject: Re: Serpentine belt length problem
Posted: Mon Apr 16, 2012 9:29 pm
Tyre Shredder
Offline
User avatar

Age: 52

Posts: 358

Joined: 7th Jun 2007

Ride: NA Fairlane / FE LTD

Location: bayswater
VIC, Australia

Are you useing an EF belt or XH one?
Top
 Profile


 Post subject: Re: Serpentine belt length problem
Posted: Mon Apr 16, 2012 10:41 pm
Getting Side Ways
Offline

Posts: 836

Joined: 1st Apr 2005

Gallery: 4 images

Ride: EF XR6 Wagon, AU2 XR6 VCT

Power: 148 rwkw

Location: Auckland
New Zealand

Dayco has about a hundred 6-rib belts in a wide range of sizes in about 10mm increments, so there will definitely be one that fits whatever combination you have. The stock EF 6-cyl belt is 6PK2350 (or 20-5355) - 6 ribs, 2350mm long.

Check out http://www.dayco.com.au/products.aspx?G=910&P=1512



_________________

95 EF XR6 wagon, 17" FTRs, DBA, QFM, KYB/Koni, AU block, ported EF head, SS Inductions, Territory intake, MLS gasket, milled, Franklin RH24B cam, Coby headers, no cat, Tickford 2.5", 2800rpm stall, J3 chip

Top
 Profile


 Post subject: Re: Serpentine belt length problem
Posted: Mon Apr 16, 2012 10:50 pm
Technical Contributor
Offline
User avatar

Age: 38

Posts: 4093

Joined: 20th Mar 2005

Gallery: 2 images

Ride: 2.0 Turbo VW

Power: 142 rwkw

Location: Seaford State:
VIC, Australia

You need the XH belt.

It sounds like its not going on correctly.

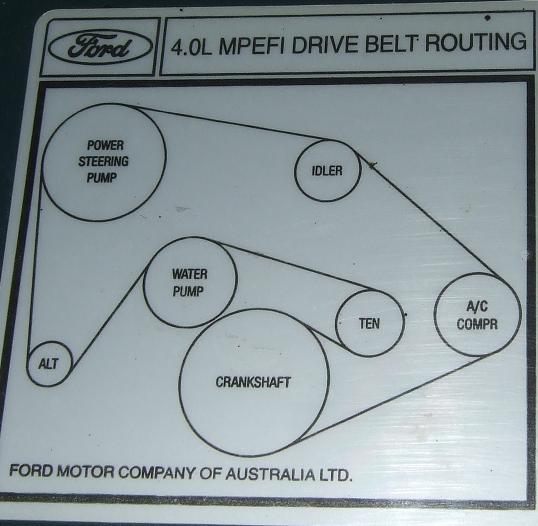

Are you following this:?





Attachments:
Belt.JPG [ 38.35 KiB | Viewed 107 times ]



_________________

Carefree, we may not be number one, but we're up there.

Last edited by Krytox on Tue Apr 17, 2012 11:53 pm, edited 1 time in total.

Top
 Profile


 Post subject: Re: Serpentine belt length problem
Posted: Tue Apr 17, 2012 12:25 am
Technical Contributor
Offline
User avatar

Age: 53

Posts: 5587

Joined: 14th Jan 2005

Gallery: 10 images

Ride: 96 XH/97 EL

Location: South Coast
NSW, Australia

The EF/EL belt will be too tight - you'll struggle to get it on.



_________________

96 XH Longreach 'S': LPG, Alarm, 3.23:1 LSD, Cruise, Trip Comp, ABS, Power Windows, Mid Series Dome Lt, Climate Ctrl
97 EL Futura S/W: LPG, Alarm, LED int Lts, Trip Comp, F/Lane Dome Lt, Climate Ctrl, T5 Conversion

Top
 Profile


 Post subject: Re: Serpentine belt length problem
Posted: Tue Apr 17, 2012 2:24 pm
Stock as a Rock
Offline

Age: 25

Posts: 191

Joined: 30th Dec 2010

Gallery: 2 images

Ride: Ford Falcon EA

Location: Ballarat
VIC, Australia

I'm trying different sizes, the 6pk2225 is too tight to fit so I'm hoping a 6pk2230 will fit
Top
 Profile


 Post subject: Re: Serpentine belt length problem
Posted: Tue Apr 17, 2012 3:56 pm
Technical Contributor
Offline
User avatar

Age: 53

Posts: 5587

Joined: 14th Jan 2005

Gallery: 10 images

Ride: 96 XH/97 EL

Location: South Coast
NSW, Australia

EF/EL is 6PK2370, so you won't have a hope in hell with what you're trying.

XH is either 6PK2405 or 6PK2505 - can't remember exactly - go to Supercrap and check out the belt catalogue - it will be listed, but I bet they won't have them on the shelf.



_________________

96 XH Longreach 'S': LPG, Alarm, 3.23:1 LSD, Cruise, Trip Comp, ABS, Power Windows, Mid Series Dome Lt, Climate Ctrl
97 EL Futura S/W: LPG, Alarm, LED int Lts, Trip Comp, F/Lane Dome Lt, Climate Ctrl, T5 Conversion

Top
 Profile


 Post subject: Re: Serpentine belt length problem
Posted: Tue Apr 17, 2012 7:31 pm
Stock as a Rock
Offline

Age: 25

Posts: 191

Joined: 30th Dec 2010

Gallery: 2 images

Ride: Ford Falcon EA

Location: Ballarat
VIC, Australia

snap0964 wrote:
EF/EL is 6PK2370, so you won't have a hope in hell with what you're trying.

XH is either 6PK2405 or 6PK2505 - can't remember exactly - go to Supercrap and check out the belt catalogue - it will be listed, but I bet they won't have them on the shelf.



I doesn't have ac spacers so ef/el or the standard issued belts are too long so 22 series will work
Top
 Profile


 Post subject: Re: Serpentine belt length problem
Posted: Tue Apr 17, 2012 8:48 pm
Tyre Shredder
Offline
User avatar

Age: 52

Posts: 358

Joined: 7th Jun 2007

Ride: NA Fairlane / FE LTD

Location: bayswater
VIC, Australia

Put the spacer in and get the right belt.
Until then its trial and error.
Top
 Profile


 Post subject: Re: Serpentine belt length problem
Posted: Tue Apr 17, 2012 9:39 pm
Stock as a Rock
Offline

Age: 25

Posts: 191

Joined: 30th Dec 2010

Gallery: 2 images

Ride: Ford Falcon EA

Location: Ballarat
VIC, Australia

nalane wrote:
Put the spacer in and get the right belt.
Until then its trial and error.



Yes I figured it would be trial and error but was just wondering if anyone had done it this was before, thanks
Top
 Profile


 Post subject: Re: Serpentine belt length problem
Posted: Tue Apr 17, 2012 10:11 pm
Tyre Shredder
Offline
User avatar

Age: 52

Posts: 358

Joined: 7th Jun 2007

Ride: NA Fairlane / FE LTD

Location: bayswater
VIC, Australia

EA-SPAC-88 wrote:
nalane wrote:
Put the spacer in and get the right belt.
Until then its trial and error.



Yes I figured it would be trial and error but was just wondering if anyone had done it this was before, thanks


When you find the right one, get a just in case one.
Top
 Profile


 Post subject: Re: Serpentine belt length problem
Posted: Tue Apr 17, 2012 10:26 pm
Stock as a Rock
Offline

Age: 25

Posts: 191

Joined: 30th Dec 2010

Gallery: 2 images

Ride: Ford Falcon EA

Location: Ballarat
VIC, Australia

That was the plan haha and keep a socket set in the boot, I'll let everyone here know what size I used and what spacing, even if we have to mill something up I'll give measurements,
Cheers guys
Top
 Profile


 Post subject: Re: Serpentine belt length problem
Posted: Tue Apr 17, 2012 11:28 pm
Technical Contributor
Offline
User avatar

Age: 53

Posts: 5587

Joined: 14th Jan 2005

Gallery: 10 images

Ride: 96 XH/97 EL

Location: South Coast
NSW, Australia

See how you get on - I can do a quickie measure of the XH spacers.



_________________

96 XH Longreach 'S': LPG, Alarm, 3.23:1 LSD, Cruise, Trip Comp, ABS, Power Windows, Mid Series Dome Lt, Climate Ctrl
97 EL Futura S/W: LPG, Alarm, LED int Lts, Trip Comp, F/Lane Dome Lt, Climate Ctrl, T5 Conversion

Top
 Profile


 Post subject: Re: Serpentine belt length problem
Posted: Wed Apr 18, 2012 1:09 am
Stock as a Rock
Offline

Age: 25

Posts: 191

Joined: 30th Dec 2010

Gallery: 2 images

Ride: Ford Falcon EA

Location: Ballarat
VIC, Australia

Krytox wrote:
You need the XH belt.

It sounds like its not going on correctly.

Are you following this:?



Is this diagram with the spacers?? If so what's the length?
Top
 Profile


 Post subject: Re: Serpentine belt length problem
Posted: Wed Apr 18, 2012 8:42 am
Technical Contributor
Offline
User avatar

Age: 38

Posts: 4093

Joined: 20th Mar 2005

Gallery: 2 images

Ride: 2.0 Turbo VW

Power: 142 rwkw

Location: Seaford State:
VIC, Australia

That diagram is for a EF with a BBM and standard spacers.

If you have a Log manifold and the Standard XH AC compressor. this is how you put the belt on.

I've never struck any belt length issues even going from BBM to Log and using an XH tensioner, I have however installed the belt on incorrectly and had it loose - untill i realised i had installed it wrong.
