 Post subject: Re: Serpentine belt minus air-con?
Posted: Tue Apr 26, 2011 11:54 pm
Oompa Loompa
Offline

Posts: 38

Joined: 14th Mar 2010

Ride: Ford EL

Location: Hunter Valley
NSW, Australia

Would make life alot easier getting to the dizzy!
What did it end up costing from Ford?
Top
 Profile


 Post subject: Re: Serpentine belt minus air-con?
Posted: Wed Apr 27, 2011 12:08 am
Getting Side Ways
Offline
User avatar

Age: 55

Posts: 1566

Joined: 12th Apr 2008

Gallery: 17 images

Ride: 5.0lt NF /351 ZD Fairlane

Location: Wattle Grove
NSW, Australia

Lowlane7 wrote:
I've read somwhere that a guy got a little quicker off his strip time from running no belts at all including alternator.


I know that the previous owner of my ZD was running 14.9's all day at Castlereagh (yes a long time ago) when he heard a noise as he was about to take off, he thought stuff it and went, pulling a 14.6! when he got back to the pits he realised he had thrown the A/C belt. He went home and removed all the A/C gear from the car!



_________________

NF Fairlane with 5.0 and 5 speed goodness!
ZD build thread under construction at post1136180.html#p1136180

Top
 Profile


 Post subject: Re: Serpentine belt minus air-con?
Posted: Wed Apr 27, 2011 5:36 pm
Getting Side Ways
Offline

Age: 27

Posts: 1114

Joined: 18th Oct 2006

Location: Adelaide
SA, Australia

Very snazzy i must say
Top
 Profile


 Post subject: Re: Serpentine belt minus air-con?
Posted: Wed Apr 27, 2011 5:43 pm
Getting Side Ways
Offline
User avatar

Age: 25

Posts: 4599

Joined: 30th Aug 2010

Ride: BF XR6,

Location: NEWCASTLE
NSW, Australia

the early v6 commodores had a part number for a belt that bypassed the air con, so I thought ford would do the same? Or maybe the holdens had a cheaper option without the air con? And ford didnt



_________________

BF XR6
xr8 snorkel,typhoon lower snorkel,territory intake pipe,20% underdrive kit,pacemaker extractors,high flow cat,xforce exhaust,t56 conversion hd turbo clutch/ flywheel,m86 3.45 lsd,custom tune187.1rwkw as an auto

Top
 Profile


 Post subject: Re: Serpentine belt minus air-con?
Posted: Thu Apr 28, 2011 9:46 am
Getting Side Ways
Offline
User avatar

Age: 40

Posts: 1807

Joined: 6th Feb 2006

Location: CENTRAL
VIC, Australia

i tried to hunt down one of theses a few years back and thay where rare then, seemed at time the guys doing saloon cars where snapping em up, anyways you can't run a smaller belt cos it needs the pully to keep the belt off the tentioner, they are a XH ute part and the belt thay run is a smaller belt with or without ac part number 6PK2405 compaired to EF 6PK2370,
the 6 is number of ribs the PK is belt type and the 2405 is belt lenth in mm
i have a bosch belt pdf if anyone wants to match make something up
Top
 Profile


 Post subject: Re: Serpentine belt minus air-con?
Posted: Sun Apr 08, 2012 1:18 pm
Stock as a Rock
Offline

Age: 25

Posts: 191

Joined: 30th Dec 2010

Gallery: 2 images

Ride: Ford Falcon EA

Location: Ballarat
VIC, Australia

Does anyone know if Repco sell a aftermarket version of this?
Top
 Profile


 Post subject: Re: Serpentine belt minus air-con?
Posted: Sun Apr 08, 2012 8:49 pm
Tyre Shredder
Offline

Age: 24

Posts: 332

Joined: 9th Dec 2010

Ride: EL GLi

Here's a thread a bloke on here made about making the A/C compressor as an idler.

http://www.fordmods.com/off-topic-f6/how-to-make-your-own-lightweight-air-con-pulley-for-free-t104947.html



_________________

Build Thread

the-garage-f53/benno-the-viking-s-el-t111731.html

Ain't nuthin' to it but do it!

Top
 Profile


 Post subject: Re: Serpentine belt minus air-con?
Posted: Fri Apr 13, 2012 4:24 pm
Getting Side Ways
Offline

Posts: 496

Joined: 14th Sep 2011

Ride: BF II Gas Ute

Location: Canberra
ACT, Australia

Hi,

I think air con and air bag were standard from the EF onward. An idler would be the best alternative to the compressor. Even in a cold climate the air-con is worth having to dry the air and avoid fogging. Hot dry air will clear all the windows.

96ELGLi



_________________

Regards 96ELGli

Top
 Profile


 Post subject: Re: Serpentine belt minus air-con?
Posted: Sat Apr 14, 2012 2:07 pm
Tyre Shredder
Offline

Age: 24

Posts: 332

Joined: 9th Dec 2010

Ride: EL GLi

96ELGli wrote:
Hi,

I think air con and air bag were standard from the EF onward. An idler would be the best alternative to the compressor. Even in a cold climate the air-con is worth having to dry the air and avoid fogging. Hot dry air will clear all the windows.

96ELGLi


Troof. My aircon barely works and it's still enough to dry the windows, very handy indeed.



_________________

Build Thread

the-garage-f53/benno-the-viking-s-el-t111731.html

Ain't nuthin' to it but do it!

Top
 Profile


 Post subject: Re: Serpentine belt minus air-con?
Posted: Tue Jul 30, 2013 4:51 pm
Oompa Loompa
Offline
User avatar

Posts: 20

Joined: 11th Jan 2008

Location: Brisbane
QLD, Australia

Sorry for the grave dig but I thought I'd bump this thread incase anyone was interested.

I have an EF I6 in an old FJ40 Landcruiser. When I installed the motor I had to delete the compressor as it hit the chassis rail. I was in a hurry to get the thing going so I removed the falcon auto tensioner and made a simple manual tensioner for the belt and it worked ok for a while. Over time this tensioner has come slightly out of alignment and during more spirited driving will tend to either throw or shred the belt. This had become a more common occurrence since I turbo charged it... :evil:

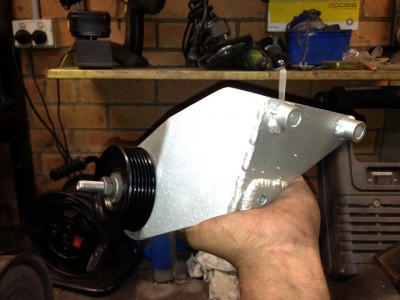

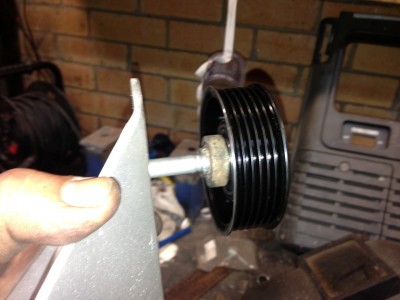

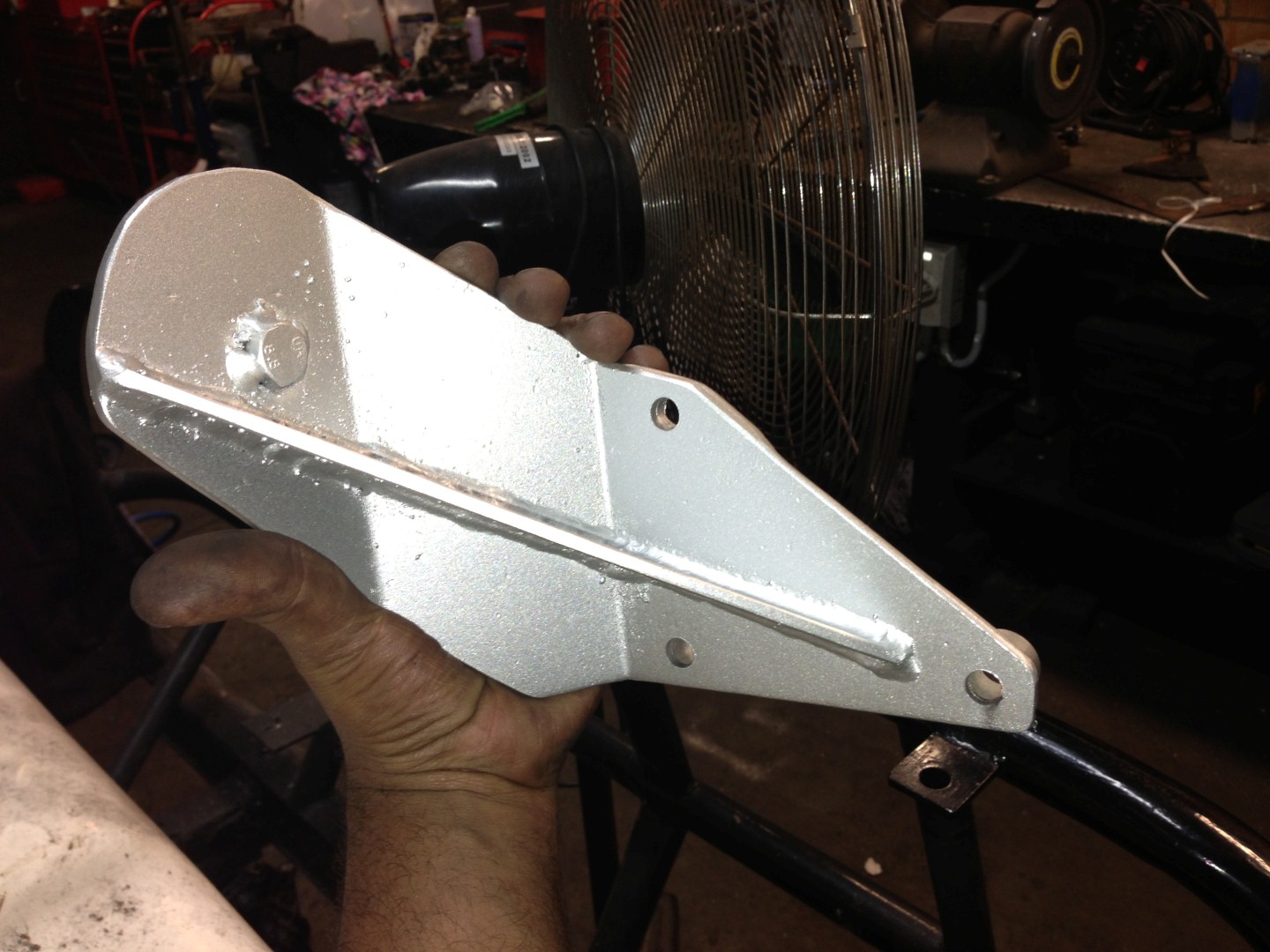

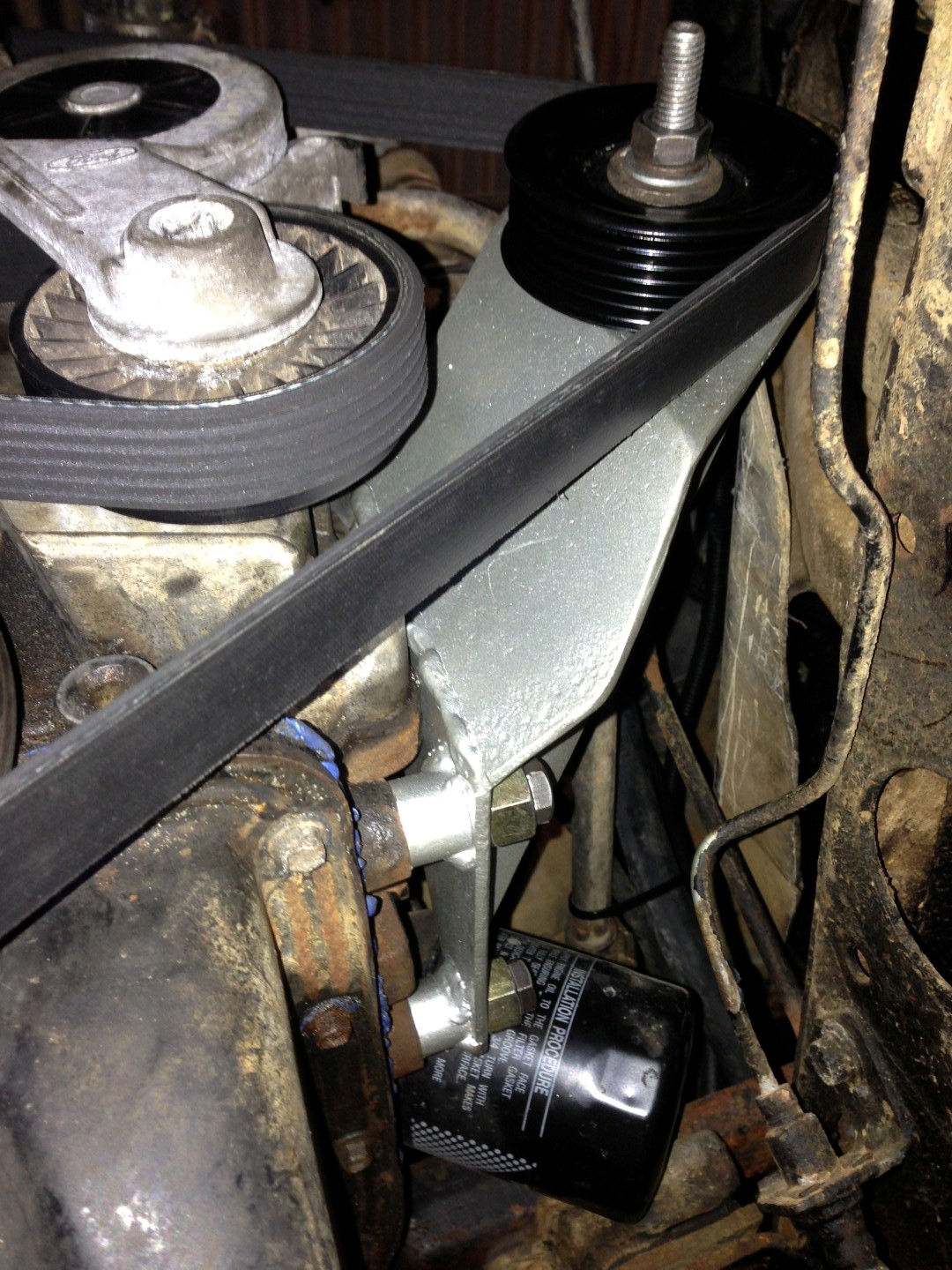

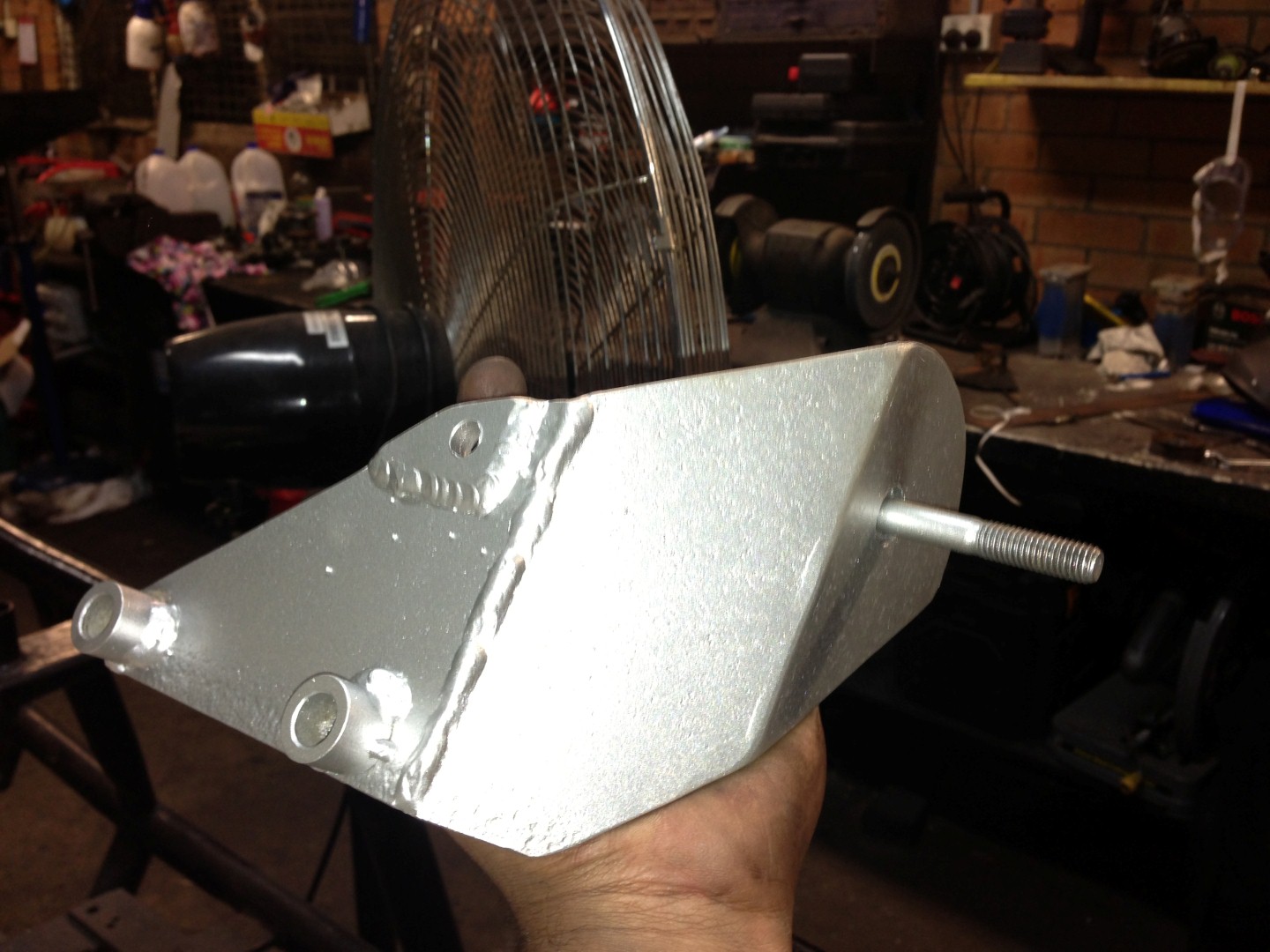

I finally decided to sort it out and referred to this thread about the genuine idler that mounts in place of the compressor. I suspected this wouldn't work for me as it would likely put the pulley in the same place the compressor was and also hit the chassis rail. I got one in and found out I was right. After paying $200 for it I decided to send it back for credit rather than modify it. So I decided to make my own and position the pully an inch or so higher so as to clear the chassis. It now it runs the original EF auto tensioner and standard length belt. Pics below for your interest.

Attachment:
Idler 005.jpg
Idler 005.jpg [ 261.16 KiB | Viewed 81 times ]

Attachment:
Idler 006.jpg
Idler 006.jpg [ 250.72 KiB | Viewed 92 times ]

Attachment:
Idler 007.jpg
Idler 007.jpg [ 239.02 KiB | Viewed 76 times ]

Attachment:
Idler 008.jpg
Idler 008.jpg [ 252.11 KiB | Viewed 87 times ]

Attachment:
Idler 010.jpg
Idler 010.jpg [ 388.4 KiB | Viewed 101 times ]


Hope this helps someone. Oh, nuts under bolts are temporary spacers until I get the right length bolts. :D
Top
 Profile


 Post subject: Re: Serpentine belt minus air-con?
Posted: Wed Jul 31, 2013 4:29 pm
Getting Side Ways
Offline

Age: 32

Posts: 1044

Joined: 4th Aug 2010

Ride: NA Fairlane, DC LTD

Location: Alice Springs
NT, Australia

That's brilliant! Well done mate.

What thickness plate did you use?

Do you have some schematics/plans with measurements etc?

What pulley did you use? Is it just the ribbed one off the tensioner?



_________________

[color=#004080]Cheers, Jacob.

NA Fairlane Build thread:
the-garage-f53/my-fairlane-build-lowlane-t94891.html.
Also in the garage....
AU LTD, DC LTD, and Lowlane.

Top
 Profile


 Post subject: Re: Serpentine belt minus air-con?
Posted: Wed Jul 31, 2013 5:50 pm
Oompa Loompa
Offline
User avatar

Posts: 20

Joined: 11th Jan 2008

Location: Brisbane
QLD, Australia

Cheers.

It's all 4mm plate. Should be plenty strong with the brace. The lower mount spacers are 15mm and the top mount spacer is just another piece of 4mm welded on. These spacers are needed to clear a casting in the block.

I don't have any measurements or a schematic as I just copied the genuine idler using an angle finder. I just spaced the pulley up further to suit my application. Yes that ribbed pulley is the same as the one in the tensioner. I pilfered the boss it sits on out of an old manual tensioner. It's not hard to remove if someone needs measurements....
Top
 Profile


 Post subject: Re: Serpentine belt minus air-con?
Posted: Mon May 11, 2015 9:20 pm
Oompa Loompa
Offline

Age: 40

Posts: 42

Joined: 29th Jan 2008

Gallery: 1 images

Ride: BAII Futura

Location: Wangaratta
VIC, Australia

Is the AU air con delete bracket the same as BA BF FG or different bolt pattern?

If not, what is the part number for BA BF FG?

Cheers
Top
 Profile


 Post subject: Re: Serpentine belt minus air-con?
Posted: Wed May 13, 2015 12:12 am
Fordmods Newbie
Offline

Age: 43

Posts: 2

Joined: 21st Apr 2011

Ride: Ford

Location: Wangaratta
VIC, Australia

I have au block ED intake Xh tensioner Xh belt and air con delete bracket but no clearance on rubber air intake pipe. what is the issue as this is all standard except the au block its mounted the same as the pic on page 1 of this thread
Top
 Profile


 Post subject: Re: Serpentine belt minus air-con?
Posted: Tue Jun 16, 2015 8:09 am
Getting Side Ways
Offline

Posts: 496

Joined: 14th Sep 2011

Ride: BF II Gas Ute

Location: Canberra
ACT, Australia

Hello,

It seems that Air was an option in the Utes, to sell them at a lower price. Worth a look at least.



_________________

Regards 96ELGli
