timing chain guide *urgent*



Page 1 of 1 [ 10 posts ]


 Post subject: timing chain guide *urgent*
Posted: Fri Feb 17, 2006 8:57 pm
Smokin em up
Offline
User avatar

Age: 31

Posts: 254

Joined: 14th Mar 2005

Gallery: 3 images

Ride: EF II XR6

Location: Tamworth
NSW, Australia

yes, im an idiot, broke passenger side timing chain guide about level with the head/block interface.

mechanic says 1k job with the engine out.

I searched on here and from what i understand they break easy and a lot of people just run their cars regardless of the break. is this worth the risk as i can't really afford to be hit with another grand. i know she'll run loudly without the guide, but if that most likely is going to be my biggest issue i'll be right. any other advice? i want to drive this car 1500 k's in the next seven days so its kinda urgent.

cheers



_________________

Who needs an XR6 when you've got a corolla wagon :sad:

Top
 Profile


Posted: Fri Feb 17, 2006 11:05 pm
Getting Side Ways
Offline

Age: 31

Posts: 3772

Joined: 5th Nov 2004

Gallery: 33 images

Ride: EL Fairmont Ghia

Location: Hobart
TAS, Australia

which guide did you snap, normally you snap the passengerside one which seems common, a lot of people will run fine but its only really as if there is a crack in the guide in that case.

if you have broken one off you will realy need to replace it, engine doesnt need to come out for the job can be done with taking the fans and radiator out, prob eba a prick of a job 1k sounds a little bit on the expensive side. if you were goin to do it you would be better off getting all new guides and a chain as well
Top
 Profile


Posted: Fri Feb 17, 2006 11:08 pm
Getting Side Ways
Offline
User avatar

Age: 31

Posts: 11103

Joined: 15th Nov 2004

Ride: AU III XR8 Pursuit 250 ute

Location: Hobart
TAS, Australia

i presume you broke the one that is held in by the bolt through the front of the head. seems common that these ones break, dunno how it'd run without it, would think it's there for a reason...



_________________

Heaps of performance EF/L parts for sale, including supercharged VCT motor!

2002 Ford AU Series III Falcon XR8 Pursuit 250 ute - 5.6L of V8 Windsor!

Top
 Profile


Posted: Fri Feb 17, 2006 11:22 pm
Getting Side Ways
Offline

Age: 31

Posts: 3772

Joined: 5th Nov 2004

Gallery: 33 images

Ride: EL Fairmont Ghia

Location: Hobart
TAS, Australia

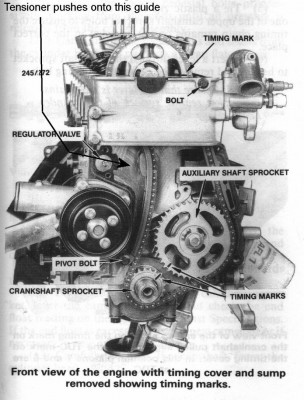

hers a pic now im assuming its the right hand guide that broken on this pic, i definately wouldnt run it without the guide





Attachments:
j9ac8g.jpg [ 166.08 KiB | Viewed 40 times ]
Top
 Profile


Posted: Fri Feb 17, 2006 11:30 pm
Stock as a Rock
Offline
User avatar

Age: 45

Posts: 144

Joined: 5th Nov 2004

Ride: 2008 VRX Pajero

Location: Currie
TAS, Australia

twr7cx wrote:
i presume you broke the one that is held in by the bolt through the front of the head. seems common that these ones break, dunno how it'd run without it, would think it's there for a reason...


twr7cx
FordMods TimingChain Expert :lol: :roll: :lol:



_________________

Peter Kempster

Top
 Profile


Posted: Fri Feb 17, 2006 11:48 pm
Smokin em up
Offline
User avatar

Age: 31

Posts: 254

Joined: 14th Mar 2005

Gallery: 3 images

Ride: EF II XR6

Location: Tamworth
NSW, Australia

yeah its the passenger side one, it snapped as i was taking the head off, its still held in by the timing case so its not going anywhere, its just a matter of does it still need to be attached at the top? i read a few other threads and i thought it was common for these to snap around that point.



_________________

Who needs an XR6 when you've got a corolla wagon :sad:

Top
 Profile


Posted: Sat Feb 18, 2006 3:50 pm
Smokin em up
Offline
User avatar

Age: 31

Posts: 254

Joined: 14th Mar 2005

Gallery: 3 images

Ride: EF II XR6

Location: Tamworth
NSW, Australia

well put it all back together today, cranked her over and she runs fine but below 2000 revs she sounds like a tractor as the chain rattles around. i don'tsee nay way how the teeth could jump so should she be righ to run until i can replace the guide?



_________________

Who needs an XR6 when you've got a corolla wagon :sad:

Top
 Profile


Posted: Sat Feb 18, 2006 5:05 pm
Getting Side Ways
Offline
User avatar

Age: 48

Posts: 7029

Joined: 18th Apr 2005

Location: Hobart
TAS, Australia

kempster1 wrote:
twr7cx wrote:
i presume you broke the one that is held in by the bolt through the front of the head. seems common that these ones break, dunno how it'd run without it, would think it's there for a reason...


twr7cx
FordMods TimingChain Expert :lol: :roll: :lol:
:lol:



_________________

Mind f**k!!! it works on feeble minded ignorant sheeples... there's plenty of em on this site... some are very intelligent but by god they are so thick!!!

Pakrat wrote:
You can buy them seppertly

Top
 Profile


Posted: Sat Feb 18, 2006 6:34 pm
Getting Side Ways
Offline
User avatar

Age: 54

Posts: 4102

Joined: 18th Nov 2004

Gallery: 10 images

Ride: PX2 Ranger 4x4 XLT Dual CAB

Location: Carrum Downs
VIC, Australia

I broke the top half of that one in my EA. I never had a problem with it being missing.



_________________

She's meanness put to music and the b**ch is born to run!
Like the sign says, "speed's just a question of money. How fast can you go?"

Top
 Profile


Posted: Sat Feb 18, 2006 7:02 pm
Getting Side Ways
Offline

Posts: 988

Joined: 4th Dec 2004

Ride: el faimont, dual fuel

Location: melbourne
VIC, Australia

if you are going to be driving it around without the guide, you should have no issues if you use some commonsense i.e. don't rev it too much, don't put it under excessive load etc, until you can fix it.



_________________

why do u write in here.

Top
 Profile
