timing chain question



Page 1 of 1 [ 7 posts ]


 Post subject: timing chain question
Posted: Sat Dec 30, 2006 5:23 pm
Smokin em up
Offline
User avatar

Age: 33

Posts: 242

Joined: 17th Dec 2004

Ride: falcon eb

Location: Perth
WA, Australia

ok guys.

just been fixing the timing on the el motor im rebuliding . and was just wondering should the timming chain be loose on the right side of the cam sproket?

the tensioner has been done and there's tension ton the left side but seems slackish on the right side ill try and get a pic.

ne help would be great
Top
 Profile


Posted: Sat Dec 30, 2006 5:29 pm
Smokin em up
Offline
User avatar

Age: 33

Posts: 242

Joined: 17th Dec 2004

Ride: falcon eb

Location: Perth
WA, Australia

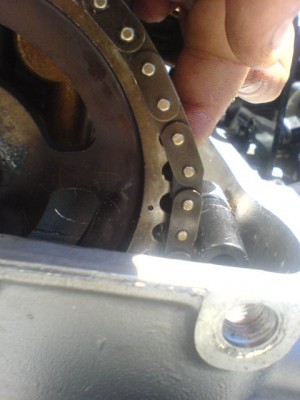

hears the pics





Attachments:
DSC00419.JPG [ 50.51 KiB | Viewed 32 times ]
DSC00420.JPG [ 55.22 KiB | Viewed 31 times ]
Top
 Profile


Posted: Sat Dec 30, 2006 9:33 pm
Getting Side Ways
Offline
User avatar

Age: 49

Posts: 6467

Joined: 18th Dec 2006

Ride: 93 ED sedan

Power: 161 rwkw

Location: Rockhampton
QLD, Australia

You should have the top chain guide bolt in when checking this, but it looks like you've got a problem there. The cam timing may be out. if you wind the engine in direction of rotation, this will pull it tight, but cam timing may be out, if the TDC is right on the crank, and the cam dot may be below the specified point. Take your time and get it right.



_________________

http://youtu.be/jJTh9F3Vgg0

Top
 Profile


Posted: Sun Dec 31, 2006 9:59 am
Smokin em up
Offline
User avatar

Age: 33

Posts: 242

Joined: 17th Dec 2004

Ride: falcon eb

Location: Perth
WA, Australia

well would have the top bolt in but it has vanishd lol got to get a new one on wed after new years.

when i did puit the cam sproket on etc i was all tight ive hand turned the motor over about 5 times and the tdc marks all line up still just seems a tad loose.

dose't look like it will go to the next tooth tho.
Top
 Profile


Posted: Sun Dec 31, 2006 11:54 am
Getting Side Ways
Offline
User avatar

Posts: 3115

Joined: 20th Dec 2004

Ride: Falcon

Location: Adelaide
SA, Australia

the right side will probably be loose until you turn the engine. The crank turning will pull that side tight and the tensioner will take up the slack.

Double check your alignments afterwards, if its that slack after the tensioner has been released you might be a few teeth out.



_________________

Stoke me a clipper, I'll be back for Christmas

Top
 Profile


Posted: Sun Dec 31, 2006 12:02 pm
Getting Side Ways
Offline
User avatar

Age: 31

Posts: 4849

Joined: 19th Feb 2005

Gallery: 1 images

Ride: BA Falcon Suzy Across

Power: 178 rwkw

Location: melbourne
VIC, Australia

Thats how my timing chain was, started the car and it didn't cause any problems for me.



_________________

178.3 rwkw
15.1@96 mph
Now with 3.9 shrooms

Top
 Profile


Posted: Sun Dec 31, 2006 2:03 pm
Getting Side Ways
Offline
User avatar

Age: 32

Posts: 3687

Joined: 4th Mar 2005

Gallery: 23 images

Ride: XR6 Turbo

Location: Taree
NSW, Australia

surely it could jump teeth being like that?



_________________

SS Inductions CAI, K&N Filters, M-spec FMC, Turbosmart BOV, 8psi capa tune, X-force cat.

Mods going on: Nizpro springs, bosch 040 pump + Walbro gss341, 600cc injectors, PWR transcooler, 20% Underdrives, 15psi Actuator, Kingspring SSL's, 15psi tune.....More coming
