Timing chain tensioner broken!



Page 1 of 2 [ 17 posts ] Go to page 1, 2  Next


 Post subject: Timing chain tensioner broken!
Posted: Sat Oct 29, 2005 1:31 pm
Stock as a Rock
Offline

Age: 35

Posts: 117

Joined: 29th Oct 2005

Ride: EB S XR6

Location: Western Sydney
NSW, Australia

I recently had tm engine rebuilt [6 months, 4000km ago] and last week while driving home from work something started to rattle in the engine a couple hundred metres from home, however it was still running fine. So the next day i took the rocker cover off and there is a piece of metal laying next to the top sprocket of the timming chain!

Ive now taken it back to where i had the engine built and they have replaced the tensioner, timing chain and other associated pieces, but something is not right and now it is VERY noisy, and they are continuing to work on the car until they completely rectify the problem.

They tell me that they have heard of the tensioner bracking before, but it has never happened to one of "their" engines.

Has this happened to any one else before??? And does anyone know what might have caused it???



_________________

EB S XR6
161kw At The Wheels
14.8 @ 149.92 km\h WSID

Top
 Profile


Posted: Sat Oct 29, 2005 2:37 pm
Getting Side Ways
Offline
User avatar

Age: 49

Posts: 1966

Joined: 13th Aug 2005

Ride: 2000 Au wagon

Location: some where in nsw
NSW, Australia

most people are lucky if they don't break,,,so your not the only one...



_________________


Top
 Profile


Posted: Sat Oct 29, 2005 4:30 pm
Getting Side Ways
Offline
User avatar

Age: 54

Posts: 744

Joined: 11th Nov 2004

Gallery: 15 images

Ride: ED Falcon

Location: Adelaide
SA, Australia

The tensioner may not have the spring released, the only other thing is if one of the chain guides is damaged/broken



_________________

I post here cos the russian tank driver doesn't

Top
 Profile


Posted: Sat Oct 29, 2005 4:44 pm
Getting Side Ways
Offline

Age: 31

Posts: 3772

Joined: 5th Nov 2004

Gallery: 33 images

Ride: EL Fairmont Ghia

Location: Hobart
TAS, Australia

if they replaced timing chain they would have replaced the guides as well i assume, something similar has happened to my engine im not gonna investigate to far because i think its going to be easier to put a new engine in. im sure if they have had the timing case off they should have benn able to see any obvious problems seems a little strange to me
Top
 Profile


Posted: Sat Oct 29, 2005 4:52 pm
Getting Side Ways
Offline
User avatar

Age: 34

Posts: 4307

Joined: 5th Nov 2004

Gallery: 9 images

Ride: EF Falcon XT-T

Location: Mornington Peninsula
VIC, Australia

thats the first time i've heard of the actual tensioner breaking.
the guides are a common problem (mainly the top one that isnt OVERLY important)
but the tensioner is usually fine.



_________________

FALCN6 - EF GLi Turbo, 20" Rims, Air Bag Suspension, Straight LPG, 225rwkw
DTHWGN - EA GL Wagon, LTD Interior, Satin Black, 5.0, Turbo
RACER - EF Futura , 5.0, 5 Speed
PROJECT - 83 Thunderbird, Lowered, 18" Billet Wheels
DAILY - BA Fairmont Ghia 5.4 3V

Top
 Profile


Posted: Sat Oct 29, 2005 5:42 pm
Stock as a Rock
Offline

Age: 35

Posts: 117

Joined: 29th Oct 2005

Ride: EB S XR6

Location: Western Sydney
NSW, Australia

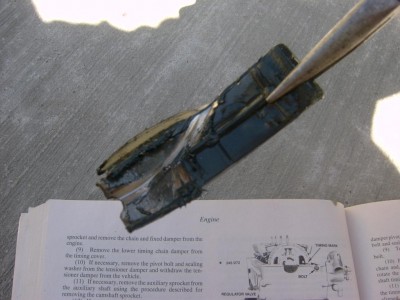

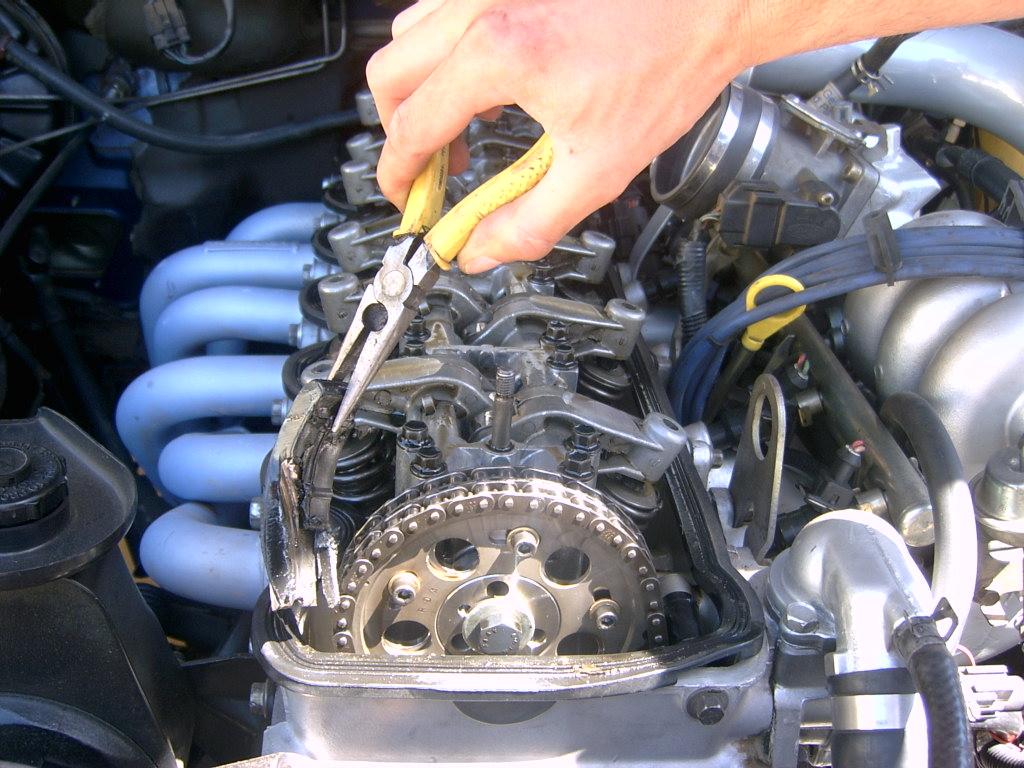

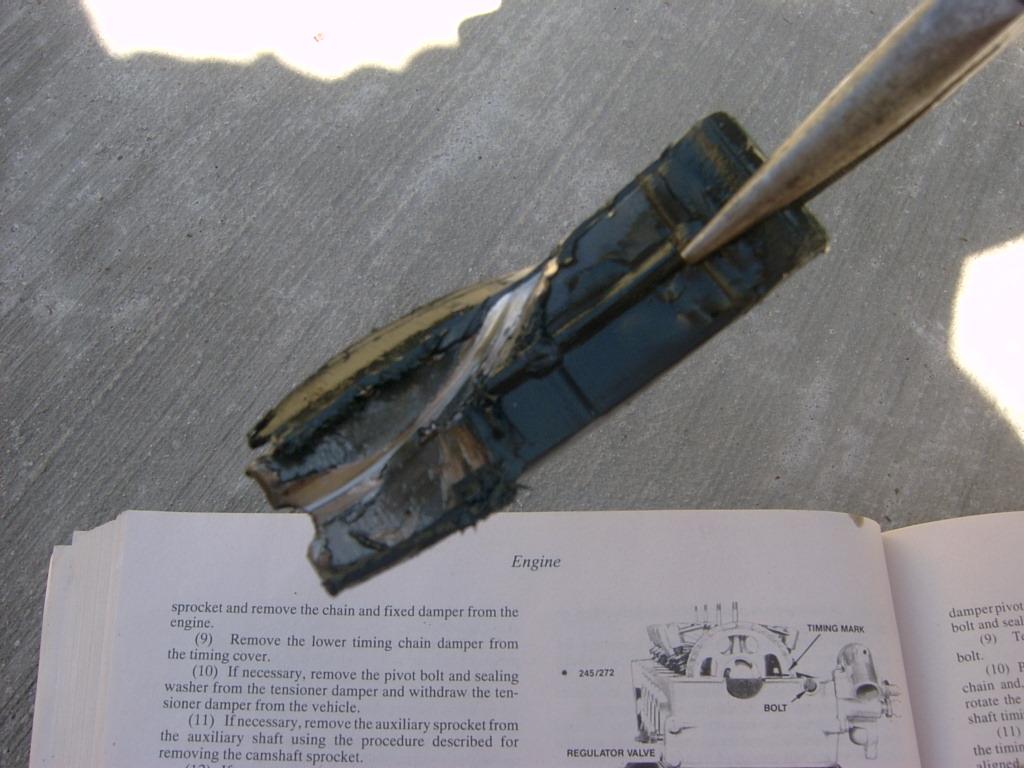

hers some pics





Attachments:
timing chain11.JPG
timing chain11.JPG [ 133.8 KiB | Viewed 96 times ]
timing chain10.jpg
timing chain10.jpg [ 90.25 KiB | Viewed 59 times ]



_________________

EB S XR6
161kw At The Wheels
14.8 @ 149.92 km\h WSID

Top
 Profile


Posted: Sat Oct 29, 2005 5:48 pm
Getting Side Ways
Offline
User avatar

Age: 34

Posts: 4307

Joined: 5th Nov 2004

Gallery: 9 images

Ride: EF Falcon XT-T

Location: Mornington Peninsula
VIC, Australia

ah thats the guide, not the tensioner :)



_________________

FALCN6 - EF GLi Turbo, 20" Rims, Air Bag Suspension, Straight LPG, 225rwkw
DTHWGN - EA GL Wagon, LTD Interior, Satin Black, 5.0, Turbo
RACER - EF Futura , 5.0, 5 Speed
PROJECT - 83 Thunderbird, Lowered, 18" Billet Wheels
DAILY - BA Fairmont Ghia 5.4 3V

Top
 Profile


Posted: Sat Oct 29, 2005 5:56 pm
Stock as a Rock
Offline

Age: 35

Posts: 117

Joined: 29th Oct 2005

Ride: EB S XR6

Location: Western Sydney
NSW, Australia

oh. Just checked my repair manual, "tensioner damper". my mistake, thats what i meant in the first place.



_________________

EB S XR6
161kw At The Wheels
14.8 @ 149.92 km\h WSID

Top
 Profile


Posted: Sat Oct 29, 2005 6:11 pm
Getting Side Ways
Offline
User avatar

Age: 34

Posts: 4307

Joined: 5th Nov 2004

Gallery: 9 images

Ride: EF Falcon XT-T

Location: Mornington Peninsula
VIC, Australia

its fairly common for the one on the other side to snap, but the one thats broken on urs i the less common to go.



_________________

FALCN6 - EF GLi Turbo, 20" Rims, Air Bag Suspension, Straight LPG, 225rwkw
DTHWGN - EA GL Wagon, LTD Interior, Satin Black, 5.0, Turbo
RACER - EF Futura , 5.0, 5 Speed
PROJECT - 83 Thunderbird, Lowered, 18" Billet Wheels
DAILY - BA Fairmont Ghia 5.4 3V

Top
 Profile


Posted: Sun Oct 30, 2005 12:03 am
Getting Side Ways
Offline
User avatar

Age: 54

Posts: 744

Joined: 11th Nov 2004

Gallery: 15 images

Ride: ED Falcon

Location: Adelaide
SA, Australia

Looks like the lower one to me 12 hour job.
Done it 3 times



_________________

I post here cos the russian tank driver doesn't

Top
 Profile


Posted: Sun Oct 30, 2005 2:01 am
Stock as a Rock
Offline
User avatar

Posts: 158

Joined: 12th Apr 2005

Gallery: 8 images

Location: East Burwood
VIC, Australia

ahhhhh thats an absolute b**ch of a job! mine took a while.. most of the time is just pulling out half ur engine bay to get to the bloody thing to take off the timing cover! :evil:



_________________

Past: 150rwkw 5spd EF Futura - 4499's, 2.5" exh, Intake, Filter, Wade 1636, Head and Valve Work, Raised Comp.

Present: 5spd AUIII XR6 VCT Ute - 4480's, 2.5" exh, Tickford Intake, Pod in Box.
coming soon: 3.9:1 diff, Flashtune.

Top
 Profile


Posted: Sun Oct 30, 2005 10:34 am
Getting Side Ways
Offline
User avatar

Age: 49

Posts: 1966

Joined: 13th Aug 2005

Ride: 2000 Au wagon

Location: some where in nsw
NSW, Australia

that aint gunna be easy..



_________________


Top
 Profile


Posted: Sun Oct 30, 2005 11:22 am
Stock as a Rock
Offline

Age: 35

Posts: 117

Joined: 29th Oct 2005

Ride: EB S XR6

Location: Western Sydney
NSW, Australia

it is actually the one on the passenger side of the car that the tensioner backes up to. It snapped in 2.



_________________

EB S XR6
161kw At The Wheels
14.8 @ 149.92 km\h WSID

Top
 Profile


Posted: Sun Oct 30, 2005 12:49 pm
Getting Side Ways
Offline
User avatar

Age: 54

Posts: 4102

Joined: 18th Nov 2004

Gallery: 10 images

Ride: PX2 Ranger 4x4 XLT Dual CAB

Location: Carrum Downs
VIC, Australia

The tensoiner is on the drivers side

If its the top half of the passenger side guide you can get by without it.



_________________

She's meanness put to music and the b**ch is born to run!
Like the sign says, "speed's just a question of money. How fast can you go?"

Top
 Profile


Posted: Sun Oct 30, 2005 7:32 pm
Fordmods Newbie
Offline

Age: 32

Posts: 12

Joined: 8th Feb 2005

Gallery: 1 images

Ride: Falcon

Location: Newcastle
NSW, Australia

I am just puting my input in. I had my engine re-built 9 months ago and its done the exact same thing last week, mabey a faulty tensioner? or if it was ran with the tensioner not adjusted. thats about all I could come up with for mine. Mine was done by a mechanic also so I can only guess. Cheers
