 Post subject: TIMING CHAIN TENSIONER ISSUES
Posted: Mon May 17, 2010 9:09 pm
Tyre Shredder
Offline

Age: 27

Posts: 326

Joined: 3rd Nov 2009

Ride: AUII XR8 Pursuit & EF XR6

Location: Albion Park
NSW, Australia

This one has probaly been posted many times but Im just about at the end of my rope trying to get the tensioner to do its thing.

Ive got a Haines Manual and its bloody useless. Ive just replaced the aux shaft and its the first 6 ive pulled apart so I need some basic instructions of what happens. LOL,

Cheers heaps in advance.



_________________

- 1994 EF XR6, Auto, EL XR wheels. Clean and close to original ( Missus' Kiddie Chariot )
- 2001 AUII XR8 Pursuit ute, 5 speed, 18" alloys, custom tray. Goes alright!! lol

Top
 Profile


 Post subject: Re: TIMING CHAIN TENSIONER ISSUES
Posted: Mon May 17, 2010 9:11 pm
Getting Side Ways
Offline

Posts: 6166

Joined: 8th May 2007

Top
 Profile


 Post subject: Re: TIMING CHAIN TENSIONER ISSUES
Posted: Mon May 17, 2010 9:20 pm
Getting Side Ways
Offline
User avatar

Age: 25

Posts: 3355

Joined: 10th Jan 2010

Gallery: 8 images

Ride: EL XR6

Location: albion park, wollongong
NSW, Australia

what exactly are you having trouble with, i put a cam in my car the other weekend, and had no idea how to reset the chain tensioner, but its all good now!!



_________________

El XR6 Turbo
Dark Agents,Sunroof, bilstein shocks, 6000k HIDS, 329 mm slotted rotors, twin pot calipers , Climate Control, GarrettT04 turbo,log manifold, crow turbo cam, microtech lt10c, 42lb injectors , 044, surge tank , T56 , rebuilt bottom end , alloy plenum .

Aiming for 300 rwkw

Top
 Profile


 Post subject: Re: TIMING CHAIN TENSIONER ISSUES
Posted: Mon May 17, 2010 9:26 pm
Tyre Shredder
Offline

Age: 27

Posts: 326

Joined: 3rd Nov 2009

Ride: AUII XR8 Pursuit & EF XR6

Location: Albion Park
NSW, Australia

Having trouble re-assembling the whole unit. I had to replace the aux shaft so Ive had the whole front off the motor and getting it to set correctly is just testing my patience.



_________________

- 1994 EF XR6, Auto, EL XR wheels. Clean and close to original ( Missus' Kiddie Chariot )
- 2001 AUII XR8 Pursuit ute, 5 speed, 18" alloys, custom tray. Goes alright!! lol

Top
 Profile


 Post subject: Re: TIMING CHAIN TENSIONER ISSUES
Posted: Mon May 17, 2010 9:58 pm
Getting Side Ways
Offline
User avatar

Age: 25

Posts: 3355

Joined: 10th Jan 2010

Gallery: 8 images

Ride: EL XR6

Location: albion park, wollongong
NSW, Australia

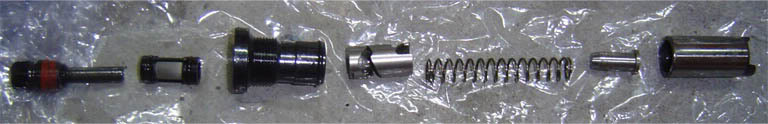

ok so ur having trouble with the resetting the timing chain tensioner?? i havnt taken the front off a motor so i dont know alot there, but with the tensioner take the whole thing out and it should look like this ( refer to pic )
im assuming u already have it out , but yeh just click it so its all the way down , then put it back in so its up against the chain it has a cut out so make sure that its aligned up correct , then screw in the outter big body , till its almost touching the block then put a screwdriver in to the hole to make the tensioner spring out then tighten up the outer body, put in the filter and tighten up the inner screw, then check the chains tension
im not sure if thats helps but its hard to explain, so make sure all the o rings are good and use thread tape, when i put it my cam in didnt tighten up the tensioner properly and oil was pissing out every where when i took it for a drive i was s**t myself that i blew the sump gasket lol





Attachments:
File comment: taken from fordfairmont's thread
Tensionerassembly.jpg [ 29.17 KiB | Viewed 295 times ]



_________________

El XR6 Turbo
Dark Agents,Sunroof, bilstein shocks, 6000k HIDS, 329 mm slotted rotors, twin pot calipers , Climate Control, GarrettT04 turbo,log manifold, crow turbo cam, microtech lt10c, 42lb injectors , 044, surge tank , T56 , rebuilt bottom end , alloy plenum .

Aiming for 300 rwkw

Top
 Profile


 Post subject: Re: TIMING CHAIN TENSIONER ISSUES
Posted: Tue May 18, 2010 6:38 pm
Tyre Shredder
Offline

Age: 27

Posts: 326

Joined: 3rd Nov 2009

Ride: AUII XR8 Pursuit & EF XR6

Location: Albion Park
NSW, Australia

Yeah I spoke to the bloke at work that used to work for Ford and he said that I just re-assemble the timing tension in its locked position, put both plugs in with sealant and crank the car over. Apparently the oil pressure will release the tensioner to its designated tension and all done.



_________________

- 1994 EF XR6, Auto, EL XR wheels. Clean and close to original ( Missus' Kiddie Chariot )
- 2001 AUII XR8 Pursuit ute, 5 speed, 18" alloys, custom tray. Goes alright!! lol

Top
 Profile


 Post subject: Re: TIMING CHAIN TENSIONER ISSUES
Posted: Wed May 19, 2010 9:14 am
Getting Side Ways
Offline
User avatar

Age: 25

Posts: 3355

Joined: 10th Jan 2010

Gallery: 8 images

Ride: EL XR6

Location: albion park, wollongong
NSW, Australia

yeh i just put the tensioner in its locked position, then screwed in the big plug so it was 3 or 4 turns off being tight, then put a screw driver in the big plug and released the tensioner, then tightened up the big plug then put in the small plug, but i think the oil pressure keeps the chain tight



_________________

El XR6 Turbo
Dark Agents,Sunroof, bilstein shocks, 6000k HIDS, 329 mm slotted rotors, twin pot calipers , Climate Control, GarrettT04 turbo,log manifold, crow turbo cam, microtech lt10c, 42lb injectors , 044, surge tank , T56 , rebuilt bottom end , alloy plenum .

Aiming for 300 rwkw

Top
 Profile


 Post subject: Re: TIMING CHAIN TENSIONER ISSUES
Posted: Wed May 19, 2010 10:28 am
Fordmods Junkie
Offline
User avatar

Age: 38

Posts: 5051

Joined: 5th Nov 2004

Ride: Kia Rio - 1.4L Auto

Power: 238 rwkw

Location: Westside
VIC, Australia

jughead302 wrote:
Yeah I spoke to the bloke at work that used to work for Ford and he said that I just re-assemble the timing tension in its locked position, put both plugs in with sealant and crank the car over. Apparently the oil pressure will release the tensioner to its designated tension and all done.


No no no no no... Engine go explode then!

Put the tensioner in, then screw the big plug in tight. The release the tensioner. A 3mm allen key down the centre of the tensioner and turn it anti-clockwise (I think, its been a long time).

You will hear the tensioner spring open and see it put tension on the chain.

Then start the car, and the oil pressure will take care of the rest.

Oil pressure alone wont unlock it. Actually, it might eventually... But the engine would be cactus by then.
Top
 Profile


 Post subject: Re: TIMING CHAIN TENSIONER ISSUES
Posted: Wed May 19, 2010 10:30 am
Getting Side Ways
Offline

Posts: 6166

Joined: 8th May 2007

arm79 wrote:

No no no no no... Engine go explode then!

Put the tensioner in, then screw the big plug in tight. The release the tensioner. A 3mm allen key down the centre of the tensioner and turn it anti-clockwise (I think, its been a long time).

You will hear the tensioner spring open and see it put tension on the chain.

Then start the car, and the oil pressure will take care of the rest.

Oil pressure alone wont unlock it. Actually, it might eventually... But the engine would be cactus by then.


makes me wonder why i posted the link on detailed instructions how to set & release the tensioner, when the advice is ignored and thread goes into "she'll be right mate" tangent
Top
 Profile


 Post subject: Re: TIMING CHAIN TENSIONER ISSUES
Posted: Wed May 19, 2010 10:46 am
Getting Side Ways
Offline
User avatar

Age: 49

Posts: 1634

Joined: 8th Jul 2007

Gallery: 21 images

Ride: EL F100 CAPRI XR EF

Power: 234 rwkw

Location: brighton
SA, Australia

FordFairmont wrote:
makes me wonder why i posted the link on detailed instructions how to set & release the tensioner, when the advice is ignored and thread goes into "she'll be right mate" tangent


hey it's the internet remember...

each thread asking for help requires a couple of answers,
at least 4 people to agree on the method,
5 people to offer a different way of doing it,
3 people to go off in another direction,
at least 1 post with porn,
1 person to take a quote out of context and get offended,
2 or 3 to quote the original post in full again,
and then finally the original poster to never come back again to say thanks for the advice and he's finished the job.

all good, lol
Top
 Profile


 Post subject: Re: TIMING CHAIN TENSIONER ISSUES
Posted: Wed May 19, 2010 11:19 pm
Tyre Shredder
Offline

Age: 27

Posts: 326

Joined: 3rd Nov 2009

Ride: AUII XR8 Pursuit & EF XR6

Location: Albion Park
NSW, Australia

Took all the advice and I set it the way you guys said to. Put in locked then spring it back with the allen key. Now she dont want to start, got spark but I think the timing might be out a degree or two which hopefully will be easy fix.

Cheers for the input, much appreciated.



_________________

- 1994 EF XR6, Auto, EL XR wheels. Clean and close to original ( Missus' Kiddie Chariot )
- 2001 AUII XR8 Pursuit ute, 5 speed, 18" alloys, custom tray. Goes alright!! lol

Top
 Profile


 Post subject: Re: TIMING CHAIN TENSIONER ISSUES
Posted: Wed May 19, 2010 11:21 pm
Getting Side Ways
Offline

Posts: 6166

Joined: 8th May 2007

cool at least you worked it out

i rememeber it giving me a big f**k headache the first time i pulled it all apart :lol:
Top
 Profile


 Post subject: Re: TIMING CHAIN TENSIONER ISSUES
Posted: Thu May 20, 2010 12:29 am
Fordmods Junkie
Offline
User avatar

Age: 38

Posts: 5051

Joined: 5th Nov 2004

Ride: Kia Rio - 1.4L Auto

Power: 238 rwkw

Location: Westside
VIC, Australia

No start hey.

Either a really weak spark.

Or maybe more than a degree or 2. It will still start even if its 10 degrees out... Maybe its 180 degress out?
Top
 Profile


 Post subject: Re: TIMING CHAIN TENSIONER ISSUES
Posted: Thu May 20, 2010 8:13 pm
Tyre Shredder
Offline

Age: 27

Posts: 326

Joined: 3rd Nov 2009

Ride: AUII XR8 Pursuit & EF XR6

Location: Albion Park
NSW, Australia

Im thinking that shes a couple degrees out, not 180 because ive checked it at No 1 TDC and the cams nearly flush with the rocker cover rail, R/H side looking from the front. Whats the easiest way to get the cam back without the big amount of crap to go with?? LOL.
