 Post subject: Today's QUIZ A/C Compressors
Posted: Fri Nov 18, 2011 12:34 pm
Tyre Shredder
Offline
User avatar

Age: 39

Posts: 385

Joined: 10th Nov 2004

Ride: EL Fairmont Ghia

Location: thirlmere
NSW, Australia

ok
i have an EB falcon series 2 but the couple of months overlap between series 1 now i need a compressor and i dont know if its ea eb1 compressor or eb2 ed compressor my car has a 4L engine not the 3.9L but i dont have smartlock and when i went to buy belts today it uses the eb1 ea power steering belt not the eb2 ed power steering belt so where am i at or how can i tell oh and its MPI not CPI

thanks all look forward to your responses
Top
 Profile


 Post subject: Re: Today's QUIZ A/C Compressors
Posted: Fri Nov 18, 2011 1:08 pm
Getting Side Ways
Offline
User avatar

Age: 33

Posts: 1322

Joined: 21st Dec 2004

Gallery: 40 images

Ride: EF GLi/Ghia bitsa

Location: Melbourne
VIC, Australia

they are all the same.

Gab
Top
 Profile


 Post subject: Re: Today's QUIZ A/C Compressors
Posted: Fri Nov 18, 2011 2:18 pm
Tyre Shredder
Offline
User avatar

Age: 39

Posts: 385

Joined: 10th Nov 2004

Ride: EL Fairmont Ghia

Location: thirlmere
NSW, Australia

no they are not there is 3 bolt and 4 bolt and i was told the lines are different
Top
 Profile


 Post subject: Re: Today's QUIZ A/C Compressors
Posted: Fri Nov 18, 2011 4:44 pm
Moderator
Offline

Posts: 14513

Joined: 7th Nov 2004

Ride: ford falcon au3 xr8

Location: a shit suburb in sydney
NSW, Australia

the eb2 /ed pump has the lines that join a rectangle block with 1 bolt holding the lines to the pump (like ef/el)..
ea and eb1 have 2 seperate lines that bolt individually into the pump with 2 bolts..

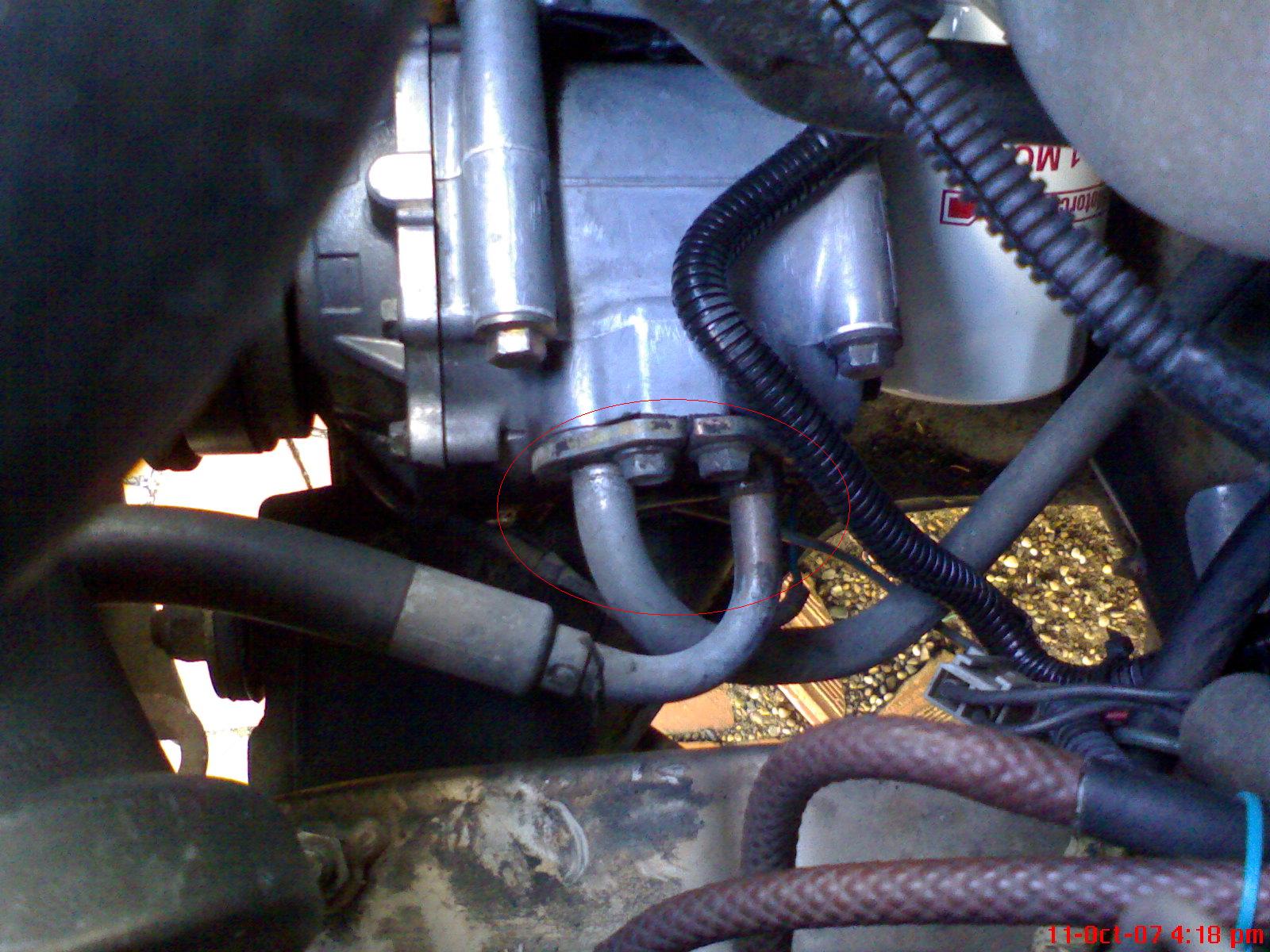

here is a pic of a ea/eb1 pump..





Attachments:
ea pump.JPG
ea pump.JPG [ 286.53 KiB | Viewed 37 times ]
Top
 Profile


 Post subject: Re: Today's QUIZ A/C Compressors
Posted: Fri Nov 18, 2011 8:08 pm
Tyre Shredder
Offline
User avatar

Age: 39

Posts: 385

Joined: 10th Nov 2004

Ride: EL Fairmont Ghia

Location: thirlmere
NSW, Australia

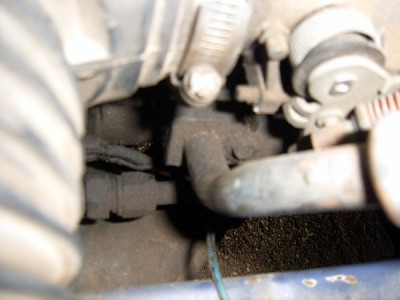

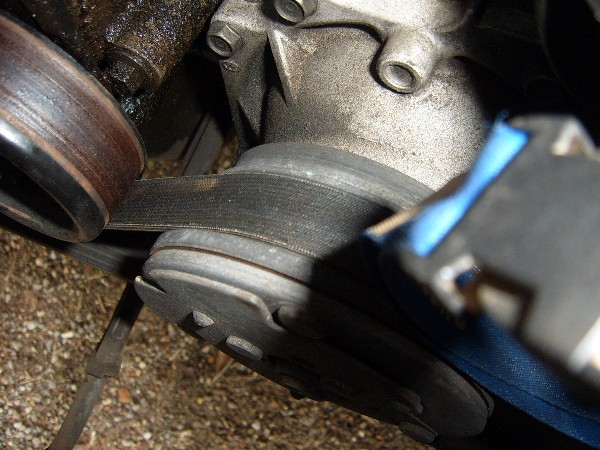

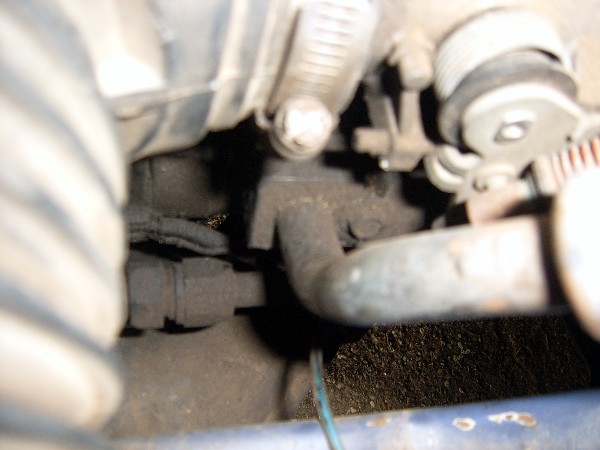

wow thats clean Troyman ha ha ok here is some pics i took sorry there not perfect but might help
Attachment:
SUC50082.JPG [ 99.42 KiB | Viewed 27 times ]
Attachment:
SUC50083.JPG [ 133.92 KiB | Viewed 24 times ]
Attachment:
SUC50086.JPG [ 193.15 KiB | Viewed 35 times ]
Top
 Profile


 Post subject: Re: Today's QUIZ A/C Compressors
Posted: Fri Nov 18, 2011 8:18 pm
Getting Side Ways
Offline

Posts: 2091

Joined: 3rd Apr 2008

Ride: EF Fairmont, XG Ute

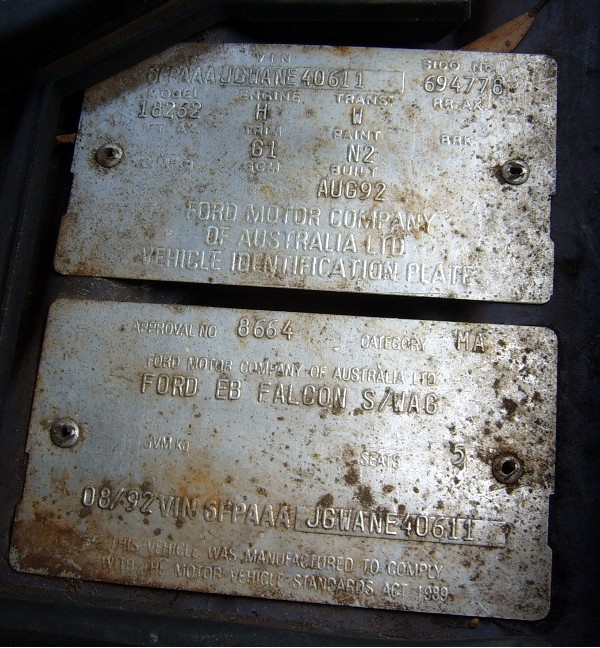

Looks like the series 2 to me, and your car is also a series 2 going from the build date.

So you want an EB2/ED Pump.
Top
 Profile


 Post subject: Re: Today's QUIZ A/C Compressors
Posted: Fri Nov 18, 2011 8:22 pm
Oompa Loompa
Offline

Age: 30

Posts: 37

Joined: 15th Oct 2011

Ride: 93 eb series 2 xr6

Location: Grafton
NSW, Australia

I may be wrong. But aug 92 is a series 2 pre smartlock
Top
 Profile


 Post subject: Re: Today's QUIZ A/C Compressors
Posted: Fri Nov 18, 2011 8:27 pm
Tyre Shredder
Offline
User avatar

Age: 39

Posts: 385

Joined: 10th Nov 2004

Ride: EL Fairmont Ghia

Location: thirlmere
NSW, Australia

Birchy wrote:
I may be wrong. But aug 92 is a series 2 pre smartlock


thats what i thought until now but i could be confusing myself on this
Top
 Profile


 Post subject: Re: Today's QUIZ A/C Compressors
Posted: Fri Nov 18, 2011 8:30 pm
Tyre Shredder
Offline
User avatar

Age: 39

Posts: 385

Joined: 10th Nov 2004

Ride: EL Fairmont Ghia

Location: thirlmere
NSW, Australia

so why is the power steering belt for a series 1 not 2 thats why im confused if that was wrong maybe everything else is wrong some how dont know i know the motor is the original so no problems there it is what it came with
Top
 Profile


 Post subject: Re: Today's QUIZ A/C Compressors
Posted: Fri Nov 18, 2011 11:04 pm
Moderator
Offline

Posts: 14513

Joined: 7th Nov 2004

Ride: ford falcon au3 xr8

Location: a shit suburb in sydney
NSW, Australia

power steering pump belts are the same from ea to ed..

but the alternator belts changed to a ribbed belt in eb2/ed
Top
 Profile


 Post subject: Re: Today's QUIZ A/C Compressors
Posted: Fri Nov 18, 2011 11:11 pm
Tyre Shredder
Offline
User avatar

Age: 39

Posts: 385

Joined: 10th Nov 2004

Ride: EL Fairmont Ghia

Location: thirlmere
NSW, Australia

TROYMAN wrote:
power steering pump belts are the same from ea to ed..

but the alternator belts changed to a ribbed belt in eb2/ed


well the bosch book stated that the ea to eb1 are the same and the eb2 to ed are longer and yes my alternator belt is ribbed and its a mitsubishi alternator so that must mean its eb2 now what is the difference between 3 and 4 bolt ac compressors because on ebay there is a 3 bolt and a 4 bolt that look identical besides the bolt numbers still one plate for the 2 ac lines and and single bolt in the middle

http://www.ebay.com.au/itm/140636461094 ... 1423.l2649

http://www.ebay.com.au/itm/320775416913 ... 1423.l2649
Top
 Profile


 Post subject: Re: Today's QUIZ A/C Compressors
Posted: Fri Nov 18, 2011 11:23 pm
Moderator
Offline

Posts: 14513

Joined: 7th Nov 2004

Ride: ford falcon au3 xr8

Location: a shit suburb in sydney
NSW, Australia

i think you will find they both are 4 bolt, just you cant see the 4th bolt in the pic because of the angle of the pic.

i know ef and el pumps have 3 bolts.. but are quite suitable unless you go with the serpentine belt set up,,
Top
 Profile


 Post subject: Re: Today's QUIZ A/C Compressors
Posted: Fri Nov 18, 2011 11:37 pm
Tyre Shredder
Offline
User avatar

Age: 39

Posts: 385

Joined: 10th Nov 2004

Ride: EL Fairmont Ghia

Location: thirlmere
NSW, Australia

ok so we have ea and eb1 with v belt alternator to be 2 pipe seperate install

eb2 and ed with ribbed belt alternator to be 1 plate pipe install with 1 bolt to hold it

all are 4 bolt up compressors

and bosch book is retarded and its the ea to eb1 power steering belt not the longer one

and ef el only to be used with serpentine belt setup and have a 3 bolt up config but are pretty much the same as a eb2 ed compressor except the pulley

ok i think i have it now, now to get one and get this thing going again.

thanks everyone for your help and patience
Top
 Profile


 Post subject: Re: Today's QUIZ A/C Compressors
Posted: Mon Nov 21, 2011 9:26 pm
Parts Gopher
Offline

Age: 29

Posts: 56

Joined: 1st Apr 2009

Ride: EL Falcon

Power: 102 rwkw

Location: Mooloolaba
QLD, Australia

Can't see the pics. Pm me the details and I'll get a price for you if you want.
Top
 Profile


 Post subject: Re: Today's QUIZ A/C Compressors
Posted: Tue Nov 22, 2011 8:18 pm
Getting Side Ways
Offline
User avatar

Age: 49

Posts: 6467

Joined: 18th Dec 2006

Ride: 93 ED sedan

Power: 161 rwkw

Location: Rockhampton
QLD, Australia

I was sure Smartlock came out in March 92.....as an option on low series, but std fittment on Fairmont and up.......?????
