Welsch plugs leaking



Page 1 of 2 [ 25 posts ] Go to page 1, 2  Next


 Post subject: Welsch plugs leaking
Posted: Mon Oct 21, 2013 12:56 am
Getting Side Ways
Offline

Posts: 596

Joined: 4th May 2007

Ride: 1992 EBII Fairmont

Location: Aga
VIC, Australia

Hey guys!!

I did the 5 welsch plugs on the exhaust side a while back and now they're all leaking coolant. I'm assuming just whacking them in wasn't the best thing to do and I should've used some type of sealant or something?? I even cleaned the heavily corroded surfaces with acetone and a rag before installing the new plugs but still they leak :( I'll go get some new plugs tomorrow but I was just wondering if there's any particular sealant I should use? Any help would be greatly appreciated!
cheers
Top
 Profile


 Post subject: Re: Welsch plugs lol..
Posted: Mon Oct 21, 2013 2:12 am
Getting Side Ways
Offline
User avatar

Age: 33

Posts: 1322

Joined: 21st Dec 2004

Gallery: 40 images

Ride: EF GLi/Ghia bitsa

Location: Melbourne
VIC, Australia

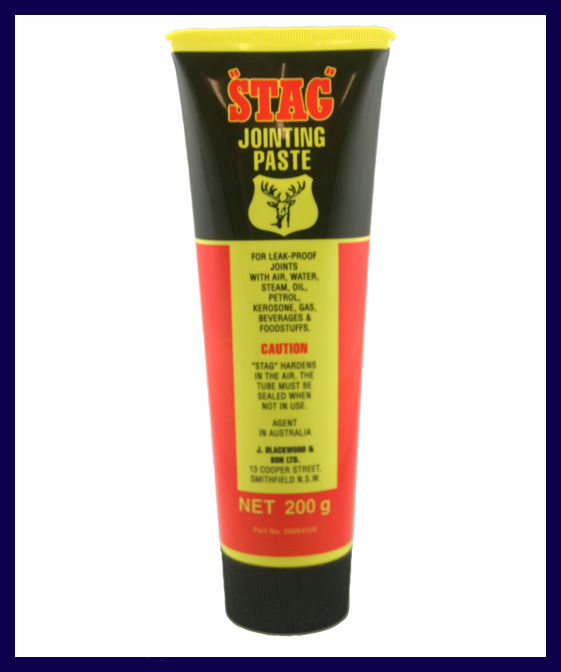

You need to use some stuff called "STAG jointing compound"

Comes in a tube that looks like this:





Attachments:
$T2eC16N,!zQE9s3srYVcBRQVIpJDlw~~60_3.jpg [ 33.49 KiB | Viewed 39 times ]
Top
 Profile


 Post subject: Re: Welsch plugs lol..
Posted: Mon Oct 21, 2013 8:55 am
Getting Side Ways
Offline
User avatar

Age: 23

Posts: 461

Joined: 31st Mar 2013

Ride: 96 EL XR6

Location: Hervey Bay
QLD, Australia

I used Araldite when i did all mine, havnt had any dramas at all :)



_________________

EL XR6, T5 Speed - Full Factory Fitted Tickford Body Kit, AU Engine, Billet Camtech 845 Cam, J3 Chip, MLS Gasket, Intake, Extractors, High flow cat, 2 1/2in exhaust, K&N Air Filter, 3.45 LSD, - My Pride and Joy

Top
 Profile


 Post subject: Re: Welsch plugs lol..
Posted: Mon Oct 21, 2013 10:01 am
Getting Side Ways
Offline
User avatar

Age: 33

Posts: 1322

Joined: 21st Dec 2004

Gallery: 40 images

Ride: EF GLi/Ghia bitsa

Location: Melbourne
VIC, Australia

Falcon96XR6 wrote:
I used Araldite when i did all mine, havnt had any dramas at all :)


I'm glad you don't work on my car then lol
Top
 Profile


 Post subject: Re: Welsch plugs lol..
Posted: Mon Oct 21, 2013 10:08 am
Getting Side Ways
Offline

Age: 29

Posts: 2563

Joined: 19th Feb 2007

Gallery: 21 images

Ride: 98 EL Futura

Power: 199 rwkw

Location: Lilydale
VIC, Australia

Gab1 wrote:
Falcon96XR6 wrote:
I used Araldite when i did all mine, havnt had any dramas at all :)


I'm glad you don't work on my car then lol


+1 going to be fun getting them out when they leak again



_________________

EL Futura: CVE head, Wolf V500, ICE Ignition and Coil, 36lb injectors, Walbro 255lb, Paci comps, 3" exhaust, T5, Harrop Truetrac with 3.9s. Now with 198.9rwkw, (~185rwkw and 13.80 @99.1mph) with more power to come

Top
 Profile


 Post subject: Re: Welsch plugs lol..
Posted: Mon Oct 21, 2013 1:19 pm
Getting Side Ways
Offline
User avatar

Age: 49

Posts: 6467

Joined: 18th Dec 2006

Ride: 93 ED sedan

Power: 161 rwkw

Location: Rockhampton
QLD, Australia

I use Loctite 271....never had a problem. Preperation is the key.



_________________

http://youtu.be/jJTh9F3Vgg0

Top
 Profile


 Post subject: Re: Welsch plugs lol..
Posted: Mon Oct 21, 2013 4:15 pm
Getting Side Ways
Offline
User avatar

Age: 23

Posts: 461

Joined: 31st Mar 2013

Ride: 96 EL XR6

Location: Hervey Bay
QLD, Australia

Ive used araldite on a few of my familys E series and also changed a few after theyve been put in with araldite, they just knock out the same as always lol



_________________

EL XR6, T5 Speed - Full Factory Fitted Tickford Body Kit, AU Engine, Billet Camtech 845 Cam, J3 Chip, MLS Gasket, Intake, Extractors, High flow cat, 2 1/2in exhaust, K&N Air Filter, 3.45 LSD, - My Pride and Joy

Top
 Profile


 Post subject: Re: Welsch plugs lol..
Posted: Mon Oct 21, 2013 4:40 pm
Getting Side Ways
Offline
User avatar

Age: 33

Posts: 1322

Joined: 21st Dec 2004

Gallery: 40 images

Ride: EF GLi/Ghia bitsa

Location: Melbourne
VIC, Australia

that STAG stuff is the ONLY s**t you should use on welsh plugs, simple as that.

Gab
Top
 Profile


 Post subject: Re: Welsch plugs lol..
Posted: Fri Oct 25, 2013 7:07 am
Getting Side Ways
Offline

Posts: 596

Joined: 4th May 2007

Ride: 1992 EBII Fairmont

Location: Aga
VIC, Australia

cheers fellas, I got some of the stag stuff and after getting it all back together i put the coolant in and it started pouring out 3 of the plugs so I've stuffed something up. I've got 4480 extractors welded in that made it hard to get the plugs in straight so I'm going to cut the extractors out and try again. The main problem though is the holes the plugs go into in the block are badly corroded, even sanded back there's massive chunks/chips in them so the plugs will never seal perfect.. not really sure what to do here was just gonna JB weld it and hopefully I don't have to pull it apart again. Hopefully I won't need a new block haha
Top
 Profile


 Post subject: Re: Welsch plugs leaking
Posted: Fri Oct 25, 2013 1:37 pm
Getting Side Ways
Offline
User avatar

Age: 33

Posts: 1322

Joined: 21st Dec 2004

Gallery: 40 images

Ride: EF GLi/Ghia bitsa

Location: Melbourne
VIC, Australia

You need to knock them in VERY squarely, some pitting should be ok, just make sure you use LOTS of stag on them.

Gab
Top
 Profile


 Post subject: Re: Welsch plugs leaking
Posted: Sat Oct 26, 2013 7:46 am
Getting Side Ways
Offline

Age: 26

Posts: 789

Joined: 9th Dec 2011

Ride: S1 eb 5speed

Location: Coffs Harbour
NSW, Australia

If there was huge chunks of rust on the sealing surface and you had to sand it back then I think you may be up s**t ditch.
But as said, hitting them in square it so Importaint, I use a socket that fits snug inside the welsh plug and tap it in that way.
Top
 Profile


 Post subject: Re: Welsch plugs lol..
Posted: Sat Oct 26, 2013 8:14 am
Moderator
Offline

Posts: 14513

Joined: 7th Nov 2004

Ride: ford falcon au3 xr8

Location: a shit suburb in sydney
NSW, Australia

ILLaViTaR wrote:
cheers fellas, I got some of the stag stuff and after getting it all back together i put the coolant in and it started pouring out 3 of the plugs so I've stuffed something up. I've got 4480 extractors welded in that made it hard to get the plugs in straight so I'm going to cut the extractors out and try again. The main problem though is the holes the plugs go into in the block are badly corroded, even sanded back there's massive chunks/chips in them so the plugs will never seal perfect.. not really sure what to do here was just gonna JB weld it and hopefully I don't have to pull it apart again. Hopefully I won't need a new block haha


did you wait 24 hours for the stag to set???

in saying that I had same issue with the mrs au Fairmont, it had been leaking from welch plugs for quite some time before we got it resulting in a lot of deep pitting where the plugs go in,
unfortunately the stag just wouldn't seal. so the alternative was to use ultra blue gasket silicon, I lightly coated both surfaces and tapped the plugs in, wiped off excess and left it to set..
its been close to 3 years and so far no problems..
Top
 Profile


 Post subject: Re: Welsch plugs leaking
Posted: Sat Oct 26, 2013 10:47 am
Getting Side Ways
Offline
User avatar

Age: 49

Posts: 6467

Joined: 18th Dec 2006

Ride: 93 ED sedan

Power: 161 rwkw

Location: Rockhampton
QLD, Australia

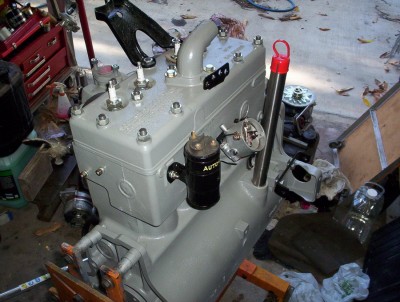

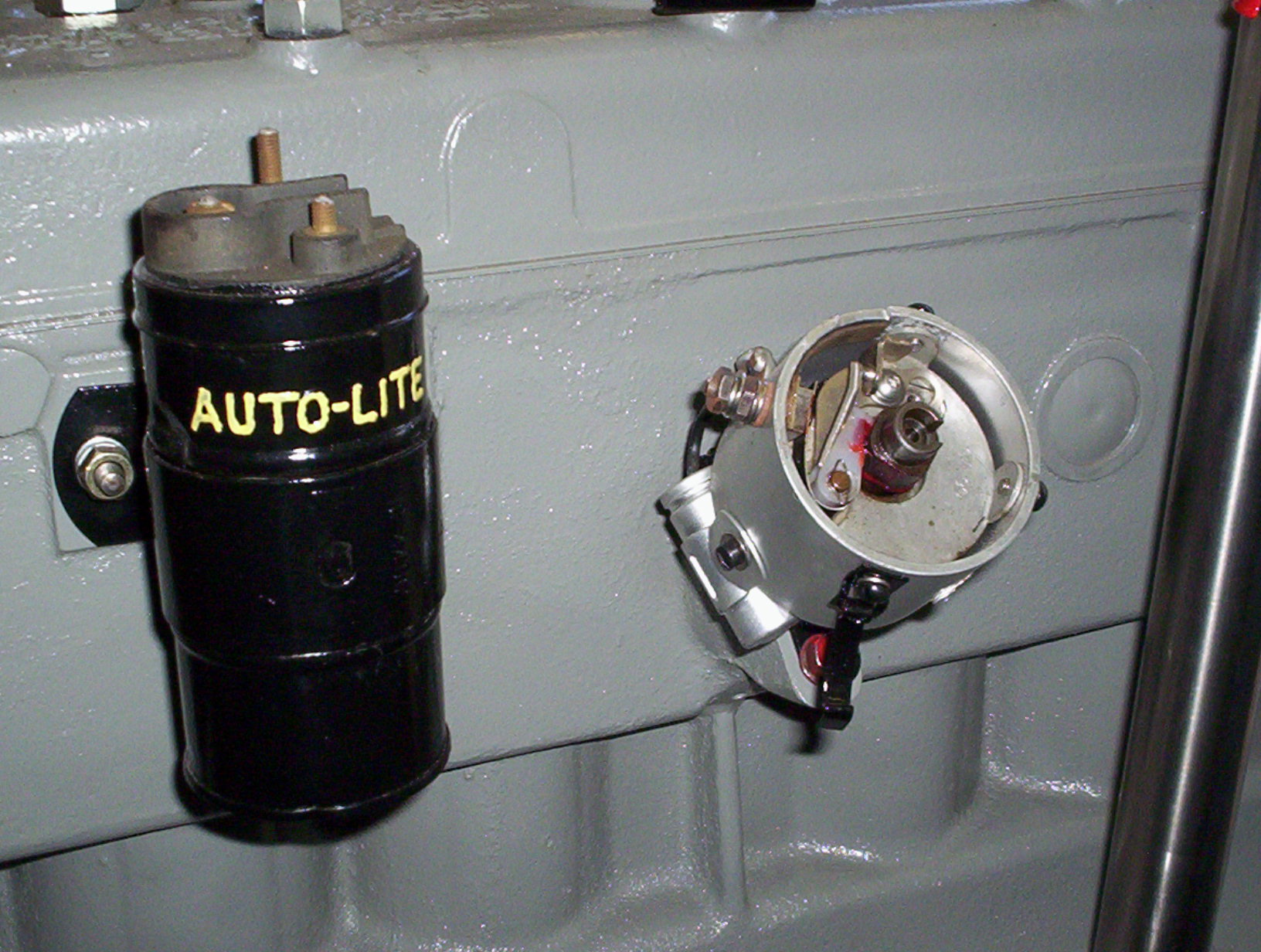

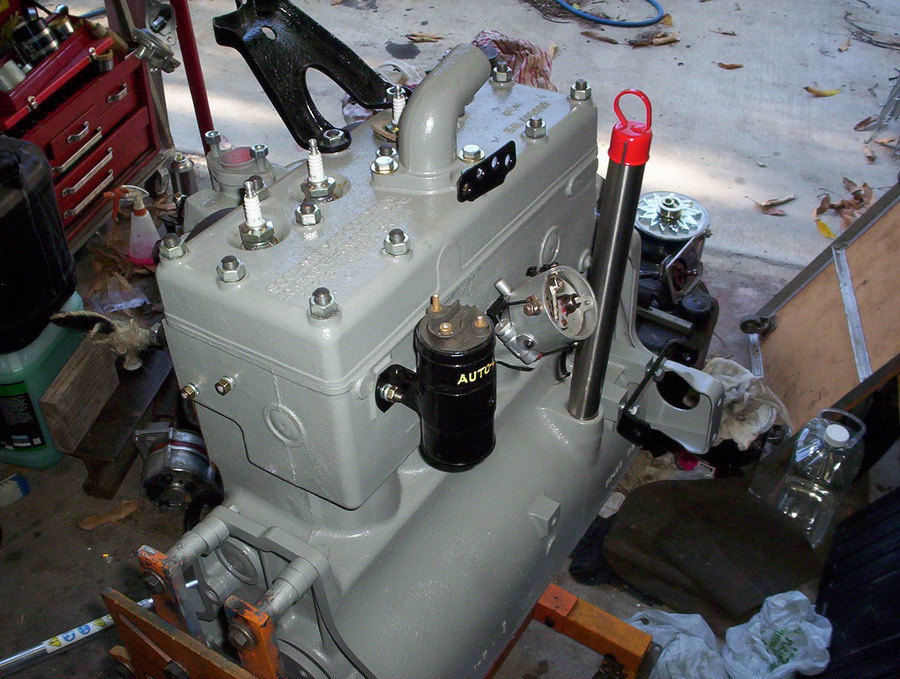

Try fitting these style of welsh plugs.....1935 Willys 77 engine....they are like a curved,dish shape made of steel.....no sides like a normal welsh plug.....they have a stepped hole, and they just sit in the hole....they are not an interference fit.....once glued in, you then give them a tap in the middle with a rounded punch......it is an art to fit these......hit it too hard, then it isn't going to seal.

Just showing you guys what else was/is out there.....you know....automotive history stuff.





Attachments:
1935 Willys 77 engine 004_resize.jpg
1935 Willys 77 engine 004_resize.jpg [ 218.18 KiB | Viewed 34 times ]
1935 Willys 77 engine 003.jpg
1935 Willys 77 engine 003.jpg [ 380.29 KiB | Viewed 30 times ]



_________________

http://youtu.be/jJTh9F3Vgg0

Top
 Profile


 Post subject: Re: Welsch plugs leaking
Posted: Sat Oct 26, 2013 11:04 am
Fordmods Junkie
Offline
User avatar

Posts: 2751

Joined: 22nd Jan 2009

Ride: '91 EB Wagoon

Location: Geeelong
VIC, Australia

looking at ya pic they 'look' like they are interference fit once they are centre tapped? be a bugga ta get right tho
Top
 Profile


 Post subject: Re: Welsch plugs leaking
Posted: Sat Oct 26, 2013 4:49 pm
Getting Side Ways
Offline
User avatar

Age: 49

Posts: 6467

Joined: 18th Dec 2006

Ride: 93 ED sedan

Power: 161 rwkw

Location: Rockhampton
QLD, Australia

Mad2 wrote:
looking at ya pic they 'look' like they are interference fit once they are centre tapped? be a bugga ta get right tho


Yep....but if you hit it too hard, then it is lost again.



_________________

http://youtu.be/jJTh9F3Vgg0
