what could be causing this? (dyno run w/new cam)



Page 1 of 6 [ 87 posts ] Go to page 1, 2, 3, 4, 5, 6  Next


 Post subject: what could be causing this? (dyno run w/new cam)
Posted: Fri Jul 06, 2007 9:00 pm
Stock as a Rock
Offline

Age: 34

Posts: 151

Joined: 27th Jan 2006

Ride: XD

Location: Melbourne
VIC, Australia

well... after finally getting the shims right and the car running well after a cam swap (rpd rspec3), i got a dyno run done today.

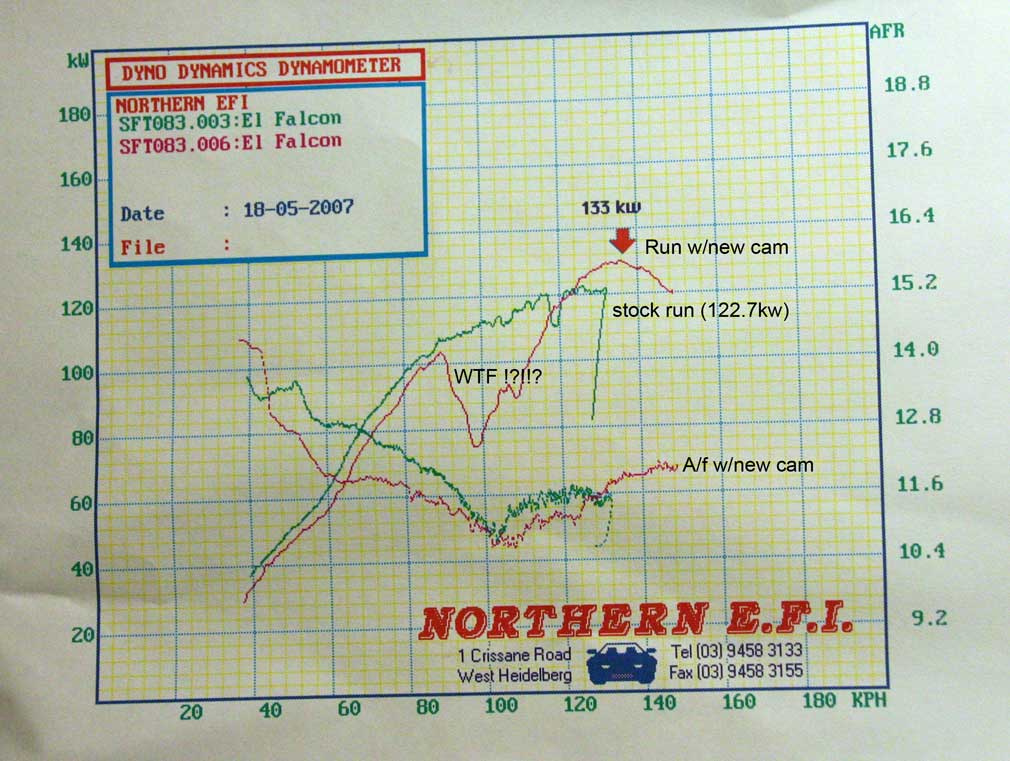

the picture tells the story - car appears to have picked up a few KW in the top end (and you can definetly feel it), but lost power over most of the rpm range, with a huge hole in the midrange. it doesnt feel half as bad as it looks on the graph, but there is definely a flat spot around 3500-4000 rpm.

couple of questions:
should I have picked up a bit more midrange power?
would wacking the variable gear i have on and playing with the cam timing make a huge difference?
any others with the rpdrspec3 got charts to compare?

what could be causing the big drop in midrange power? the dyno guy couldn't think of anything obvious. he ran it about 3-4 different times and got the crazy graph each time.
I haven't checked ECU fault codes or anything yet, but will.
also suggested was check and adjust base timing.

the car is running pacemaker 4480's, 2.5" reback catback, and minimal other mods (factory 5 spd), same fuel for both runs (95oct, but from different servo;s), and similar weather (damn cold rainy)

the other thread about the cam install here: http://www.fordmods.com/forums/viewtopic.php?t=51646





Attachments:
IMG_0162.jpg [ 96.82 KiB | Viewed 150 times ]



_________________

1997EL 5spd
mods: 2.5" redback catback, DBA slotted rotors, Pacemaker 4480's, Tint, K&N pod, 17" rims

Top
 Profile


Posted: Fri Jul 06, 2007 9:16 pm
Commercial Sponsor
Offline

Posts: 350

Joined: 28th Apr 2007

Ride: Falcon

Location: Melbourne
VIC, Australia

your obviously not to far happy to look at it if you come over!

0405 400 572
Top
 Profile


Posted: Fri Jul 06, 2007 9:21 pm
Getting Side Ways
Offline
User avatar

Posts: 887

Joined: 8th Aug 2006

Ride: Falcon

Location: Central Highlands
QLD, Australia

Did you check that the BBM was switching runners. Might have knocked something loose when installing the cam?



_________________

97 EL Fairmont 4l OHC .Silver.
Exhaust: Pacemaker's, 2.5" exhaust and Hiflow cat
Intake: FRAM AIRHOG , EL GT snorkel
XR6 300kpa fuel reg Stg 2 Auto Shift Kit.6DJA ECU
PM in Qld looking too buy Toyota 4*4 SR5 Dualcab Hilux 91-97 with 2.8l diesel engine/5spd manual

Top
 Profile


Posted: Fri Jul 06, 2007 9:32 pm
Getting Side Ways
Offline
User avatar

Posts: 3363

Joined: 27th Dec 2004

Gallery: 4 images

Ride: MCMXCV Falcon

Location: G town
VIC, Australia

it wont be bbm youd have a more gradual change..

check your ignition advance and fuel ratios...

looks like youve lost power down low by a fair amount as well...

what ecu u running? chip?



_________________


Top
 Profile


Posted: Sat Jul 07, 2007 2:47 am
Stock as a Rock
Offline

Age: 34

Posts: 151

Joined: 27th Jan 2006

Ride: XD

Location: Melbourne
VIC, Australia

hey guys, thanks for the replys :D
dynowog, i'll be leaving the city for a week on sunday but i will give you a ring when I get back.

On the BBM butterfly swiching, if I pull the vacume hose off the bbm it switches, (when idling) is there a way to make sure its switching at 3900rpms? or maybe i could go for a drive with the vac. hose disconnected and see if there is any difference... hmmm

running the stock ECU, no chip. looks like A/f's are richer at lower rpm which could account for the power loss down low, but not for the huge flat spot.



_________________

1997EL 5spd
mods: 2.5" redback catback, DBA slotted rotors, Pacemaker 4480's, Tint, K&N pod, 17" rims

Top
 Profile


Posted: Sat Jul 07, 2007 2:50 am
Stock as a Rock
Offline

Age: 30

Posts: 112

Joined: 5th Feb 2006

Ride: EL gli

Location: Perth, NOR
WA, Australia

When I was running too little shims in mine (2 in EXT, 2 in INT), it was a dog until 4500 rpm. And then it wasnt much better than stock. But I noticed the 'hole' in the mid range. I reshimmed it and it improved a lot. Not saying you should reshim LOL, but keep it in mind.
Top
 Profile


Posted: Sat Jul 07, 2007 2:56 am
Stock as a Rock
Offline

Age: 34

Posts: 151

Joined: 27th Jan 2006

Ride: XD

Location: Melbourne
VIC, Australia

hehe F**k shims i dont want to even think about them!!!!
atm i am running 3* 1.1mm + 1* 0.9mm on exhaust side and 3*1.1mm on the inlet (+ std ford 1.9mm on each) for a total of
4.2+1.9mm exhaust
3.3+1.9mm inlet

before this i tried running 5.5 ex. and 4.4 inlet and the car wouldnt run properly so im assuming the shimming is fairly close to correct. (or at least +/- 1mm)



_________________

1997EL 5spd
mods: 2.5" redback catback, DBA slotted rotors, Pacemaker 4480's, Tint, K&N pod, 17" rims

Top
 Profile


Posted: Sat Jul 07, 2007 10:44 am
NSW Cruise Moderator
Offline
User avatar

Age: 39

Posts: 7331

Joined: 5th Nov 2004

Gallery: 12 images

Ride: TE50

Location: ɹǝpun uʍop
NSW, Australia

thats pretty weird.. It does somehow look BBM Related. In the stock run you can see the BBM switch point. your graph really looks like it plays up at that point. Vernier gear will not fix this. Vernier is purely for advancing and retarting the cam. what does if feel like when driving and if there is a noticable hesitation what rev range does it happen in?

Dave



_________________


I have a car.

Top
 Profile


Posted: Sat Jul 07, 2007 2:40 pm
Stock as a Rock
Offline

Age: 34

Posts: 151

Joined: 27th Jan 2006

Ride: XD

Location: Melbourne
VIC, Australia

it feels 'ok" driving, but there is a noticable flat spot in acceleration around 3200 - 4200 rpms... its sorta like, power comes on, has a rest, then comes on hard again.

what rpm does the bbm change?
does anyone have a simple formula to convert the speed to rpm's (3rd gear, 3.23:1 diff, 15/65 tyres)



_________________

1997EL 5spd
mods: 2.5" redback catback, DBA slotted rotors, Pacemaker 4480's, Tint, K&N pod, 17" rims

Last edited by forsaken on Sat Jul 07, 2007 3:04 pm, edited 1 time in total.

Top
 Profile


Posted: Sat Jul 07, 2007 2:52 pm
Getting Side Ways
Offline
User avatar

Age: 49

Posts: 6467

Joined: 18th Dec 2006

Ride: 93 ED sedan

Power: 161 rwkw

Location: Rockhampton
QLD, Australia

Isn't the BBM 'spose to come on at 3,500rpm???, EF & EL.



_________________

http://youtu.be/jJTh9F3Vgg0

Top
 Profile


Posted: Sat Jul 07, 2007 4:00 pm
Getting Side Ways
Offline
User avatar

Age: 54

Posts: 744

Joined: 11th Nov 2004

Gallery: 15 images

Ride: ED Falcon

Location: Adelaide
SA, Australia

It could be that there is a lack of vacuum causing the slow changeover of the long/short runner butterflys, as you would know these are vacuum operated or there could be a leak on the vacuum side of the butterfly switch.



_________________

I post here cos the russian tank driver doesn't

Top
 Profile


 Post subject: dyno
Posted: Sat Jul 07, 2007 4:18 pm
Getting Side Ways
Offline
User avatar

Age: 32

Posts: 839

Joined: 10th Sep 2006

Gallery: 3 images

Ride: V8 Falcon, Nissan Patrol

Location: Brisbane, Bouncing off 5800RPM
QLD, Australia

this is a serious response:

did the dyno operator keep his foot flat



_________________

1993 Ford Fairmont EB II 5.0L V8 Wagon
1992 Nissan Patrol TI 4.2L Diesel 4x4 Wagon

Top
 Profile


Posted: Sat Jul 07, 2007 4:26 pm
Stock as a Rock
Offline

Age: 34

Posts: 151

Joined: 27th Jan 2006

Ride: XD

Location: Melbourne
VIC, Australia

hmmm i assume so, lol :?

maybe i'll zip-tie the bbm in the short runner position (i assume that will be opposite to whatever it is at idle...) and see if it has any effect ? (apart from losing power down low:S) and check for vac leaks... hmmm. if i pull the hose off the bbm butterfly switch at idle it changes, so is it a lack of vacume that changes it? or what?

is it possible the computer hasnt adjusted properly or something? it has done approx 250 km's with the new cam installed.



_________________

1997EL 5spd
mods: 2.5" redback catback, DBA slotted rotors, Pacemaker 4480's, Tint, K&N pod, 17" rims

Top
 Profile


Posted: Sat Jul 07, 2007 10:18 pm
Getting Side Ways
Offline
User avatar

Age: 33

Posts: 2058

Joined: 25th May 2006

Ride: ef xr8

Power: 229 rwkw

Location: Perth
WA, Australia

I would be getting a diagnostic or some sort of tuning. The AFR's are all over the place and running rich. Was it smokey at all? It may be something simple like a oxy sensor. Looks like it was a bit over the place before as well.



_________________

Because of Beer, Thirst is a Beautiful Thing!

'95 EF XR8 auto, Advance headers, 3" exhaust, Cobra manifold, BBK 75mm throttle body , 80MM Marauder MAF, Vortech V2 T Trim , 307 rwhp, 405 ft/lb 13.2 @ 105 MPH

Now N/A (permanent Lag) - AFR 165's, Comp XE270 cam, 1.6 RR - 269 rwhp 14.1 @ 102mph.

Top
 Profile


Posted: Sat Jul 07, 2007 11:35 pm
Getting Side Ways
Offline
User avatar

Age: 29

Posts: 975

Joined: 26th Nov 2004

Ride: el falcon

Power: 608 rwkw

Location: Waroona
WA, Australia

ignition problem?

how old are the plugs and leads?



_________________

# 1997 EL Falcon GLI - 600+rwkw

# 2008 FPV FG GTE - Xa Coilovers, 20x8/ 20x10 Fairladys

Top
 Profile
