Whos done a head gasket on a 4.0L? Got questions for you....



Page 1 of 2 [ 22 posts ] Go to page 1, 2  Next


 Post subject: Whos done a head gasket on a 4.0L? Got questions for you....
Posted: Sat Dec 02, 2006 1:11 pm
Getting Side Ways
Offline

Posts: 625

Joined: 6th Nov 2004

Ride: R32 GTR

Location: Brackistan
VIC, Australia

What were the symptoms?
-Losing water?
-Milky oil?
-Discolored spark plug(s)?

How long did it last since it first started losing water or you noticed the oil being watered down?

Reason being mine has started losing water and I can't see anything under the car, it loses perhaps 3-500ml per 2-3 weeks so it could still be a water pump bush or leaking out of a hose when the engine is hot. Problem is I may not have the time in the next few weeks to pull it apart and am planning a driven holiday to queensland over the christmas break.

Cheers
Top
 Profile


Posted: Sat Dec 02, 2006 1:30 pm
Getting Side Ways
Offline
User avatar

Age: 54

Posts: 4102

Joined: 18th Nov 2004

Gallery: 10 images

Ride: PX2 Ranger 4x4 XLT Dual CAB

Location: Carrum Downs
VIC, Australia

Whether oil gets watered down depends on the leak. I've had 4 head gasket failures in 2 'E' series cars and neither of them leaked into the oil. In all cases coolant leaked externally.

You are experiencing the same symptoms I had with my EL. Take the heat shield off the exhaust manifold and have a look behind it. Look for signs of dried coolant running down the block. Also try and get a look under the intake manifold.

If it was leaking from a hose you will generally see wet coolant somewhere in the engine bay. Same if it was leaking from the pump.

If the radiator cap is suspected of being faulty put a small coke bottle over the overflow hose and see if any coolant is caught in it.

Good Luck.



_________________

She's meanness put to music and the b**ch is born to run!
Like the sign says, "speed's just a question of money. How fast can you go?"

Top
 Profile


Posted: Sat Dec 02, 2006 1:50 pm
Getting Side Ways
Offline

Posts: 625

Joined: 6th Nov 2004

Ride: R32 GTR

Location: Brackistan
VIC, Australia

Its clean between the 3-4 cylinder under the exhaust manifold where I've seen them leak before and as you point out. I can't find any evidence of coolant loss, all spark plugs are exactly the same color and the oil is perfect.
Top
 Profile


Posted: Mon Dec 04, 2006 12:28 pm
Getting Side Ways
Offline
User avatar

Age: 33

Posts: 1442

Joined: 26th Apr 2006

Gallery: 6 images

Ride: 97 EL XR6

Power: 162 rwkw

Location: liverpool
NSW, Australia

i only just got my head done, i was loosing coolant externally on the exhaust side, and that started about 3-4 years ago, so i finally got round to doing it! :D
i never had a problem with it and who knows how much longer it would have lasted...



_________________

07 BF MKII XR6T
310rwkw @ 13psi - Tuned By CMS

Top
 Profile


Posted: Mon Dec 04, 2006 4:53 pm
Getting Side Ways
Offline

Age: 40

Posts: 2015

Joined: 9th Mar 2005

Gallery: 4 images

Ride: Territory TX AWD & AUII XLS EGAS

Location: East Kurrajong
NSW, Australia

only had a slight oil leak on the passenger side ... no oil mixing with coolant ... no coolant leak.

only enough oil to stain the outside of the engine only ... not enough to drip.

Cylinder No.6 was overheating though .. presumablly blocked water gallery causing it. Was only overheating under load .... was fine on cruise though.



_________________

04 Territory TX AWD - Winter White - optioned up
06 Falcon BFII XLS ute EGAS - Winter White - EGA-54D Version 2

Top
 Profile


Posted: Mon Dec 04, 2006 5:14 pm
Fordmods Newbie
Offline

Age: 31

Posts: 18

Joined: 10th Jun 2006

Location: Sydney
NSW, Australia

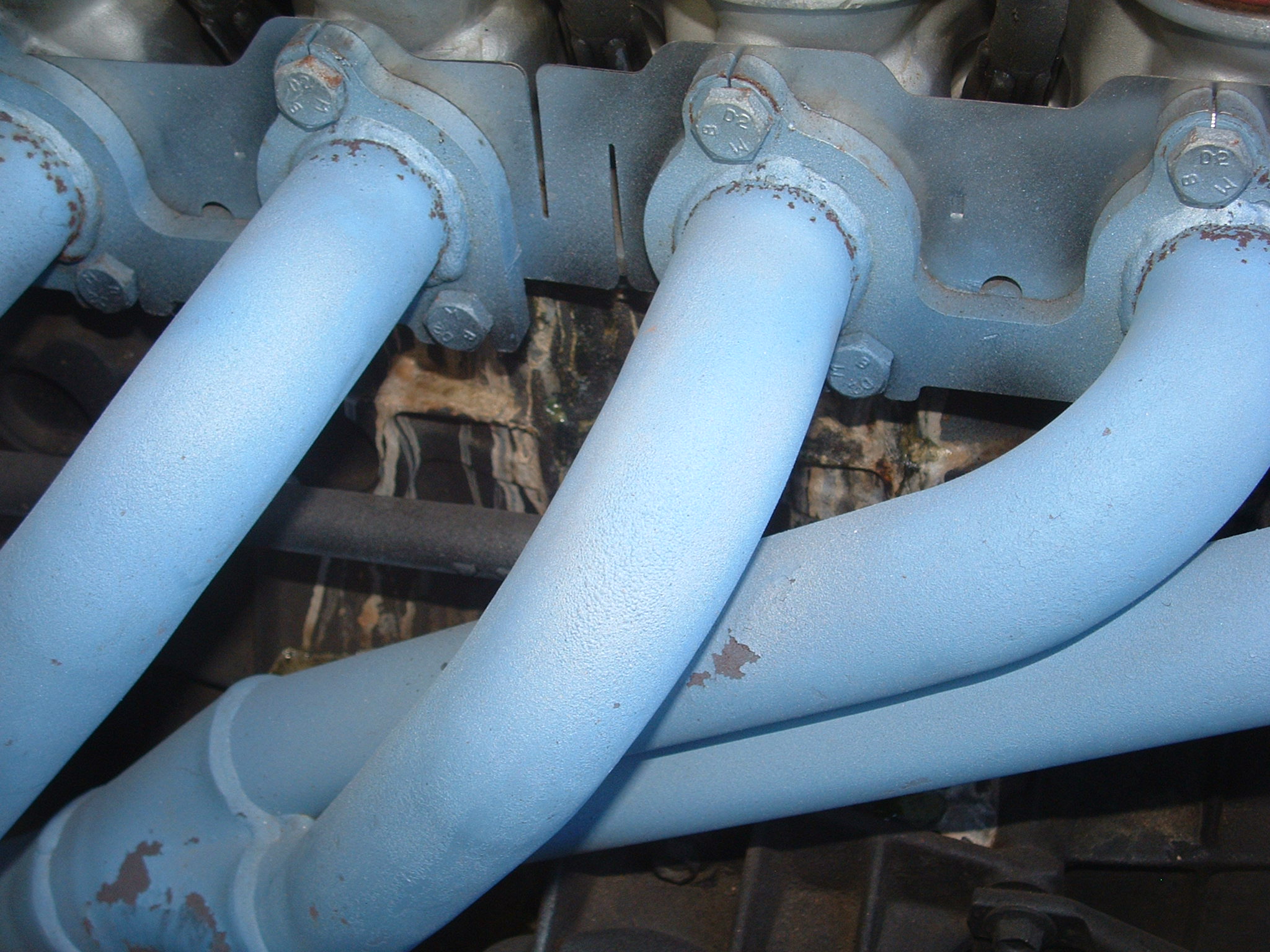

this is what mine looks like at the moment.
the head was only done 60,000km ago when the cams were down by
the previous owner. ive been told just put chem-i-weld in it and retorque the head..





Attachments:
Picture 289.jpg
Picture 289.jpg [ 601.3 KiB | Viewed 31 times ]
Top
 Profile


Posted: Mon Dec 04, 2006 5:19 pm
Fordmods Addict
Offline
User avatar

Age: 31

Posts: 7958

Joined: 1st Jun 2005

Gallery: 13 images

Ride: Falcon

Power: 237 rwkw

Location: Melbourne
VIC, Australia

I was losing small amounts of water, then idle got rough, then enough water leaked into cylinders 1 and 2 to hydraulic lock it and prevent it from starting.
Had been losing water since I got the car, but once it started idling rough it went downhill in the space of a week.
Bit of russian roulette really as to how long it will last.
Depends where it's blown, if it's blown or just not sealed, external leak, internal leak...
Change it ASAP would be my advice.

After work job if you have all the parts ready.
If your head is warped/not suffieciently flat, and you dont have a spare head to get machined/recoed it lengthens the off-road time a bit.
Maybe chase down another head, get it recoed and maybe some port work if you've got the folding, grab headbolts, inlet and exhaust manifold gaskets if you desire, a headgasket, then at least if you DO get the time you can do it straight away with minimal downtime.



_________________

ED XR8 Sprint - S-Trim, V500, 249rwkw
BF MKII F6 Tornado - 237rwkw

Top
 Profile


Posted: Mon Dec 04, 2006 5:22 pm
Getting Side Ways
Offline

Age: 40

Posts: 2015

Joined: 9th Mar 2005

Gallery: 4 images

Ride: Territory TX AWD & AUII XLS EGAS

Location: East Kurrajong
NSW, Australia

And hope your head bolts aren't seized in either ... otherwise your screwed.

Then it becomes an engine swap.



_________________

04 Territory TX AWD - Winter White - optioned up
06 Falcon BFII XLS ute EGAS - Winter White - EGA-54D Version 2

Top
 Profile


Posted: Mon Dec 04, 2006 5:31 pm
Fordmods Addict
Offline
User avatar

Age: 31

Posts: 7958

Joined: 1st Jun 2005

Gallery: 13 images

Ride: Falcon

Power: 237 rwkw

Location: Melbourne
VIC, Australia

Mechan1k wrote:
And hope your head bolts aren't seized in either ... otherwise your screwed.

Then it becomes an engine swap.

Touch wood! Touch Wood!! :lol:



_________________

ED XR8 Sprint - S-Trim, V500, 249rwkw
BF MKII F6 Tornado - 237rwkw

Top
 Profile


Posted: Mon Dec 04, 2006 5:36 pm
Getting Side Ways
Offline

Age: 40

Posts: 2015

Joined: 9th Mar 2005

Gallery: 4 images

Ride: Territory TX AWD & AUII XLS EGAS

Location: East Kurrajong
NSW, Australia

I wasn't so lucky.
oh well ... out went a 196,000km engine ... in went a 60,000km motor.

one snapped ... 4 rounded bolts ... 2 stuffed Snap-on sockets.



_________________

04 Territory TX AWD - Winter White - optioned up
06 Falcon BFII XLS ute EGAS - Winter White - EGA-54D Version 2

Top
 Profile


Posted: Mon Dec 04, 2006 6:38 pm
Smokin em up
Offline

Posts: 264

Joined: 30th May 2006

Gallery: 16 images

Power: 165 rwkw

Location: Penrith
NSW, Australia

My ED head spat the dummy 18months ago, not too bad bit corroded around cyl 1 @ 2 water jackets,could have got it repaired a slap on a new head gasket but replaced the whole engine with 70,000km old EL XR6
Top
 Profile


Posted: Mon Dec 04, 2006 6:47 pm
Getting Side Ways
Offline

Posts: 625

Joined: 6th Nov 2004

Ride: R32 GTR

Location: Brackistan
VIC, Australia

Thanks guys.

I'm gonna take my chances :)
Top
 Profile


Posted: Wed Dec 06, 2006 1:30 am
Getting Side Ways
Offline

Posts: 1302

Joined: 10th Nov 2006

Location: Allmods suck so do viruses
WA, Australia

Run some of that product through the system its called Seal Up - It works i have 2 EL's one with a stuffed head gasket and i ran some seal up and there no more Milky Oil Stopped losing water



_________________

Your all a bunch of f**k Heads delete this f**k account stupid useless C*** who run this site cant even sell something useless wankers

Top
 Profile


 Post subject: where's the water
Posted: Wed Dec 06, 2006 7:16 am
Getting Side Ways
Offline
User avatar

Age: 48

Posts: 1880

Joined: 22nd Apr 2005

Ride: ED Futura

Location: Seymour
VIC, Australia

check the rear whelch plug at the back off motor had a work mate who was losing water and i found that the whelch plug was weeping.
Top
 Profile


Posted: Wed Dec 06, 2006 7:52 am
Getting Side Ways
Offline
User avatar

Posts: 2644

Joined: 6th Nov 2004

Gallery: 8 images

Ride: 2007

Location: Mount Annan
NSW, Australia

If there is no water in the oil and no external signs it leaking then it could be a simple as a faulty cap letting water escape after you switch off..

Otherwise , although it works and works well I would stear clear of chemiweld unless you are are deperate or selling it.



_________________

BF Fairmont Ghia Series II update.
GQ XR6T ghia patrol.

,======o00o
//__|__|_,\_____\,___
|_/--\'_|'__|_/--\_[]IIII[]
_( o ) )_____( o ) )=o=) )__
