 Post subject: Xr6 cam ???
Posted: Fri Apr 09, 2010 11:26 am
Getting Side Ways
Offline

Age: 27

Posts: 424

Joined: 18th Feb 2010

Ride: Ford EF - Garret TO4Z

Location: Hobart
TAS, Australia

cam someone post a pic of an xr6 cam , is it visally identifiyable between the stock and xr6?



_________________

Crank Assembly balanced, HV oil pump, ACL Trimetal bearings, "1 extra oil clearance taking to around 0.0650-0.0700 on mains and big ends, Moly rings,, Xr6 Cam, POD ( Possibly oversize injectors), Block, Head, Timing cover, belt idler, Alternator,painted in ford light blue

Top
 Profile


 Post subject: Re: Xr6 cam ???
Posted: Fri Apr 09, 2010 11:38 am
VIC Cruise Moderator
Offline
User avatar

Age: 27

Posts: 1167

Joined: 6th Jan 2009

Gallery: 12 images

Ride: ed

Location: Mooroolbark
VIC, Australia

i have one out of an el xr6 its got red pain on it and according to ford that's how they come from factory. y u ask?

i cant get a photo atm



_________________

94 White ED Wagon
eaton M112 supercharger, lowered a tad, extractors, 2.5" exhaust, T5 , custom SureCam supercharger cam, 3.45 lokka, 2 piece tailshaft, poyair bags in the back, TSS front Skirt, Sprint skirts, XR wagon spoiler.
soon to get: AU diff, upc 330mm brakes, Vapor LPG injection.

Top
 Profile


 Post subject: Re: Xr6 cam ???
Posted: Fri Apr 09, 2010 11:39 am
Getting Side Ways
Offline

Age: 27

Posts: 424

Joined: 18th Feb 2010

Ride: Ford EF - Garret TO4Z

Location: Hobart
TAS, Australia

just trying to identity some cams



_________________

Crank Assembly balanced, HV oil pump, ACL Trimetal bearings, "1 extra oil clearance taking to around 0.0650-0.0700 on mains and big ends, Moly rings,, Xr6 Cam, POD ( Possibly oversize injectors), Block, Head, Timing cover, belt idler, Alternator,painted in ford light blue

Top
 Profile


 Post subject: Re: Xr6 cam ???
Posted: Fri Apr 09, 2010 11:45 am
VIC Cruise Moderator
Offline
User avatar

Age: 27

Posts: 1167

Joined: 6th Jan 2009

Gallery: 12 images

Ride: ed

Location: Mooroolbark
VIC, Australia

put up the part numbers and someone will know what they are.....



_________________

94 White ED Wagon
eaton M112 supercharger, lowered a tad, extractors, 2.5" exhaust, T5 , custom SureCam supercharger cam, 3.45 lokka, 2 piece tailshaft, poyair bags in the back, TSS front Skirt, Sprint skirts, XR wagon spoiler.
soon to get: AU diff, upc 330mm brakes, Vapor LPG injection.

Top
 Profile


 Post subject: Re: Xr6 cam ???
Posted: Fri Apr 09, 2010 11:50 am
Getting Side Ways
Offline

Age: 27

Posts: 424

Joined: 18th Feb 2010

Ride: Ford EF - Garret TO4Z

Location: Hobart
TAS, Australia

dt 62 50 aa L3



_________________

Crank Assembly balanced, HV oil pump, ACL Trimetal bearings, "1 extra oil clearance taking to around 0.0650-0.0700 on mains and big ends, Moly rings,, Xr6 Cam, POD ( Possibly oversize injectors), Block, Head, Timing cover, belt idler, Alternator,painted in ford light blue

Top
 Profile


 Post subject: Re: Xr6 cam ???
Posted: Fri Apr 09, 2010 12:00 pm
Tyre Shredder
Offline
User avatar

Age: 52

Posts: 358

Joined: 7th Jun 2007

Ride: NA Fairlane / FE LTD

Location: bayswater
VIC, Australia

The valve springs are red but I doubt if the cam itself has red paint on it. I think the grind is printed on the end where the sprocket bolts on. Physicly you would have to have great eyes to spot a different grind.

Last edited by nalane on Fri Apr 09, 2010 12:06 pm, edited 1 time in total.

Top
 Profile


 Post subject: Re: Xr6 cam ???
Posted: Fri Apr 09, 2010 12:03 pm
Getting Side Ways
Offline

Age: 27

Posts: 424

Joined: 18th Feb 2010

Ride: Ford EF - Garret TO4Z

Location: Hobart
TAS, Australia

i cant see any other numbers on the cam , i know its out of an ed



_________________

Crank Assembly balanced, HV oil pump, ACL Trimetal bearings, "1 extra oil clearance taking to around 0.0650-0.0700 on mains and big ends, Moly rings,, Xr6 Cam, POD ( Possibly oversize injectors), Block, Head, Timing cover, belt idler, Alternator,painted in ford light blue

Top
 Profile


 Post subject: Re: Xr6 cam ???
Posted: Fri Apr 09, 2010 12:15 pm
Tyre Shredder
Offline
User avatar

Age: 52

Posts: 358

Joined: 7th Jun 2007

Ride: NA Fairlane / FE LTD

Location: bayswater
VIC, Australia

Cams right through from ea to el except el hybrid are all the same although the grind may have been tweaked for certain models or variants. If they are not stamped the only way you could tell would be to measure the lobes. I have a customer who is also on another forum that works for wades that maybe able to tell me how to tell the diff.
Other than that where is papasmurf.
Top
 Profile


 Post subject: Re: Xr6 cam ???
Posted: Fri Apr 09, 2010 12:30 pm
Moderator
Offline

Posts: 14513

Joined: 7th Nov 2004

Ride: ford falcon au3 xr8

Location: a shit suburb in sydney
NSW, Australia

Shifteh wrote:
dt 62 50 aa L3


yes thats an xr6 cam...
does it have a 92 or 94 before the dt 62 aa..

this first number eg;(92) tells you the year, and the dt means (falcon tickford)..
afaik the 62 50 is just the code for ohc i6..
and yes the factory tickford cams have a red ring painted around the cast part of the cam..
Top
 Profile


 Post subject: Re: Xr6 cam ???
Posted: Fri Apr 09, 2010 12:37 pm
Getting Side Ways
Offline

Age: 27

Posts: 424

Joined: 18th Feb 2010

Ride: Ford EF - Garret TO4Z

Location: Hobart
TAS, Australia

no red paint.... lol :D



_________________

Crank Assembly balanced, HV oil pump, ACL Trimetal bearings, "1 extra oil clearance taking to around 0.0650-0.0700 on mains and big ends, Moly rings,, Xr6 Cam, POD ( Possibly oversize injectors), Block, Head, Timing cover, belt idler, Alternator,painted in ford light blue

Top
 Profile


 Post subject: Re: Xr6 cam ???
Posted: Fri Apr 09, 2010 12:38 pm
NSW Cruise Moderator
Offline
User avatar

Age: 39

Posts: 7331

Joined: 5th Nov 2004

Gallery: 12 images

Ride: TE50

Location: ɹǝpun uʍop
NSW, Australia

Funny you should ask I happen to have one in the boot of my car here at work, give me a few mins and I'll take a happy snap for you, I have always seen e series xr cams with a lick of red paint on them almost ½ way along between the lobes.

Pic will comfirm or deny, XR cams had slightly more lift and slightly longer duration. This is not visable by naked eye.



_________________


I have a car.

Top
 Profile


 Post subject: Re: Xr6 cam ???
Posted: Fri Apr 09, 2010 12:53 pm
Tyre Shredder
Offline
User avatar

Age: 52

Posts: 358

Joined: 7th Jun 2007

Ride: NA Fairlane / FE LTD

Location: bayswater
VIC, Australia

xr6 ed cam should be 91dt
Top
 Profile


 Post subject: Re: Xr6 cam ???
Posted: Fri Apr 09, 2010 12:54 pm
Getting Side Ways
Offline

Age: 27

Posts: 424

Joined: 18th Feb 2010

Ride: Ford EF - Garret TO4Z

Location: Hobart
TAS, Australia

says 92 dt 62 50 aa l3



_________________

Crank Assembly balanced, HV oil pump, ACL Trimetal bearings, "1 extra oil clearance taking to around 0.0650-0.0700 on mains and big ends, Moly rings,, Xr6 Cam, POD ( Possibly oversize injectors), Block, Head, Timing cover, belt idler, Alternator,painted in ford light blue

Top
 Profile


 Post subject: Re: Xr6 cam ???
Posted: Fri Apr 09, 2010 12:55 pm
NSW Cruise Moderator
Offline
User avatar

Age: 39

Posts: 7331

Joined: 5th Nov 2004

Gallery: 12 images

Ride: TE50

Location: ɹǝpun uʍop
NSW, Australia

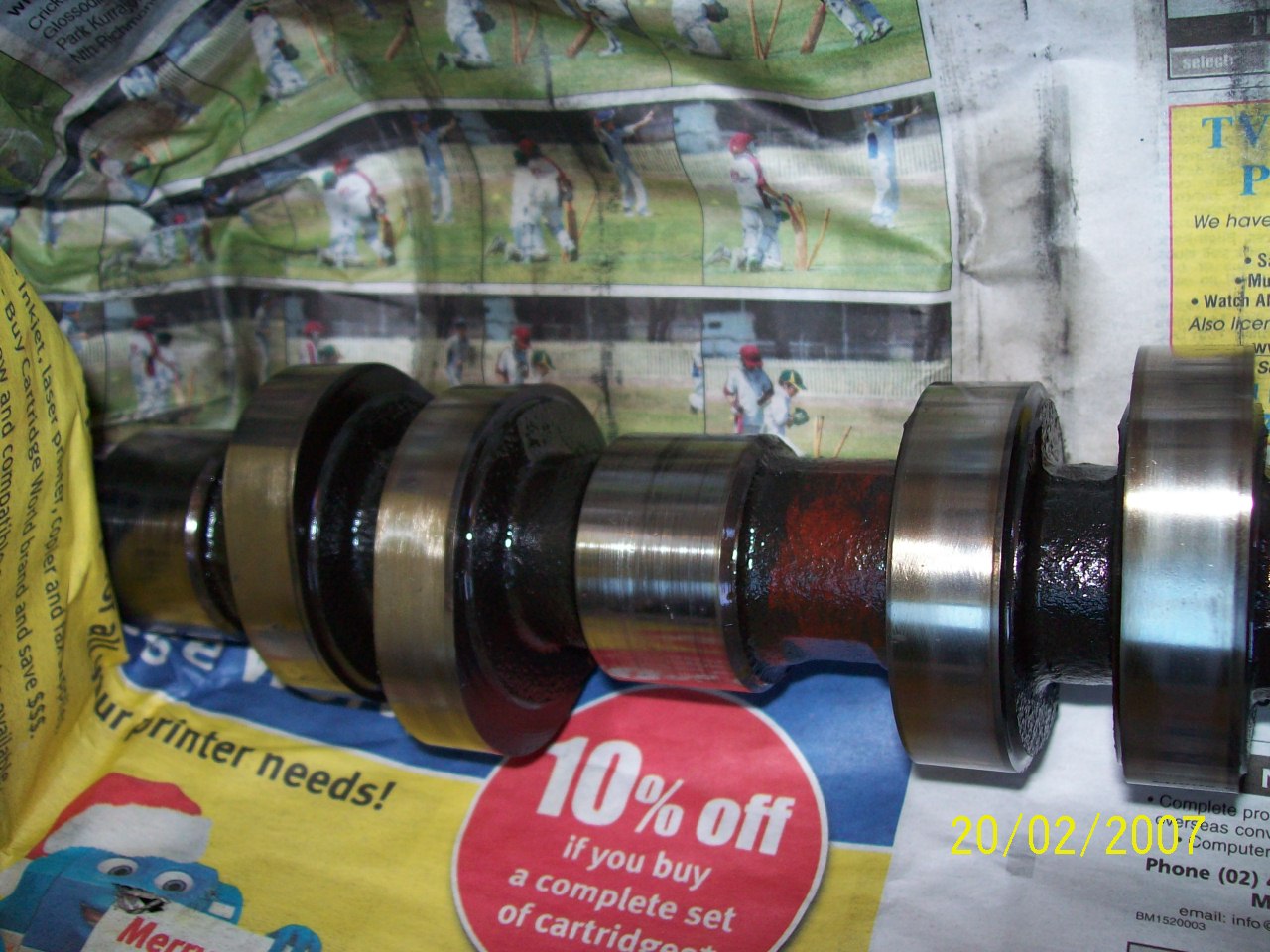

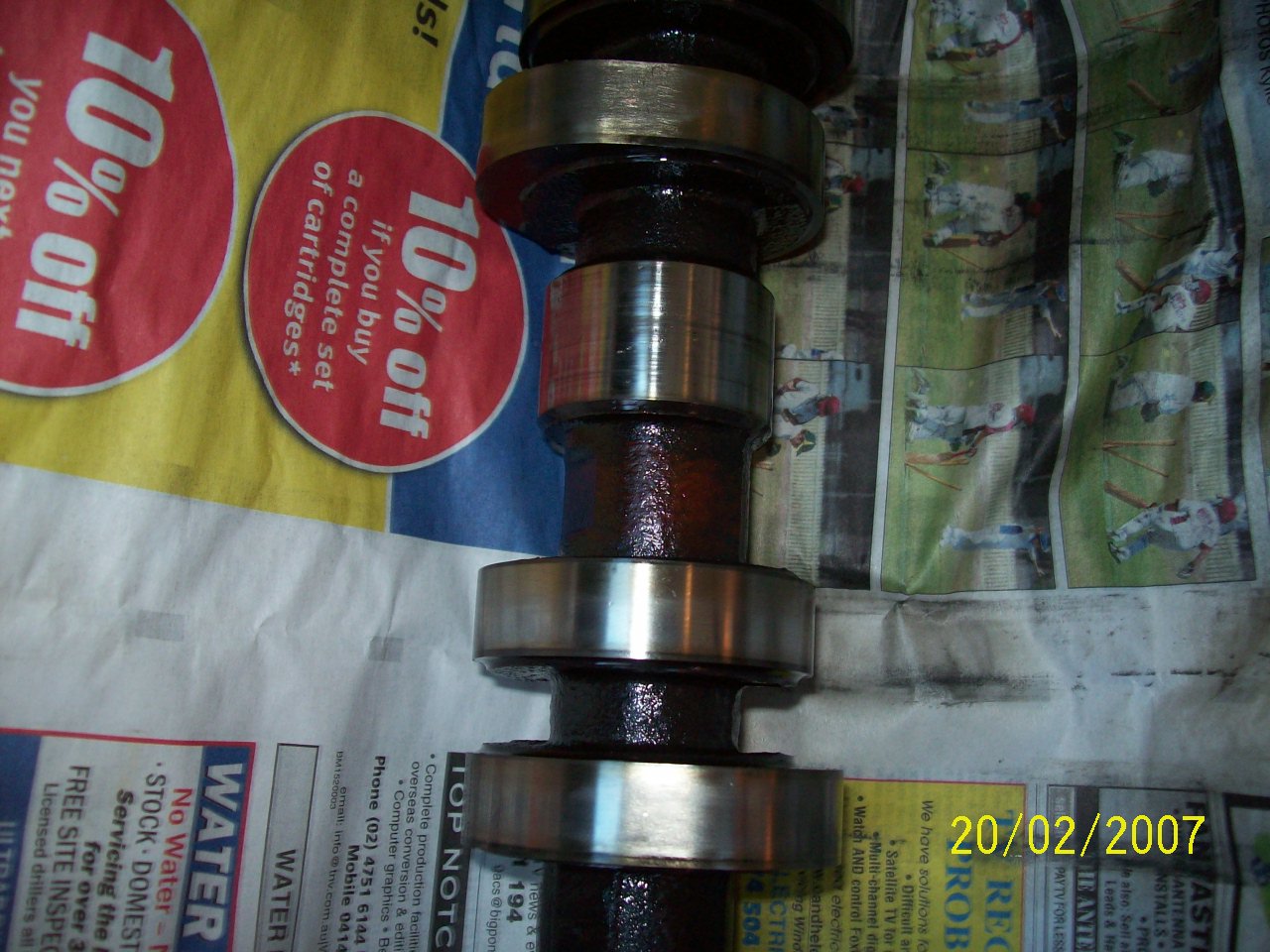

cam will look like this, Not trying to be a smart a**, but every one I have ever seen has had red paint on it, early e series may not though. BUT, I have an EB xr cam in my car currently and it had red on it too, and that was out of an EB S XR6, so I can only comment on my experience. Unless at some stage yours has been cleaned, but I don't know why that would be.





Attachments:
Picture 002.jpg
Picture 002.jpg [ 287.79 KiB | Viewed 38 times ]
Picture 001.jpg
Picture 001.jpg [ 278.18 KiB | Viewed 35 times ]



_________________


I have a car.

Top
 Profile


 Post subject: Re: Xr6 cam ???
Posted: Fri Apr 09, 2010 12:57 pm
NSW Cruise Moderator
Offline
User avatar

Age: 39

Posts: 7331

Joined: 5th Nov 2004

Gallery: 12 images

Ride: TE50

Location: ɹǝpun uʍop
NSW, Australia

92 DT is EB XR cam.



_________________


I have a car.
