Custom Install of subs cost question ?



Page 1 of 2 [ 19 posts ] Go to page 1, 2  Next


 Post subject: Custom Install of subs cost question ?
Posted: Fri Aug 05, 2005 4:57 pm
Tyre Shredder
Offline

Age: 32

Posts: 328

Joined: 5th Dec 2004

Ride: EL II XR8

Power: 146 rwkw

Location: Adelaide
SA, Australia

Im very close to looking into a nice sub/amp package for the boot, i'm just wondering what kind of $$$ figure to expect on getting the boot all squared off and neat looking, but still beign able to lift up n get to the spare, and retain boot space, A similar set-up to this one with the spare tyre side being able to lift up. But in an EL.


Im not after cost of speakers/amps/subs but the extra money this type of custom install would cost ? Or any pointers on how I could save money and do it myself ? Ie anybody with progress pics, or measurements or thier own ideas, I have no idea on how to make sure it dosnt rattle or watever, any help would be cool ! If not ill end up a sucker at an audio store paying $$$ them 2 do it!



_________________

EL II XR8 - project powerdyne.
www.modfordclub.proboards101.com
www.mumbo.com.au

Top
 Profile


Posted: Fri Aug 05, 2005 5:04 pm
Getting Side Ways
Offline
User avatar

Age: 33

Posts: 3885

Joined: 6th Nov 2004

Gallery: 24 images

Ride: BF MKII XR6 Turbo

Location: Victor Harbor
SA, Australia

Wouldnt cost a great deal i should imagine.. Only thing you really need is MDF, sound shield and Carpet etc.. I really need to do something like that for my XR6 i was going to redo the boot lining very soon, Carpet for that was only going to cost me $100. MDF is fairly cheap $10-$50, and sound shield would be around the $100- $150 mark. :)

If your going to be at the SA cruise comming up we can talk more :D



_________________

Image -BF MKII XR6 Turbo in EGO-

Top
 Profile


Posted: Fri Aug 05, 2005 5:11 pm
Tyre Shredder
Offline

Age: 32

Posts: 328

Joined: 5th Dec 2004

Ride: EL II XR8

Power: 146 rwkw

Location: Adelaide
SA, Australia

should be going ... hope im not working AGAIN!



_________________

EL II XR8 - project powerdyne.
www.modfordclub.proboards101.com
www.mumbo.com.au

Top
 Profile


Posted: Fri Aug 05, 2005 5:13 pm
Getting Side Ways
Offline
User avatar

Age: 33

Posts: 3885

Joined: 6th Nov 2004

Gallery: 24 images

Ride: BF MKII XR6 Turbo

Location: Victor Harbor
SA, Australia

EFNWIKD6 wrote:
should be going ... hope im not working AGAIN!


Cool then we can talk more about the Boot install etc.. Im almost in the process of doing this myself.. :? I dont work weekends anymore so Yippee! :P



_________________

Image -BF MKII XR6 Turbo in EGO-

Top
 Profile


Posted: Fri Aug 05, 2005 5:43 pm
Getting Side Ways
Offline
User avatar

Age: 32

Posts: 2976

Joined: 5th Nov 2004

Ride: BF Typhoon

Location: Melbourne
VIC, Australia

Id also like to know the costs of a pro custom install - have been going to do it myself for ages now, but i know for afact its getting nowhere as work takes 95% of my time, the other 5% is washing the car lol.

Im guessing they'd charge a bit, but $$$ roughly would be a help.. not to mention how long it takes em.



_________________

BF Typhoon, Dejavu - 6sp Auto, Leather, Sunroof, 19"s, Electric Pedals, Tint, FPV Sports Wheel, FPV Mats.

Top
 Profile


Posted: Fri Aug 05, 2005 6:27 pm
Getting Side Ways
Offline
User avatar

Age: 38

Posts: 727

Joined: 5th Nov 2004

Gallery: 2 images

Ride: Concorde

Location: canberra
ACT, Australia

i had something similar done to a commodore i had awhile ago.

Had a custon box made for 3X10" subs, custom wall made for fitting a stacker in the drivers rear guard and a false floor with 2 amps mounted beneath with cut outs. all carpeted and looking very good, very usable space, cost me $750 about 3 years ago.



_________________

2nd Place Summernats19 SQ Comp, Street Pro 0-600 Class
STEREO - 128.7db
JVC EXAD DVD and surround sound
3 X 10" Lanzar Dual Voice Coil 6ohm Subs
4 X 6.5" Alpine S-Type 2-way, front and back
JVC 6.6cm Center Speaker
Engine -
2.5" exhaust, SS Inductions CAI, K&N air filter. 132.6rwkw

Top
 Profile


Posted: Fri Aug 05, 2005 7:07 pm
Fordmods Junkie
Offline
User avatar

Age: 38

Posts: 5051

Joined: 5th Nov 2004

Ride: Kia Rio - 1.4L Auto

Power: 238 rwkw

Location: Westside
VIC, Australia

Well... The pic you have there is an install done by an FM member.

And it was done in, overall, a few hours. All done without advice or a professional. And it came out bloody good.

And you cant really see it, but it has been designed in a way that you can easily remove the panel above the spare wheel and get to the wheel. All the amps are hidden, but they are there. I think Kyle can disassemble his boot in about 2 mins all ready for the drags... lol.

Just need some MDF, carpet and basic tools. I'm sure you'd have alot of fun putting it together and ironing out the niggles yourself. Give you a bit more of a sense pride once its done. Its not a hard task. The only difference between you and a professional is that they've done it before and know exactly where to start. Whereas you might spend and hour deciding how to do things, but you will both end up with the same result.
Top
 Profile


Posted: Sat Aug 06, 2005 1:16 pm
Stock as a Rock
Offline
User avatar

Age: 32

Posts: 157

Joined: 6th Nov 2004

Ride: fairmont 95

Location: geelong
VIC, Australia

one of my mates fits stereo's in geelong and i went and had a look at a wrx he was doing one day and the boot install was unreal but it cost 4g's but wasnt practical but looked awsome
Top
 Profile


Posted: Sat Aug 06, 2005 3:55 pm
Getting Side Ways
Offline

Age: 37

Posts: 775

Joined: 27th Nov 2004

Ride: BA XT Series 2

Location: Cairns
QLD, Australia

Yeah I would expect to pay about $750 fo that install but maybe cheaper if you supply materials urself



_________________

Stage 1 stereo install done. Pics in audio section.
Next step is probably a nice exhaust or stage 2 stereo.

Top
 Profile


Posted: Sat Aug 06, 2005 4:47 pm
Getting Side Ways
Offline
User avatar

Age: 34

Posts: 607

Joined: 11th Nov 2004

Gallery: 8 images

Ride: XR6

Location: Melbourne
VIC, Australia

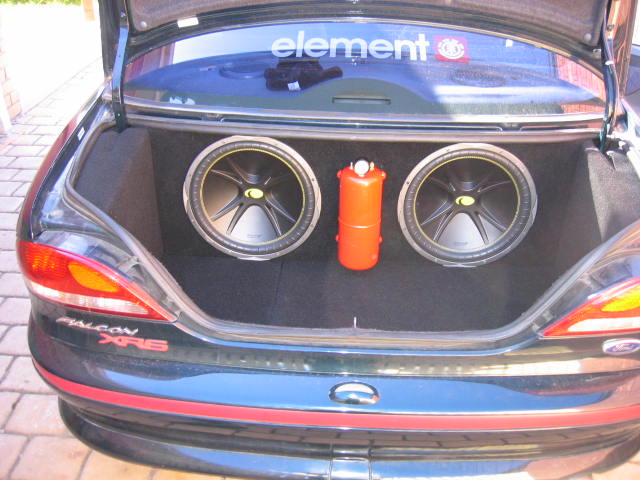

this is mine in an ef and the carpet was 30 bucks for 2m x1m and the wood was 30 bucks and the tacks were 3 bucks and i can lift the floor out and access the spare.

for the setup it depends i have average brand amps cost me bout 400 all up 300 w and 400 w and subs cost 300 each but i got them half that ( connections ) at jb lol

but the system cost is up to you depend on what you want to spend





Attachments:
car 030.jpg
car 030.jpg [ 70.41 KiB | Viewed 28 times ]



_________________

BA XR8 BOSS 260
Winter White
18' gt-p wheels
Flash Tuned
2 jl 13.5' w3's
tv indash

Top
 Profile


Posted: Sat Aug 06, 2005 11:48 pm
Fordmods Audio and Turbo Expert
Offline
User avatar

Age: 37

Posts: 2121

Joined: 14th Dec 2004

Ride: FG Turbo Territoty Ghia

Location: Traralgon
VIC, Australia

I have written this 3 times and lost it each time so here we go again for the 4th time…

Stores charge approx $45 per hr for custom work. This may sound expensive but remember they have access to some good tooling (such as air hacksaws, full size saw benches etc…) + get materials cheaper (fiberglass, carpet & MDF), PLUS have a heap of time saving tricks and shortcuts to get the jobs completed quicker than most of the rest of us..

I would estimate $500 for a store to make sub-box + backing board…



As for doing it yourself, here’s what to do

DIY
- Find out the correct enclosure size for the subs
- Measure the space available for them in the boot - 10min, $0
- Get a local cabinet maker to make the box to dimensions inc sloping back panel to go behind the seats - 0min, $100
- Get some stiff cardboard or corkflute (the stuff real estate signs are made from) and cut it into shape using a stanley knife to form the backing panel - 1hr, $30
- Stencil this over 6mm MDF and cut out the final backing board shape 20min, $20
- . Cut out carpet (or vinyl) with 50mm overhang around the edges. Spray contact adhesive onto back of material and onto MDF backing panel, allowing to set tacky for 30seconds before bringing together. Staple gun the material onto the back of the panel to hold in place. - 2hrs, $50


TOTAL DIY – 3hrs 30min; $200
TOTAL Store build – 0min; $500



_________________


Pro Class
1st Super Tech - Summernats 2007
Australian SQ Champion - Am Show 2004
Australian SQ Champion – Pro Show 2006 & Best of Show
Ford Champion - Melbourne 2004 & 2006
451.5wkw - now SOLD

Last edited by pyroay on Sun Aug 07, 2005 11:56 pm, edited 1 time in total.

Top
 Profile


Posted: Sun Aug 07, 2005 4:24 am
Getting Side Ways
Offline
User avatar

Age: 33

Posts: 3885

Joined: 6th Nov 2004

Gallery: 24 images

Ride: BF MKII XR6 Turbo

Location: Victor Harbor
SA, Australia

Good stuff thier Aaron, yeah my estimates were close. I would love to get a boot setup like the one in the first picture BUT the LPG tank poses a big problem.

I have a few ideas about what i can do, but it still requires alot of work and a bit more $$$ than usual.. :roll: One day mabe. :(



_________________

Image -BF MKII XR6 Turbo in EGO-

Top
 Profile


Posted: Sun Aug 07, 2005 11:05 am
Getting Side Ways
Offline
User avatar

Age: 32

Posts: 2976

Joined: 5th Nov 2004

Ride: BF Typhoon

Location: Melbourne
VIC, Australia

Thanks aaron, you wouldnt happen to know any good custom installers in the SE melb area would you?

Was thinking Freeway Car Audio, altho they seem expensive if your not best of buddies with someone there.



_________________

BF Typhoon, Dejavu - 6sp Auto, Leather, Sunroof, 19"s, Electric Pedals, Tint, FPV Sports Wheel, FPV Mats.

Top
 Profile


Posted: Sun Aug 07, 2005 3:52 pm
Getting Side Ways
Offline

Age: 31

Posts: 3893

Joined: 15th Nov 2004

Gallery: 24 images

Ride: BF MKII V8 Fairmont Ghia

Location: Perth
WA, Australia

also, in boot install's i see some subs mounted flat, eg sickd's where they are on a vertical board, and then in the first post, the subs are on an angle, like 30 degrees from vertical or whatever..

is there any advantage to mounting subs on an angle or flat?



_________________

2007 Steel BF Ghia MKII V8 - 19" GTP's + Superlows

Top
 Profile


Posted: Sun Aug 07, 2005 7:04 pm
Getting Side Ways
Offline
User avatar

Age: 34

Posts: 607

Joined: 11th Nov 2004

Gallery: 8 images

Ride: XR6

Location: Melbourne
VIC, Australia

not to much difference my first setup was on angle but just to get them to fit cos they are 15'

its all bout looks no one who just wants bass in songs is gonna know the difference

pyro might be able to tell



_________________

BA XR8 BOSS 260
Winter White
18' gt-p wheels
Flash Tuned
2 jl 13.5' w3's
tv indash

Top
 Profile
