 Post subject: Desperately need some help with crossovers
Posted: Tue Feb 28, 2006 10:23 pm
Fordmods Newbie
Offline

Age: 30

Posts: 4

Joined: 1st Mar 2005

Ride: EL Fairmont

Location: Melbourne
VIC, Australia

Hey everyone, i'm sure heaps of you have an easy solution for this one...
I'm in the middle of mounting an Alpine CDA-9853R head unit, two pairs of MB Quart Reference splits and a Rockford P4004 amp in my EL Fairmont. I'm having trouble finding somewhere to mount my front crossovers...
Where would you suggest is the best place?
Also, should i mount the tweeters in the center of the woofers as is an option on the MB Quarts, or should i use the original mounting points on top of the dash. I can also easily use the A-pillars or door sails if that would be more appropriate. I'm looking for absolutely mint sound quality!
Thanks in advance for any help..
Top
 Profile


Posted: Tue Feb 28, 2006 10:25 pm
Getting Side Ways
Offline
User avatar

Age: 33

Posts: 2282

Joined: 14th Jan 2005

Gallery: 8 images

Ride: ED Fairmont Ghia & EF XR8

Location: Melbourne
VIC, Australia

i mounted mine in the arm rest of the front doors. when you pull the doorskins of there should be enough room to put the crossover in there.

cheers



_________________


Top
 Profile


Posted: Tue Feb 28, 2006 10:27 pm
Fordmods Newbie
Offline

Age: 30

Posts: 4

Joined: 1st Mar 2005

Ride: EL Fairmont

Location: Melbourne
VIC, Australia

Yeah i was thinking about that, but is there any problem with them getting wet inside the doors? The MB Quart crossovers are vented (not sealed).
Top
 Profile


Posted: Tue Feb 28, 2006 10:28 pm
Fordmods Addict
Offline
User avatar

Age: 31

Posts: 7958

Joined: 1st Jun 2005

Gallery: 13 images

Ride: Falcon

Power: 237 rwkw

Location: Melbourne
VIC, Australia

I've got my crossovers mounted under the HU with double sided tape.
Mount tweeters either on A pillar or the Sail.
I have mine forward of the original position, in the pods that they came with, angled into the cabin.
Seems to work well, but if I had my time again, I'd custom mount them more stealthily in the A-pillar.



_________________

ED XR8 Sprint - S-Trim, V500, 249rwkw
BF MKII F6 Tornado - 237rwkw

Top
 Profile


Posted: Tue Feb 28, 2006 10:46 pm
Getting Side Ways
Offline

Age: 31

Posts: 3893

Joined: 15th Nov 2004

Gallery: 24 images

Ride: BF MKII V8 Fairmont Ghia

Location: Perth
WA, Australia

mine are wedged up under the dash and zip tied to something :P drivers side is up udner the dash, jsut behind the fuse panel area i think.. passenger one is wedged behind the glove box. they sit there quite happily..

my tweeters are mounted on the kick panels with a custom bracket (bit of sheet metal bent over on itself ;) )

have a lok in the gallery



_________________

2007 Steel BF Ghia MKII V8 - 19" GTP's + Superlows

Top
 Profile


Posted: Tue Feb 28, 2006 11:13 pm
Getting Side Ways
Offline
User avatar

Posts: 1549

Joined: 27th Apr 2005

Gallery: 1 images

Ride: AU Fairmont Ghia

Location: Perth
WA, Australia

Gaz wrote:
mine are wedged up under the dash and zip tied to something :P drivers side is up udner the dash, jsut behind the fuse panel area i think.. passenger one is wedged behind the glove box. they sit there quite happily..

my tweeters are mounted on the kick panels with a custom bracket (bit of sheet metal bent over on itself ;) )

have a lok in the gallery


Looks a bit low
Top
 Profile


Posted: Tue Feb 28, 2006 11:15 pm
Getting Side Ways
Offline

Age: 31

Posts: 3893

Joined: 15th Nov 2004

Gallery: 24 images

Ride: BF MKII V8 Fairmont Ghia

Location: Perth
WA, Australia

yeh, im not into winning any sq comps here.. its fine fow what i listen to



_________________

2007 Steel BF Ghia MKII V8 - 19" GTP's + Superlows

Top
 Profile


Posted: Tue Feb 28, 2006 11:31 pm
Stock as a Rock
Offline
User avatar

Age: 57

Posts: 178

Joined: 3rd Aug 2005

Ride: Falcon XR6

Location: FTG
VIC, Australia

Blu Falc wrote:
Gaz wrote:
mine are wedged up under the dash and zip tied to something :P drivers side is up udner the dash, jsut behind the fuse panel area i think.. passenger one is wedged behind the glove box. they sit there quite happily..

my tweeters are mounted on the kick panels with a custom bracket (bit of sheet metal bent over on itself ;) )

have a lok in the gallery


Looks a bit low


Some of the guys currently winning SQ have the tweets mounted even lower in the kickpanels



_________________

95 EF XR6 Manual
Pioneer, Oz Audio, Butler, Image Dynamics, Audison
MEASQ - Aust Champion Intermediate Class 2006
MEASQ - Vic Champion Intermediate Class 2007
MEASQ - Aust Champion Intermediate Class 2007
MEASQ - Aust Champion Expert Class 2008
MEASQ - Aust Champion Advanced Class 2011 (Shared)

Top
 Profile


Posted: Wed Mar 01, 2006 1:49 am
Getting Side Ways
Offline
User avatar

Posts: 1549

Joined: 27th Apr 2005

Gallery: 1 images

Ride: AU Fairmont Ghia

Location: Perth
WA, Australia

Sierra wrote:
Blu Falc wrote:
Gaz wrote:
mine are wedged up under the dash and zip tied to something :P drivers side is up udner the dash, jsut behind the fuse panel area i think.. passenger one is wedged behind the glove box. they sit there quite happily..

my tweeters are mounted on the kick panels with a custom bracket (bit of sheet metal bent over on itself ;) )

have a lok in the gallery


Looks a bit low


Some of the guys currently winning SQ have the tweets mounted even lower in the kickpanels


I wonder how they can get good imaging doing that
Top
 Profile


Posted: Wed Mar 01, 2006 7:55 am
Fordmods Audio and Turbo Expert
Offline
User avatar

Age: 37

Posts: 2121

Joined: 14th Dec 2004

Ride: FG Turbo Territoty Ghia

Location: Traralgon
VIC, Australia

It's all in the set-up, I have had A-pillar set-ups that sound great and Kickpanels that sound great and you'd swear the tweeter is mounted in the dash it sounds like that is where the suond is comming from.

Going back to A-pillar and dash board mounting for the new set-up i think though.



_________________


Pro Class
1st Super Tech - Summernats 2007
Australian SQ Champion - Am Show 2004
Australian SQ Champion – Pro Show 2006 & Best of Show
Ford Champion - Melbourne 2004 & 2006
451.5wkw - now SOLD

Top
 Profile


Posted: Wed Mar 01, 2006 4:20 pm
Getting Side Ways
Offline
User avatar

Age: 33

Posts: 832

Joined: 5th Nov 2004

Gallery: 7 images

Ride: EL Fairmont

Location: Brisbane
QLD, Australia

I mounted mine under the HU too actually,

previously had them cable tied behind glovebox/fuse panel somewhere

doors are bad. I bought my pioneer splits off a dude who had the crossovers in the doors and I had to remove and reco all the contacts for the speaker wire due to rust



_________________

too many rabbits in china

Top
 Profile


Posted: Wed Mar 01, 2006 8:54 pm
Tyre Shredder
Offline
User avatar

Age: 32

Posts: 330

Joined: 11th Nov 2004

Gallery: 17 images

Ride: BA XR6 turbo

Location: Canberra
ACT, Australia

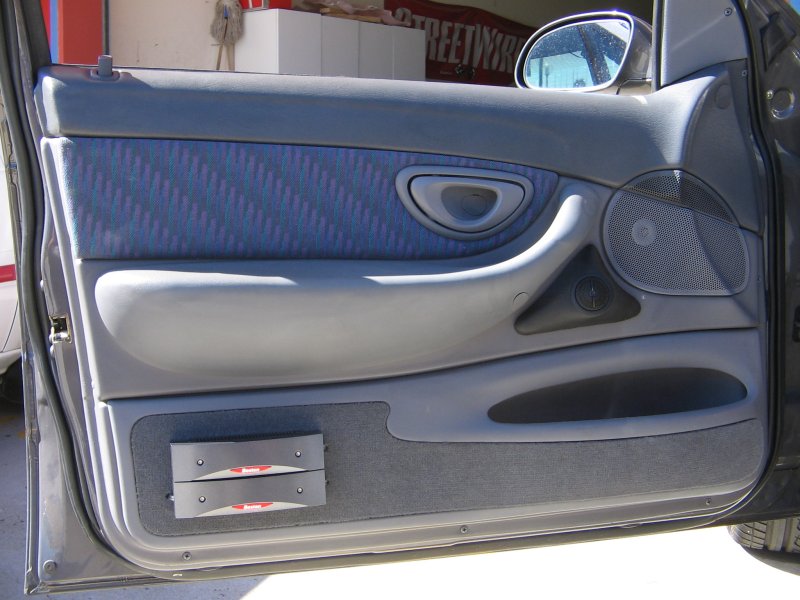

or in sted of hiding the crossover away u could make a show piece out of them like i have done. wont get wet something a bit differant if u like that kinda thing have fun.





Attachments:
Img_0385.jpg [ 82.51 KiB | Viewed 25 times ]



_________________

If you think life is bad. Imagine being a egg...you only get laid once, you only get smashed once and the only bird that sits on your face is your mum!

Top
 Profile


Posted: Wed Mar 01, 2006 11:27 pm
Fordmods Newbie
Offline

Age: 30

Posts: 4

Joined: 1st Mar 2005

Ride: EL Fairmont

Location: Melbourne
VIC, Australia

Thanks heaps for your help fellas. I was still thinking about mounting the crossovers in the doors but now i'll try and squeeze them under the h/u. The MB Quart crossovers are ridiculously huge.
xr Rob, your tweeter pods look awesome. How did you fabricate them and your boot moulds?
After seeing all the different places you guys have your tweeters i might actually mount them in the center of the woofers and see how the sound stage sits. Its easy enough to rip them out and try them in the a-pillars if i dont like it.
Top
 Profile


Posted: Thu Mar 02, 2006 12:47 am
Stock as a Rock
Offline
User avatar

Age: 57

Posts: 178

Joined: 3rd Aug 2005

Ride: Falcon XR6

Location: FTG
VIC, Australia

pyroay wrote:
Going back to A-pillar and dash board mounting for the new set-up i think though.


Haven't you decided where you are putting them yet Aaron?

Thought you'd have the new setup already finished by now :wink: :wink:



_________________

95 EF XR6 Manual
Pioneer, Oz Audio, Butler, Image Dynamics, Audison
MEASQ - Aust Champion Intermediate Class 2006
MEASQ - Vic Champion Intermediate Class 2007
MEASQ - Aust Champion Intermediate Class 2007
MEASQ - Aust Champion Expert Class 2008
MEASQ - Aust Champion Advanced Class 2011 (Shared)

Top
 Profile


Posted: Thu Mar 02, 2006 6:54 am
Fordmods Audio and Turbo Expert
Offline
User avatar

Age: 37

Posts: 2121

Joined: 14th Dec 2004

Ride: FG Turbo Territoty Ghia

Location: Traralgon
VIC, Australia

No undecided as yet. Around 300man hours into the boot and other area's and the front stage will be the last thing to be done since i want to have everything running and be able to hear where they sound best wplie moving them...

Wont be done for the first comp but definately done for Autosalon...



_________________


Pro Class
1st Super Tech - Summernats 2007
Australian SQ Champion - Am Show 2004
Australian SQ Champion – Pro Show 2006 & Best of Show
Ford Champion - Melbourne 2004 & 2006
451.5wkw - now SOLD

Top
 Profile
