 Post subject: EL Instalation amp and sub please help? newby
Posted: Thu Sep 24, 2009 10:44 pm
Fordmods Newbie
Offline

Age: 26

Posts: 10

Joined: 16th Apr 2009

Gallery: 1 images

Ride: EL Futura 1996

Location: Wodonga
VIC, Australia

Ive just installed sony xploid head unit to the standerd ford el speakers working perfect:)
i now have a amp and a sub to install and have no idea what i am ment to do ?
i have 800w pioneer amp
1300w sony xploid sub
all the wiring that is needed, i just need the brains haha
so please help any advice apreciated:)
thanks:)
Top
 Profile


 Post subject: Re: EL Instalation amp and sub please help? newby
Posted: Thu Sep 24, 2009 11:02 pm
Getting Side Ways
Offline
User avatar

Age: 35

Posts: 963

Joined: 14th Jul 2007

Gallery: 3 images

Ride: AU fairmont ghia

Location: Back in
ACT, Australia

what gauge wiring do you have? if your a noob at wiring amps better book in at audio shop, shouldnt cost more then $100, safer than tryin to do yourself...



_________________

AU FAIRMONT GHIA: 5.0 Dealer ordered SVO mods ( seeking clarification ATM), tickford suspension.

Top
 Profile


 Post subject: Re: EL Instalation amp and sub please help? newby
Posted: Fri Sep 25, 2009 1:28 pm
Parts Gopher
Offline

Age: 26

Posts: 72

Joined: 2nd Jul 2009

Ride: Ford EL wagon, el xr8

Location: Adelaide
SA, Australia

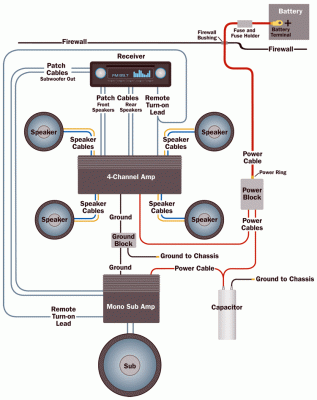

if ya don't have the cash tho its pretty simple to do just check out the pic and look at the sub and amp wiring.





Attachments:
amp_wiring_diagram_lg.gif [ 97.84 KiB | Viewed 267 times ]
Top
 Profile


 Post subject: Re: EL Instalation amp and sub please help? newby
Posted: Fri Sep 25, 2009 2:51 pm
Getting Side Ways
Offline

Age: 26

Posts: 1109

Joined: 4th Sep 2009

Ride: 92 EB s

Location: DORRIGO
NSW, Australia

Make sure you disconnect the battery before doing anything... simple but a lot of people don't do it. Bye bye amp.
Top
 Profile


 Post subject: Re: EL Instalation amp and sub please help? newby
Posted: Fri Sep 25, 2009 3:05 pm
Getting Side Ways
Offline
User avatar

Age: 30

Posts: 3184

Joined: 8th Nov 2004

Gallery: 6 images

Ride: EF Falcon

Location: Townsville
QLD, Australia

EFNA wrote:
what gauge wiring do you have? if your a noob at wiring amps better book in at audio shop, shouldnt cost more then $100, safer than tryin to do yourself...


thats not the spirit!! only one way to learn.


wiring amps is a piece of piss.

blue trigger cable from the back of your head unit goes to the trigger input on your amp.
Run red power cable from your positive battery terminal, through a fuse (which you want as close as you can to the battery, this minimises chances of a short happening before the fuse) to your +12v terminal on your amp
Black ground cable goes from GND terminal on amp to any where on the body of the car. You can put it under an existing ground bolt (like near the tail lights in the boot for example), or drill a hole and put a bolt through it. what ever you do, make sure the area that you clamp the ground cable down onto is clean and paint-free (sand it back)

Hook +ve output from amp up to red on sub. hook -ve from amp to black on sub.

voila!

now go and enoy your favourite music with added bass



_________________

Nicco's M112 Blown, T-56 equipped EF
forums/viewtopic.php?t=68319

Top
 Profile


 Post subject: Re: EL Instalation amp and sub please help? newby
Posted: Fri Sep 25, 2009 6:41 pm
Getting Side Ways
Offline
User avatar

Age: 33

Posts: 3885

Joined: 6th Nov 2004

Gallery: 24 images

Ride: BF MKII XR6 Turbo

Location: Victor Harbor
SA, Australia

Yeah i agree with nicco lol, ive installed my amp/sub in my car twice and in other peoples and both times i managed to learn new tricks to make things better for next time :) It is easy once you do it for the first time.



_________________

Image -BF MKII XR6 Turbo in EGO-

Top
 Profile


 Post subject: Re: EL Instalation amp and sub please help? newby
Posted: Tue Sep 29, 2009 12:16 am
Fordmods Newbie
Offline

Age: 26

Posts: 10

Joined: 16th Apr 2009

Gallery: 1 images

Ride: EL Futura 1996

Location: Wodonga
VIC, Australia

thanks for the help guys all good workin
sounds mad
thanks again for the top info!
cheers:D
Top
 Profile


 Post subject: Re: EL Instalation amp and sub please help? newby
Posted: Thu Oct 01, 2009 2:25 pm
Stock as a Rock
Offline

Age: 25

Posts: 176

Joined: 29th Aug 2009

Ride: el gli, ed xr6 and el classic

its not that hard mate...
you dont need to pay to do it..
just look at that diagram u got given and work of that
Top
 Profile


 Post subject: Re: EL Instalation amp and sub please help? newby
Posted: Tue Oct 27, 2009 6:09 pm
Getting Side Ways
Offline
User avatar

Age: 45

Posts: 582

Joined: 20th Nov 2004

Ride: xr6

Location: Brisbane
QLD, Australia

A couple of bits of advice for a novice, don't forget the fuse at the battery, disconnect the ground from the battery before you start, and the main thing before drilling and screwing into the car make sure you check behind what you are drilling or screwing, you don't want to drill into the fuel tank or a brake line etc.
As for the rest, take your time, make sure the cables don't pass through or over sharp metal edges and secure the cables so they can't flop around and rub on something.....



_________________

Do it once, Do it right!!!!!!

Top
 Profile


 Post subject: Re: EL Instalation amp and sub please help? newby
Posted: Tue Oct 27, 2009 6:25 pm
Stock as a Rock
Offline

Age: 26

Posts: 120

Joined: 31st Aug 2006

Gallery: 4 images

Ride: 97 el xr6 ,97 el xr6

Location: melbourne
VIC, Australia

hey dude on the els if u look at the fire wall on drivers side theres a rubber gromit with a cable goin threw it may b lil diff depending on auto or manual i managed to get 0 gauge threw it i taped the 0 gage to some wire and pulled it threw, then u decide what side ur gonna run your wires and take off the bottem door plastics and tuck it under your carpet up against the seal and run your remote wire , take out the back seat, wen u fold you bak seats down the carpet unclips and run your wires under the carpet, i hooked me earth to the fold down seat bolts witch are hidden and sand around the bolt to bare metal, make sure u fuse in the bonnet your power cable, wen u hook it al up turn down the gain unless u want stuff to blow up and get some 1 who nos wat they r doin to tune your amps and hook up the wires cheerz mate need more details msg me im off to work sorry bout rushing this
