Fully sealed door pods for 6inch speakers.



Page 1 of 1 [ 9 posts ]


 Post subject: Fully sealed door pods for 6inch speakers.
Posted: Sun Jan 04, 2009 11:41 pm
Getting Side Ways
Offline

Posts: 6449

Joined: 11th Nov 2004

I need to replace the door speakers in my Patrol.
as it sees most of it's time off road, the last ones suffered from dust and water damage.

Any sizes for volume of the box that need to kept in mind?
Or does anyone know of premade gear to do the job?



_________________

PERMANENTLY BANNED

Top
 Profile


Posted: Sun Jan 04, 2009 11:44 pm
Getting Side Ways
Offline
User avatar

Age: 28

Posts: 5889

Joined: 2nd Mar 2006

Gallery: 5 images

Ride: '14 Grand Cherokee

Location: Port Lincoln
SA, Australia

can you put up some pics of your door speakers?

my GQ has the worst sounding speakers ever and wouldnt mind upgrading to 6''.

just a thought, what about Fusion Marine speakers?

i think they are waterproof for boats etc.



_________________

11/93 ED OPT20 GLi | Full Boat Spec

Top
 Profile


Posted: Sun Jan 04, 2009 11:50 pm
Getting Side Ways
Offline

Posts: 6449

Joined: 11th Nov 2004

the last guy just cut holes in the door panels and crewed them on.
which is why i have a problem.
Dust is the biggest problem.

i have some Eclipse 40w rms 3way speakers here. (left overs that never made it to the other car)



_________________

PERMANENTLY BANNED

Top
 Profile


Posted: Mon Jan 05, 2009 1:30 am
Getting Side Ways
Offline
User avatar

Age: 28

Posts: 2515

Joined: 27th Mar 2006

Gallery: 1 images

Ride: FG MkII Xr6t Ute

Location: Brisbane
QLD, Australia

Seeing as its not to be used for competitions/as a high level SQ system I would say just make a sealed enclosure as big as possible within reason, as its unlikely you will go too large within your door.

If you make it say approx 7inx7in square around the speakers and then as deep as you can before intruding on the window (I'm guessing maybe an inch?) it should be fine and isn't too impractical. I would use pretty thin wood, just make sure you use max bond or another strong glue (maybe a few very very thin nails if you don't think it will split the wood). Then seal it to the inside of the trim.

You don't wanna have it too small and choke the speaker, but at the same time it obviously has to be practical.



_________________

EVL098 wrote:
Cramping in the hand from having it on your Wang for an excessive period of time is a definate con.
Seriously do people google "f**k up modifications for Fords owned by Jews" and get linked straight to this site nowadays?

AU,factory fitted tickford kit/IRS, t5,Sports ryder/KYB: gone.

Top
 Profile


Posted: Mon Jan 05, 2009 7:35 pm
Getting Side Ways
Offline

Posts: 6449

Joined: 11th Nov 2004

this is going to be an interesting setup.

I just pulled one fo the speakers out to see how much room i had to play with.

Well, I have none. There is rub marks on the back of the magnet where the window mechanism has been touching it.

I'm going to have to build the speakers out by about 25mm, make the box as deep as i can (it will be just enough to clear the magnet) and as long as i can. (limited by the bottom of the door.

What would be the ideal volume of an enclosure for a 6.5inch speaker.
model is Eclipse SE8365



_________________

PERMANENTLY BANNED

Top
 Profile


 Post subject: Re: Fully sealed door pods for 6inch speakers.
Posted: Fri Jan 30, 2009 12:02 am
Oompa Loompa
Offline
User avatar

Age: 49

Posts: 34

Joined: 29th Jan 2009

Gallery: 5 images

Ride: XA Falcon / EA Falcon

Location: yarra glen victoria
VIC, Australia

tickford_6 wrote:
I need to replace the door speakers in my Patrol.
as it sees most of it's time off road, the last ones suffered from dust and water damage.

Any sizes for volume of the box that need to kept in mind?
Or does anyone know of premade gear to do the job?

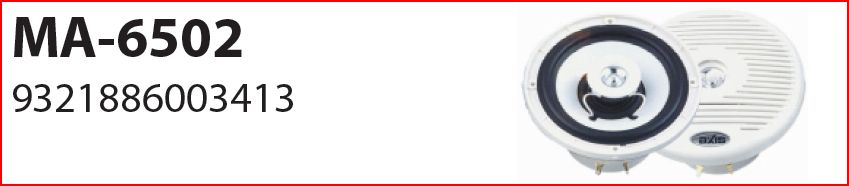

These speakers are for 4x4 and Boats
We have used them for 4x4s all the time
Water proof / dust proof verry durable
avaliable Australia wide from our wearhouses
Attachment:
Marine6inch.JPG [ 29.72 KiB | Viewed 78 times ]

Enclosure would need to be at least 1 Litre Vol 1.5 Litre vol max
once boxed woofer range would be limited to 90 htz and above
anything bellow may distort for any 6" in a box pod on a door
any smaller would need a 1" or 2" port

Parrot
22 years in car audio instalation
http://www.rlsnell.20m.com
http://www.autowreck.com.au
http://z3.invisionfree.com/APV/index.php?
http://www.youtube.com/user/parrotscaraudio
Top
 Profile


 Post subject: Re: Fully sealed door pods for 6inch speakers.
Posted: Sat Jan 31, 2009 2:20 pm
Getting Side Ways
Offline

Posts: 6449

Joined: 11th Nov 2004

I ended up using some heavy duty plastic sheet behind the speaker.
seems i need a new head unit now though, windscreen might be leaking, or a slightly rusted firewall has leaked into the dash



_________________

PERMANENTLY BANNED

Top
 Profile


 Post subject: Re: Fully sealed door pods for 6inch speakers.
Posted: Fri Feb 06, 2009 9:16 pm
Oompa Loompa
Offline
User avatar

Age: 49

Posts: 34

Joined: 29th Jan 2009

Gallery: 5 images

Ride: XA Falcon / EA Falcon

Location: yarra glen victoria
VIC, Australia

tickford_6 wrote:
I need to replace the door speakers in my Patrol.
as it sees most of it's time off road, the last ones suffered from dust and water damage.

Any sizes for volume of the box that need to kept in mind?
Or does anyone know of premade gear to do the job?


Check these out Fully sealed or open into door
Attachment:
colt002_279x211.Jpeg [ 13.96 KiB | Viewed 1474 times ]

As I build the pods to suit speakers and Amp
and Driving Conditions

Last edited by parrotscaraudio on Fri Feb 06, 2009 9:23 pm, edited 1 time in total.

Top
 Profile


 Post subject: Re: Fully sealed door pods for 6inch speakers.
Posted: Fri Feb 06, 2009 9:20 pm
Oompa Loompa
Offline
User avatar

Age: 49

Posts: 34

Joined: 29th Jan 2009

Gallery: 5 images

Ride: XA Falcon / EA Falcon

Location: yarra glen victoria
VIC, Australia

tickford_6 wrote:
I ended up using some heavy duty plastic sheet behind the speaker.
seems i need a new head unit now though, windscreen might be leaking, or a slightly rusted firewall has leaked into the dash

For 4x4 and off road use and avaliable Australia wide
Attachment:
AX-904-Marine.JPG [ 78.91 KiB | Viewed 61 times ]

MARINE QUALITY MP3 CD PLAYER RECEIVER
Wax Coating on Circuit boad
• CDC Controller • Water Resistant Design
• For Marine/Truck/Mining/Vehicle Application
• LCD Contrast to adjust Viewing Angle (Great for overhead consoles!)
• MP3/CD/CDR/CDRW Playback • Remote Control
• Xtreme Tuner 18FM/12AM Presets • Seek/Scan
• Audio DSP • 2 Channel Adjustable Subwoofer Control
• ESP • RCA AUX in • 4ch RCA Out - 5 Volt • 45Wx4ch
