 Post subject: My Sq (Non-competition) system so far!!
Posted: Tue Mar 21, 2006 5:53 pm
Getting Side Ways
Offline
User avatar

Age: 45

Posts: 582

Joined: 20th Nov 2004

Ride: xr6

Location: Brisbane
QLD, Australia

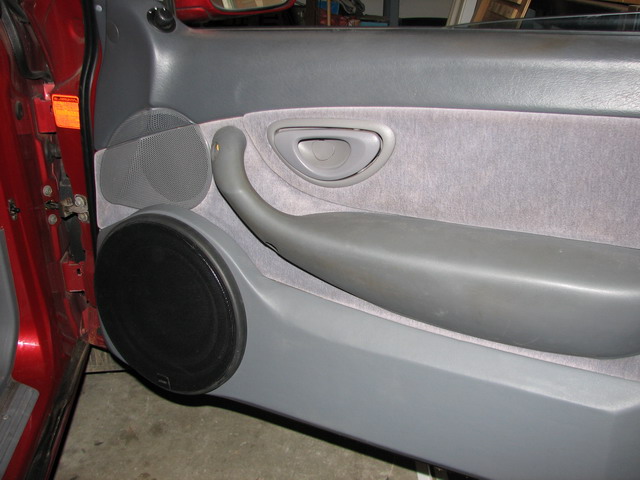

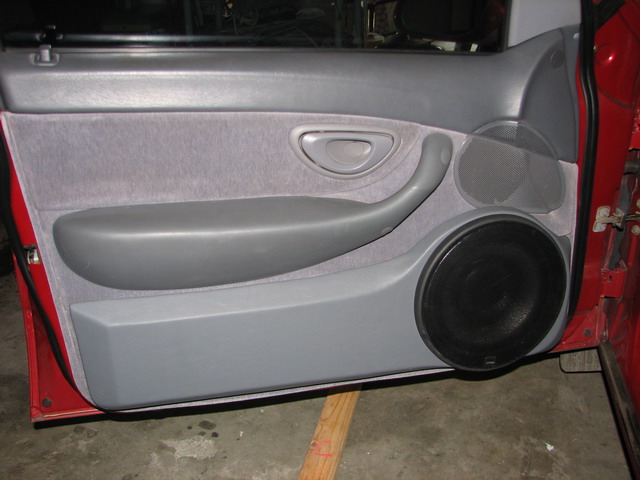

My Sq system is almost finished. I have experimented with different speaker locations and speaker systems and have finally found a system that works well when my wife and I are both in the car. Kick panel mountings was first tried but thats no good when the missus gets in with her handbag so that was no good. I then tried the factory locations with my long time favourite Kef splits but the bias was too strong to the drivers side, I then tried a set of Kef uniq's in the factory door locations and that worked tremedously well but they don't have the midbass that I yearn for so I had to put in my Canton rs 3.28's. This is a 3 way set with 1's, 5's and 10's running passive. So using the factory locations for the mids, the tweeters in the sails and the midbass in the lower half of the door it all works well.
The door trims can be returned to original with no marks at all and with the sound damping required for the 10's the door even sounds more solid even when you close it.

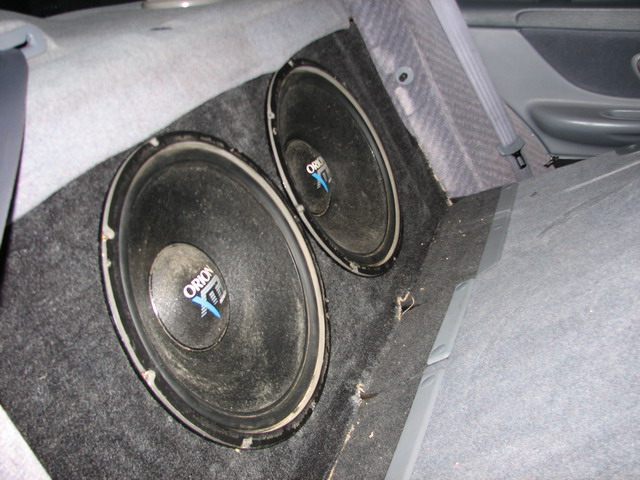

I have some more testing to do with the 15's getting them to work properly through the rear seat, I may have to remove some of the metal from the seat back yet. What have others done regarding this???
ANy way I should get the sails done in the next week or so and I will post some pics if they turn out ok.
I would be interested in others comments if they can suggest some improvements before it is finished.
Thats it for the moment, Outlawxr6...





Attachments:
IMG_1819_resize.JPG [ 106.81 KiB | Viewed 34 times ]
IMG_1763_resize.JPG [ 78.54 KiB | Viewed 26 times ]
IMG_1762_resize.JPG [ 77.48 KiB | Viewed 26 times ]



_________________

Do it once, Do it right!!!!!!

Top
 Profile


Posted: Tue Mar 21, 2006 7:06 pm
Getting Side Ways
Offline

Age: 31

Posts: 3893

Joined: 15th Nov 2004

Gallery: 24 images

Ride: BF MKII V8 Fairmont Ghia

Location: Perth
WA, Australia

looks good mate..

jsut a question, is it not at all bad to have subs pushed flush againt seats? doesnt damage them in anyway? i need a boot install that gives me more room back ;)



_________________

2007 Steel BF Ghia MKII V8 - 19" GTP's + Superlows

Top
 Profile


Posted: Tue Mar 21, 2006 7:13 pm
Getting Side Ways
Offline
User avatar

Age: 45

Posts: 582

Joined: 20th Nov 2004

Ride: xr6

Location: Brisbane
QLD, Australia

The subs just touch the carpet on the rear of the seat. It isn't ideal so I will be moving it all back about 10mm just to give it a little bit of clearance.
Cheers, Outlawxr6....



_________________

Do it once, Do it right!!!!!!

Top
 Profile


Posted: Tue Mar 21, 2006 7:22 pm
Getting Side Ways
Offline

Age: 65

Posts: 971

Joined: 11th Jan 2005

Ride: BA MK11

Location: West Melbourne
VIC, Australia

Outlaw,I have a system in my car,probably nothing like yours, but please inform me of the meaning of SQ,and what are sails?



_________________

The older I get the better I was!

Top
 Profile


Posted: Tue Mar 21, 2006 7:53 pm
Getting Side Ways
Offline
User avatar

Age: 45

Posts: 582

Joined: 20th Nov 2004

Ride: xr6

Location: Brisbane
QLD, Australia

Hi, Sq means sound quality as opposed to Spl which is sound pressure level or sound quantity.
Sails are the name for the panel that sits in the forward corner of the front window. In the El there is a plastic panel that sits in this location and is certainly big enough to mount a tweeter on axis to give the best possible sound from this location.
Hope this helps you some....



_________________

Do it once, Do it right!!!!!!

Top
 Profile


Posted: Tue Mar 21, 2006 8:33 pm
Getting Side Ways
Offline

Age: 65

Posts: 971

Joined: 11th Jan 2005

Ride: BA MK11

Location: West Melbourne
VIC, Australia

Thanks Outlaw,I am more knowledgeable,about sound systems in cars.Cheers.



_________________

The older I get the better I was!

Top
 Profile


Posted: Tue Mar 21, 2006 9:47 pm
Getting Side Ways
Offline
User avatar

Age: 45

Posts: 582

Joined: 20th Nov 2004

Ride: xr6

Location: Brisbane
QLD, Australia

We should learn something everyday, as they say in the classics!!!!!



_________________

Do it once, Do it right!!!!!!

Top
 Profile


Posted: Tue Mar 21, 2006 9:59 pm
Getting Side Ways
Offline

Age: 37

Posts: 775

Joined: 27th Nov 2004

Ride: BA XT Series 2

Location: Cairns
QLD, Australia

WOW how many sets of speakers have you got?



_________________

Stage 1 stereo install done. Pics in audio section.
Next step is probably a nice exhaust or stage 2 stereo.

Top
 Profile


Posted: Tue Mar 21, 2006 10:02 pm
Fordmods Addict
Offline
User avatar

Age: 31

Posts: 7958

Joined: 1st Jun 2005

Gallery: 13 images

Ride: Falcon

Power: 237 rwkw

Location: Melbourne
VIC, Australia

Looks like an awesome setup outlawxr6.
Out of interest, if you plan on moving the subs, you should try facing them the other way, towards the boot.
I have my (admittedly s**t :P) sony 12" facing rearwards, with the phase reversed.
This works well in my situation (LPG tank in boot)



_________________

ED XR8 Sprint - S-Trim, V500, 249rwkw
BF MKII F6 Tornado - 237rwkw

Top
 Profile


Posted: Tue Mar 21, 2006 11:31 pm
Fordmods Junkie
Offline
User avatar

Posts: 11738

Joined: 17th May 2005

Gallery: 11 images

Ride: EL Fairmont, VFR400 racer

Power: 144 rwkw

Location: Melbourne
VIC, Australia

looks good there mate =D i have my 10" sub where u have ur 2 15s and doesnt seem to hit the back of the seat. mainly becos i use the exisitng holes to hold the MDF and speakers in place and that is about 5 to 10 cm away from the seats. u might want to give that a try.

phong =P~

here is an image




_________________

phongus = Post whore 2006
EL XR6 motor, EL ECU + J3 chip, WADE 1673 Camshaft, 3" S/S intake, Pacy 4480, 2.5" Hi flow cat, 2.5" Lukey exhaust.
Max Power = 144.6 rwkw (03/05/2008)

Top
 Profile


Posted: Wed Mar 22, 2006 12:05 am
Getting Side Ways
Offline
User avatar

Age: 27

Posts: 889

Joined: 23rd Aug 2005

Gallery: 1 images

Ride: 1984 XE Falcon

Location: South East Melb
VIC, Australia

phongus wrote:
looks good there mate =D i have my 10" sub where u have ur 2 15s and doesnt seem to hit the back of the seat. mainly becos i use the exisitng holes to hold the MDF and speakers in place and that is about 5 to 10 cm away from the seats. u might want to give that a try.

phong =P~

here is an image



your install is kick a**
Top
 Profile


Posted: Wed Mar 22, 2006 12:32 am
Fordmods Junkie
Offline
User avatar

Posts: 11738

Joined: 17th May 2005

Gallery: 11 images

Ride: EL Fairmont, VFR400 racer

Power: 144 rwkw

Location: Melbourne
VIC, Australia

thanks =D i just want something with more bass....like ur 15s =D urs is going along well. it might be a bit harder for u to push ur subs back since u have 2 15s. good luck with it and once its in full form im sure it'll be a great SQ system

phong =P~



_________________

phongus = Post whore 2006
EL XR6 motor, EL ECU + J3 chip, WADE 1673 Camshaft, 3" S/S intake, Pacy 4480, 2.5" Hi flow cat, 2.5" Lukey exhaust.
Max Power = 144.6 rwkw (03/05/2008)

Top
 Profile


Posted: Wed Mar 22, 2006 12:53 am
Getting Side Ways
Offline

Age: 31

Posts: 3893

Joined: 15th Nov 2004

Gallery: 24 images

Ride: BF MKII V8 Fairmont Ghia

Location: Perth
WA, Australia

so there is no issue havin the subs so close to the seats? thought it would have a detrimental effect not having as much air volume to push?

then again i know jack about car audio ;)

might have to go remake my sub box and cut it down from its ~3.5c/f ported state :)



_________________

2007 Steel BF Ghia MKII V8 - 19" GTP's + Superlows

Top
 Profile


Posted: Wed Mar 22, 2006 1:59 am
Fordmods Junkie
Offline
User avatar

Posts: 11738

Joined: 17th May 2005

Gallery: 11 images

Ride: EL Fairmont, VFR400 racer

Power: 144 rwkw

Location: Melbourne
VIC, Australia

Gaz wrote:
so there is no issue havin the subs so close to the seats? thought it would have a detrimental effect not having as much air volume to push?

then again i know jack about car audio ;)

might have to go remake my sub box and cut it down from its ~3.5c/f ported state :)


i think non ported sub boxes may have a problem with the subs facing the back seat. but in my case there isnt a problem since my sub is a Free-Air sub so im using my boot as my box saving a whole lotta space. but if u have a ported sub box i think it wont cause any trouble facing the subs behind the seats. correct me if im wrong anyone......

phong =P~



_________________

phongus = Post whore 2006
EL XR6 motor, EL ECU + J3 chip, WADE 1673 Camshaft, 3" S/S intake, Pacy 4480, 2.5" Hi flow cat, 2.5" Lukey exhaust.
Max Power = 144.6 rwkw (03/05/2008)

Top
 Profile


Posted: Wed Mar 22, 2006 8:04 pm
Getting Side Ways
Offline
User avatar

Age: 45

Posts: 582

Joined: 20th Nov 2004

Ride: xr6

Location: Brisbane
QLD, Australia

EFfalconsrule, I only have 1 set of 3 way splits which is 6 drivers plu the 2 15's
Steady ED, as my 15's are running free air that would be a little difficult requiring a lot of fabrication but may be worth looking at.
I have a little bit more exprimentation to do yet regarding the subs but the fronts are pretty well nailed now just need to make up the permanant mounts for the tweeters and trim them......



_________________

Do it once, Do it right!!!!!!

Top
