Which wire is what on stock EL Falcon GLI tapedeck headunit?



Page 1 of 1 [ 6 posts ]


 Post subject: Which wire is what on stock EL Falcon GLI tapedeck headunit?
Posted: Thu Apr 05, 2007 12:42 pm
Stock as a Rock
Offline

Posts: 164

Joined: 10th Feb 2005

Ride: falcon gli

Location: Melbourne
VIC, Australia

Gday, i have a 70's bmw with no radio, and i found my old EL tape deck sitting in the garage so i decided i will install it in the BM.

I had a look at the "Falcon/Fairmont/Fairlane" wireing diagram in the tech section, but the wires on my harness were of a different colour.

The other problem is that the BM only has power, antenna, ground and speakers, but i cant see that really being to much of an issue, just means i will have to turn the radio off manually, I will probably also have to jack the 12v accessory to the 12v constant.

Basically, just need to know what colour the battery +, ground, and 12v accessory are? I am only going to be using two speakers so i can just run them off the second harness (speakers only i think)

Thanks
Top
 Profile


Posted: Fri Apr 06, 2007 12:51 pm
Getting Side Ways
Offline

Age: 37

Posts: 1500

Joined: 14th Nov 2004

Ride: Falcon

Location: SE Melb
VIC, Australia

Blue and white wire for powering up the unit.

Ground would be the black wire.

Blue and red for accessories.

I hope this helps.



_________________

Instant Karma is gonna get you!

Top
 Profile


Posted: Fri Apr 06, 2007 3:40 pm
Getting Side Ways
Offline
User avatar

Age: 45

Posts: 1953

Joined: 1st Feb 2006

Gallery: 25 images

Ride: BA on gas. EL on gas. XF on gas.

Location: Greenacres/Adelaide
SA, Australia

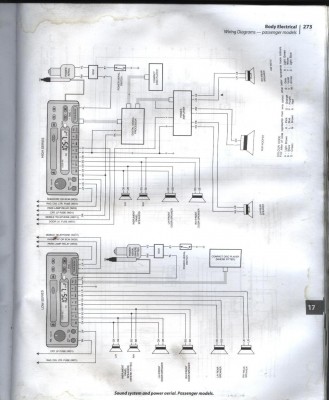

This might help.





Attachments:
EL Radio.jpg
EL Radio.jpg [ 240.92 KiB | Viewed 682 times ]



_________________

Member Number 8804

Top
 Profile


Posted: Fri Apr 06, 2007 9:53 pm
Getting Side Ways
Offline
User avatar

Posts: 3363

Joined: 27th Dec 2004

Gallery: 4 images

Ride: MCMXCV Falcon

Location: G town
VIC, Australia

also EL and EF have slightly different colouring

also theres 2 wires that are the same colour which makes hooking it up a bit tricky sometimes



_________________


Top
 Profile


Posted: Fri Apr 06, 2007 11:55 pm
Fordmods Newbie
Offline

Age: 28

Posts: 7

Joined: 17th Jul 2006

Location: werribee
VIC, Australia

what colour wires are on the back of the head unit ive done one recently but i forgot what colout wires are on the back of the ef/el head unit



_________________

frd_crzer

Top
 Profile


Posted: Fri Apr 13, 2007 1:47 am
Fordmods Newbie
Offline

Age: 52

Posts: 3

Joined: 20th Mar 2007

Ride: Falcon Futura EL

Location: Portland
VIC, Australia

Damn, I hate it when that happens. Turns out I had the wires the wrong way around. I erroneously assumed the thickest wire would be the main power wire (in this case it was the "LW" [blue/white]), while the thinner wire (the "BK" [black/pink]) would be the constant voltage wire. Apparently not. In a fit of pique I decided to switch them around and lo and behold, the unit still switched on but this time the settings were retained. Live and learn.

MadMatt wrote:
This might help.


That helped me a lot, especially since the official tech doc wire listing is different to that diagram. I have what you show, not what they list, which is where my problem occurs. I've just fitted an old Clarion DB125 CD-Tuner to my '98 Futura (no manual for the unit). I have it hooked up and playing but I'm stumped with finding a "constant power" wire. In the tech doc it says:

Quote:
Pin 4 - Dark Green / Yellow - Constant Battery Voltage (+ Positive power)


but I don't have it. All I have spare are the three wires under the "tune/seek" button in the diagram. I also have two spare wires coming from the head unit. I've tried various combinations but they do nothing to retain the settings... which is not surprising, since none of the three have power with or without ignition on.

Any advice would be greatly appreciated.
