 Post subject: DIY moding EB-ED tail lights
Posted: Mon Jan 11, 2010 5:30 pm
Smokin em up
Offline
User avatar

Age: 25

Posts: 278

Joined: 9th Dec 2009

Gallery: 2 images

Ride: Lookin for a EB or ED fairmont

Location: adelaide
SA, Australia

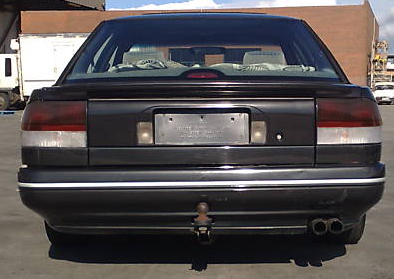

Sup peaple sorry if this has been posted else were but i wanna know how to remove the colored inserts in the tail lights.Example
Attachment:
Moded Back Lights.bmp
Moded Back Lights.bmp [ 322.65 KiB | Viewed 1684 times ]



_________________

Car got Crushed
R.I.P EB Fairmont 05/06/2010

Top
 Profile


 Post subject: Re: DIY moding EB-ED tail lights
Posted: Mon Jan 11, 2010 6:08 pm
Moderator
Offline

Posts: 14513

Joined: 7th Nov 2004

Ride: ford falcon au3 xr8

Location: a shit suburb in sydney
NSW, Australia

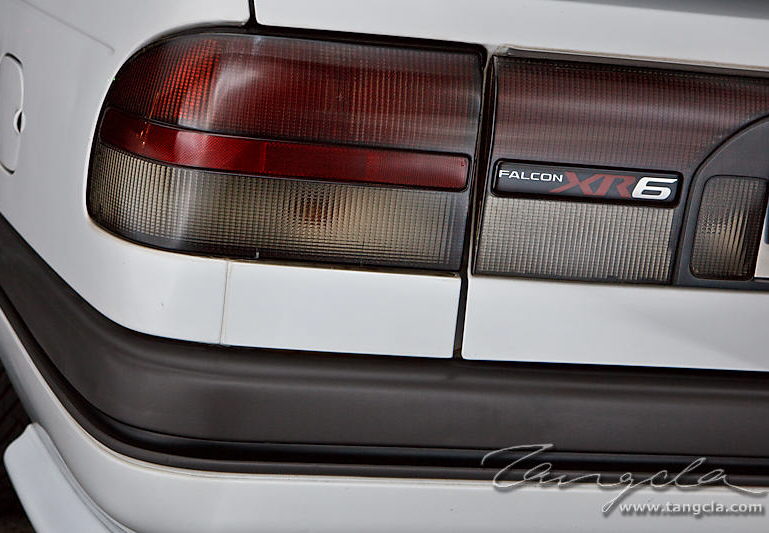

or like these...
Attachment:
IMG_9183_web.jpg [ 70.54 KiB | Viewed 185 times ]


if your inpatient dont do it because there is a large chance of damaging the lenses..
it took me about 2 hours on each light..

it involves cutting the backing away from the lenses,sometimes you can carefully lever the lens away but usually the lense will crack or break..

its best to use a thin cutting wheel on a dremel or heat up an old sharp knife with a gas torch and carefully cut between the lense and backing..
once the lense has been removed you remove the orange lense from the main lense, it might need a little light grinding on the lense edge to remove some of the factory glue..once the orange lense has been removed its just a matter of using a fine bead of sickaflex so stick the lense back on. hold it in place with tape overnight until dry and done...
and then you get orange replacement globes...
you can remove both the orange and red lenses if you want the full ricer look... :)
Top
 Profile


 Post subject: Re: DIY moding EB-ED tail lights
Posted: Mon Jan 11, 2010 6:25 pm
Smokin em up
Offline
User avatar

Age: 25

Posts: 278

Joined: 9th Dec 2009

Gallery: 2 images

Ride: Lookin for a EB or ED fairmont

Location: adelaide
SA, Australia

Thaks Soooo much. You have no idea how much i want to do this



_________________

Car got Crushed
R.I.P EB Fairmont 05/06/2010

Top
 Profile


 Post subject: Re: DIY moding EB-ED tail lights
Posted: Mon Jan 11, 2010 6:51 pm
Smokin em up
Offline
User avatar

Age: 25

Posts: 278

Joined: 9th Dec 2009

Gallery: 2 images

Ride: Lookin for a EB or ED fairmont

Location: adelaide
SA, Australia

HELP!!!! I just pulled the right one apart and my indicator is flashing fast and the rear one is not working



_________________

Car got Crushed
R.I.P EB Fairmont 05/06/2010

Top
 Profile


 Post subject: Re: DIY moding EB-ED tail lights
Posted: Mon Jan 11, 2010 7:11 pm
Smokin em up
Offline
User avatar

Age: 25

Posts: 278

Joined: 9th Dec 2009

Gallery: 2 images

Ride: Lookin for a EB or ED fairmont

Location: adelaide
SA, Australia

HELLO Any1 please help iv'e fuked it hardcore



_________________

Car got Crushed
R.I.P EB Fairmont 05/06/2010

Top
 Profile


 Post subject: Re: DIY moding EB-ED tail lights
Posted: Mon Jan 11, 2010 7:30 pm
Getting Side Ways
Offline

Age: 26

Posts: 1109

Joined: 4th Sep 2009

Ride: 92 EB s

Location: DORRIGO
NSW, Australia

Probably have blown a globe.
Top
 Profile


 Post subject: Re: DIY moding EB-ED tail lights
Posted: Mon Jan 11, 2010 7:31 pm
Smokin em up
Offline
User avatar

Age: 25

Posts: 278

Joined: 9th Dec 2009

Gallery: 2 images

Ride: Lookin for a EB or ED fairmont

Location: adelaide
SA, Australia

hope not i've got none



_________________

Car got Crushed
R.I.P EB Fairmont 05/06/2010

Top
 Profile


 Post subject: Re: DIY moding EB-ED tail lights
Posted: Mon Jan 11, 2010 7:44 pm
Fordmods Newbie
Offline

Age: 29

Posts: 9

Joined: 12th Oct 2008

Ride: eb gli, s13 silvia sr20det

Location: SA-ThA-DRiFT-StATe
SA, Australia

i have 2 set of lights 1 set was cracked so i broke the rest or the front off those than hacked the rear off the others and put the tow sets together i also gave the inside a light spray of niteshades look mean as.



_________________

My Toys
1989 N13 Langley 18le+turbo(first car will never sell)
1992 EB11 xr6 (crashed)Daily
1992 EB11 gli (swaping parts from xr6 )Daily
1993 S13 Silvia SR20 turbo (weekender)
1999 kawisaki kx 125 motocross bike
2001 yamaha yz 125 motocross bike

Top
 Profile


 Post subject: Re: DIY moding EB-ED tail lights
Posted: Mon Jan 11, 2010 7:47 pm
Getting Side Ways
Offline

Age: 25

Posts: 624

Joined: 7th Jul 2008

Location: Perth
WA, Australia

if its flashing fast one of the globes on that side doesnt work. you said the back one doesnt work so that would be my guess.

when changing globes try not to touch the glass with your fingers. i find they like to blow after that, dont know why that is tho
Top
 Profile


 Post subject: Re: DIY moding EB-ED tail lights
Posted: Mon Jan 11, 2010 8:23 pm
Getting Side Ways
Offline
User avatar

Age: 28

Posts: 3374

Joined: 11th Mar 2008

Ride: EA SVO, AU2 Forte

Location: Bendigo
VIC, Australia

TROYMAN wrote:
or like these...
Attachment:


if your inpatient dont do it because there is a large chance of damaging the lenses..
it took me about 2 hours on each light..

it involves cutting the backing away from the lenses,sometimes you can carefully lever the lens away but usually the lense will crack or break..

its best to use a thin cutting wheel on a dremel or heat up an old sharp knife with a gas torch and carefully cut between the lense and backing..
once the lense has been removed you remove the orange lense from the main lense, it might need a little light grinding on the lense edge to remove some of the factory glue..once the orange lense has been removed its just a matter of using a fine bead of sickaflex so stick the lense back on. hold it in place with tape overnight until dry and done...
and then you get orange replacement globes...
you can remove both the orange and red lenses if you want the full ricer look... :)



lol or just buy a clear set off ebay. ewww

i might try this now. so the orange is just a removable lense?



_________________

Daily driver: AU2. 5 speed. 19" FG luxos. Full exhaust. Lowered. AU3 XR leather interior, converted to full power windows. 3.45 LSD. IN THE FUTURE: Tickford 6
Weekend driver: EA SVO AU motor. Built BTR. TCE 2800 stall. T76 turbo. Locked diff. On E85. approx 320rwkw. 11.5 @121mph

Top
 Profile


 Post subject: Re: DIY moding EB-ED tail lights
Posted: Mon Jan 11, 2010 9:31 pm
Stock as a Rock
Offline
User avatar

Age: 36

Posts: 123

Joined: 31st Aug 2009

Gallery: 2 images

Ride: 2003 BA Falcon - XTC

Location: Parramatta / Newcastle
NSW, Australia

I wanted to do the other way (kinda). I wanted to put a red lense into my set of "altezzas". I spent three days trying to use a heat gun to get the things flexy enough to come apart. all I ended up doing was getting the s**t and destroying the casing of the passenger side one. I'm not patient enough for this s**t.



_________________


Meet Monty
My BA Falcon.

Top
 Profile


 Post subject: Re: DIY moding EB-ED tail lights
Posted: Mon Jan 11, 2010 9:50 pm
Getting Side Ways
Offline
User avatar

Age: 35

Posts: 963

Joined: 14th Jul 2007

Gallery: 3 images

Ride: AU fairmont ghia

Location: Back in
ACT, Australia

MiniSmurf wrote:
I wanted to do the other way (kinda). I wanted to put a red lense into my set of "altezzas". I spent three days trying to use a heat gun to get the things flexy enough to come apart. all I ended up doing was getting the s**t and destroying the casing of the passenger side one. I'm not patient enough for this s**t.


had the same idea, did some searching and turns out all the ricers are doin it with some kind of stain class window paint, same stuff as tail light tint.

never tried it but from what i read could be possibility



_________________

AU FAIRMONT GHIA: 5.0 Dealer ordered SVO mods ( seeking clarification ATM), tickford suspension.

Top
 Profile


 Post subject: Re: DIY moding EB-ED tail lights
Posted: Mon Jan 11, 2010 10:11 pm
Smokin em up
Offline
User avatar

Age: 25

Posts: 278

Joined: 9th Dec 2009

Gallery: 2 images

Ride: Lookin for a EB or ED fairmont

Location: adelaide
SA, Australia

Got it fixed Just flogged a bulb out my cousins VN calais :twisted: .Aahhhhhh sooo happy. :D :D :D :D :D :D



_________________

Car got Crushed
R.I.P EB Fairmont 05/06/2010

Top
 Profile


 Post subject: Re: DIY moding EB-ED tail lights
Posted: Mon Jan 11, 2010 10:45 pm
Getting Side Ways
Offline

Posts: 686

Joined: 26th Jul 2009

Ride: EF daily, xc project

Location: Park Central
NSW, Australia

MiniSmurf wrote:
I wanted to do the other way (kinda). I wanted to put a red lense into my set of "altezzas". I spent three days trying to use a heat gun to get the things flexy enough to come apart. all I ended up doing was getting the s**t and destroying the casing of the passenger side one. I'm not patient enough for this s**t.


be patient



_________________

ef falcon daily driver
78 xc falcon 500 project
http://www.fordmods.com/the-garage-f53/bradley4567-s-xc-t83750.html

calling an illegal alien an 'undocumented immigrant' is like calling a drug dealer an 'unlicensed pharmacist'

Top
 Profile


 Post subject: Re: DIY moding EB-ED tail lights
Posted: Mon Jan 11, 2010 11:37 pm
Getting Side Ways
Offline

Age: 34

Posts: 1166

Joined: 31st Mar 2005

Gallery: 2 images

Ride: ef falcon, el fairmont ghia

Location: Christchurch
New Zealand

yuk altezzas type light don't suit falcons
