 Post subject: electrics giving me tha s**t!!
Posted: Fri Jul 21, 2006 2:34 pm
Getting Side Ways
Offline
User avatar

Age: 34

Posts: 10826

Joined: 17th Apr 2005

Gallery: 34 images

Ride: BF MK11 XR 6 TURBO ZF 6spd

Power: 225 rwkw

Location: glenwood/sydney
NSW, Australia

hi everbody!!.. i baught a pair of the "cornering lamps for my EF Fairmont".. i wired them up so as to light up like a pair of spotties.. as in both at the same time.. not relying on the indicators to operate as is made by the factory.. To cut a long story short the lights work fine.. Have had the two negative wires from the lights wired up together n bolted onto the chassis for a nice earth.. then ive connected both the positive wires together n run a single red positive wire to the interior to a switch of which has another positve wire soldered into a "Yellow with blue stripes wire" coming off the ignition barrell...

The problem isnt the lights..-they work fine.. its just that when i start the car or are driving... there no power to the "Power windows/power mirrors/cd player/windscreen wipers..

The catch is when i switch the car off but leave the keys switched on as "ACCESSORYS" i have power to everything.. but when i turn the key one more notch to fire the engine i lose those electrical items... :shock: :? :oops: :cry: :(

Can anybody shed some light??

Im thinking of disconnecting the positive red wire out from underneath the steering wheel (ignition barrel) and redirecting it straight to the positive terminal on the battery..

Sorry for the long post but tryed to include every detail... :wink:



_________________

Todd: Nurse, suction.
Nurse: The patient's not even here yet.
Todd: I know.

http://www.youtube.com/watch?v=_GQpRYRcAiA

Top
 Profile


Posted: Fri Jul 21, 2006 2:49 pm
Getting Side Ways
Offline
User avatar

Age: 31

Posts: 4849

Joined: 19th Feb 2005

Gallery: 1 images

Ride: BA Falcon Suzy Across

Power: 178 rwkw

Location: melbourne
VIC, Australia

I think you should be using a relay, running it straight through a switch can burn it out and may be affecting other electrical components. How many watts are the lights? How thick is the wire your using. I can give you a diagram on how to wire it up if you give me the info.



_________________

178.3 rwkw
15.1@96 mph
Now with 3.9 shrooms

Top
 Profile


Posted: Fri Jul 21, 2006 3:25 pm
Getting Side Ways
Offline
User avatar

Age: 34

Posts: 10826

Joined: 17th Apr 2005

Gallery: 34 images

Ride: BF MK11 XR 6 TURBO ZF 6spd

Power: 225 rwkw

Location: glenwood/sydney
NSW, Australia

The globes inside the cornering lamps are stock... i pulled them out to have a look at what type they are and they appear to be the same ones as the "Stop lamps" in your tailights.. 21watts.. the wire i have used is at best 1mm thick.. ive used a simple toggle on/off switch..



_________________

Todd: Nurse, suction.
Nurse: The patient's not even here yet.
Todd: I know.

http://www.youtube.com/watch?v=_GQpRYRcAiA

Top
 Profile


Posted: Fri Jul 21, 2006 3:57 pm
Getting Side Ways
Offline
User avatar

Age: 31

Posts: 4849

Joined: 19th Feb 2005

Gallery: 1 images

Ride: BA Falcon Suzy Across

Power: 178 rwkw

Location: melbourne
VIC, Australia

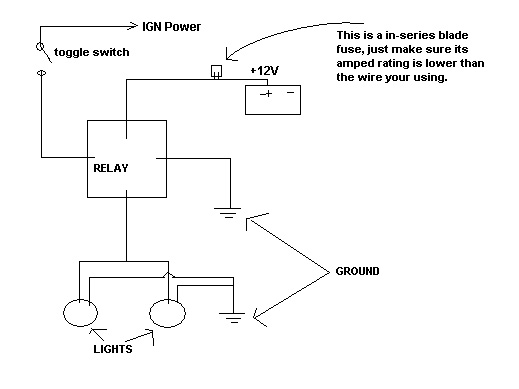

So they're 42 watts all up in parallel, they're drawing 3.5A. I'd use some thicker wires which you can pickup cheap at jay car. Also, i'd implement a relay and a fuse. The last thing you wanna do is risk frying car circuits or setting wires on fire. The relay effectively isolates the lights from the rest of your car circuit. (ps: in the diagram, the wires for the toggle switch need not be thick).
