HID headlights



Page 3 of 42 [ 628 posts ] Go to page Previous  1, 2, 3, 4, 5, 6 ... 42  Next


Posted: Mon Jul 04, 2005 8:22 pm
Smokin em up
Offline
User avatar

Posts: 281

Joined: 3rd May 2005

Location: Perth
WA, Australia

H.I.D. (High Intensity Discharge) Conversion Kits provide more than 300 percent the amount of light of a Halogen bulb. The clear white light produced by HID Conversion Kits is similar to daylight, reflecting road markings and signs better than conventional lighting.

The Xenon Bulb is a micro-discharge bulb filled with a mixture of noble gases including Xenon, and its life time of the bulb is equal to that of the car. The bulb has no filaments and the light arc is created by two electrodes, giving it a wider range of illumination. These Systems are modified for specific vehicle applications and fit directly into your existing headlights.
HID/xenon conversions can done to almost all vehicles. There are a few limitations which are the following. High/low bulbs (two filament bulbs such as H-4, 9007 will lose their ability for High beam. This is because the HID bulb is only a one beam bulb it can not function as a dual high/low beam. Only one or the other.
Installation of a kit could be done in less than 30 minutes or so.

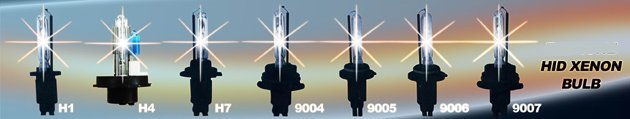

The attached pictures shows the different colours and bulbs available.
Also remember that if you have a dual headlight i.e. XR, if you install a kit only that headlight will have a white/blue beam, the other will still be the standard yellowish colour, unless you change it to a Blue "Xenon/Halogen" bulb.
Have fun,
mavs19





Attachments:
BULBS.jpg [ 17.59 KiB | Viewed 117 times ]
product_1a.jpg [ 8.5 KiB | Viewed 1700 times ]



_________________


Have fun,
mavs19

Top
 Profile


Posted: Mon Jul 04, 2005 8:32 pm
Getting Side Ways
Offline

Age: 40

Posts: 2015

Joined: 9th Mar 2005

Gallery: 4 images

Ride: Territory TX AWD & AUII XLS EGAS

Location: East Kurrajong
NSW, Australia

mavs19 wrote:
HID/xenon conversions can done to almost all vehicles. There are a few limitations which are the following. High/low bulbs (two filament bulbs such as H-4, 9007 will lose their ability for High beam. This is because the HID bulb is only a one beam bulb it can not function as a dual high/low beam. Only one or the other.


This information is old ... they have dual hi/low kits now ... I have a set in my car ... just gotta get the load across the circuit to switch it for me. When it is on highbeam it still covers the low-beam area too which is good

Quote:
Installation of a kit could be done in less than 30 minutes or so.


Well ... not if you have to pull the battery and airbox out like I had to ... it takes a little longer ... especially if you want to keep the wiring neat as well.

Quote:
Also remember that if you have a dual headlight i.e. XR, if you install a kit only that headlight will have a white/blue beam, the other will still be the standard yellowish colour, unless you change it to a Blue "Xenon/Halogen" bulb.


I know ... my 100W centre H1 highbeam Halogen globes are yellow/brown compared to my outer H4s ... and the highbeams are not brighter than my lowbeams either.

Can't really use the HIDs for the seperate H1s ... for 2 reasons ... they take a few seconds to warm up ... and they have a 2 second delay before turning off ... so if you flash someone ... they stay on for 2 seconds (too long if you want to flash someone ... and they don't warm up to full operating temp in time either).

Have fun,
mavs19[/quote]



_________________

04 Territory TX AWD - Winter White - optioned up
06 Falcon BFII XLS ute EGAS - Winter White - EGA-54D Version 2

Top
 Profile


Posted: Mon Jul 04, 2005 8:46 pm
Getting Side Ways
Offline

Age: 32

Posts: 972

Joined: 6th Feb 2005

Gallery: 6 images

Ride: XHII pano, Landau

Location: S.E Subs
VIC, Australia

May be a stupid question, but could you use these in spot lights? its a nice light for spot light shooting



_________________

Automatics only come in assult riffles
---------------------------------------
www.aussiecoupes.net

Top
 Profile


Posted: Mon Jul 04, 2005 8:46 pm
Getting Side Ways
Offline
User avatar

Age: 31

Posts: 11103

Joined: 15th Nov 2004

Ride: AU III XR8 Pursuit 250 ute

Location: Hobart
TAS, Australia

Mechan1k wrote:
Who sells the Narva kits to the public ... I might go and have a look and see if it is the same as my globes (if that's the case I know I can get them easily ... and they are readily available to the public.


Repco Auto Parts can sell the Narva kit, but chances of any store stocking them are next to none. They'd have to order it in.



_________________

Heaps of performance EF/L parts for sale, including supercharged VCT motor!

2002 Ford AU Series III Falcon XR8 Pursuit 250 ute - 5.6L of V8 Windsor!

Top
 Profile


Posted: Mon Jul 04, 2005 8:53 pm
Getting Side Ways
Offline

Age: 40

Posts: 2015

Joined: 9th Mar 2005

Gallery: 4 images

Ride: Territory TX AWD & AUII XLS EGAS

Location: East Kurrajong
NSW, Australia

OK ... I might see if they have a set in stock (fingers crossed they do) ... I'll let you know if I can get a gander at a kit.



_________________

04 Territory TX AWD - Winter White - optioned up
06 Falcon BFII XLS ute EGAS - Winter White - EGA-54D Version 2

Top
 Profile


Posted: Mon Jul 04, 2005 9:06 pm
Smokin em up
Offline
User avatar

Posts: 281

Joined: 3rd May 2005

Location: Perth
WA, Australia

You are correct, but that information is not old.
Even in the case of the Hi/Lo bulbs that you are referring to which you have installed in your vehicle the principal of how it works is the same.
And you should know that the ones you are referring to are called Bi-Xenon.
The problem with most Bi-Xenon bulbs are that not every manufacturer uses 2 Xenon bulbs in their kits, majority use a standard Halogen bulb with a blue tint for the Hi beam.

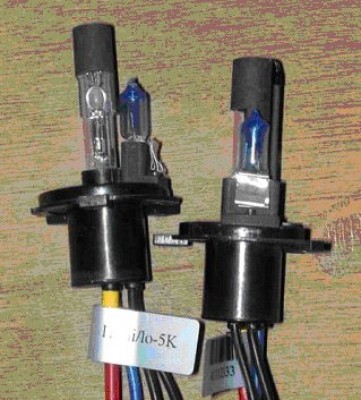

This picture should explain it better.

As to the timing, it all depends on how good and professional and well trained the person trying to install the kit is.
Probably most people will take more than 1.5 hours or so to do the installation.

The 2 seconds delay that you are referring to is the reason I suggested a "Xenon/Halogen" bulb.

Have fun,
mavs19





Attachments:
Hi.Lo.jpg [ 36.35 KiB | Viewed 48 times ]



_________________


Have fun,
mavs19

Top
 Profile


Posted: Tue Jul 05, 2005 12:08 am
Getting Side Ways
Offline
User avatar

Age: 33

Posts: 1097

Joined: 10th Nov 2004

Gallery: 10 images

Ride: GU patrol, XH XR6, Isuzu Mux

Location: Mackay
QLD, Australia

does any one make H4 HID, with boat fillements in the globe H4 bieng HID. so it could be used on ef fairmont / fairlane lights



_________________

' 96 Xh XR6 Ute
'96 DF LTD 6cy
'08 GU Nissan Patrol
'15 Isuzu MUX LST

Top
 Profile


Posted: Tue Jul 05, 2005 1:39 am
Getting Side Ways
Offline
User avatar

Age: 33

Posts: 3277

Joined: 5th Nov 2004

Gallery: 36 images

Ride: Ronald Mcdonald Mobile

Location: Sydney
NSW, Australia

well i have just been contacted from the seller via email and they should be on my doorstep tommorrow :)

and the old man has told me that its that Ebay one that he got.

i will show pics of the kit and results when i get them on



_________________

Gooooone - Eb2 Coon - 143RWKW
Now - Mazda MX5 with HKS Supercharger 190RWKW
Crescent Motorsport Liverpool - 9600 6229

Top
 Profile


Posted: Tue Jul 05, 2005 9:52 am
Getting Side Ways
Offline

Age: 40

Posts: 2015

Joined: 9th Mar 2005

Gallery: 4 images

Ride: Territory TX AWD & AUII XLS EGAS

Location: East Kurrajong
NSW, Australia

mavs19 wrote:
You are correct, but that information is not old.
Even in the case of the Hi/Lo bulbs that you are referring to which you have installed in your vehicle the principal of how it works is the same.
And you should know that the ones you are referring to are called Bi-Xenon.
The problem with most Bi-Xenon bulbs are that not every manufacturer uses 2 Xenon bulbs in their kits, majority use a standard Halogen bulb with a blue tint for the Hi beam.
This picture should explain it better.

As to the timing, it all depends on how good and professional and well trained the person trying to install the kit is.
Probably most people will take more than 1.5 hours or so to do the installation.

The 2 seconds delay that you are referring to is the reason I suggested a "Xenon/Halogen" bulb.

Have fun,
mavs19


Cool ... yeah mine is the Bi-Xenon kit actually.
I'll see if i can dig up the box and instructions from it (think i chucked it though)

I find my H1 blue tint highbeams still look very yellow compared to the HIDs. Also I found the halogen beam to be less powerful than the HID too ... that's why i chose the Bi-Xenon kit.

I had mine installed by an auto electrician at his place (mate of mine) ... he had all the equipment there ... it was just a case of removing the battery and the airbox to get ample room to mount the ballasts neatly ... and also hide the wiring.



_________________

04 Territory TX AWD - Winter White - optioned up
06 Falcon BFII XLS ute EGAS - Winter White - EGA-54D Version 2

Top
 Profile


Posted: Tue Jul 05, 2005 10:26 am
Stock as a Rock
Offline
User avatar

Age: 38

Posts: 183

Joined: 5th Apr 2005

Gallery: 5 images

Ride: NC fairlane + f150 4X4

Location: berwick
VIC, Australia

g'day cobbers

if the auto are the same as the industrial mercury vapour lighting (they sound very simmilar) flashing and dipping the lights will make the globe manufacturers very rich. think of the globes like your engine 80% of engine wear occours when they are warming up.
(70% of all statistics are made up but the theory's right.)

has anyone used higher wattage globes in the nc for high beams and are there heat issues.



_________________

If mistakes are the best way to learn why the hell arn't I a freekin genius yet.

I AM THE SPELLING KING BEHOLD MY
ineqati-inekwati-enequoati.....crapness!


Top
 Profile


Posted: Tue Jul 05, 2005 10:31 am
Getting Side Ways
Offline

Age: 40

Posts: 2015

Joined: 9th Mar 2005

Gallery: 4 images

Ride: Territory TX AWD & AUII XLS EGAS

Location: East Kurrajong
NSW, Australia

I found using the higher wattage globe in the AU for the High beam insert it gets quite warm (kinda hot) on the outer lens)

Not sure what it is like on the older models.

Does the NC fairlane have projectors for the lowbeam??? I think they do don't they? Now they'd be a good candidate for HIDs (perfect beam pattern for them)



_________________

04 Territory TX AWD - Winter White - optioned up
06 Falcon BFII XLS ute EGAS - Winter White - EGA-54D Version 2

Top
 Profile


Posted: Tue Jul 05, 2005 10:47 am
Getting Side Ways
Offline

Age: 33

Posts: 1494

Joined: 1st Dec 2004

Gallery: 2 images

Ride: BA MkII XT Wagon

Location: Maitland
NSW, Australia

i tihnk u will find anything over 4000k illegal, i tried buying 6000k globes from repco and autobarn and autopro and they said no, they dont carry them and wont order them in as they are illegal!



_________________


Top
 Profile


Posted: Tue Jul 05, 2005 10:53 am
Getting Side Ways
Offline
User avatar

Age: 33

Posts: 3277

Joined: 5th Nov 2004

Gallery: 36 images

Ride: Ronald Mcdonald Mobile

Location: Sydney
NSW, Australia

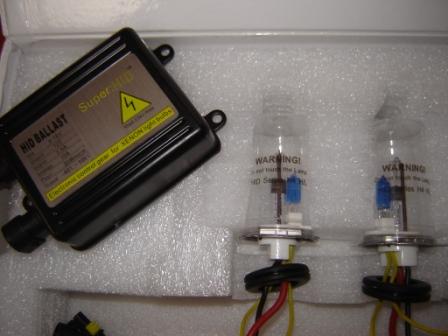

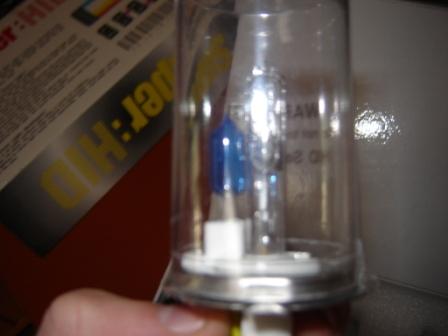

well my kit arrived today and it looks very simple to hook up.
heres some pics





Attachments:
DSC00339.JPG [ 16.16 KiB | Viewed 71 times ]
DSC00338.JPG [ 23.29 KiB | Viewed 68 times ]



_________________

Gooooone - Eb2 Coon - 143RWKW
Now - Mazda MX5 with HKS Supercharger 190RWKW
Crescent Motorsport Liverpool - 9600 6229

Top
 Profile


Posted: Tue Jul 05, 2005 10:54 am
Getting Side Ways
Offline
User avatar

Age: 33

Posts: 3277

Joined: 5th Nov 2004

Gallery: 36 images

Ride: Ronald Mcdonald Mobile

Location: Sydney
NSW, Australia

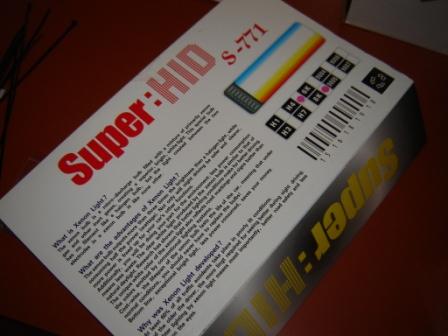

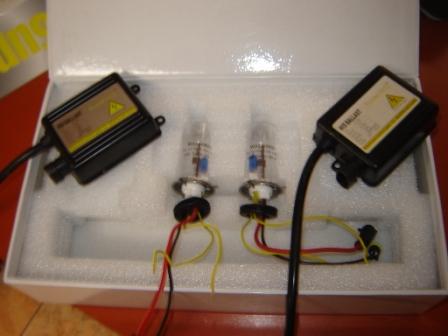

some more





Attachments:
DSC00341.JPG [ 19.69 KiB | Viewed 62 times ]
DSC00340.JPG [ 23.54 KiB | Viewed 71 times ]



_________________

Gooooone - Eb2 Coon - 143RWKW
Now - Mazda MX5 with HKS Supercharger 190RWKW
Crescent Motorsport Liverpool - 9600 6229

Top
 Profile


Posted: Tue Jul 05, 2005 10:55 am
Getting Side Ways
Offline

Age: 40

Posts: 2015

Joined: 9th Mar 2005

Gallery: 4 images

Ride: Territory TX AWD & AUII XLS EGAS

Location: East Kurrajong
NSW, Australia

That's the Xenon kit with Halogen highbeam
