I have mentioned this problem several times earlier.
This is a very common problem with most systems.
Also very easy to fix.
To fix this problem all you need to do is build a new sub-harness.

In the mean time guys dont push the hi beam leaver forward.

Thanks mav's ill be getting to werk

There you go. both same, page btu I've highlighted, the differences between the H4 equipped fairmont/fairlane lights, and the non-H4 (H1 low, H3 high) the others get.

So what do we need to sort out to fix the highbeam problem. I'm thinking it'll be around the "high/low beam switch" joining the GR wire to the O wire with a diode.

I believe I have mentioned how to fix this problem 3 or 4 times.
I mentioned diodes and relays..... so YES, you are absolutely correct.

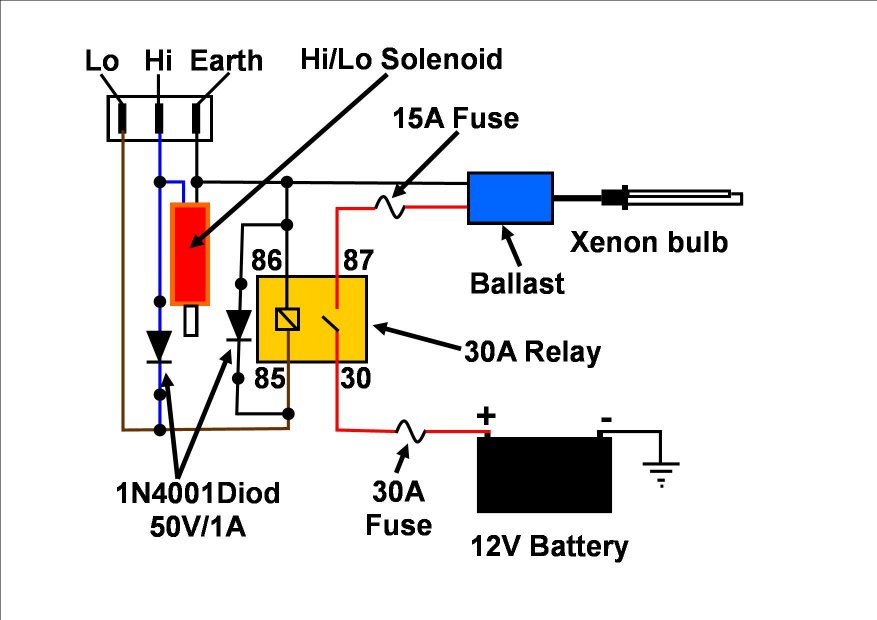

But, instead of cutting into your vehicles electrical harness. Just make a small sub-harness.
ONE for each side, in case the worst case scenario happens and something goes wrong, then hopefully only one side will be dead and you still got the other side to get you home.

See attached.
This sub-harness was designed for use with a bi-xenon projector retro, but in this case remove the solenoid bit.





Attachments:

01.jpg [ 60.88 KiB | Viewed 141 times ]

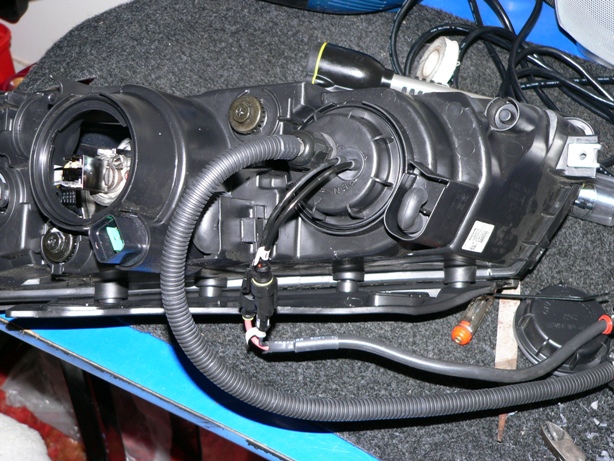

Every one elso was getting HIDs so i got a set for my sonata high beams 6000K , cost me $229 from E-bay the Kit was very easy to install everything was plug in. i know what you guys say about glare trhere is heaps more glare up higher. i regret not getting a set for the fairmont when i had her.

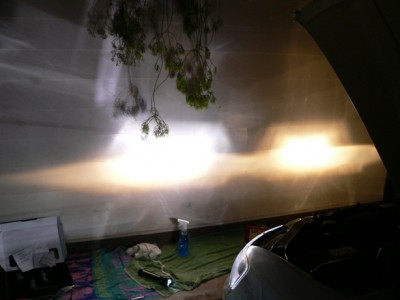

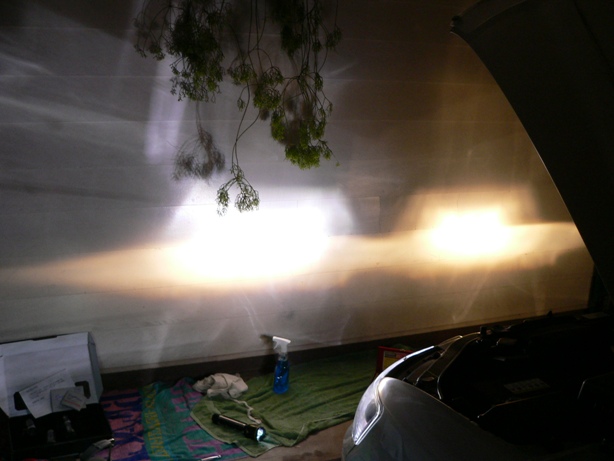

passanger high beam has HID in picture, huge difference in brightness.





Attachments:

P1000474a.JPG [ 173.24 KiB | Viewed 155 times ]

P1000466`1.JPG [ 84.51 KiB | Viewed 148 times ]

mmmmm god the colour of HID just gives me a wet patch!.. ohh woops, why not do the lows?

Im quite happy with the low beams thay are realy good. it just lacked a little distance in the high beam. maybe one day i will.

I got a problem with one of my globes mavs.. i was a d**k head and went up to york for a little drive one nyt and played with my hi beam to much.

one of my hids was flickering a bit but now she's gone, havent swaped them yet but the top of it near the nose cone looks a little darkened

Ouch.

Have you made the harness I posted or not?
That will help you to fix this problem and will save you any major costs of buying new bulbs and later on a ballast in future.

The only thing to do is to swap them and see what happens.
You may have cooked the salts in the bulb. So to say.

yeah i swapped them and i guess im luckythat its just the globe.. what do i do now to get a replacment? contact the ebay seller? or will any H4 Low only 8000k HID globe do? keeping in mind i may be able to use the old sheild

Try the eBay option first.
Many of the non major manufacturers do not have access to the best equipment and can not afford the best quality material in their production of bulbs. Which obviously is reflected in their cheap retail prices.
So start with asking the seller for a replacement due to faulty material. And tell him you are not sure if the other side will also have the same problem soon.
If you have any problems with the seller, take your case to eBay and ask for their help to resolve the situation.
If you purchased via PayPal you got a much better chance to get a refund. Then you can buy real good stuff.

In regards to IF ANY HID bulb will do or not.
If the bulb was manufactured by any of the major OEM manufacturers i.e. Philips, Osram, GE.... and the ballast was also made by Hella, Bosch, Valeo,.... you could mix and match them without any problems what so ever.

But, unfortunately, most of the after market systems have their own stuff and use different connectors between the bulb and ballast….
So, if you mix and match different manufacturers, they may not correspond with each other.
I would advise against using a different bulb with an after market ballast.

sweet got myself 2 replacment bulbs on the way from the seller. $100 set of 2x 8000k

Wow I have just read the whole 29 pages on HID's and I thankyou for the knowledge you have shared.

Mavs19 It has been a great read but you have got me interested in your retro fit of the BA with "AFS"

Would you be able to explain in some more detail about how the following "gizmos" as you say work

Self leveling
Dynamic Range Adjustment (is this the same as self leveling??)
Cornering Light System (Does this mean that the lights shift to the right and left depending on the corner??? or is it like the fairlane corner lamps that light up when you turn the indicator on)


I am not after detail function but in a few words like is the cornering done on some sort of gyro etc etc???

Again thanks for the great write up over the 29 pages. I have learnt a number of things about headlights due to this thread.

Samis, Thanks for your comments. I am glad that that my write up was helpful to you.

To your questions: (IN SHORT)

Self levelling: There are sensors in front and rear of the vehicle that read any movements that the vehicle makes horizontally.
i.e. If you take off, the nose of the vehicle is raised so therefore the projectors are lowered to compensate that movement to a set horizontal level.
Then if you brake the nose dives and the projectors are raised to a set level.
Dynamic Range Adjustment (is this the same as self leveling??)
No it is not but it works hand in hand with Self levelling system.
Once you have adjusted the beam pattern to it’s best possible position , both in length, width and height, The Dynamic Range Adjustment System keeps that setting despite any movement the vehicle may make. It sometimes overrides the Self Levelling System since the range in question in not reached. Sort of like Auto focus on a camera.
Cornering Light System (Does this mean that the lights shift to the right and left depending on the corner??? or is it like the fairlane corner lamps that light up when you turn the indicator on)
In this case it means that the lights move to a certain max degree (usually 15 degrees) to left and right with the steering wheel movements.

The cornering light on a Fairlane and many many other vehicles using that system works as a simple light bulb added to the indicator light of a vehicle but prior to the relay.
They come on after you turn on the indicator on to signal a left or right turn and stay on as long as the indicator is engaged.

Hope this answers your questions.

So, what are your plans or maybe what have you already done regarding HID on your vehicle?

Let me know if you need further info or advise.

I have always wanted to do HID Projector in my car purely for that extra amount of light you get with it.

I have converted a 5.25" sealed beam round headlights to a reflector H4 headlight and have been looking at converting that to a projector HID.

I will be retroing a set of AU and BA lights to projector HID down the track once I sort out the 5.25" round lights.

But after reading your thread I might look at converting the 5.25 to the reflector HID (maybe the Lexus RX330) which you posted a few pages ago. Just so the car keeps its normal look.

I need to get some measurements of the RX330 Headlights eg are the completely round as in the pics you uploaded earlier they look flat on one side. But you did say you had trimmed them. Will they fit in a 5.25" headlight etc etc

I am looking on ebay now for those refletor lights now.

I know you can buy 5.25" projector Hid for $500US but whats the fun in that.
