TS Bar/XB Bonnet/BA Rear/BA Wing EF Mont New Pics 10/6/07



Page 4 of 11 [ 165 posts ] Go to page Previous  1, 2, 3, 4, 5, 6, 7 ... 11  Next


Posted: Tue Sep 26, 2006 5:04 pm
Getting Side Ways
Offline
User avatar

Age: 34

Posts: 4307

Joined: 5th Nov 2004

Gallery: 9 images

Ride: EF Falcon XT-T

Location: Mornington Peninsula
VIC, Australia

Hmm... i didnt see those pics on the bottom of the 1st page.
i see you did have to raise it, looks incredibly tough on the car though.
IMO looks better then the BA XR ones due to the more squarish lines on the bar itself.



_________________

FALCN6 - EF GLi Turbo, 20" Rims, Air Bag Suspension, Straight LPG, 225rwkw
DTHWGN - EA GL Wagon, LTD Interior, Satin Black, 5.0, Turbo
RACER - EF Futura , 5.0, 5 Speed
PROJECT - 83 Thunderbird, Lowered, 18" Billet Wheels
DAILY - BA Fairmont Ghia 5.4 3V

Top
 Profile


Posted: Tue Sep 26, 2006 5:47 pm
Getting Side Ways
Offline
User avatar

Age: 32

Posts: 2833

Joined: 7th Nov 2004

Gallery: 4 images

Ride: Lincoln LS, MKII Escort, ED

Location: geelong
VIC, Australia

depending on the bar you use you can also plastic weld it, an 80W soldering iron (and good ventilation) works very well, along with some fiberglass on the rear to add strength



_________________

Because i can.

Top
 Profile


Posted: Tue Sep 26, 2006 9:04 pm
Technical Contributor
Offline

Age: 60

Posts: 6817

Joined: 22nd Jun 2005

Gallery: 8 images

Ride: EF Fairmont

Location: Campbelltown
NSW, Australia

EFFalcon wrote:
Hmm... i didnt see those pics on the bottom of the 1st page.
i see you did have to raise it, looks incredibly tough on the car though.
IMO looks better then the BA XR ones due to the more squarish lines on the bar itself.


Thanks Mate. I did raise it more soto even out the lines from the front bar to the side skirts. TE/TS skirts are bulkier and deeper than the BA skirts and this is flowed on from the front. By raising it by about 20mm I evened out the look and it also gives just that little more clearance at the front. Fiberglass is good just a little less forgiving that plastic.
Top
 Profile


Posted: Tue Sep 26, 2006 9:16 pm
Technical Contributor
Offline

Age: 60

Posts: 6817

Joined: 22nd Jun 2005

Gallery: 8 images

Ride: EF Fairmont

Location: Campbelltown
NSW, Australia

EggHead wrote:
I'm interested in giving this sort of thing a shot.
Got lots of free time coming up. So why not.

Just wondering what are ur recomendations for making a bar.
Making it entirely out of fibreglass, or using that locktite urethane to bond the two bars together.
Ive never done fibreglassing before, but know a few ppl who used to do it.

Also i thought fibreglass doesnt stick to the ABS plastic (if thats what it is).
I'm really on the edge of deciding to do this, but these few problems are making it hard to take the plunge.

Cheers


I overlapped my bars using the recess that is in the EF/EL bar where the inserts are, that allowed me to use the urethane, I use Locktite as it is supposed to be better than Sikaflex and adheres to bumperbar plastic better. Before I "Glued" I roughed the surface with a wire brush in my electric drill. Removed all the paint etc and roughed the plastic, this gives the urethane something to "grip". I then used srews to hold every thing while it cured and then took them out before I fiberglassed. Locktite is dearer than sikaflex and takes up to a week to cure properly, but IMO it is worth it. I also roughed the plastic before I fiberglassed and also made sure that the Fiberglass bar was clean before glassing. Fiberglassing is not hard as long as you follow the directions. Use gloves, in a well ventelated area "outside" and use paper cups to mix the resin and disposable brushes, you are not going to reuse them after LOL. Do not fiberglass on a wet day, you finished product will be crap and not as strong. Think about what you want to do, measure, price and when you are ready go for it. If you need help just ask, one of us will have the anwser.
Top
 Profile


Posted: Wed Sep 27, 2006 3:43 am
Parts Gopher
Offline

Age: 39

Posts: 82

Joined: 22nd Jul 2006

Gallery: 1 images

Ride: EF XR6

Location: Melbourne
VIC, Australia

Congrats Paul, Thats just to cool and the bonnet's even better!!!
Top
 Profile


Posted: Sat Sep 30, 2006 6:24 pm
Technical Contributor
Offline

Age: 60

Posts: 6817

Joined: 22nd Jun 2005

Gallery: 8 images

Ride: EF Fairmont

Location: Campbelltown
NSW, Australia

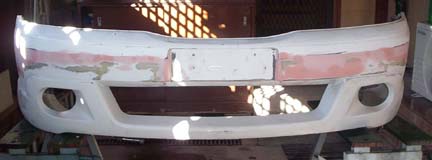

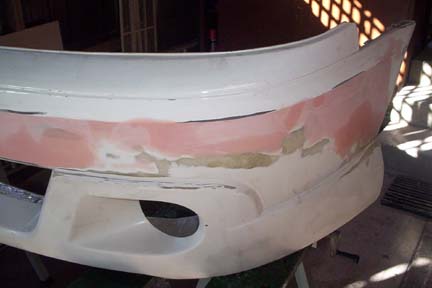

Hi guys, Progress continues, bar is all bogged up and sanded, I hate that s**t, and a light coat of primer. Tomorrow I am spray puttying the bar and hand sanding then undercoat. I am also going to do the fog light mounts, so the Fairmont will loose her bar and I will fit the new bar by Monday. Here's a few more pics.





Attachments:

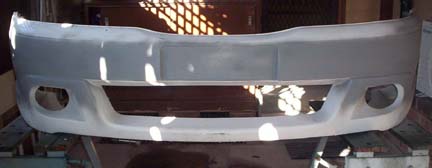

EF-TS50 Front Bar Bogged & Sanded front.JPG
EF-TS50 Front Bar Bogged & Sanded front.JPG [ 29.22 KiB | Viewed 18 times ]

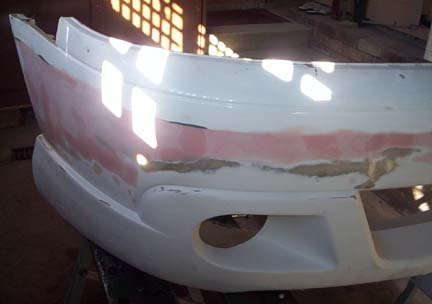

EF-TS50 Front Bar Bogged & Sanded right.JPG
EF-TS50 Front Bar Bogged & Sanded right.JPG [ 46.58 KiB | Viewed 16 times ]
EF-TS50 Front Bar Bogged & Sanded left.JPG
EF-TS50 Front Bar Bogged & Sanded left.JPG [ 45.12 KiB | Viewed 18 times ]
EF-TS50 Front Bar Bogged & Sanded & Pre Primed front.JPG
EF-TS50 Front Bar Bogged & Sanded & Pre Primed front.JPG [ 29.26 KiB | Viewed 24 times ]
Top
 Profile


Posted: Sun Oct 01, 2006 8:49 pm
Technical Contributor
Offline

Age: 60

Posts: 6817

Joined: 22nd Jun 2005

Gallery: 8 images

Ride: EF Fairmont

Location: Campbelltown
NSW, Australia

Back again, more work done. Have been working on the ReBar and Fog Light mounts. Had to trim the rebar a little so all would fit, this was caused by reducing the depth of the bar by 25mm thus reducing the clearance for the ReBar. All is done, didn't realise the thing was plastic though. Also fabricated the fog light mounts and they are fitted to the Bumper Bar Mounts. All welded and no flex. Here's a few more pics of the progress.





Attachments:

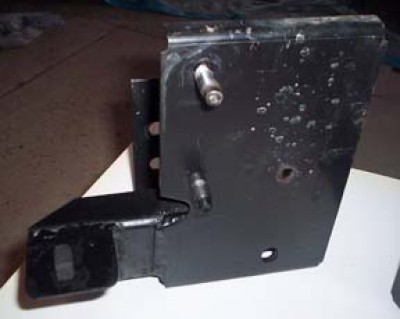

Bumberbar Mount with Fog Light Mount Fitted.JPG
Bumberbar Mount with Fog Light Mount Fitted.JPG [ 46.47 KiB | Viewed 14 times ]
Driving Light Rods.JPG
Driving Light Rods.JPG [ 52.57 KiB | Viewed 14 times ]
Fog Light Fitted to Bar Inside Right.JPG
Fog Light Fitted to Bar Inside Right.JPG [ 52.08 KiB | Viewed 13 times ]

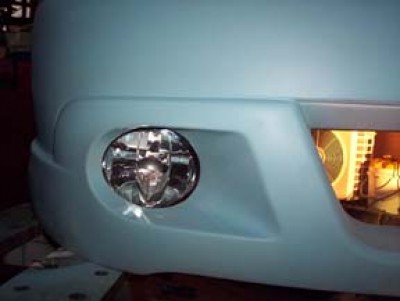

Fog Light Fitted to Bar Outside Right.JPG
Fog Light Fitted to Bar Outside Right.JPG [ 43.18 KiB | Viewed 15 times ]

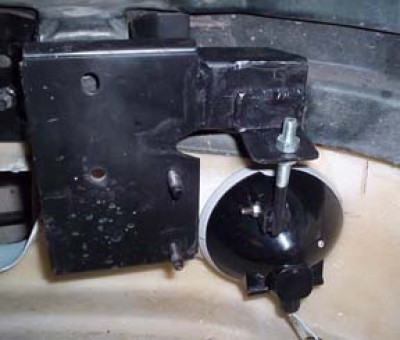

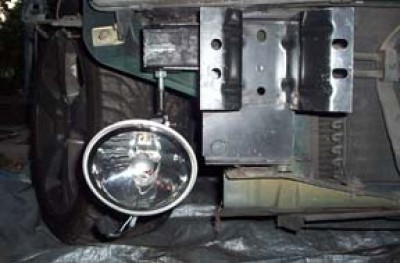

Fog Light Fitted to Right side Bumberbar Mount on Car.JPG
Fog Light Fitted to Right side Bumberbar Mount on Car.JPG [ 43.61 KiB | Viewed 16 times ]
Top
 Profile


Posted: Sun Oct 01, 2006 9:09 pm
Getting Side Ways
Offline
User avatar

Age: 34

Posts: 4307

Joined: 5th Nov 2004

Gallery: 9 images

Ride: EF Falcon XT-T

Location: Mornington Peninsula
VIC, Australia

top way to mount the lights.



_________________

FALCN6 - EF GLi Turbo, 20" Rims, Air Bag Suspension, Straight LPG, 225rwkw
DTHWGN - EA GL Wagon, LTD Interior, Satin Black, 5.0, Turbo
RACER - EF Futura , 5.0, 5 Speed
PROJECT - 83 Thunderbird, Lowered, 18" Billet Wheels
DAILY - BA Fairmont Ghia 5.4 3V

Top
 Profile


Posted: Sun Oct 01, 2006 9:35 pm
Getting Side Ways
Offline
User avatar

Age: 29

Posts: 3343

Joined: 5th Nov 2004

Gallery: 9 images

Location: Brisbane
QLD, Australia

Ahh good job paul! Its coming along so well.
Top
 Profile


Posted: Sun Oct 01, 2006 10:18 pm
Technical Contributor
Offline

Age: 60

Posts: 6817

Joined: 22nd Jun 2005

Gallery: 8 images

Ride: EF Fairmont

Location: Campbelltown
NSW, Australia

EFFalcon wrote:
top way to mount the lights.


Pinched the Idea from AWC. In their Tutorial section, artical 4, fitting AU XR50 fitting front bar.
Top
 Profile


Posted: Mon Oct 02, 2006 4:29 pm
Technical Contributor
Offline

Age: 60

Posts: 6817

Joined: 22nd Jun 2005

Gallery: 8 images

Ride: EF Fairmont

Location: Campbelltown
NSW, Australia

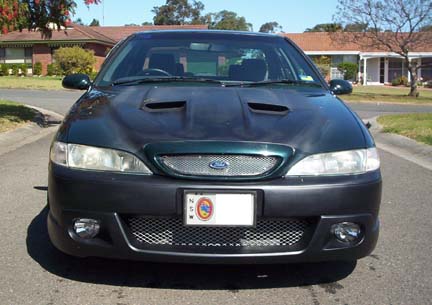

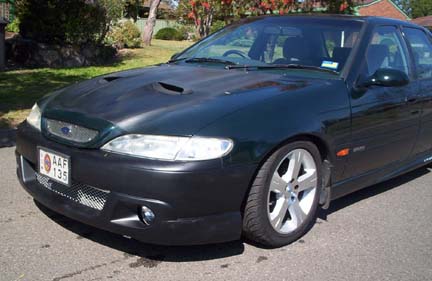

Well the Bar is finally on, painted in Satin Black till I get round to final paint. A little bit of work still to do on the sanding side but overall I am very happy with the look. Here are a few pics, hope you like what you see.





Attachments:
EF-TS50 Front Bar Fitted Front.JPG
EF-TS50 Front Bar Fitted Front.JPG [ 60.57 KiB | Viewed 55 times ]

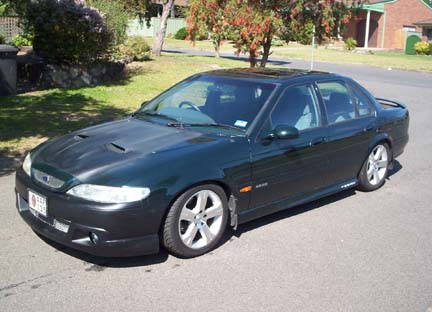

EF-TS50 Front Bar Fitted Left Front.JPG
EF-TS50 Front Bar Fitted Left Front.JPG [ 54.3 KiB | Viewed 39 times ]

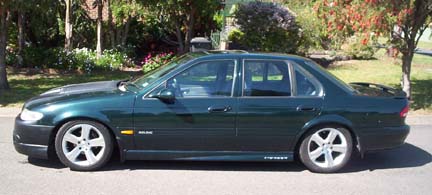

EF-TS50 Front Bar Fitted Left Side.JPG
EF-TS50 Front Bar Fitted Left Side.JPG [ 42.46 KiB | Viewed 34 times ]
EF-TS50 Front Bar Fitted Left Front Side.JPG
EF-TS50 Front Bar Fitted Left Front Side.JPG [ 62.03 KiB | Viewed 29 times ]
Top
 Profile


Posted: Mon Oct 02, 2006 4:36 pm
Getting Side Ways
Offline

Posts: 6913

Joined: 6th Nov 2004

Gallery: 4 images

Ride: BF XR6, BF XT Wagon

Power: 197 rwkw

Location: Perth
WA, Australia

Toughest looking EF Fairmont ever. Who's with me??

Has it got the balls to not only look quick but go quick as well?



_________________

EL XR8
Timmeh banned himself from being a moderator.

Top
 Profile


Posted: Mon Oct 02, 2006 4:48 pm
Getting Side Ways
Offline
User avatar

Age: 38

Posts: 946

Joined: 6th Nov 2004

Gallery: 20 images

Ride: EA Falcon & G220 Lane

Location: Edgewater
WA, Australia

i reckon hey looks tops now needs a strong turbo motor or a BOSS between the rails.



_________________

4.0lt Balanced Bottom End, ACL Race Internals, Rspec4 Cam, BPT Swichchip, PH4480, 2.5' Lukey, Scorcher Bodykit, T5 Manual
237RWHP

frd906 wrote:
LOLLOLLOLLOLOLLOLLOLLOLOLOLOLOLOLOLOLOLOLOLOLOLOLOLOLOLOLOL

Top
 Profile


Posted: Mon Oct 02, 2006 4:50 pm
Technical Contributor
Offline

Age: 60

Posts: 6817

Joined: 22nd Jun 2005

Gallery: 8 images

Ride: EF Fairmont

Location: Campbelltown
NSW, Australia

Timmeh wrote:
Toughest looking EF Fairmont ever. Who's with me??

Has it got the balls to not only look quick but go quick as well?


Stock engine, 2.5" cat back exhaust, EL GT snorkel, King superlows all round, 17" BA XR series 2 copies in correct offset. It's my daily drive and she will do me.
Top
 Profile


Posted: Mon Oct 02, 2006 4:52 pm
Getting Side Ways
Offline
User avatar

Age: 32

Posts: 2754

Joined: 14th Apr 2005

Ride: fairmont

Location: mackay
QLD, Australia

looks sweet, wtf are the go with number plates havnet seen em for years



_________________

Now i have a EF XR8 5spd.........mmmmmm 5L
