typhoon onto el rear bumper



Page 1 of 2 [ 19 posts ] Go to page 1, 2  Next


 Post subject: typhoon onto el rear bumper
Posted: Sun Nov 20, 2011 12:33 pm
Getting Side Ways
Offline

Age: 22

Posts: 3347

Joined: 19th Dec 2008

Gallery: 1 images

Ride: el fairmont ghia

Location: Farleigh
QLD, Australia

hey guys, i have a full fibre glass typhoon rear bar, and i've just joined the front bar up with screws having cut it, but i was looking at the rear and thought i could cut the top off and fibreglass in the the flat part on the top and bolt it on so i wouldn't need to get hold of a spare rear bar,

Thoughts?



_________________

Muts EL Fairmont Ghia
did someone call 9 1 HOLY s**t?

Top
 Profile


 Post subject: Re: typhoon onto el rear bumper
Posted: Sun Nov 20, 2011 1:35 pm
Technical Contributor
Offline

Age: 60

Posts: 6817

Joined: 22nd Jun 2005

Gallery: 8 images

Ride: EF Fairmont

Location: Campbelltown
NSW, Australia

Question for you first young Mitchell, what did you pay for the kit?
Top
 Profile


 Post subject: Re: typhoon onto el rear bumper
Posted: Sun Nov 20, 2011 2:53 pm
Getting Side Ways
Offline

Age: 22

Posts: 3347

Joined: 19th Dec 2008

Gallery: 1 images

Ride: el fairmont ghia

Location: Farleigh
QLD, Australia

700 + 200 for postage from vic, it's a phat customs kit



_________________

Muts EL Fairmont Ghia
did someone call 9 1 HOLY s**t?

Top
 Profile


 Post subject: Re: typhoon onto el rear bumper
Posted: Sun Nov 20, 2011 3:05 pm
Getting Side Ways
Offline
User avatar

Age: 25

Posts: 4599

Joined: 30th Aug 2010

Ride: BF XR6,

Location: NEWCASTLE
NSW, Australia

SWC wrote:
Question for you first young Mitchell, what did you pay for the kit?

i can see where this is going lol



_________________

BF XR6
xr8 snorkel,typhoon lower snorkel,territory intake pipe,20% underdrive kit,pacemaker extractors,high flow cat,xforce exhaust,t56 conversion hd turbo clutch/ flywheel,m86 3.45 lsd,custom tune187.1rwkw as an auto

Top
 Profile


 Post subject: Re: typhoon onto el rear bumper
Posted: Sun Nov 20, 2011 4:49 pm
NSW Cruise Moderator
Offline
User avatar

Age: 39

Posts: 7331

Joined: 5th Nov 2004

Gallery: 12 images

Ride: TE50

Location: ɹǝpun uʍop
NSW, Australia

mitchell g wrote:
700 + 200 for postage from vic, it's a phat customs kit


Post pics of what you have done so far, Phlat customs... hmmm.



_________________


I have a car.

Top
 Profile


 Post subject: Re: typhoon onto el rear bumper
Posted: Sun Nov 20, 2011 5:18 pm
Getting Side Ways
Offline

Age: 22

Posts: 3347

Joined: 19th Dec 2008

Gallery: 1 images

Ride: el fairmont ghia

Location: Farleigh
QLD, Australia

front

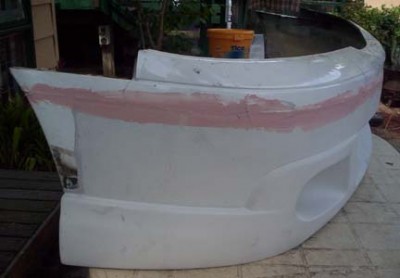

sides
still deciding with the rear hence the purpose of this thread

i'm rather happy with the bodykit, considering all the horror stories i'd herd



_________________

Muts EL Fairmont Ghia
did someone call 9 1 HOLY s**t?

Top
 Profile


 Post subject: Re: typhoon onto el rear bumper
Posted: Sun Nov 20, 2011 5:46 pm
Technical Contributor
Offline

Age: 60

Posts: 6817

Joined: 22nd Jun 2005

Gallery: 8 images

Ride: EF Fairmont

Location: Campbelltown
NSW, Australia

mitchell g wrote:
700 + 200 for postage from vic, it's a phat customs kit


OK, so you bought a B series kit to modify to fit an E series. Did you think to ask if he had a Typhoon E series kit, did you check his website...NNNNoooooooooooooooooo you didn't.

In less time than it has taken me to type this s**t I found this on his website...

http://www.phatcustomkits.com.au/custom ... or-ef.html

Same price, lot less work......

Ahhhhh the wisdom of youth...... :roll:

PS, by the way, you have cut the front bar wrong and you are attaching it the wrong way. and good luck making the rear fit, if you think the front looks like work wait till you get to the rear.


also is your brother around, if so ask him to do what he promised me a few years ago.


If you want advice on how to salvage your mess let me know and I will see if I am in a good mood :)
Top
 Profile


 Post subject: Re: typhoon onto el rear bumper
Posted: Sun Nov 20, 2011 5:48 pm
Technical Contributor
Offline

Age: 60

Posts: 6817

Joined: 22nd Jun 2005

Gallery: 8 images

Ride: EF Fairmont

Location: Campbelltown
NSW, Australia

bry40l wrote:
SWC wrote:
Question for you first young Mitchell, what did you pay for the kit?

i can see where this is going lol


You have great insight to the future sir ........ :D
Top
 Profile


 Post subject: Re: typhoon onto el rear bumper
Posted: Sun Nov 20, 2011 6:20 pm
Getting Side Ways
Offline

Age: 22

Posts: 3347

Joined: 19th Dec 2008

Gallery: 1 images

Ride: el fairmont ghia

Location: Farleigh
QLD, Australia

SWC wrote:
mitchell g wrote:
700 + 200 for postage from vic, it's a phat customs kit


OK, so you bought a B series kit to modify to fit an E series. Did you think to ask if he had a Typhoon E series kit, did you check his website...NNNNoooooooooooooooooo you didn't.

In less time than it has taken me to type this s**t I found this on his website...

http://www.phatcustomkits.com.au/custom ... or-ef.html

Same price, lot less work......

Ahhhhh the wisdom of youth...... :roll:

PS, by the way, you have cut the front bar wrong and you are attaching it the wrong way. and good luck making the rear fit, if you think the front looks like work wait till you get to the rear.


also is your brother around, if so ask him to do what he promised me a few years ago.


If you want advice on how to salvage your mess let me know and I will see if I am in a good mood :)


i was looking for a challenge,

what part has been cut wrong?

yes kelvins around, he helped me with it yesterday when i cut it up,



_________________

Muts EL Fairmont Ghia
did someone call 9 1 HOLY s**t?

Top
 Profile


 Post subject: Re: typhoon onto el rear bumper
Posted: Sun Nov 20, 2011 7:13 pm
Technical Contributor
Offline

Age: 60

Posts: 6817

Joined: 22nd Jun 2005

Gallery: 8 images

Ride: EF Fairmont

Location: Campbelltown
NSW, Australia

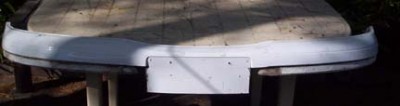

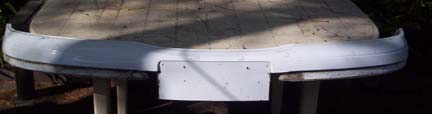

Attachment:
EF-TS50 Front Upper Bar.JPG
EF-TS50 Front Upper Bar.JPG [ 19.33 KiB | Viewed 29 times ]


This is the way you cut the Fairmont top half. This retains the mount points. You overlap the joint where the mound fits in and this way the bar has a good joint as well as a smooth finish. Make sure you remove the paint from the bar and rough up the plastic before bonding with urethane. Do the same before fiberglassing and lay down a good base of resin before bonding the glass sheet.

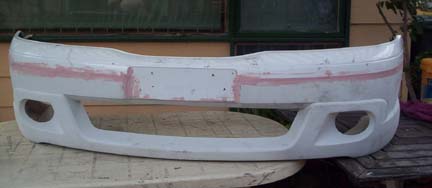

Attachment:
EF-TS50 Front Bar Fiberglassed outside front.JPG
EF-TS50 Front Bar Fiberglassed outside front.JPG [ 31.34 KiB | Viewed 30 times ]


Front of bar after bonding ad filling

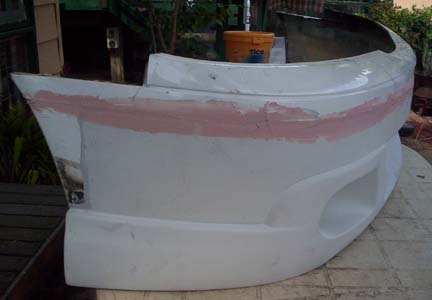

Attachment:
EF-TS50 Front Bar Fiberglassed outside right front.JPG
EF-TS50 Front Bar Fiberglassed outside right front.JPG [ 45.59 KiB | Viewed 37 times ]


Side view of bar bonded, see how I have retained the side of the original EF bar, continues the shape of the E series bar.

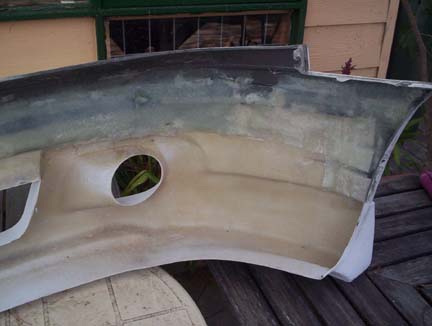

Attachment:
EF-TS50 Front Bar Fiberglassed inside right.JPG
EF-TS50 Front Bar Fiberglassed inside right.JPG [ 52.23 KiB | Viewed 33 times ]



Inside of Bar after glassing
Top
 Profile


 Post subject: Re: typhoon onto el rear bumper
Posted: Sun Nov 20, 2011 7:26 pm
Getting Side Ways
Offline

Age: 22

Posts: 3347

Joined: 19th Dec 2008

Gallery: 1 images

Ride: el fairmont ghia

Location: Farleigh
QLD, Australia

oh i see, i joined mine in the same style as MRE50l,

the front is only screwed on at this stage,



_________________

Muts EL Fairmont Ghia
did someone call 9 1 HOLY s**t?

Top
 Profile


 Post subject: Re: typhoon onto el rear bumper
Posted: Sun Nov 20, 2011 7:30 pm
Technical Contributor
Offline

Age: 60

Posts: 6817

Joined: 22nd Jun 2005

Gallery: 8 images

Ride: EF Fairmont

Location: Campbelltown
NSW, Australia

Yes I can see that. And his cracked. mine have been on for 5 years and no issues, no cracks etc, and I have belted it on some driveways. It have take bashes from driveways that would have damaged factory bars. So up to you mate, you know best.
Top
 Profile


 Post subject: Re: typhoon onto el rear bumper
Posted: Sun Nov 20, 2011 7:33 pm
Getting Side Ways
Offline

Age: 22

Posts: 3347

Joined: 19th Dec 2008

Gallery: 1 images

Ride: el fairmont ghia

Location: Farleigh
QLD, Australia

i thought this way would be stronger,

kelvins was jointed as yours were and they're cracked up rather badly which is why i thought i'd try this way so i could have the strenght lower down so that would have less movement up the top



_________________

Muts EL Fairmont Ghia
did someone call 9 1 HOLY s**t?

Top
 Profile


 Post subject: Re: typhoon onto el rear bumper
Posted: Sun Nov 20, 2011 8:26 pm
Getting Side Ways
Offline
User avatar

Age: 37

Posts: 688

Joined: 4th Mar 2010

Ride: BF Fairmont Ghia & TS Magna

Location: central coast
NSW, Australia

mitchell big huge massive piece of advice if a person who is knowledgeble is willing to teach you something or talk to you, sit back and LISTEN and if they ask you questions answer them, it only costs you time to listen, unless they are a lawyer or egineer LOL

never be affraid to ask a person questions, if he/she gives you advice be tankfull to them, if you get a no or a piss off or no response at all, then that person has there head up there a*** and it's not really worth talking to them



_________________

I don't know what to write in here LOL
Bear's Build Thread

Top
 Profile


 Post subject: Re: typhoon onto el rear bumper
Posted: Sun Nov 20, 2011 9:31 pm
Getting Side Ways
Offline

Age: 22

Posts: 3347

Joined: 19th Dec 2008

Gallery: 1 images

Ride: el fairmont ghia

Location: Farleigh
QLD, Australia

i realise that and i do appriate the help that has been given but now i'm even more consufsed in what to do

and SWC kelvins forgets what he's s'pose to be doing



_________________

Muts EL Fairmont Ghia
did someone call 9 1 HOLY s**t?

Top
 Profile
