 Post subject: Air/Fuel Gauge install - EF Wiring Questions
Posted: Sat Jun 12, 2010 11:42 am
Oompa Loompa
Offline
User avatar

Posts: 46

Joined: 12th Jun 2010

Ride: '95 EF II (Interceptor)

Location: Melbourne
VIC, Australia

Hi guys, a few questions on the wiring in an EF (GLi)

My gauge instructions for the gauge say I need the following connections
Air/Fuel Gauge
Red and White - 12V positive power ignition source that is turned on/off with ignition.
Orange - Connect to 12V dash lighting
Black - Ground
Green - Air/Fuel signal


I've figured out Red-DarkGreen wiring would be 12V ignition power. (to connect to 'Red' and 'White' gauge wires).
Is 12V Dash Lighting DarkBlue-Red wiring or Pink-Black wiring?
The Air/Fuel signal wiring is a mystery. There is a large Green wire under the steering column, but nothing is obvious in the Max Elery's manual.

Any help would be awesome! Thanks guys!
Top
 Profile


 Post subject: Re: Air/Fuel Gauge install - EF Wiring Questions
Posted: Sun Jun 13, 2010 2:06 pm
Stock as a Rock
Offline

Posts: 188

Joined: 13th Mar 2008

Ride: EL Falcon XR6

Location: Sydney
NSW, Australia

Well here is the o2 sensors wiring in EF/EL and the box on the right in the diagram is the ECU.

However there is 3 wires coming from the sensor to the ECU and I don't know which one it would be.




_________________

1997 EL Falcon XR6 Sedan
Cold Air Intake | Sequential Scoop | Pacemaker 4480 & 2.5" Exhaust

1976 XB Falcon 500 Wagon
Sherwood Green | 3spd/250CI | Hurricane Extractors + Custom Twin 2" Exhaust | Running Whitewalls on a 2.5" Drop

Top
 Profile


 Post subject: Re: Air/Fuel Gauge install - EF Wiring Questions
Posted: Sun Jun 13, 2010 4:34 pm
Oompa Loompa
Offline
User avatar

Posts: 46

Joined: 12th Jun 2010

Ride: '95 EF II (Interceptor)

Location: Melbourne
VIC, Australia

Awesome fowlerj that narrows it down for me. I'll relook at the Max Ellery wiring diagram. Cheers mate!
Top
 Profile


 Post subject: Re: Air/Fuel Gauge install - EF Wiring Questions
Posted: Thu Jun 17, 2010 1:30 pm
Getting Side Ways
Offline
User avatar

Age: 39

Posts: 581

Joined: 5th Mar 2007

Gallery: 13 images

Ride: EF Fairmont AU Falcon FG XR6

Location: Eastern Suburbs,VIC
VIC, Australia

pin 35 off the ecu is for the senor signal so i have been told .. can anyone else confirm this ... i had this trouble 12months ago



_________________

My Fairmont

Top
 Profile


 Post subject: Re: Air/Fuel Gauge install - EF Wiring Questions
Posted: Tue Jun 29, 2010 1:01 pm
Getting Side Ways
Offline
User avatar

Age: 31

Posts: 3399

Joined: 10th Jan 2010

Gallery: 8 images

Ride: EL XR6

Location: albion park, wollongong
NSW, Australia

Yes pin 35 off the ecu is the Sensor signal, I checked in the gregorys ef manual, because I am installing a air/fuel gauge this afternoon !



_________________

El XR6 Turbo
Dark Agents,Sunroof, bilstein shocks, 6000k HIDS, 329 mm slotted rotors, twin pot calipers , Climate Control, GarrettT04 turbo,log manifold, crow turbo cam, microtech lt10c, 42lb injectors , 044, surge tank , T56 , rebuilt bottom end , alloy plenum .

Aiming for 300 rwkw

Top
 Profile


 Post subject: Re: Air/Fuel Gauge install - EF Wiring Questions
Posted: Tue Jun 29, 2010 1:11 pm
Getting Side Ways
Offline
User avatar

Age: 34

Posts: 4316

Joined: 30th Oct 2006

Gallery: 18 images

Ride: Envi EF

Location: Grafton
NSW, Australia

Unless you have a wideband sensor the gauge will basically read max or min.



_________________

>>>EF Futura T build<<<

Top
 Profile


 Post subject: Re: Air/Fuel Gauge install - EF Wiring Questions
Posted: Tue Jun 29, 2010 1:18 pm
Getting Side Ways
Offline
User avatar

Age: 31

Posts: 3399

Joined: 10th Jan 2010

Gallery: 8 images

Ride: EL XR6

Location: albion park, wollongong
NSW, Australia

Yeh I read that a wide band sensor is needed so the gauge is accurate, where could I get one from, I was thinking autobarn, supercheap or some auto shop



_________________

El XR6 Turbo
Dark Agents,Sunroof, bilstein shocks, 6000k HIDS, 329 mm slotted rotors, twin pot calipers , Climate Control, GarrettT04 turbo,log manifold, crow turbo cam, microtech lt10c, 42lb injectors , 044, surge tank , T56 , rebuilt bottom end , alloy plenum .

Aiming for 300 rwkw

Top
 Profile


 Post subject: Re: Air/Fuel Gauge install - EF Wiring Questions
Posted: Wed Jun 30, 2010 12:43 am
Getting Side Ways
Offline
User avatar

Age: 39

Posts: 581

Joined: 5th Mar 2007

Gallery: 13 images

Ride: EF Fairmont AU Falcon FG XR6

Location: Eastern Suburbs,VIC
VIC, Australia

anyone got pics of a ecu with pin 35 showing might help people a little more



_________________

My Fairmont

Top
 Profile


 Post subject: Re: Air/Fuel Gauge install - EF Wiring Questions
Posted: Wed Jun 30, 2010 1:10 am
Getting Side Ways
Offline
User avatar

Posts: 686

Joined: 11th Sep 2008

Location: Melbourne
VIC, Australia

Luxo Sprint wrote:
anyone got pics of a ecu with pin 35 showing might help people a little more


hey you can reply to this post but not to my message? If you don't want to return my things, give me your address and ill come get them myself!! I need them BACK!
Top
 Profile


 Post subject: Re: Air/Fuel Gauge install - EF Wiring Questions
Posted: Wed Jun 30, 2010 8:03 pm
Oompa Loompa
Offline
User avatar

Posts: 46

Joined: 12th Jun 2010

Ride: '95 EF II (Interceptor)

Location: Melbourne
VIC, Australia

Thanks guys, atleast we're narrowing things down!

Sam from the Street Fords Forums posted this...
"HEGO will be one of the pin-outs on the ECU, or you can intercept the wire anywhere between the ECU and the O2 sensor (so long as you can identify it)."
Top
 Profile


 Post subject: Re: Air/Fuel Gauge install - EF Wiring Questions
Posted: Wed Jun 30, 2010 8:13 pm
Getting Side Ways
Offline
User avatar

Age: 31

Posts: 3399

Joined: 10th Jan 2010

Gallery: 8 images

Ride: EL XR6

Location: albion park, wollongong
NSW, Australia

i installed my air/fuel gauge last nite its pin/wire 35 its green. i spliced into in. startedmy car and the needle moved, but i didnt solder it and my connection came loose, so now im gonna solder it all up and see how it goes!!



_________________

El XR6 Turbo
Dark Agents,Sunroof, bilstein shocks, 6000k HIDS, 329 mm slotted rotors, twin pot calipers , Climate Control, GarrettT04 turbo,log manifold, crow turbo cam, microtech lt10c, 42lb injectors , 044, surge tank , T56 , rebuilt bottom end , alloy plenum .

Aiming for 300 rwkw

Top
 Profile


 Post subject: Re: Air/Fuel Gauge install - EF Wiring Questions
Posted: Wed Jun 30, 2010 9:30 pm
Oompa Loompa
Offline
User avatar

Posts: 46

Joined: 12th Jun 2010

Ride: '95 EF II (Interceptor)

Location: Melbourne
VIC, Australia

Cool man! Keep us posted! Is she running "Lean" "Rich" or just right?

If possible could you take a photo of were you did the connection? Cheers
Top
 Profile


 Post subject: Re: Air/Fuel Gauge install - EF Wiring Questions
Posted: Wed Jun 30, 2010 9:48 pm
Getting Side Ways
Offline
User avatar

Age: 31

Posts: 3399

Joined: 10th Jan 2010

Gallery: 8 images

Ride: EL XR6

Location: albion park, wollongong
NSW, Australia

well the connection came loose before i got an accurate reading, but is was on lean and moving up to stoch, so im not exactly sure what the reading was, tomorrow arvo ill be soldering it so ill post up some pics and let ya's know how it went, but i think to get an accurate reading i need a wide band sensor!

cheers



_________________

El XR6 Turbo
Dark Agents,Sunroof, bilstein shocks, 6000k HIDS, 329 mm slotted rotors, twin pot calipers , Climate Control, GarrettT04 turbo,log manifold, crow turbo cam, microtech lt10c, 42lb injectors , 044, surge tank , T56 , rebuilt bottom end , alloy plenum .

Aiming for 300 rwkw

Top
 Profile


 Post subject: Re: Air/Fuel Gauge install - EF Wiring Questions
Posted: Thu Jul 01, 2010 3:55 am
Getting Side Ways
Offline
User avatar

Age: 39

Posts: 581

Joined: 5th Mar 2007

Gallery: 13 images

Ride: EF Fairmont AU Falcon FG XR6

Location: Eastern Suburbs,VIC
VIC, Australia

im going to wire mine up soon i hope i'll do pics and what not aswell



_________________

My Fairmont

Top
 Profile


 Post subject: Re: Air/Fuel Gauge install - EF Wiring Questions
Posted: Thu Jul 01, 2010 8:04 pm
Getting Side Ways
Offline
User avatar

Age: 31

Posts: 3399

Joined: 10th Jan 2010

Gallery: 8 images

Ride: EL XR6

Location: albion park, wollongong
NSW, Australia

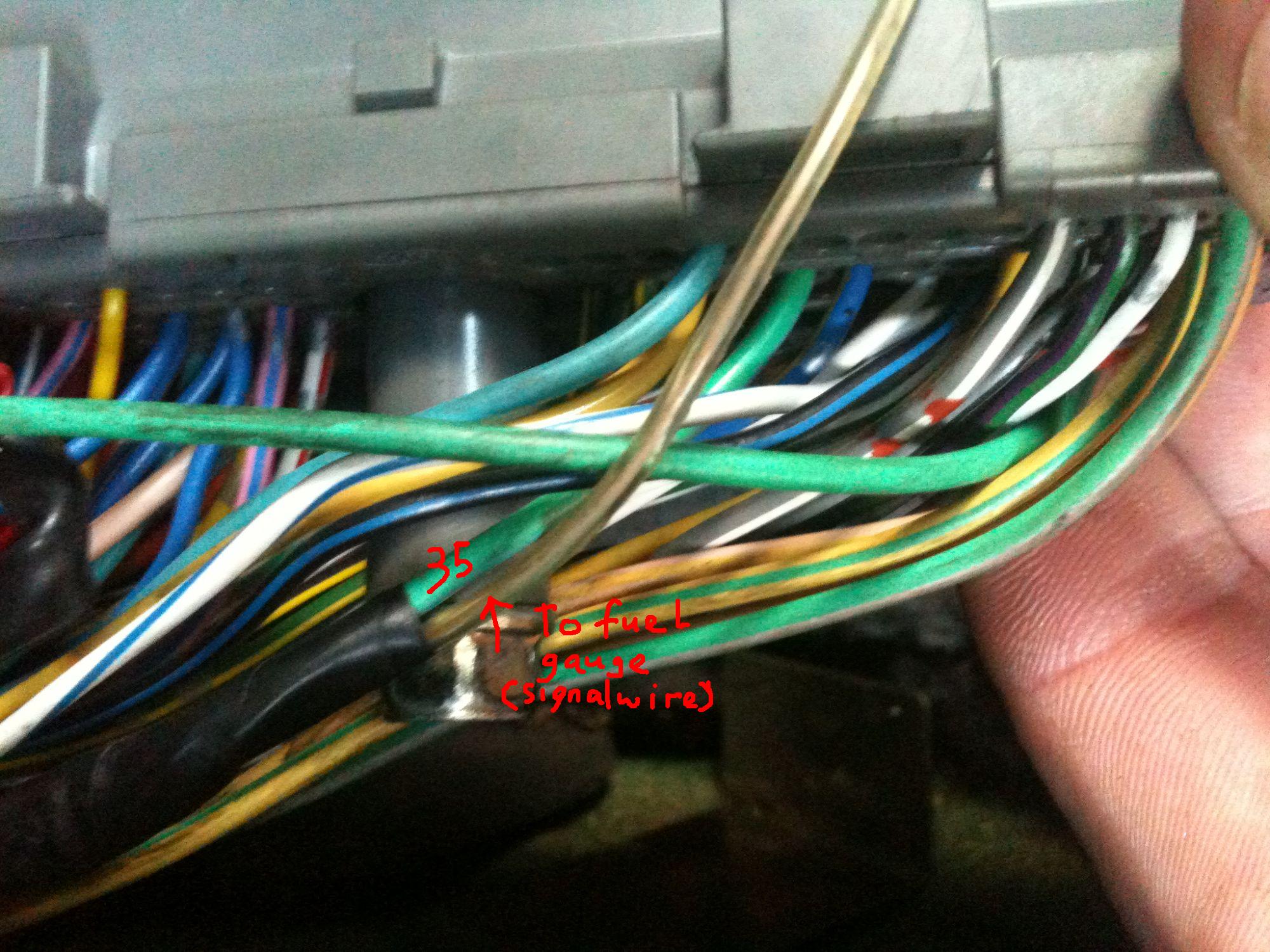

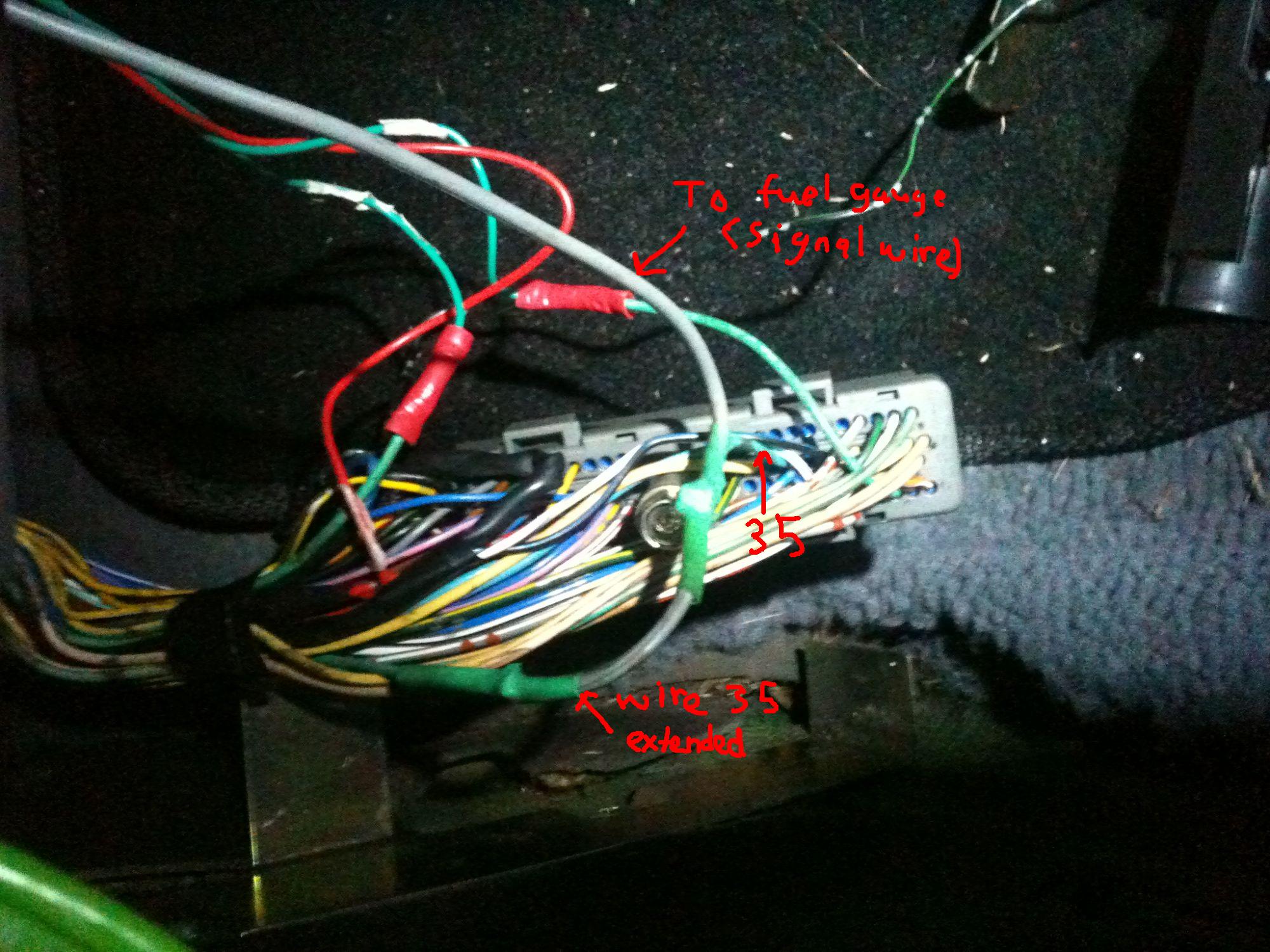

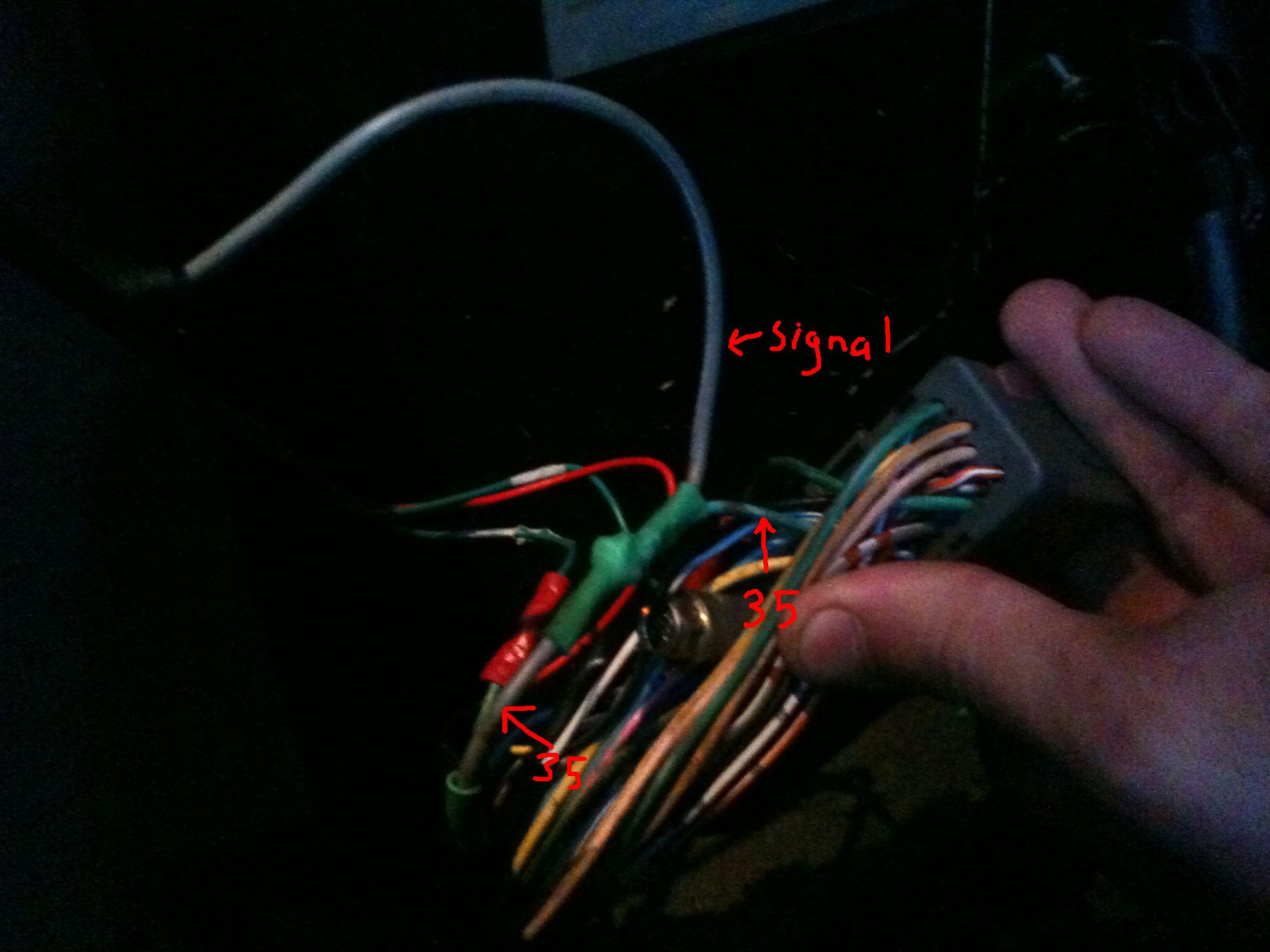

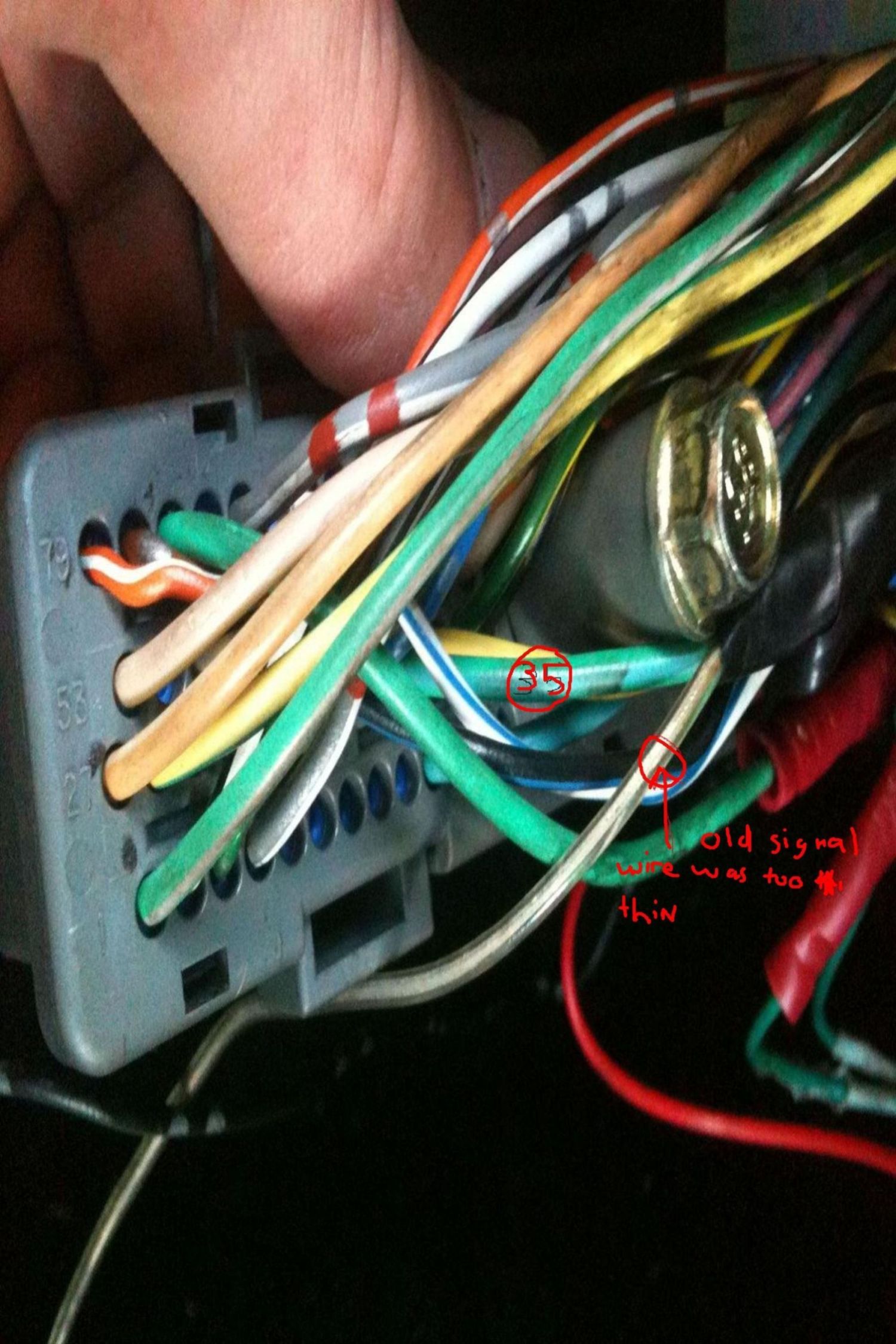

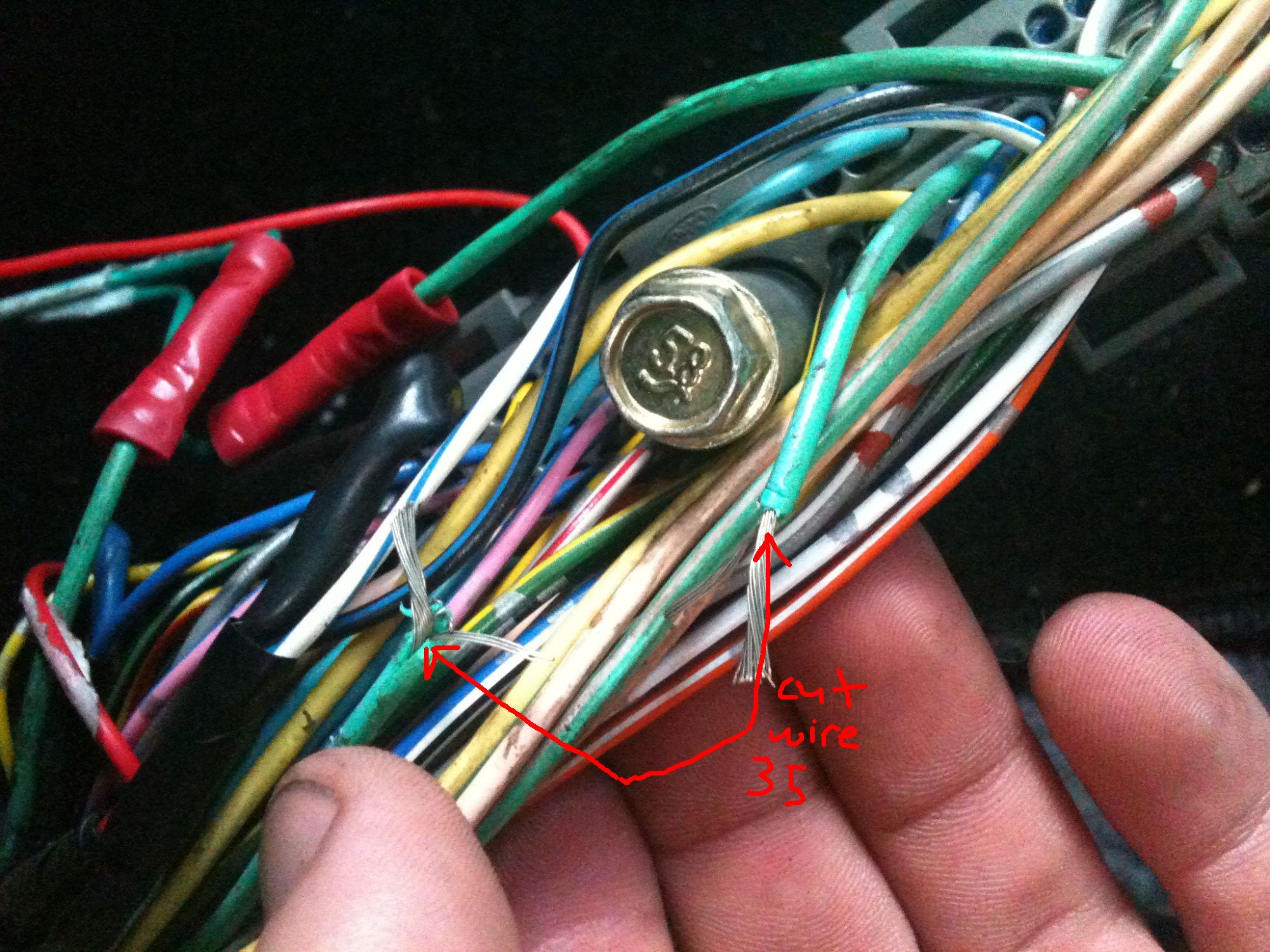

i got my air fuel gauge in but without the wide band sensor the needle jumps around, but you get a rough idea of where its reading





Attachments:
IMG_0137.jpg [ 198.06 KiB | Viewed 254 times ]
IMG_0136.jpg [ 397.41 KiB | Viewed 206 times ]
IMG_0135.jpg [ 450.75 KiB | Viewed 237 times ]
IMG_0134.jpg [ 424.5 KiB | Viewed 274 times ]
IMG_0133.jpg [ 373.69 KiB | Viewed 252 times ]



_________________

El XR6 Turbo
Dark Agents,Sunroof, bilstein shocks, 6000k HIDS, 329 mm slotted rotors, twin pot calipers , Climate Control, GarrettT04 turbo,log manifold, crow turbo cam, microtech lt10c, 42lb injectors , 044, surge tank , T56 , rebuilt bottom end , alloy plenum .

Aiming for 300 rwkw
