AU/BA/BF Door actuator repair guide.



Page 1 of 1 [ 5 posts ]


 Post subject: AU/BA/BF Door actuator repair guide.
Posted: Sat Jun 02, 2018 8:18 pm
Getting Side Ways
Offline
User avatar

Age: 44

Posts: 400

Joined: 16th May 2012

Gallery: 16 images

Ride: EF-XR6/XG-6/XE-V8- project

Hey guys, thought I would post this up as I know it can be a pain in the a** to repair let alone expensive to repair or change lock and or actuator repair on AU/BA or BF,you can buy the actuator repair kits on ebay alot cheaper than replacing the whole lock and actuator unit together.
I think I paid around $21 for 4 kits (enough for 1 sedan)
Tools are basic and I think most people could tackle this with ease.

Tools
needed; standard size Phillips driver/small size Phillips driver/T30 size star spanner or torx bit/side cutters
Remove door card/handle screws and disconnect window switch from door card,pull back liner to access lock and actuator.

T30 is to remove the lock and actuator from the door,unclip rod and slid out from door handle and disconnect the lock plug and remove lock assembly from car.

Other stuff;actuator repair kit/small zip ties and a bread bag clip.

Info added as I sort my photos etc





Attachments:

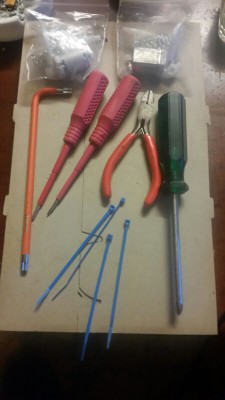

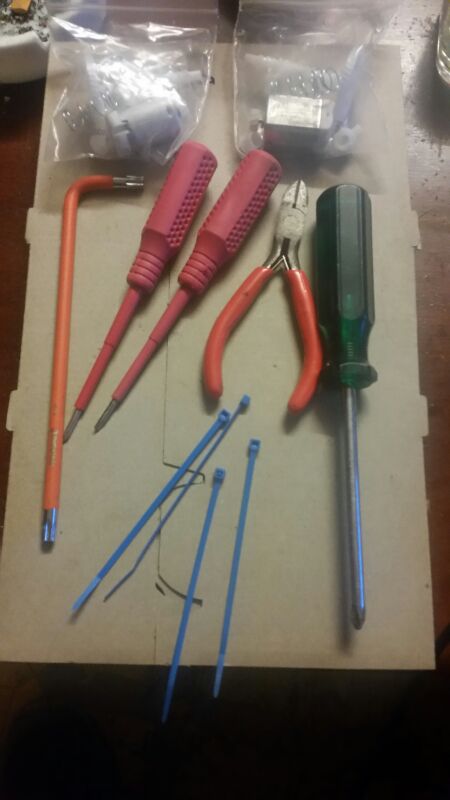

File comment: Tools
IMG_20180602_23700.jpg [ 38.24 KiB | Viewed 4 times ]

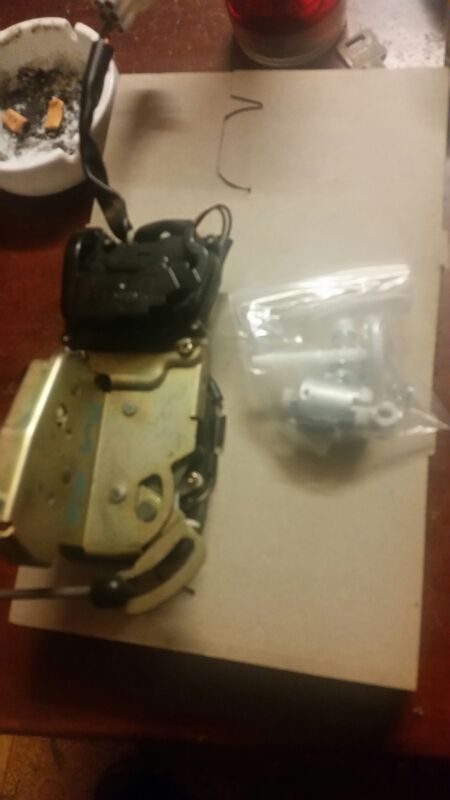

File comment: Lock and actuator removed from car and new actuator kit.
IMG_20180602_9727.jpg [ 30.83 KiB | Viewed 3 times ]
File comment: Finished after installing in my car,took photos of the process on the second (wifes car)
IMG_20180602_24298.jpg [ 49.21 KiB | Viewed 3 times ]



_________________

XG ute now powered with DOHC-BARRA 182/Tiger extractors/20% Underdrive and BA 4-SPEED + Tiptronic shifter

the-garage-f53/project-xg-fpv-dohc-barra-182-t128753-60.html

Last edited by johnnyeHCF on Sun Jun 03, 2018 3:31 pm, edited 2 times in total.

Top
 Profile


 Post subject: Re: AU/BA/BF Door actuator repair guide.
Posted: Sat Jun 02, 2018 8:41 pm
Getting Side Ways
Offline
User avatar

Age: 44

Posts: 400

Joined: 16th May 2012

Gallery: 16 images

Ride: EF-XR6/XG-6/XE-V8- project

First step is removing the two scews holding the actuator to the lock mechanism and cut the two zip ties holding the wiring then you can remove the four screws holding the actuator body together,remove cover to reveal the actuator motor and gears/springs.
The kits come with everything you need to overhaul the actuator,in my car the motor was dead in the wifes the gear rod was snapped.





Attachments:

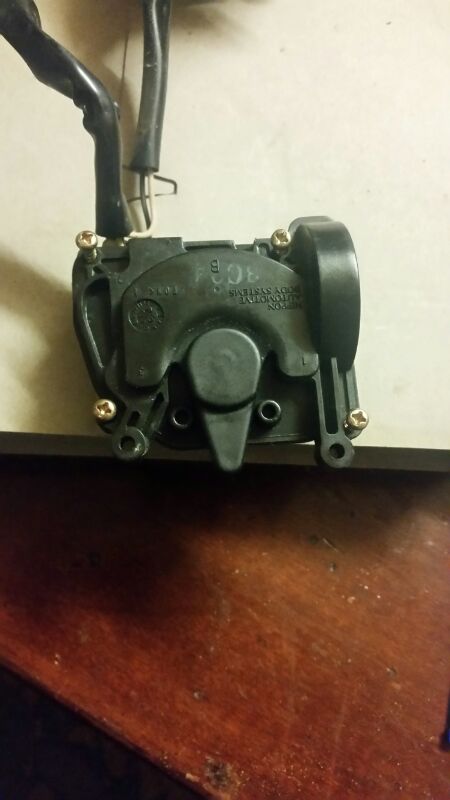

File comment: Actuator removed from lock mech.
IMG_20180602_328.jpg [ 36.33 KiB | Viewed 4 times ]

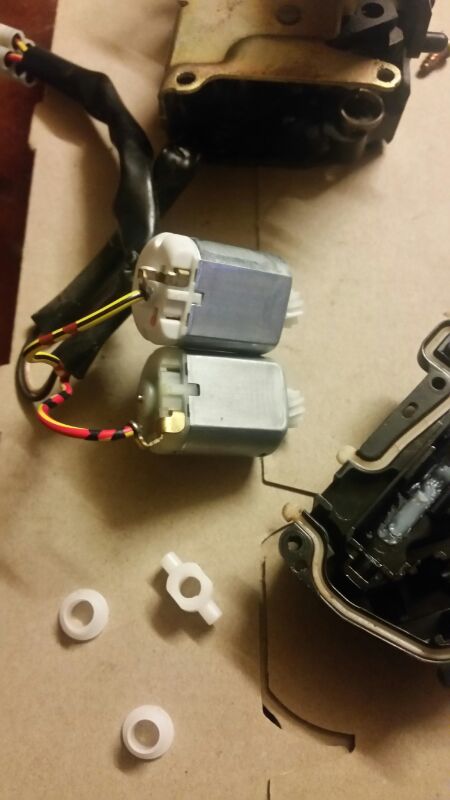

File comment: Pull gear rod and spring and center bits out and pry motor out from its back,carfully pull one wire at I time from old motor to new and push new motor back into place.
IMG_20180602_21456.jpg [ 43.32 KiB | Viewed 4 times ]

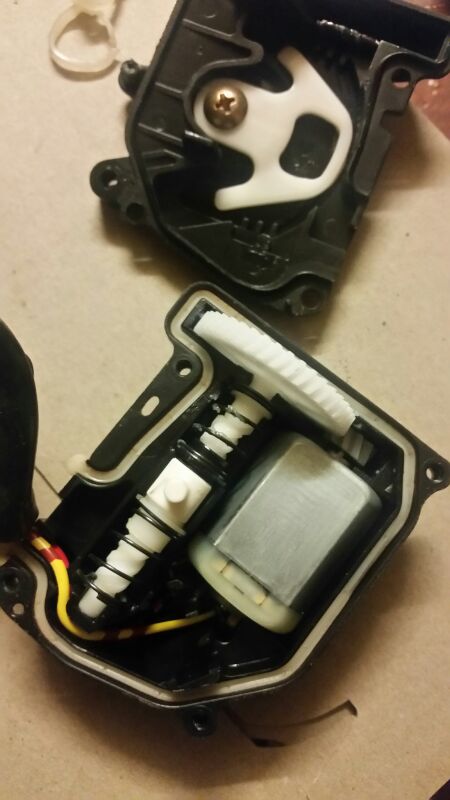

File comment: Cover removed.
IMG_20180602_47546.jpg [ 47.56 KiB | Viewed 4 times ]



_________________

XG ute now powered with DOHC-BARRA 182/Tiger extractors/20% Underdrive and BA 4-SPEED + Tiptronic shifter

the-garage-f53/project-xg-fpv-dohc-barra-182-t128753-60.html

Top
 Profile


 Post subject: Re: AU/BA/BF Door actuator repair guide.
Posted: Sat Jun 02, 2018 9:29 pm
Getting Side Ways
Offline
User avatar

Age: 44

Posts: 400

Joined: 16th May 2012

Gallery: 16 images

Ride: EF-XR6/XG-6/XE-V8- project

After you've removed the old gear rod/springs and center bits and changed the motor you can assemble the new gear and bits using the old as a guide,the smaller size spring guide for the center goes on the gear side,the bread bag clip is cut as in pic to hold the outside of the spring on the gear side while you carefully push the outer of the other side spring into place while keeping the center slide peice in its guide.





Attachments:

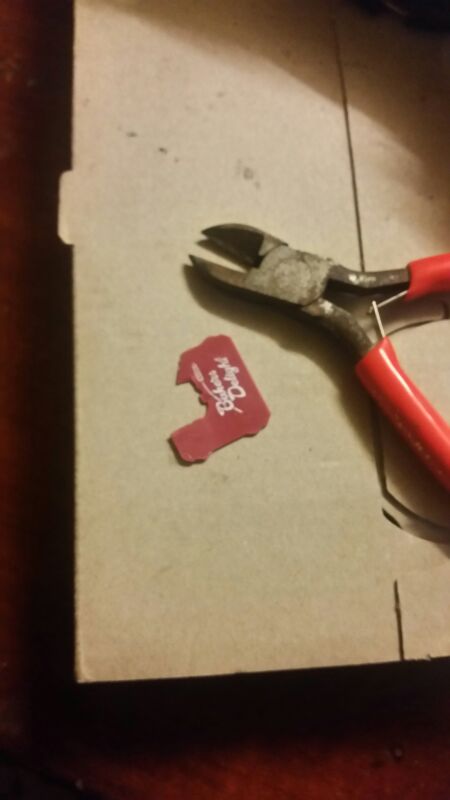

File comment: Bread bag clip cut into shape to hold spring.
IMG_20180602_44174.jpg [ 28.46 KiB | Viewed 3 times ]

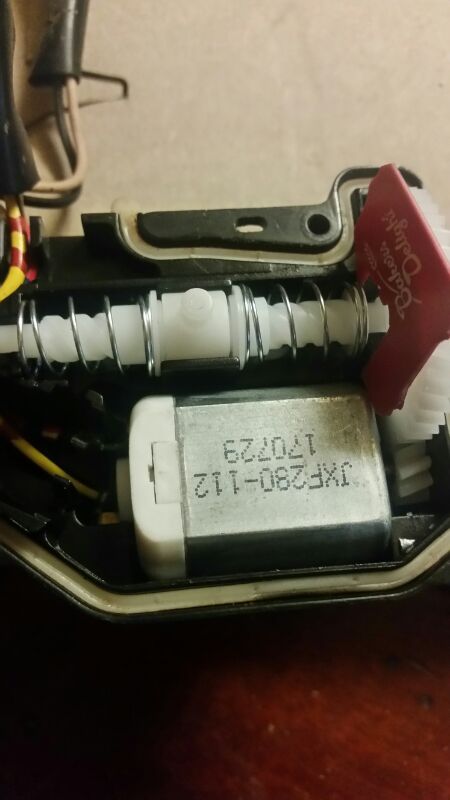

File comment: New gear rod/springs and center bits back in with bread bag clip keeping gear side spring in place.
IMG_20180602_22198.jpg [ 39.19 KiB | Viewed 3 times ]

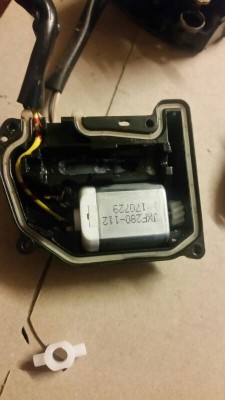

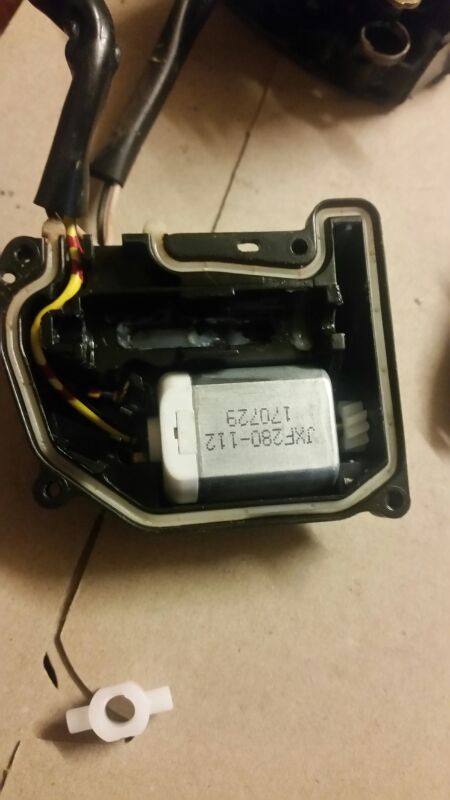

File comment: New motor in place.
IMG_20180602_33349.jpg [ 41.57 KiB | Viewed 4 times ]



_________________

XG ute now powered with DOHC-BARRA 182/Tiger extractors/20% Underdrive and BA 4-SPEED + Tiptronic shifter

the-garage-f53/project-xg-fpv-dohc-barra-182-t128753-60.html

Top
 Profile


 Post subject: Re: AU/BA/BF Door actuator repair guide.
Posted: Sat Jun 02, 2018 10:44 pm
Getting Side Ways
Offline
User avatar

Age: 44

Posts: 400

Joined: 16th May 2012

Gallery: 16 images

Ride: EF-XR6/XG-6/XE-V8- project

Once you've put the actuator cover back on with the four screws add the first zip tie on the wiring as in pic,center the actuator lever in the lock mech and put the two large screws back in to hold actuator to lock mech then the second zip tie goes on and the process is finished.

Good to note that the car should be unlocked when the lock is removed and same for putting the lock back in car-it should be unlocked and the lock should be in the unlocked position when reconected back to the car,should not hear any actuator noises and only the cabin light should come back on-put lock into position and put screws back in and tighten connect rod back to door handle and press on clippush the liner up close door and lock car checking door before putting door back together.





Attachments:

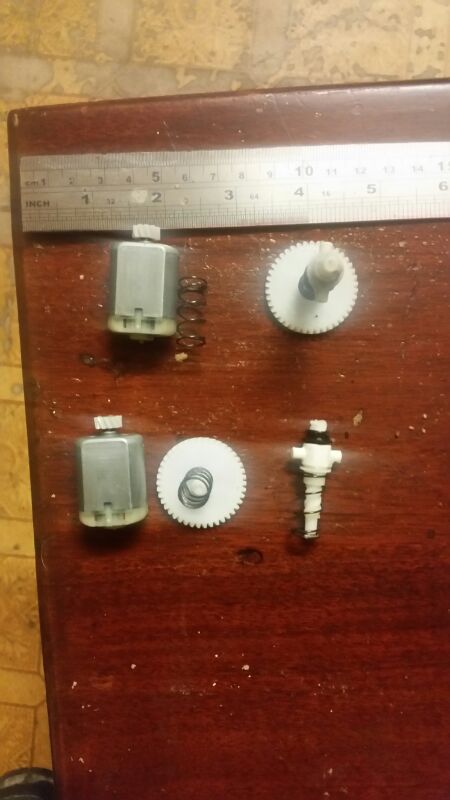

File comment: Heres the old bits,wifes was drivers side rear/broken gear rod,mine was passenger side rear and motor was dead,so its worth getting the whole kit.
IMG_20180603_2658.jpg [ 45.67 KiB | Viewed 3 times ]

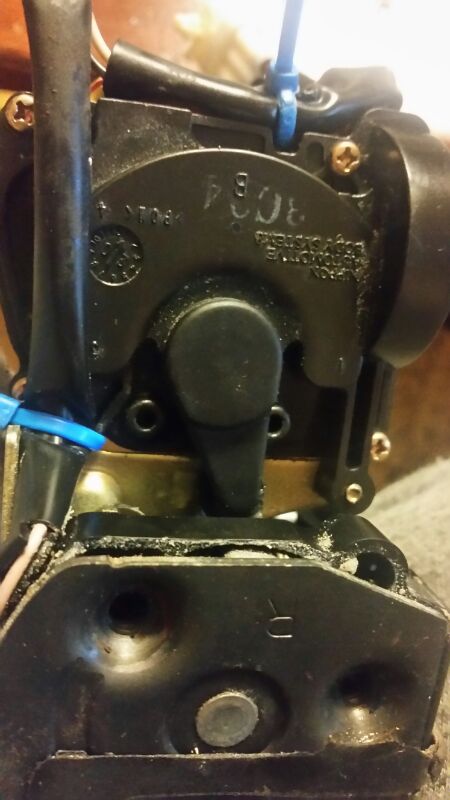

File comment: Lock and actuator back together with second zip tie.
IMG_20180602_24298.jpg [ 49.21 KiB | Viewed 4 times ]

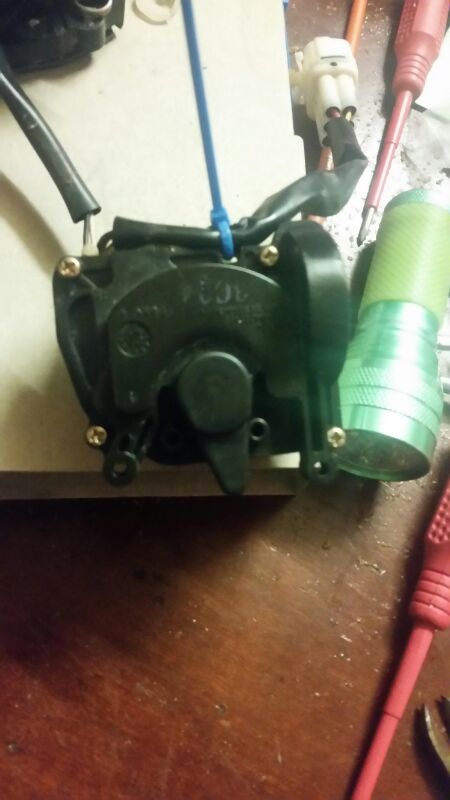

File comment: Actuator cover back on and first zip tie.
IMG_20180602_1934.jpg [ 41.55 KiB | Viewed 4 times ]



_________________

XG ute now powered with DOHC-BARRA 182/Tiger extractors/20% Underdrive and BA 4-SPEED + Tiptronic shifter

the-garage-f53/project-xg-fpv-dohc-barra-182-t128753-60.html

Last edited by johnnyeHCF on Sun Jun 03, 2018 3:35 pm, edited 1 time in total.

Top
 Profile


 Post subject: Re: AU/BA/BF Door actuator repair guide.
Posted: Sat Jun 02, 2018 10:54 pm
Fordmods Junkie
Offline
User avatar

Posts: 2847

Joined: 22nd Jan 2009

Ride: '91 EB Wagoon

Location: Geeelong
VIC, Australia

great read.... did similar & bought spare gearrods [white plastic pieces what ever called?]. havn't needed to repair any of the locks just yet ... but you never know lol. didn't think to get some spare motors at the time.


Cheers
