 Post subject: BA Heater box componant locations
Posted: Sun Mar 08, 2009 2:53 am
Technical Contributor
Offline
User avatar

Age: 32

Posts: 2517

Joined: 7th Nov 2004

Gallery: 4 images

Ride: LS3 VF

Location: Bunbury
WA, Australia

Hi guys.

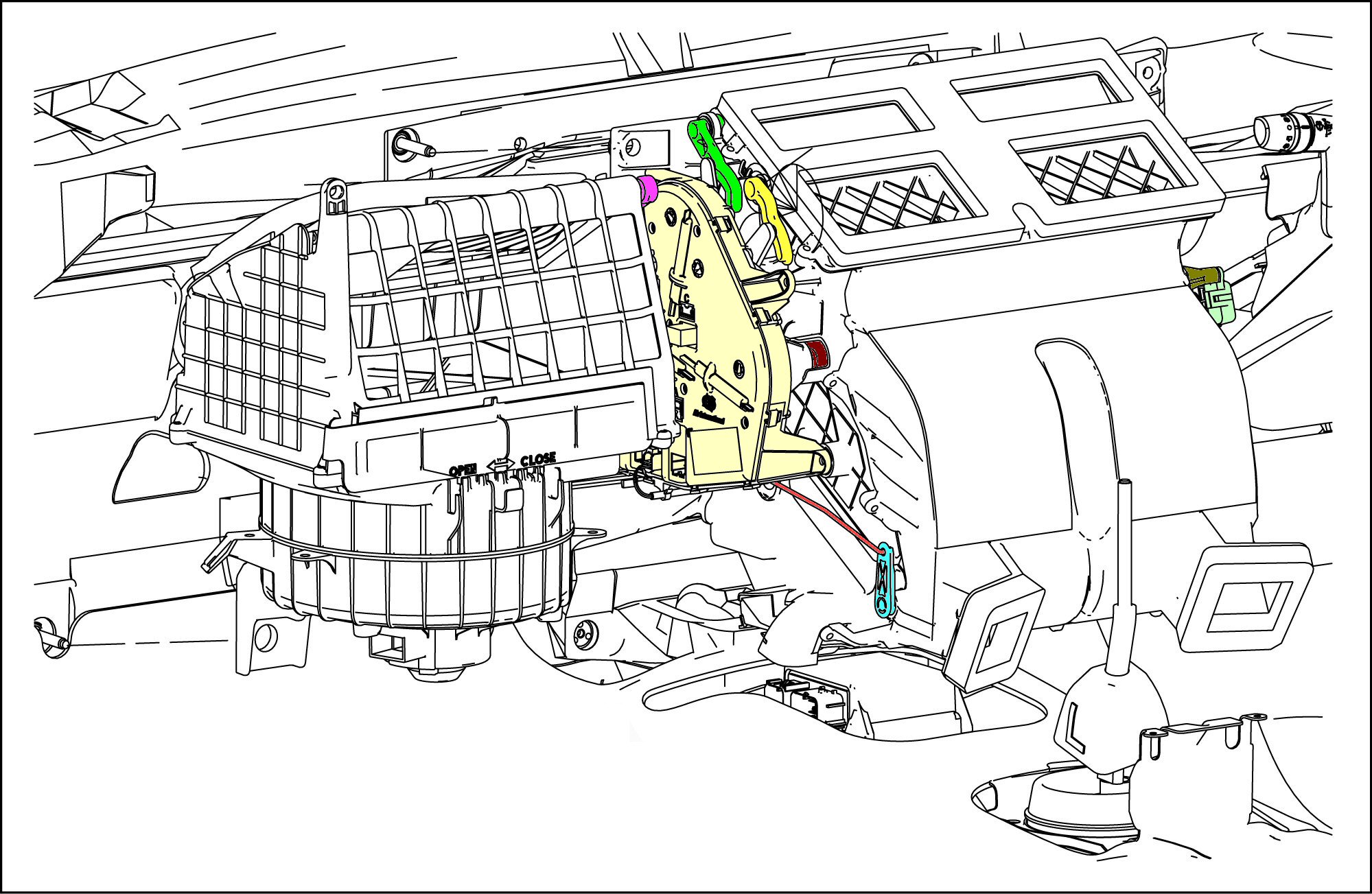

Just a diagram of the Heater box in BA/BF and territory.

Colour code as follows:

Soft Yellow = HIM (HVAC Integrated Module)
Soft Green = Drivers Side Air Mix Shaft Motor (Only on Dual Zone C/C)
Burgandy = Air Mix Shaft (Single Zone), Passenger Air Mix Shaft (Dual Zone)
Dark Green = Drivers Air Mix Shaft (Dual Zone Only)
Red/Cyan =Foot Vent Control (Operated by lever on him which is not visible)

Arms which are part of the HIM module:
Bright Green - Windscreen Demist flap linkage
Bright Yellow - Face Level Flap linkage

hopefully this is of some help to people when trying to figure out how it works.





Attachments:
hvac-coloured.jpg [ 443.54 KiB | Viewed 889 times ]
Top
 Profile


 Post subject: Re: BA Heater box componant locations
Posted: Sun Mar 08, 2009 5:54 pm
Getting Side Ways
Offline
User avatar

Posts: 686

Joined: 11th Sep 2008

Location: Melbourne
VIC, Australia

ive got a brand new HIM and can install if anyone is interested, these cost bour 500 from ford and are known to play up. Symptoms are no hot or cold adjustment.
Let me know if anyone wants it?
Top
 Profile


 Post subject: Re: BA Heater box componant locations
Posted: Sun Mar 08, 2009 8:56 pm
Getting Side Ways
Offline
User avatar

Posts: 1123

Joined: 7th Nov 2005

Location: Newcastle
NSW, Australia

As someone that's partially colourblind, I'd like to offer a simultaneous thanks and a smackdown at the same time....


Lukeyson
Top
 Profile


 Post subject: Re: BA Heater box componant locations
Posted: Mon Mar 09, 2009 1:37 am
Technical Contributor
Offline
User avatar

Age: 32

Posts: 2517

Joined: 7th Nov 2004

Gallery: 4 images

Ride: LS3 VF

Location: Bunbury
WA, Australia

eboost wrote:
ive got a brand new HIM and can install if anyone is interested, these cost bour 500 from ford and are known to play up. Symptoms are no hot or cold adjustment.
Let me know if anyone wants it?


they do play up sometimes. Usually however it is the air mix shaft that snaps.
Top
 Profile


 Post subject: Re: BA Heater box componant locations
Posted: Mon Mar 09, 2009 2:12 am
Getting Side Ways
Offline
User avatar

Posts: 686

Joined: 11th Sep 2008

Location: Melbourne
VIC, Australia

ive done mire HIM's than shafts tho.
Top
 Profile


 Post subject: Re: BA Heater box componant locations
Posted: Mon Mar 09, 2009 2:58 am
Technical Contributor
Offline
User avatar

Age: 32

Posts: 2517

Joined: 7th Nov 2004

Gallery: 4 images

Ride: LS3 VF

Location: Bunbury
WA, Australia

ive done 100 shafts, and probably 4 HIMS.
Top
 Profile


 Post subject: Re: BA Heater box componant locations
Posted: Wed Jul 11, 2012 11:01 pm
Getting Side Ways
Offline
User avatar

Posts: 2644

Joined: 6th Nov 2004

Gallery: 8 images

Ride: 2007

Location: Mount Annan
NSW, Australia

xpression wrote:
Hi guys.

Just a diagram of the Heater box in BA/BF and territory.

Colour code as follows:

Soft Yellow = HIM (HVAC Integrated Module)
Soft Green = Drivers Side Air Mix Shaft Motor (Only on Dual Zone C/C)
Burgandy = Air Mix Shaft (Single Zone), Passenger Air Mix Shaft (Dual Zone)
Dark Green = Drivers Air Mix Shaft (Dual Zone Only)
Red/Cyan =Foot Vent Control (Operated by lever on him which is not visible)

Arms which are part of the HIM module:
Bright Green - Windscreen Demist flap linkage
Bright Yellow - Face Level Flap linkage

hopefully this is of some help to people when trying to figure out how it works.

Thank You, Thank You , Thank You.
