 Post subject: Re: BA ICC - some developments
Posted: Sat Oct 18, 2014 10:49 pm
Technical Contributor
Offline
User avatar

Age: 34

Posts: 3714

Joined: 27th Sep 2006

Gallery: 20 images

Ride: ED Falcon

Power: 133 rwkw

Location: Leeton
NSW, Australia

Well here's hoping... As without your help on this I'm sort of lost...

Worst case, if I cannot get a functioning LCD or eink display and use the segmented mid series screen, do you believe it would plug straight into the stacker? Judging by what the pins are labelled as on that board?

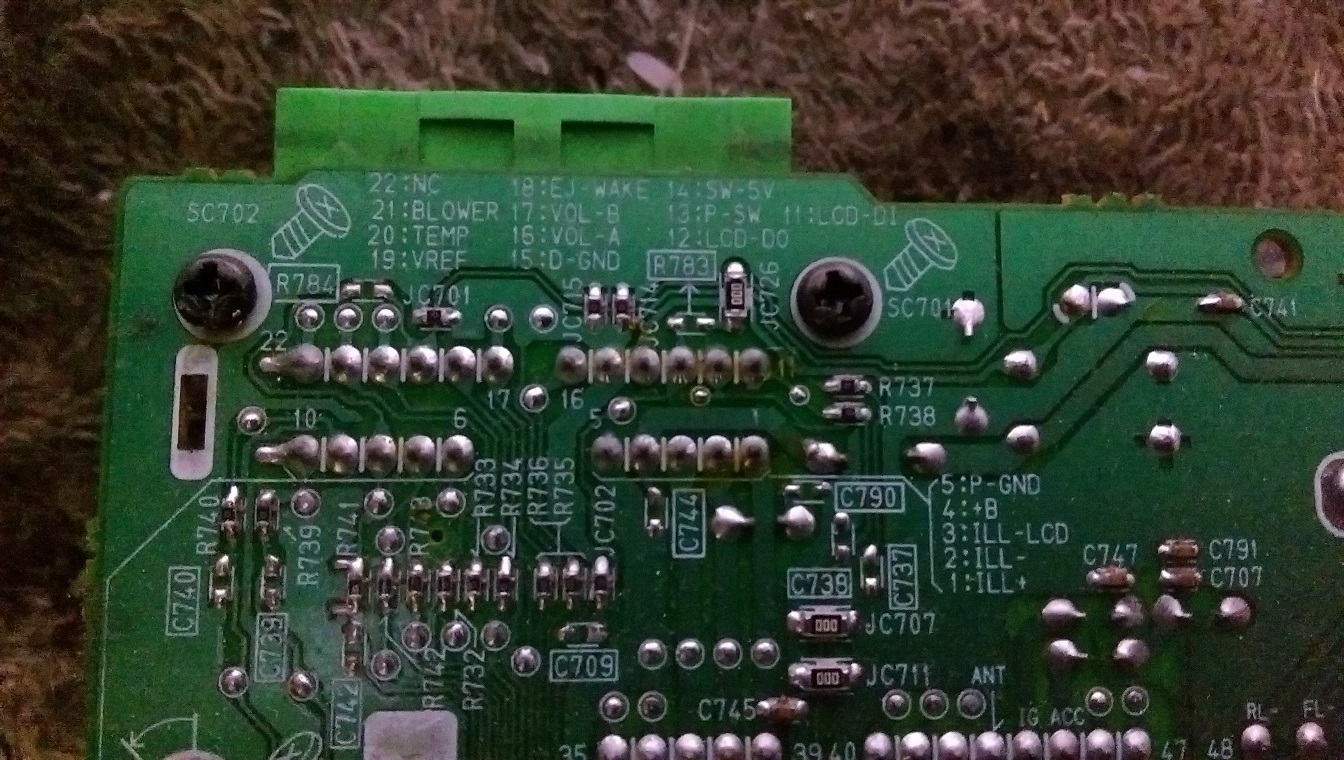

Attachment:
IMAG0951.jpg [ 447.18 KiB | Viewed 380 times ]


1)Illumination +ve
2)Illumination -ve
3)Illumination LCD
4)Battery +ve
5)P Ground?
6)Door Lock
7)Dome Lamp
8)Traction Control
9)LCD ENB?
10)LCD CLK?
11)LCD DI?
12)LCD DO?
13)Power Switch
14)SW 5V?
15)D Ground?
16)Volume A (Rotary Encoder)
17)Volume B (Rotary Encoder)
18)EJ Wake?
19)VREF?
20)TEMP?
21)BLOWER?
22)No Connection

Stuff with the question mark is as printed and I'm not sure what they're getting at... Couple of grounds for various things... 4 LCD related pins... The 5V which may have something to do with the switch matrix? Same as VREF? Temp and Blower are probably input from the HIM for the display? Dunno only guessing...

Suppose the 4 LCD wires directly drive that... There has to be something there that outputs the button matrix... Door Lock, Dome Lamp, Traction, and Volume has dedicated pins at least...

Cheers,
Tim
