Posted: Thu Mar 27, 2008 7:48 pm
Fordmods Newbie
Offline

Posts: 14

Joined: 3rd May 2007

Location: Perth
WA, Australia

also guys... Blue BEM P/N F005v00207 is this high or low series?

Cheers
Top
 Profile


Posted: Fri Mar 28, 2008 1:11 am
Technical Contributor
Offline
User avatar

Age: 32

Posts: 2517

Joined: 7th Nov 2004

Gallery: 4 images

Ride: LS3 VF

Location: Bunbury
WA, Australia

low
Top
 Profile


Posted: Sat Mar 29, 2008 2:19 pm
Getting Side Ways
Offline
User avatar

Posts: 1123

Joined: 7th Nov 2005

Location: Newcastle
NSW, Australia

The debate is actually still open on the need for a new dash harness.

My original harness only had the AUDIO-PREP option, and it had the Sunload connector on it. I'm pretty sure if you find a sunload connector on your harness you won't need to change it. But since I didn't have an XT harness to start with, I can't say with 100% certainty that it's in every loom.

The sunload connector is taped to the firewall, up behind the HVAC - and the only way I could get anywhere near it to see was with the dash out. So I'm afraid that probably doesn't help.

Maybe it's possible to see if the auto-lines are present on the steering-column connectors, but that would take a bit to figure out assuming you have the workshop manual...


Lukeyson
Top
 Profile


Posted: Sun Mar 30, 2008 11:54 am
Fordmods Newbie
Offline

Posts: 14

Joined: 3rd May 2007

Location: Perth
WA, Australia

Lukeyson, can you tell me if the HIM are different between models, i have looked under teh dash and the him has all 3 plugs filled, is there a 4th one that operates the drivers side hvac rod?
Top
 Profile


Posted: Sun Mar 30, 2008 12:32 pm
Getting Side Ways
Offline
User avatar

Posts: 1123

Joined: 7th Nov 2005

Location: Newcastle
NSW, Australia

HIM is the same across the board - same part number even from BA.BF,SX,XY. The Drivers Actuator plug is on all of them - smack bang in the middle. It's only the programming that changes them from Manual No A/C, Manual A/C, Auto Dual Zone.

Lukeyson
Top
 Profile


Posted: Sun Mar 30, 2008 2:50 pm
Fordmods Newbie
Offline

Posts: 14

Joined: 3rd May 2007

Location: Perth
WA, Australia

where do you lug the drivers side into if there is already 3 plugs into it?
Top
 Profile


Posted: Sun Mar 30, 2008 3:21 pm
Getting Side Ways
Offline
User avatar

Posts: 1123

Joined: 7th Nov 2005

Location: Newcastle
NSW, Australia

The drivers actuator plug is a 4th plug. The main 3 are across the bottom, 4th is smack bang in the middle.


Luke
Top
 Profile


Posted: Sun Mar 30, 2008 7:51 pm
Fordmods Newbie
Offline

Posts: 14

Joined: 3rd May 2007

Location: Perth
WA, Australia

Lukeyson. Cheers for that and i'll have another look later. I was having a looksee at the door harness and i know i need a new one but i took a photo of the dash side.

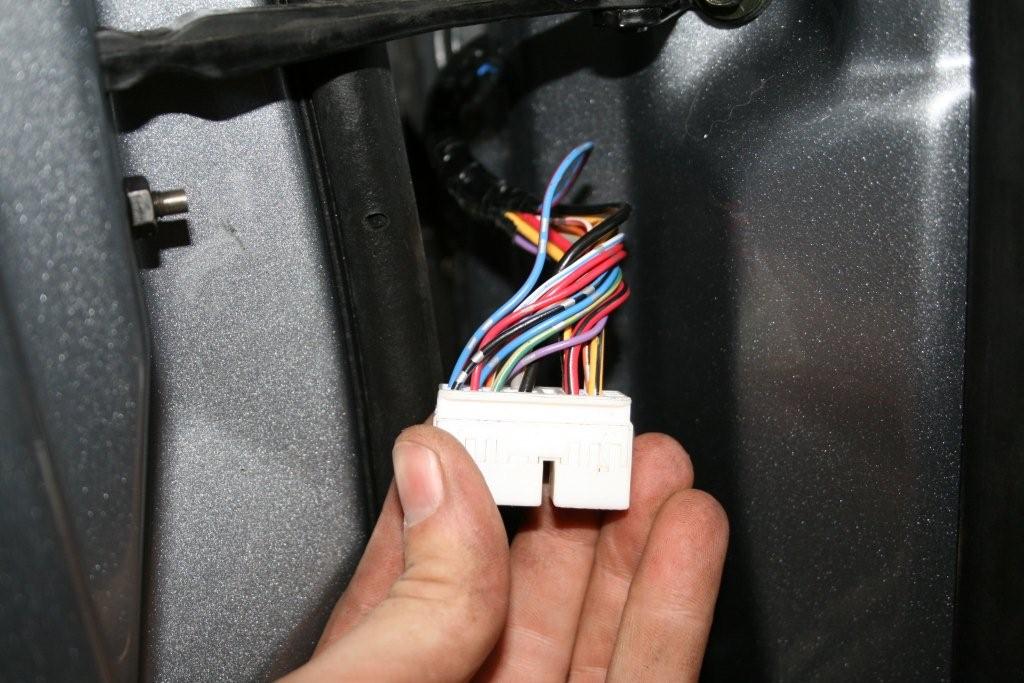

image 1 Red wire plus orange / white stripe no pins on door side of plug

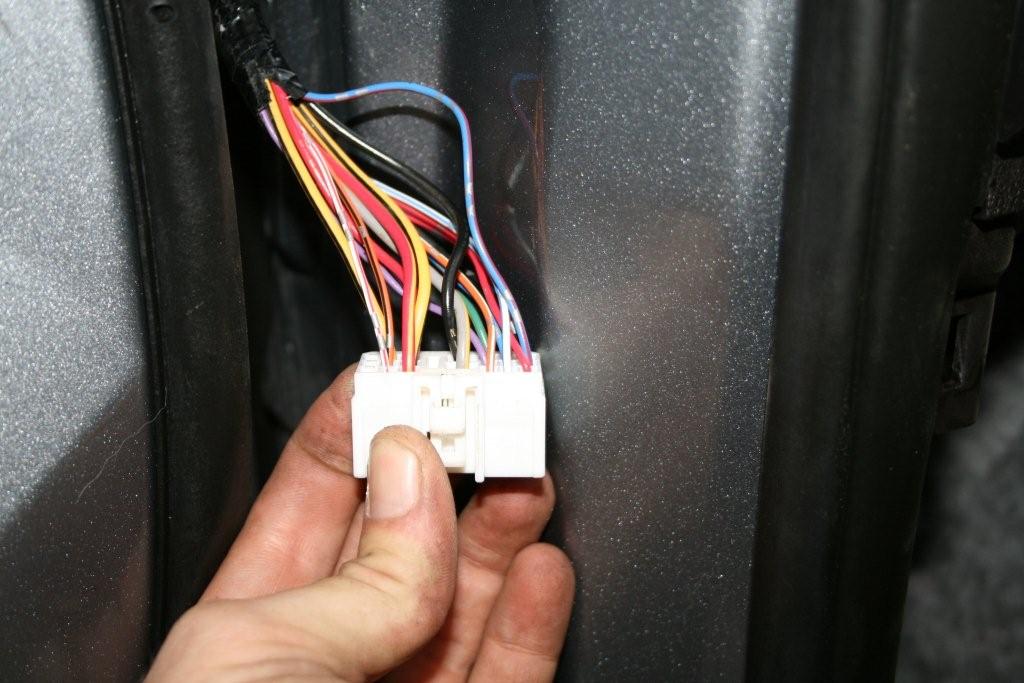

Image 2 Black wire plus green / yellow stripe no pins on door side
could this be for the temp sensor for mirror..

i am just trying to limit the fact of a new dash harness that all and by chance do you know where i could download a wiring schmatic from?
[/img]





Attachments:
File comment: Image #2
IMG_0312.jpg [ 106.79 KiB | Viewed 90 times ]
File comment: Image #1
IMG_0311.jpg [ 94.22 KiB | Viewed 95 times ]
Top
 Profile


Posted: Sun Mar 30, 2008 8:22 pm
Getting Side Ways
Offline
User avatar

Posts: 1123

Joined: 7th Nov 2005

Location: Newcastle
NSW, Australia

Take a look at the actual mirror plug. Normal mirrors have a smaller 3-pin connector, mirrors with temp sensor (std or memory mirros) have a 5-pin connector.

As for the dash, the temp sensor isn't listed as a loom option, so i reckon it's in all dash looms. I don't have proof though.

And as for some schematics - you won't find diagrams that tell you what's in each loom which is a PITA. But I do know where you can find a BA workshop manual at the moment.

http://homepages.chilli.net.au/~ford/index.html


Lukeyson
Top
 Profile


Posted: Sun Mar 30, 2008 11:29 pm
Fordmods Newbie
Offline

Posts: 14

Joined: 3rd May 2007

Location: Perth
WA, Australia

Thanks mate...

Last question for now is, did your 09/03 XR6 with premo sound have the sunload sensor on it? just double checking with one of you previous posts..

thanks again mate
Top
 Profile


Posted: Mon Mar 31, 2008 7:45 am
Getting Side Ways
Offline
User avatar

Posts: 1123

Joined: 7th Nov 2005

Location: Newcastle
NSW, Australia

It had the connector, but no sensor.


Lukeyson
Top
 Profile


Posted: Mon Mar 31, 2008 4:01 pm
Getting Side Ways
Offline
User avatar

Age: 32

Posts: 4401

Joined: 25th Mar 2005

Ride: BA XT, BA XR6T, ED Ghia 5.0

Location: Perth
WA, Australia


Well, as of today and thanks to Dave (xpression) for doing by far most of the work my climate control is in.

Despite a few hiccups at first the climate is working 100%. Unfortunately the autolights refuse to work (every other function on the stalk works and the sunload sensor is fine, probably a dodgy multifunction switch) and my ICC appears to have had a bit of abuse :( - the screen has a few scratches which I'm not fussed about, but it refuses to play CD's properly. Yesterday it played a CD fine for eight minutes or so then spat it out.. ever since then I can load a CD but it tries to read it then spits it out after five seconds or so.

Also, the lack of a clock is already irritating me :) I'm considering emailing ASL to see what they can do with the ICC in regards to the CD stacker and perhaps any firmware changes that enable a clock.



_________________

What's the difference between a Holden and a sheep? It's less embarrasing getting out of the back of a sheep..

Top
 Profile


Posted: Mon Mar 31, 2008 4:06 pm
Getting Side Ways
Offline
User avatar

Age: 32

Posts: 4401

Joined: 25th Mar 2005

Ride: BA XT, BA XR6T, ED Ghia 5.0

Location: Perth
WA, Australia

Just to throw a bit more information out there:
kjoy064 - I reckon you could get away without auto headlights - mine arn't working but the climate control is fine. Also my original dash loom (from a low series Mark 1 BA) did not have a connector for the sunload sensor.



_________________

What's the difference between a Holden and a sheep? It's less embarrasing getting out of the back of a sheep..

Top
 Profile


Posted: Mon Mar 31, 2008 4:54 pm
Technical Contributor
Offline
User avatar

Age: 32

Posts: 2517

Joined: 7th Nov 2004

Gallery: 4 images

Ride: LS3 VF

Location: Bunbury
WA, Australia

yeh we need to get the auto lights sussed out. its buggin me hey,
Top
 Profile


Posted: Mon Mar 31, 2008 5:16 pm
Getting Side Ways
Offline
User avatar

Age: 32

Posts: 4401

Joined: 25th Mar 2005

Ride: BA XT, BA XR6T, ED Ghia 5.0

Location: Perth
WA, Australia

Heres another one too - the mobile phone wiring has no power, either the 12v line or ignition 12v line.

Apart from that, the new ICC looks much better (especially at night), the dual zone is fun toy to play with and even the new indicator stalk is nicer to use :)



_________________

What's the difference between a Holden and a sheep? It's less embarrasing getting out of the back of a sheep..

Top
 Profile
