Posted: Sun Feb 24, 2008 9:09 pm
Smokin em up
Offline
User avatar

Age: 31

Posts: 280

Joined: 21st Apr 2007

Gallery: 4 images

Ride: xr8 no.3 Au3 Ute

Location: Bundaberg
QLD, Australia

the first of the fpv wheels had the fpv logo in the bottom corner. they removed that feature on either ba mk2 or bf. and went to the wheel i have now. that is actually off a territory turbo. but they use the same wheel on current fpv's. oh and its an ef :P

getting the horn to work and the airbag should be easy enough. the switches are going to be hard. ef/el cruise switches are open circuit, then when u press a button it closes the circuit at a certain resistance. may be 10ohm or 2500ohm. ba switches are always closed circuit and when u press a button they change resistance in the circuit.
Top
 Profile


Posted: Mon Feb 25, 2008 3:09 am
Getting Side Ways
Offline

Age: 37

Posts: 512

Joined: 7th Mar 2006

Ride: Falcon GLI

Location: Perth
WA, Australia

looks like the momo wheel to me. im sure of it.. looks like the 1 fitted to the g220.. ill double check in the morning
Top
 Profile


Posted: Sun Mar 16, 2008 4:57 pm
Fordmods Newbie
Offline

Age: 27

Posts: 1

Joined: 9th Mar 2008

Ride: EL

Location: Mackay
QLD, Australia

i have a blue and black momo wheel from a ba in my el, went straight on but the wires need to be jioned as plaugs are different
Top
 Profile


Posted: Sun Mar 16, 2008 10:44 pm
Getting Side Ways
Offline
User avatar

Age: 32

Posts: 2754

Joined: 14th Apr 2005

Ride: fairmont

Location: mackay
QLD, Australia

can vouch for bretts wheel it looks bloody excellent in the car



_________________

Now i have a EF XR8 5spd.........mmmmmm 5L

Top
 Profile


Posted: Sun Mar 16, 2008 11:39 pm
Technical Contributor
Offline
User avatar

Age: 32

Posts: 2517

Joined: 7th Nov 2004

Gallery: 4 images

Ride: LS3 VF

Location: Bunbury
WA, Australia

as long as the airbags respond the the same changes in voltage/resistance it shouldnt be a problem
Top
 Profile


Posted: Sat Mar 22, 2008 7:43 pm
Getting Side Ways
Offline
User avatar

Posts: 1008

Joined: 21st Dec 2004

Ride: ED V8

Location: driving under the sun........now!
WA, Australia

Could you not just gut a set of BA switches and put in the EF EL swith gear? (ie EF electronics in the BA swithces??)

Only problem then would be the on off switch which is a totally different style of switch. Almost like a rocker??



_________________

ED XR8 Spri-mitatio-nt

Top
 Profile


Posted: Wed Apr 23, 2008 12:24 am
Parts Gopher
Offline

Age: 26

Posts: 71

Joined: 17th Apr 2008

Ride: 06/10 FG XR6 Sedan

Location: Adelaide
SA, Australia

I thought you aren't allowed to modify the steering wheel if there is an Airbag installed in it?



_________________

My band: www.myspace.com/hybridillusion

Top
 Profile


Posted: Wed Apr 23, 2008 12:28 am
Getting Side Ways
Offline
User avatar

Age: 28

Posts: 5889

Joined: 2nd Mar 2006

Gallery: 5 images

Ride: '14 Grand Cherokee

Location: Port Lincoln
SA, Australia

TomDrum wrote:
I thought you aren't allowed to modify the steering wheel if there is an Airbag installed in it?


its ok to put in another wheel with an airbag, if that airbag functions correctly.



_________________

11/93 ED OPT20 GLi | Full Boat Spec

Top
 Profile


Posted: Wed Apr 23, 2008 4:42 pm
Getting Side Ways
Offline
User avatar

Age: 33

Posts: 423

Joined: 17th May 2007

Wow, B series wheel looks awsome. Would the airbag respond to the EF's signals? Is the idicator stalk a pain in the a$$ to get to or is it all sweet?
Top
 Profile


Posted: Wed Apr 23, 2008 7:13 pm
Getting Side Ways
Offline
User avatar

Age: 34

Posts: 10826

Joined: 17th Apr 2005

Gallery: 34 images

Ride: BF MK11 XR 6 TURBO ZF 6spd

Power: 225 rwkw

Location: glenwood/sydney
NSW, Australia

very interesting mod... up until now i thought it was an impossibility... until now!.. good work! 8-)



_________________

Todd: Nurse, suction.
Nurse: The patient's not even here yet.
Todd: I know.

http://www.youtube.com/watch?v=_GQpRYRcAiA

Top
 Profile


 Post subject: Re: BA steering wheel to AU
Posted: Wed Mar 04, 2009 10:21 pm
Getting Side Ways
Offline
User avatar

Posts: 686

Joined: 11th Sep 2008

Location: Melbourne
VIC, Australia

hey mate, have you figured out how to make the BA switches work with the EF cruise? Im currently wirking on it now? Maybe we can both tackle this?
Top
 Profile


 Post subject: Re: BA steering wheel to AU
Posted: Thu Mar 05, 2009 6:50 am
Getting Side Ways
Offline
User avatar

Age: 27

Posts: 1998

Joined: 31st Dec 2007

Gallery: 9 images

Ride: xc wag's, tnklane wag's

Location: Munruben
QLD, Australia

philaddis wrote:
Could you not just gut a set of BA switches and put in the EF EL switch gear? (ie EF electronics in the BA switches??)

Only problem then would be the on off switch which is a totally different style of switch. Almost like a rocker??

Personally I'm thinking of doing the same and using a couple of the audio switches to do it as being for an el.
xpression wrote:
as long as the airbags respond the the same changes in voltage/resistance it shouldn't be a problem
yeah, but I'm particularly curious about the duel firing whether it would kick the s**t because of it.

If anybody has any technical info to add to this, I'm all ears, got 2 wheels and switch assemblies, 1 clockspring and airbag, and 2 deployed bags to lay with, so let us know.



_________________

Signature removed by moderator.signature must not exceed 120x500 pixles

Top
 Profile


 Post subject: Re: BA steering wheel to AU
Posted: Sun Mar 08, 2009 5:57 pm
Getting Side Ways
Offline
User avatar

Posts: 686

Joined: 11th Sep 2008

Location: Melbourne
VIC, Australia

DID IT! Just finished re designing the ba cruise switch so it works with EF/EL. Made the ba mode switch turn cruise off and ba cruise switch turn it on and evertyhing else is the same. I have photos i may put up if anyone is interested but can say now i spent about 10 hrs on these! If i get enough interest i will probably make more and do an exchange system?
Top
 Profile


 Post subject: Re: BA steering wheel to AU
Posted: Sun Mar 08, 2009 11:14 pm
Getting Side Ways
Offline
User avatar

Age: 27

Posts: 1998

Joined: 31st Dec 2007

Gallery: 9 images

Ride: xc wag's, tnklane wag's

Location: Munruben
QLD, Australia

Hey just wondering if you got the airbag worked out aswell or not.
Also keen on how you did the switches.



_________________

Signature removed by moderator.signature must not exceed 120x500 pixles

Top
 Profile


 Post subject: Re: BA steering wheel to AU
Posted: Mon Mar 09, 2009 12:02 am
Getting Side Ways
Offline
User avatar

Posts: 686

Joined: 11th Sep 2008

Location: Melbourne
VIC, Australia

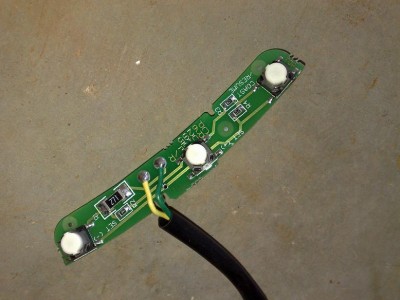

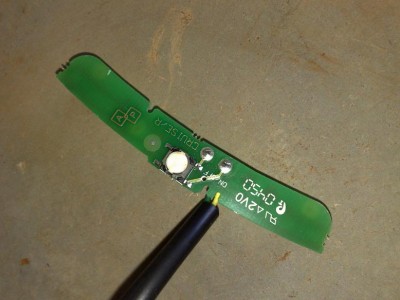

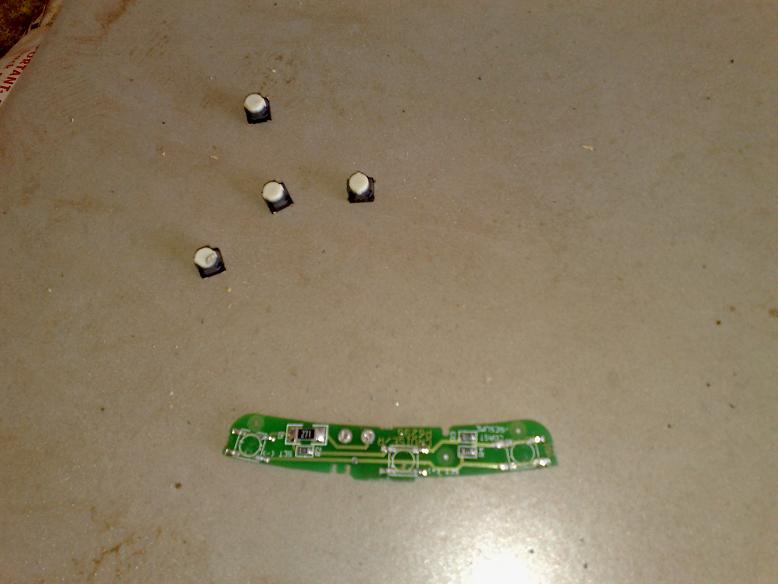

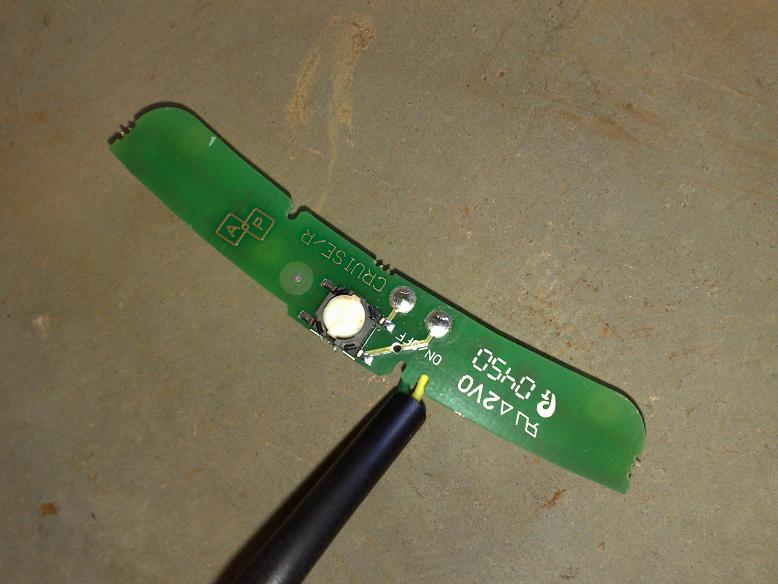

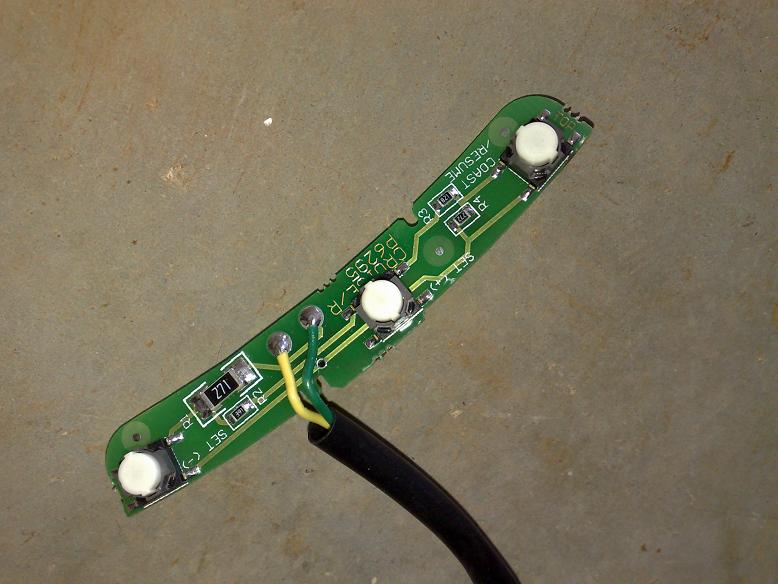

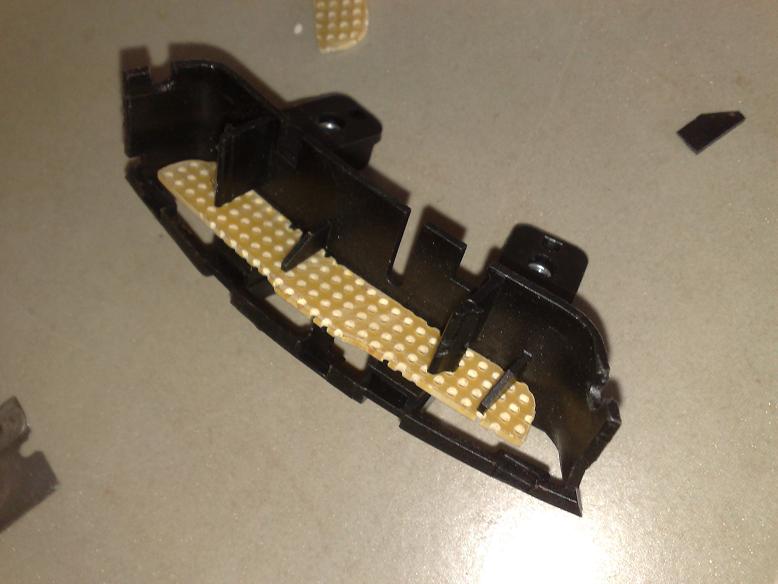

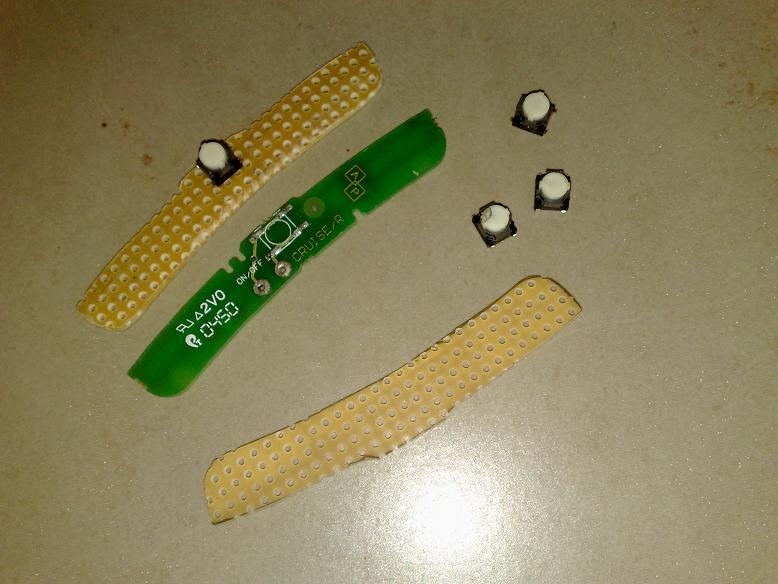

some pics of the process. My airbag is wired as normal. But have wired both stages to go off at once.





Attachments:
06032009435.jpg [ 59.29 KiB | Viewed 27 times ]
06032009434.jpg [ 74.97 KiB | Viewed 27 times ]
06032009433.jpg [ 52.67 KiB | Viewed 24 times ]
06032009432.jpg [ 70.7 KiB | Viewed 28 times ]
06032009431.jpg [ 77.6 KiB | Viewed 25 times ]
